Curtis DVD2047 Manuale utente

DVD HOME THEATRE SYSTEM

POWER

ON OFF

ENG

CONTENT

Front panel & back panel illustration............................1

Remote control..............................................2

System Subwoofer...........................................3

System Connection..........................................4

Video setup.................................................5

Remote control operation...................................6-8

Technical specification.......................................9

ENG

2 3 4 5 1.CD door

2.OPEN/CLOSE

3.PLAY/PAUSE

4.STOP

5.STANDBY

6.REMOTE SENSOR

7.POWER LIGHT

2 3 4

76 9

1.AC IN

2.Y

3.Pb/Cb

4.Pr/Cr

5.VIDEO

6.L

7.R

8.COAXIAL

9.S-Video

ENG

PREPARA TION OF THE REMOTE

CONTROL

At first , place the batteries into the

remote control, then you can use remote

control to operate the DVD video player.

1. Open the cover

2. Insert the batteries( No. AAA)

Make sure to match the +and on the

batteries to the marks inside the battery

Compartment.

3. Close the cover

Note on the batteries

Improper use of the batteries may cause

battery leakage and corrosion. To

operate the remote control correctly,

follow the instructions below.

REMOTE CONTROL

ENTER

When use, direct the remote control to the infra-red sensor (within 45 degrees).

Do not put remote control near to the place with high temperature or moisture.

Do not put water or any other object on remote control.

Do not usr new and old batteries or different type batteries togeter.

Please replace butteries when find remote control is out of work or weak sensitivity.

ENG

DISCRIPTION OF HOME THEATER SYSTEM

REAR PANEL OF THE SUBWOOFER

1.SUBWOOFER

2.SATELLITE (LEFT/RIGHT)

3.REMOTE CONTROL

4.POWER LED

5.POWER SWITCH

6.DVD PLAYER

7.AUDIO INPUT CABLE

8.INPUT JACK FOR CONNECTING TO THE DVD PLAYER

AUDIO R/L OUTPUT

9.OUTPUT JACK FOR CONNECTING THE SATELLITE SPEAKERS R/L

10.AC CABLE

SYSTEM SUBWOOFER

ENG

Home theater system connect instruction

Speaker-R

Speaker-L

SYSTEM CONNECTION

Speaker box

DVD Player

TV set

Yellow

Red

White

System setup

Language setup

Audio setup

Video setup

Speaker setup

Digital setup

TV System

Screen Saver

Video

TV TYPE

PASSWORD

RATING

DEFAULT

NTSC/PAL60/PAL/AUTO

ON/OFF

Interlace-YUV

P-SCAN YPBPR

S-VIDEO

4:3PS 4:3LB 16:9

0000

KID SAFE

PG13

PG-R

NC-17

ADULT

RESTORE

OSD LANGUAGE

AUDIO LANGUAGE

SUBTITLE

MENU LANGUAGE

AUDIO OUT

SPDIF/OFF

SPDIF/RAW

SPDIF/PCM

BRIGHTNESS

CONTRAST

HUE

SATURATION

SHARPNESS

LT/RT

STEREO

VSS

LINE OUT

RF REMOD

STEREO

MONO L

MONO R

MIX MONO

OP MODE

DYNAMIC RANGE

DUAL MONO

English

German

Spanish

French

Portuguese

System setup Language setup Audio setup Video setup Digital setup

DOWNMIX

Speaker setup

This player allows you to customise the performance to your persomal preforences.

Displaying the setup menu screen

The setup preferences.

The selected category will provide you the setting details using the following screen.

1.Press SETUP key to access the setup menu.

2.Press direction keys to (highlight) a item,then press ENTER to confirm.

3.Press SETUP key to exit setup menu,factory defaults.

ENG

VIDEO SETUP

Using the remote control to proceed for the following setup:

ENG

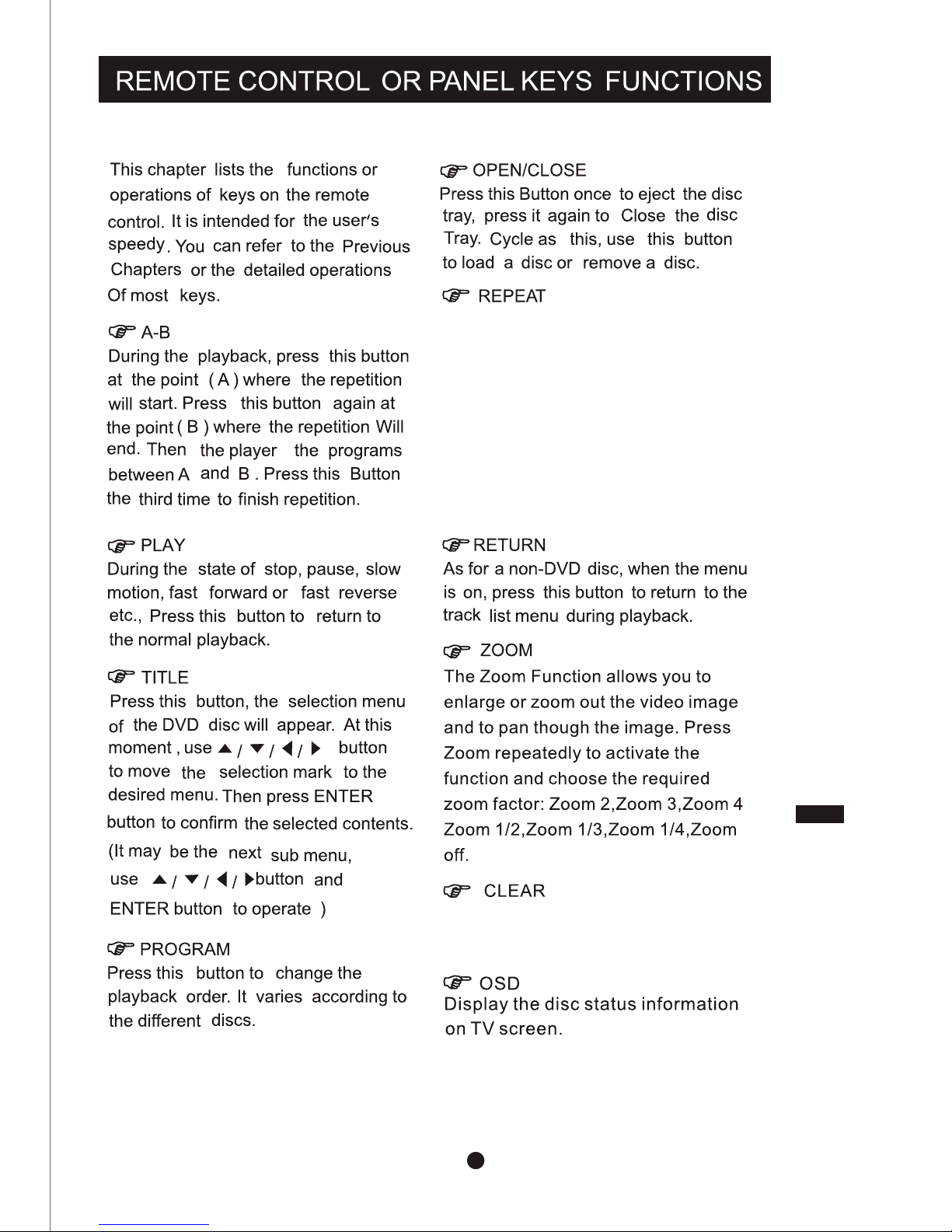

Press clear to delete the numbers

you have enterded.

Each press of the repeat button

will change the repeat mode.

During VCD Playback,there are

three modes:Repeat single,repeat

all and off.

During DVD Playback,there are

three modes:Repeat charpter,

repeat title and off.

Note:During VCD Playback,the

PCB Mode must be set to off.

ENG

Press again to

resume after soundless.

(For VCD only)
