Curtis MP4212 Manuale utente

User manaul

Reminder : Thank you for choosing the MP3 player! Please read the following user manual carefully to

ensure easy to operation of the player.

-1-

Attention…………………………………………………………………………3

1. Installation instruction………………………………………………………..4

2. Connect to PC and download…………………………………………… ..4

3. Basic operation……………………………………………………….……..3

4. How to use your MP3 player……………………………………………....6

5. Lock function…………………………………………................................12

6. USB mode……………………………………………………………………12

7 .Lyric sync …………………………………………………………………..13

8. Troubleshooting………………………………………………………………14

9. Technical specifications…………………………………………………….15

10.Support DRM10 function………………………………………………….15

-2-

Attention

1).Please do not use the player with earphone while driving an vehicle or riding a bicycle, It is not only

dangerous, but also against the law. And please keep your volume down when crossing streets.

2).Please insert earphone into earphone jack before opening the player, in order to avoid spoiling the

earphone, By this way, player can be taken good care.

3). Please do not expose to direct sunlight, heat sources or dusty areas and please keep away from

water .Please use soft wet-cloth to clean the dirty surface.

4). Please do not cleaning the player with chemicals such as alcohol or thinner.

5).To prevent static, avoid the extreme dry surroundings.

6).Do not disconnect the player with PC while you are doing “format ”or “ download” file.

7).When you use this player as a USB stick, please always follow the correct operation method .Any

misuse may cause file lost.

1. Installation instruction

1.1 Install the driver for Windows operating system 98se (For windows operating system

ME/2000/XP or greater, you need not install the driver.)

a. Click installation driver then computer will installation automatic.

2. Connecting and downloading

2.1 Connecting PC

Before operation, please verify the player is turned off, and one end of the USB cable came with

the system is inserted into PC with another end into the MP3 player.

2.2 Download MP3 songs

 MP3 player connects to the USB interface to download MP3 music to the player. The indicator

light is twinkling When the player is transferring data.

Transferring Data

Reminder: the player can only hold no more than 500 pieces songs.

2.3 Removing USB device

a. Double click the Safely Remove Hardware icon in taskbar:

-3-

b. From Safely Remove Hardware screen, highlight "USB Mass Storage Device" item, then click

"Stop" button. “Stop to hardware device” appears as shown below.

c. Click "OK" button. After the "Safe to Remove Hardware" window appears, the player can be

disconnected from PC safely.

Warning: An error might occur if remove the connection of the USB cable when transferring data. After

data transferred and “Safe to remove hardware ”window appeared the player can be removed from PC

safely! While the USB cable is operating, other keys on the pl

-4-

3.Basic operation

3.1Button and function

LCD window

3.2 Turn on/off

From shutdown mode, press  3 seconds to power on,Firstly player will update

the music library then create new music play list after finish update. Lastly player enter

MP3 standby mode.

MP3 standby mode:

From MP3 standby and play mode, press and hold 3 seconds, the system will

-5-

save the data and enter power off mode.

3.3 Main menu

From standby or play mode, press MENU button 2 seconds to enter main menu.

Press the or button to select Music, Voice, Music Library, Settings, Record, About,

Exit, and press the MENU button to enter the appointed setting.

4. How to use the MP3 player

4.1 Playing MP3 files

a. From MP3 standby mode, you can press the  button to play MP3 music as well as

pause and resume playing.

Playing: Pause:

b. From play or pause mode, you can press the button 2 second to return to MP3

standby mode, and press  button again to repeat step "a".

c. From MP3 standby or Play mode, you can press the or button to select last or

next music.

d. From STOP status, you can keep holding the or button to effectively find and play

your desired music.

e. From play mode, you can press + or - button to adjust volume.

f. From MP3 standby, play or pause mode, press button 3 seconds, the player will

save the data and enter shutdown mode.

4.2 Setting voice mode

From MP3 mode or voice standby mode, you can press the MENU button 2 seconds

to enter the main menu setting, and press the or button to select Voice mode, and

then press the MENU button to enter the voice playing mode, during which you can

repress  button to pause and resume playing.

Playing voice file menu Play voice file

-6-

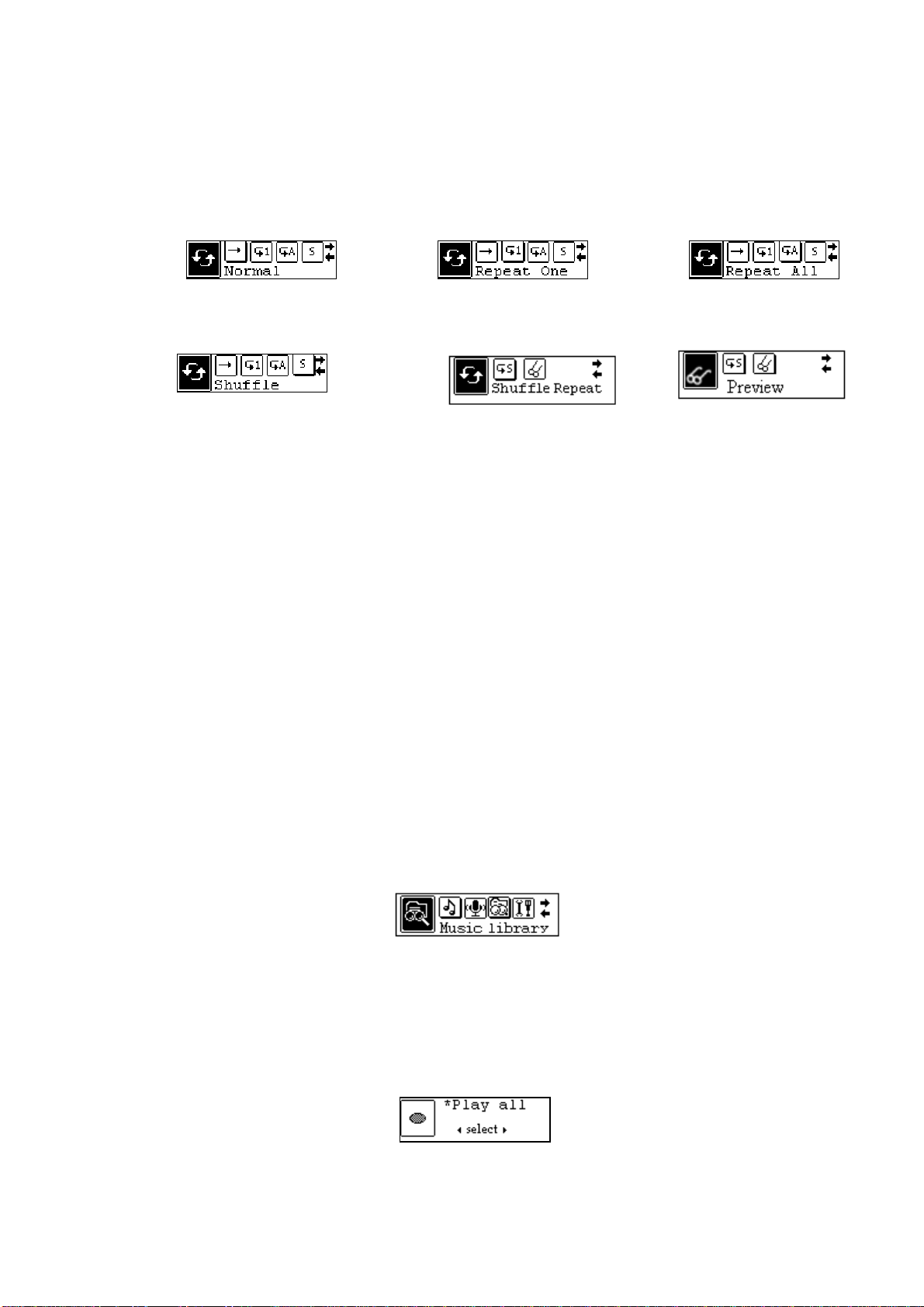

a.Voice play mode including :Normal.repeat one.repeat all and shuffle.shuffle

repeat.preview Normal Repeat one Repeat all

Shuffle Shuffle repeat preview

b.From voice standby or play mode, you can press the or button to select last or

next voice file.

c.From the STOP status, you can press theor button to effectively find and play

your desired music.

d. From Play mode, press and holdor button to fast backward or forward this music.

e.From Voice standby, play or pause mode, press button 3 seconds, the player will

save the data and enter shutdown mode.

4.3 Music library

From MP3 mode or voice standby mode, you can press the MENU button 2 seconds

to enter the main menu, and push the or button to select music library, and press the

MENU button to enter which includes:Play all, Artist, Album, Track , Genre, Year, Voice

record, Fm record and Exit, press MENU button to return to forward menu.

4.3.1 Play all

Under the Music Library mode ,press theor button to select play all

function ,press the MENU button to select and then the player begin playing all the songs

saved in it.

-7-

4.3.2 Artist

Under the Music Library mode ,press the or button to select artist function ,All the

songs will be sorted according to the artist. you can select certain artist which you love, or

select the play all then press the MENU button to confirm. then the system will play

automatically.

4.3.3 Album

Under the Music Library mode ,press the or button to select Album function , the

files saved in it, you can select certain file which you love, or select the play all then press

the MENU button to confirm. then the system will play automatically.

4.3.4 Track

Under the Music Library mode ,press the or button to select track function ,All the

songs will be sorted according to the track. you can select certain track which you love, or

select the play all then press the MENU button to confirm. then the system will play

automatically.

and then you press REC button to enter Delete single file interface,you can press the

or button to select .Press MODE button to ensure delete.

4.3.5 Genre

Under the Music Library mode ,press the or button to select genre function ,All the

songs will be sorted according to the genre. you can select certain genre which you love,

or select the play all then press the MENU button to confirm. then the system will play

automatically.

4.3.6 Year

Under the Music Library mode ,press the or button to select year function ,All the

songs will be sorted according to the published time. you can select certain song

-8-

which you love, or select the play all then press the MENU button to confirm. then the

system will play automatically.

4.3.7 Voice record

Under the Music Library mode ,press the or button to select Voice record

function ,All the voice files are saved in this folder, you can select certain file which you

love, or select the play all then press the MENU button to confirm. then the system will play

automatically.。

You can press REC button to enter Delete single file interface,and press the or 

button to select, Press MODE button to ensure delete.

4.3.8 Exit

Under the Music Library mode ,press the or button to select exit function ,press

the MENU button to return forward mode.

4.4 Setting function

From MP3 mode or voice standby mode, you can press the MENU button to enter

the main menu, and press the or button to select the setting menu. The setting menu

includes: EQ set, play mode, contrast, display time, power set, record set, text scroll

speed ,language, load default and exit. press MENU button to enter the setting which you

want.

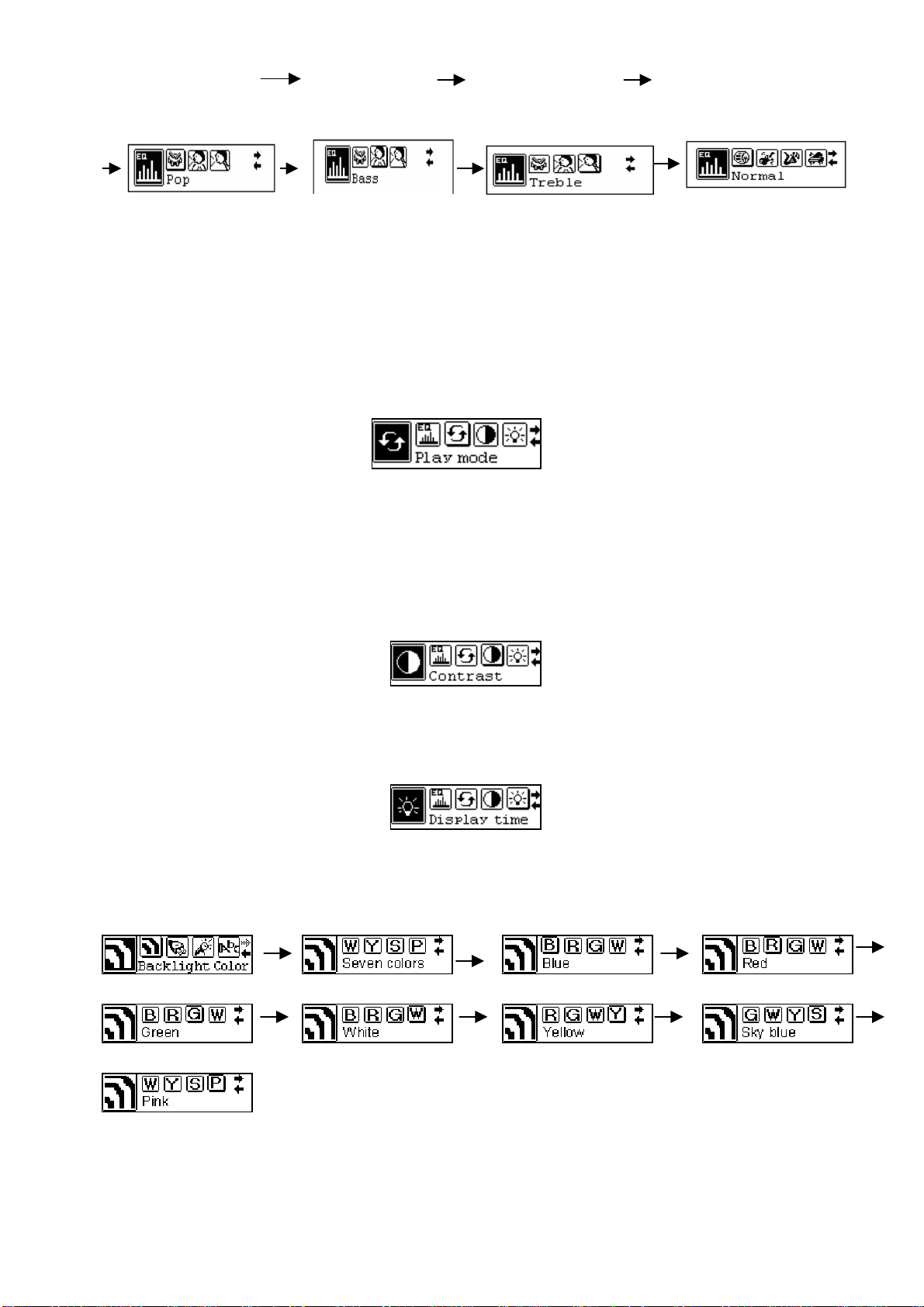

4.4.1 EQ setting

press theor button to select EQ mode which includes: Normal, Rock, Jazz,

Classical, Pop, Treble, and Bass, press the MENU button to save.

-9-

4.4.2 play mode setting

press theor button to select play mode which includes the following options:

Normal, Repeat one, Repeat all, Shuffle ,Shuffle Repeat and Preview. Press the MENU

button to save.

4.4.3 Contrast setting

press the or button to select the contrast, press the MENU button to enter the

contrast setting, repress the or button to adjust the contrast of LCD,Repress the

MENU to save.

4.4.4 Display time setting

press the or button to select display time setting which includes the following

options: o seconds, 5 seconds ,10 seconds, on(100%) . Press the MENU button to save.

4.4.5 Backlight color setting

press theor button to select Backlight color mode which includes: Blue, Red,

Green, White, Yellow, Sky blue, Pink, press the MENU button to save.

4.4.6 Power set

-10-
