CyberPower CPS1000E Manuale utente

K01-0000151-02

CPS1000E

User’s Manual

SAFETY AND EMC INSTRUCTIONS

This manual contains important safety instructions. Please read and follow all instructions carefully

during installation and operation of the unit. Read this manual thoroughly before attempting to unpack,

install, or operate your Emergency Power System (EPS).

CAUTION! To prevent the risk of fire or electric shock, install in a temperature and humidity controlled

indoor area free of conductive contaminants. (Please see specifications for acceptable temperature

and humidity range).

CAUTION! To reduce the risk of electric shock, do not remove the cover, except to service the battery.

There are no serviceable parts inside, except for the battery.

CAUTION! EPS must be connected to an AC power outlet with circuit breaker protection. Do not plug

into an outlet that is not grounded. If you need to de-energize this equipment, turn off and unplug the

unit.

CAUTION! To avoid electrical shock, turn off the unit and unplug it from the AC power source before

servicing EPS, replacing the external battery or installing equipment.

CAUTION! To reduce the risk of fire, only connect the EPS to a circuit with 10 amperes maximum

branch circuit over-current protection in accordance with the CE requirement.

CAUTION! The building wiring socket outlet (shockproof socket outlet) must be easily accessible and

close to the EPS.

CAUTION! Please use only VDE-tested, CE-marked mains cable (e.g. the mains cable of your

equipment) to connect the EPS to the building wiring socket outlet (shockproof socket outlet).

CAUTION! Please use only VDE-tested, CE-marked power cables to connect the loads to the EPS.

CAUTION! When installing the equipment, ensure that the sum of the leakage current of the EPS and

the connected equipment does not exceed 3.5mA.

CAUTION! Do not disconnect the mains cable on the EPS or the building wiring socket outlet

(shockproof socket outlet) during operations since this would remove the protective ground of the EPS

and of all connected loads.

DO NOT USE FOR MEDICAL OR LIFE SUPPORT EQUIPMENT!

DO NOT use in any circumstance that would affect operation and safety of any life support equipment,

any medical applications or patient care.

DO NOT USE WITH OR NEAR AQUARIUMS! To reduce the risk of fire or electric shock, do not use

with or near an aquarium. Condensation from the aquarium can cause the unit to short out.

DO NOT INSTALL THE EPS WHERE IT WOULD BE EXPOSED TO DIRECT SUNLIGHT OR NEAR

HEAT!

DO NOT BLOCK OFF VENTILATION OPENINGS IN THE EPS’S HOUSING!

SAFETY:

EN62040-1-1

EMI:

Conducted Emission: IEC/EN 62040-2…Category C2

Radiated Emission: IEC/EN 62040-2……Category C2

Harmonic Current: IEC/EN61000-3-2

Voltage Fluctuations and Flicker: IEC/EN61000-3-3

EMS:

IEC/EN61000-4-2(ESD)

IEC/EN61000-4-3(RS)

IEC/EN61000-4-4(EFT)

IEC/EN61000-4-5(lightning surge)

IEC/EN61000-2-2 (Immunity to low frequency signals)

INSTALLING YOUR EPS

UNPACKING

Inspect the EPS upon receipt. The box should contain the following:

(1) EPS Unit x 1; (2) User Manual x 1; (3) Input Power Cord x 1

AUTOMATIC VOLTAGE REGULATOR

Utility power is inconsistent. The EPS increases low voltage to computer safe 230 volts. The EPS

automatically provides battery backup (External battery connection required) if the voltage drops below

140 volts or exceeds 300 volts.

HARDWARE INSTALLATION GUIDE

1. Your new EPS may be used immediately upon receipt. However, recharging the external battery

for at least 8 hours is recommended to ensure that the battery’s maximum charge capacity is

achieved (Charging time varies with capacity and a 100Ah or great battery is recommended). To

recharge the external battery, simply leave the unit plugged into an AC outlet. Your EPS is

equipped with an auto-charge feature. When the EPS is plugged into an AC outlet, the external

battery will automatically recharge. The unit will charge when Battery Switch is ON, whenever

Power Switch is ON or OFF.

2. DO NOT use with medical or life support equipment. DO NOT use with or near aquariums

as condensation may cause the unit to short out.

3. After connecting the hard wires, plug the EPS into a 2 pole, 3 wire grounded receptacle (wall

outlet). Make sure the wall branch outlet is protected by a fuse or circuit breaker and does not

service equipment with large electrical demands (e.g. air conditioner, copier, etc…). The warranty

prohibits the use of extension cords, outlet strips, and surge strips.

4. Press the power switch to turn the unit on. The power on indicator light will illuminate and the unit

will beep once.

5. If an overload is detected, an audible alarm will sound and the unit will emit one long beep. To

correct this, turn the EPS off and unplug at least one piece of equipment from the battery power

supplied outlets. Wait 10 seconds. Make sure the circuit breaker is depressed and then turn the

EPS on.

6. To maintain optimum battery charge performance, make the EPS plugged into an AC outlet at all

times. Enabling the switch provides the bypass for charge only.

BASIC OPERATION

DESCRIPTION

1. Power Switch

Used as the master on/off switch for equipment connected to the AC outlets.

2. Power On Indicator

This LED is above the power switch. It illuminates when the utility condition is normal and the AC

outlet is providing power, free of surges and spikes.

3. Multifunction LCD Readout

High resolution and intelligent LCD display shows all the EPS information with icons and messages.

For more information please check the DEFINITIONS FOR ILLUMINATED LCD INDICATORS

section.

4. LCD Display Toggle / Selected Switch

Users can monitor EPS status and set up functions using the toggle. The buzzer on/off can also be

controlled by the toggle switch. Please refer to “EPS Status Inquiry and Functions Setup” section

for more details.

5. AC Outlet

The unit has two Schuko type outlets for connected equipment to ensure temporary uninterrupted

operation during a power failure. Max. Output is 10A; Max. Output wattage is 700W.

Note! Maximum cord length is 10 meters and the cable O.D. must be 14AWG or greater.

6. AC Inlet

AC input terminals

Note：

：：

：The O.D. of the distribution cables must be 14AWG or greater.

7. DC Inlet

Battery input terminals

Note：

：：

：Maximum battery wiring cable length is 2 meters and the cable O.D. must be 4AWG or

greater.

8. Battery Switch

Turn on/off the battery switch, and the battery source will be connected/disconnected to the EPS

unit. The unit will only charge in the ON position.

9. AC Output Circuit Breaker

Located on the back of the EPS, the circuit breaker serves to provide overload and fault protection.

10. AC Input Circuit Breaker

Located on the back of the EPS, the circuit breaker serves to provide overload and fault protection.

11. Battery Input Wiring Fault LED

Battery input wiring fault LED will illuminate to indicate the wiring polarity is reversed.

12. Bypass Switch

Bypass switch provides the bypass for charge only. In charger only mode, AVR and battery backup

will not work.

INSTALLATION GUIDE

Note: The installation must be done by professionals.

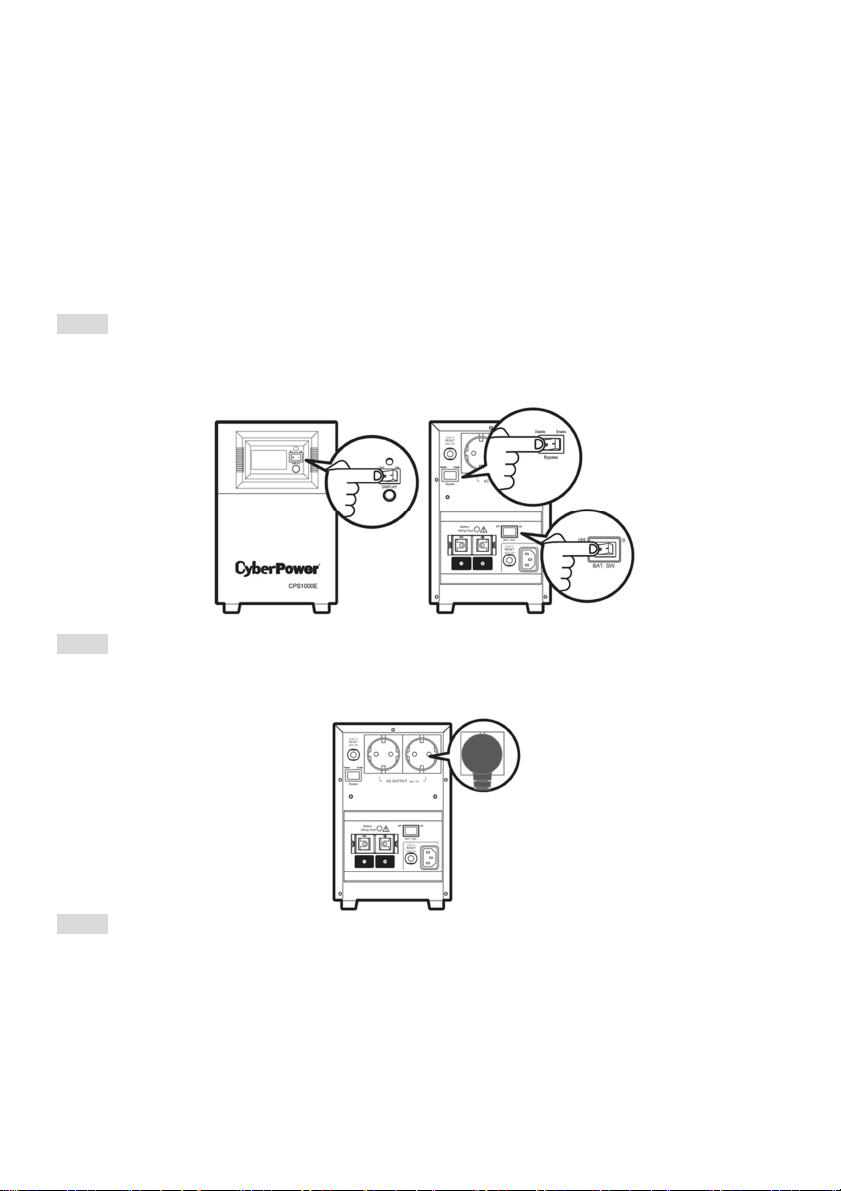

STEP1

- Remove the cover from the back of the machine.

- Make sure both the POWER SW. and the BATTERY SW. are turned off and the Bypass SW. is

disabled.

STEP2

- Connect the AC OUTPUT connections.

STEP3

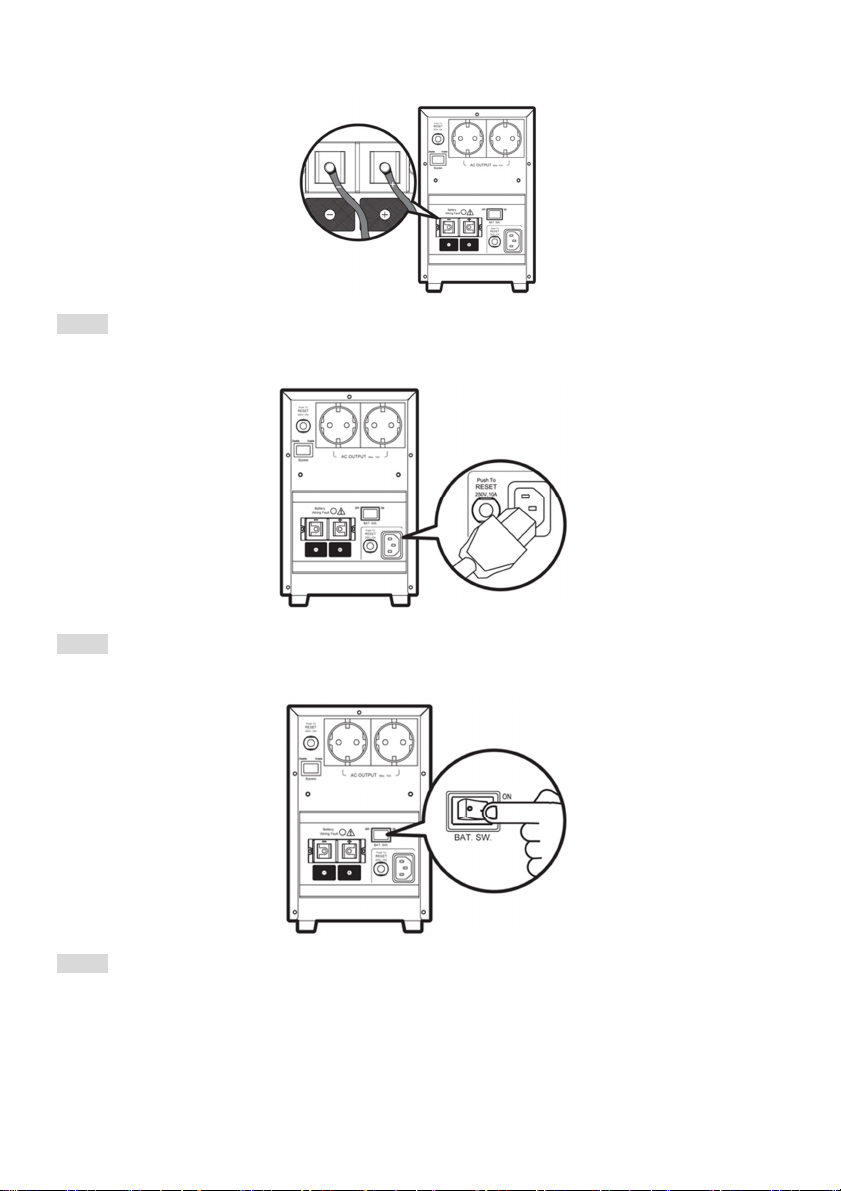

- Connect the batteries to the BATTERY INPUT.

- Connect red (positive (+)) battery cable to the red (positive (+)) connectors on the EPS and

external batteries.

- Connect black (negative (-)) battery cable to the black (negative (-)) connectors on the EPS and

external batteries.

- WIRING FAULT LED will illuminate to indicate the wiring polarity is reversed.

STEP4

- Connect the AC power source to AC INPUT (Make sure AC power is off first).

STEP5

- Turn on the BATTERY SW. on the back of the machine.

STEP6

- Turn on the Power Switch on the front panel. The Power On Indicator and the LCD Display will

blink 4 times. Press the Display toggle (Selected Switch) once. The output voltage showing on the

LCD Display should be 230V. This completes the start-up process.

- Press and hold the Display toggle switch for 4 seconds. The machine will begin a self test and

enter Battery Mode for 10 seconds before returning to Line Mode. Make sure the self test is ready,

or see the Definitions for illuminated LCD on page 9 for a list of alarm code definitions.

- After ensuring the machine works normally, reassemble the back cover. The installation is now

complete.

- When the external battery needs to be maintained or replaced remember to turn the machine off.

Once off, remove the AC power source and switch off the BATTERY SW. before maintenance or

replacing the batteries. When the work is complete, please start from Step 3 to re-install the

machine.

REPLACING THE BATTERY

CAUTION! Read and follow the IMPORTANT SAFETY INSTRUCTIONS before servicing the battery.

Battery service should only be done by qualified professionals.

CAUTION! Use only the specified type and number of external batteries. Please see the technical

specifications for replacement batteries.

CAUTION! The battery may present a risk of electrical shock. Do not dispose of battery in a fire as it

may explode. Follow all local ordinances regarding proper disposal of batteries. Lead-acid batteries

should be recycled.

CAUTION! Do not open or mutilate the batteries. Released electrolyte is harmful to skin and eyes and

may be toxic.

CAUTION! The external battery cabinet must be provided with 100A / 12V for models CPS1000E.

CAUTION! A battery can present a high risk of short circuit current and electrical shock.

Take the following precautions before replacing the battery:

1. Remove all watches, rings or other metal objects.

2. Only use tools with insulated handles.

3. Do not lay tools or metal parts on top of battery or any terminals.

4. Wear rubber gloves and boots.

5. Determine if the external battery is inadvertently grounded. If grounded, remove the source of

ground. CONTACT WITH GROUNDED BATTERY CAN RESULT IN ELECTRICAL SHOCK!

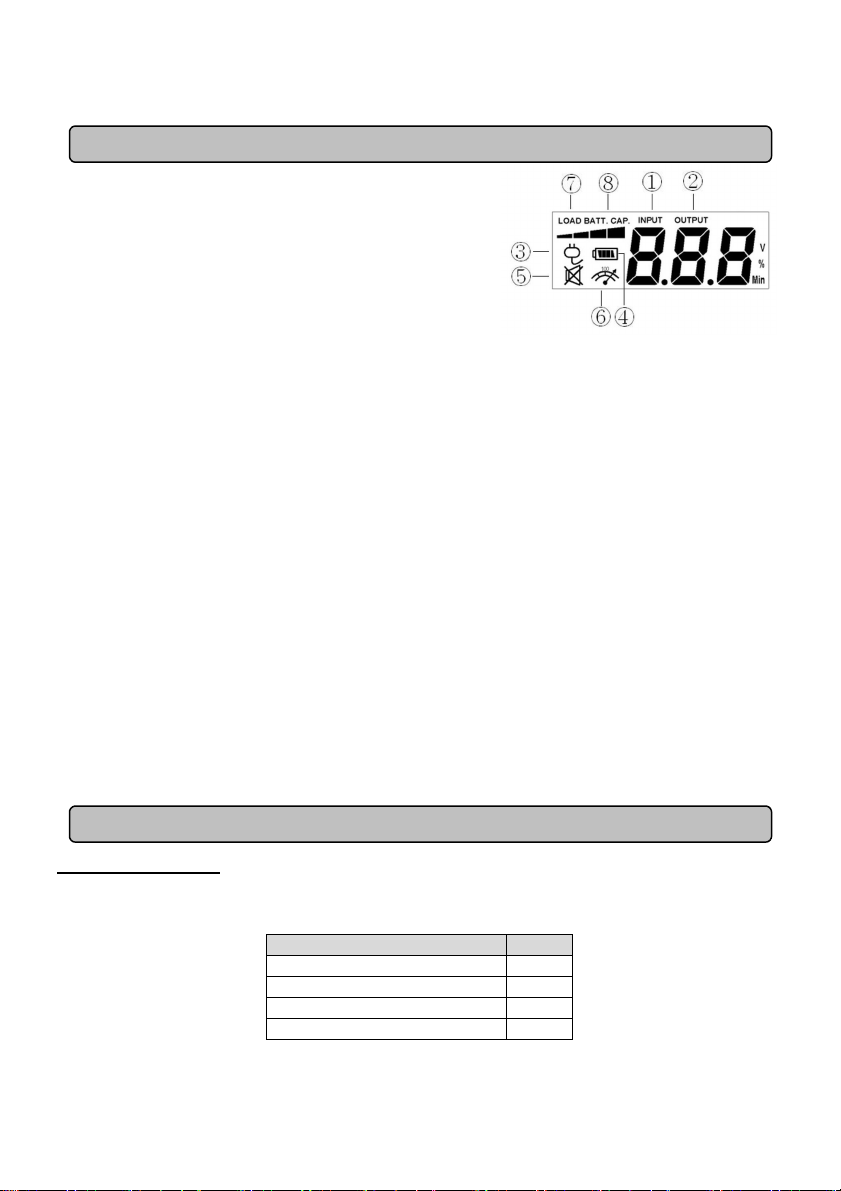

DEFINITIONS FOR ILLUMINATED LCD INDICATORS

The LCD Display indicates a variety of EPS operational

conditions. All descriptions apply when the EPS is plugged

into an AC outlet and turned on or when the EPS is on

battery.

1. INPUT VOLTAGE Meter: This meter measures the AC voltage that the EPS is receiving from the

utility wall outlet. The EPS is designed, through the use of automatic voltage regulation, to

continuously supply connected equipment with stable, 230 output voltage. In the event of a

complete power loss, severe brownout or over-voltage the EPS will rely on its external battery to

supply consistent 230 output voltage. The Input Voltage Meter can be used as a diagnostic tool to

identify poor quality input power.

2. OUTPUT VOLTAGE Meter: This meter measures, the AC voltage that the EPS is providing to the

computer. It displays normal line mode, AVR mode, and battery backup mode.

3. NORMAL MODE Icon: This icon will illuminate when the EPS is working under normal conditions.

4. ON BAT (On Battery) Icon: When a severe brownout or blackout, this icon appearing and an

alarm (two short beeps) activated indicate that the EPS is working via its batteries. Once the

batteries are running out of power, for a period of time, an alarm (two short beeps) will appear

continuously. If this occurs, it is recommended that save your files and turn off your equipment

manually as soon as possible.

5. SILENT MODE Icon: This icon appearing indicates that the buzzer does not beep in the silent

mode until the low battery capacity.

6. OVER LOAD Icon: This icon appearing and an alarm activated indicate that the overload

condition. To relieve the overload, unplug your equipment from the EPS outlets until the icon

disappears and the alarm stops being activated.

7. LOAD CAPACITY: Load CAPACITY is also shown on the bar chart; equal 25% load capacity for

each segment.

8. BATTERY VOLTAGE: BATT. VOLTAGE indicates the voltage of battery.

EPS STATUS INQUIRY AND FUNCTIONS SETUP

GENERAL MODE

a. Press the “Display” button to check the status of the EPS

Items Unit

Input Voltage V

Output Voltage V

Load Capacity %

Battery Voltage V

b. Press and hold the Display toggle for 4 seconds.

If the machine is in the Battery Mode, it enters the silent mode. Press again for 4 seconds and it

will return to normal (buzzer) mode.

If the machine is in the Line Mode, it proceeds to Self Test.

c. If the Display toggle remains untouched for over 30 seconds, the LCD backlight will turn off

automatically.

SET-UP MODE

Step 1: Hold the Display toggle for 10 seconds to enter the EPS set-up Mode. LCD icon 1, 2 lights

indicate Set-Up Mode.

Step 2: By pressing the Display toggle, users can switch between setup functions. User configurable

functions are as follows:

a. Delay Time: The time delay between switching from Battery Mode to Line Mode. There are 9

different settings. The default setting is 0 minute.

Function description: The machine will switch from Battery Mode to Line Mode after the AC

power transmission reaches stability within the preset delay time.

b. Charging Current: The function adjusts the battery charging current according to the capacity of

the connected batteries. It can be configured for 0, 25, 50, 75 and 100%. The default setting is 50

%. 100% indicates that charging current is about 15Amps.

c. Nominal Output Voltage: Configures the correct electricity/voltage supplied in the area/country

where the EPS will be used. 220V, 230V and 240V may be selected. The system default setting is

230 V.

Function description: AVR Dynamic Voltage Compensation works automatically based on the

system voltage settings.

d. Static Frequency Tolerance: There are 6 settings (1,2,4,6,8,10%), and the default setting is +/-6

Function description: The settings may be adjusted to the quality of the electricity in use.

e. Slew Rate: Also called Dynamic Frequency Tolerance. There are 5 different settings

(0.25,0.5,1,2,4 Hz/Sec). The default value is 4Hz/sec.

Function description: “Slew Rate” indicates the tolerance of a device in accepting frequency

variances. The lower “Slew Rate” results in less tolerance but better protection for the connected

loads.

f. Low Battery Shutdown Voltage: This function adjusts the EPS shutdown point according to the

battery voltage. The default setting is 10.8 V (with load).

g. Mode Select: The standard mode (setting: 2) and the robust mode (setting: 1) are provided to

select. Using the generators is suggested to select the robust mode (setting: 1), and using the

computers is suggested to select the standard mode (setting: 2). The system default setting is

standard mode (setting: 2).

The settable items are sorted by unit as in the following table:

Items Unit Icon Lit

Delay Time Min ON BAT

Charging Current % ON BAT

Nominal Output Voltage V NORMAL MODE

Static Frequency Tolerance % NORMAL MODE

Step 3: Press and hold the toggle for 4 seconds. When the icons blink, the value of each item can be

changed by slightly pressing the toggle.

Step 4: To save the value and return to general mode, press and hold the toggle for 4 seconds.

Note: If the machine is left idle for over 30 seconds during setup, it will turn off the backlight and

return to general mode automatically.

Note: If user wants to return to general mode without saving changes, there are two methods:

1. Wait for the backlight to turn off

2. Press and hold the “Display” toggle for 10 seconds

FAULT WARNING DISPLAY AND ALARM

1. Overheat Protection: The EPS output will be interrupted. After 30 seconds, the machine shuts

down and the LCD display output voltage is zero.

2. Over-Load Protection：

：：

：The EPS output will be interrupted. After 30 seconds, the machine shuts

down and Over Load Icon lights on the LCD display.

3. Battery Missing：

：：

：You should hear a long beep and Battery Indicator flashes。

4. Low Battery Protection: The EPS output will be interrupted. After 30 seconds, the machine shuts

down and the LCD display output voltage is zero.

5. The following table shows each corresponding warning message on the LCD display and the

alarm reacts during the machine shut down：

LCD Warning

Display

Alarm

Condition Solution

Over Load Icon Constant tone

Over Load Output-Off

- Load exceed the

rating of EPS.

Check total load to

confirm the rating of

EPS.

Battery Icon Flash Beep Once

Battery Missing- In

Line Mode Battery

Missing.

Turn the EPS off,

check battery wiring

and presence of

battery.

Zero Output Voltage Constant tone High Temperature

Output-Off

Check fans function

and air vent

clearances.

Slew Rate % None

Low Battery Shutdown

Voltage

V ON BAT

Mode Select None None

Firmware Version Here displays the firmware version. It

can not be configured.

Indice

Lingue:

Altri manuali CyberPower UPS

CyberPower

CyberPower CP1500EPFCLCD-UK Manuale utente

CyberPower

CyberPower PowerPanel Cloud Manuale utente

CyberPower

CyberPower RT650 Manuale utente

CyberPower

CyberPower 6K On-Line series Manuale utente

CyberPower

CyberPower PFC SINEWAVE UPS Series Manuale utente

CyberPower

CyberPower Value800EI Manuale utente

CyberPower

CyberPower CP825LCD Manuale utente

CyberPower

CyberPower 649532815197 Manuale utente

CyberPower

CyberPower Standby Series Manuale utente

CyberPower

CyberPower 649532005024 Manuale utente

CyberPower

CyberPower LX1100G3 Manuale utente

CyberPower

CyberPower 649532822027 Manuale utente

CyberPower

CyberPower BR700ELCD Manuale utente

CyberPower

CyberPower PR5000LCDRTXL5U Manuale utente

CyberPower

CyberPower CP900EPFCLCD Manuale

CyberPower

CyberPower CyberShield CS24C12V-E Manuale utente

CyberPower

CyberPower ST425 Manuale utente

CyberPower

CyberPower 649532018505 Manuale utente

CyberPower

CyberPower Standby CP550HG Manuale utente

CyberPower

CyberPower LX1100G Manuale utente

CyberPower

CyberPower 649532006878 Manuale utente

CyberPower

CyberPower CP1350EAVRLCD Manuale utente

CyberPower

CyberPower OR600ELCDRM1U Manuale utente

CyberPower

CyberPower OR500LCDRM1U Manuale utente

Manuali UPS popolari di altre marche

Pylontech

Pylontech Victron & Pylontech US5000 Manuale utente

Tecnoware

Tecnoware EVO DSP PLUS MM 6.8 Manuale utente

Mecer

Mecer ME-1000-WTU Manuale utente

Mustek

Mustek PowerMust 530(B) Plus Manuale di installazione e funzionamento

Emerson

Emerson Liebert NXL series Manuale utente

MAKELSAN

MAKELSAN BOXER SERIES Manuale utente

Block

Block PC-0524-400-0 Manuale utente

Eaton

Eaton 3S Istruzioni per il montaggio

Best Power

Best Power 610 Manuale utente

Best Power

Best Power Unity/I UT3K Manuale utente

Mustek

Mustek PowerMust 400 Offline Manuale utente

Xantrex

Xantrex Trace 512 UR-UPS Manuale utente

Forza

Forza SL-1501UL Manuale utente

LEGRAND

LEGRAND keor 310081 Manuale utente

ABB

ABB Conceptpower DPA 500 Manuale utente

ZincFive

ZincFive BC Series Manuale utente

BPC

BPC 1.5K SMART Manuale utente

IBM

IBM 5595-1AX Manuale utente
