Cycle Country 25-6020 Manuale utente
Arctic Cat
BearCat
WINCH KIT
INSTALLATION
MANUAL
KIT NUMBER: 25-6020
© 2005 CYCLE COUNTRY ACCESSORIES CORP.
Rev. 1
2/20/06
42
3
1
5
#25-6020

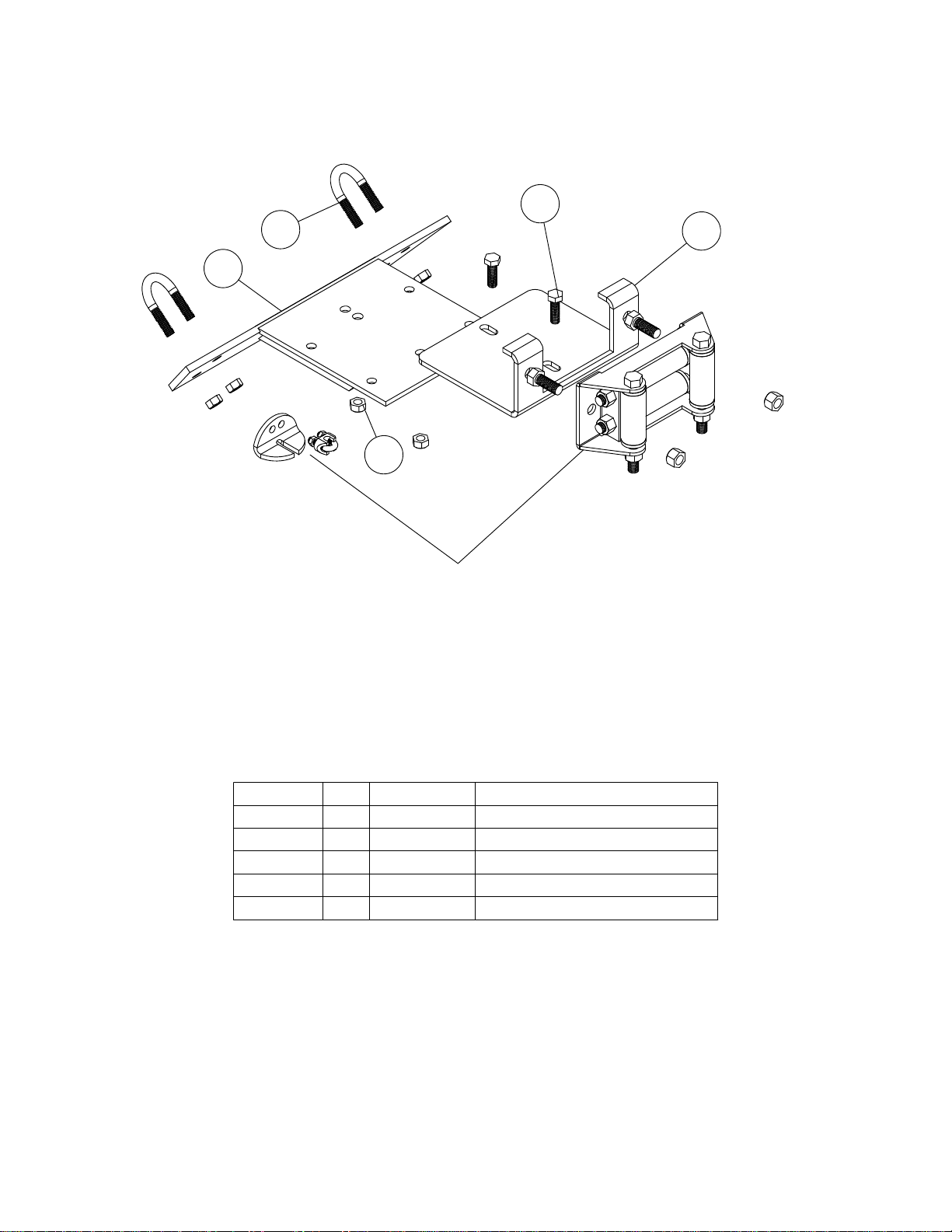

Parts List
Please Note:
The roller hawse, cable clamp,
and cable stop are included with the winch.
ITEM NO. QTY. PART NO. DESCRIPTION
1 1 WNA200 Winch Mount Plate
2 1 CYC5318 Roller Hawse Mount Plate
3 2 PUR1155 5/16" x 1" Bolt
4 2 PUR1419 5/16" x 1-1/4" x 2" U-Bolt
5 6 PUR1275 5/16" Nylock Nut
2

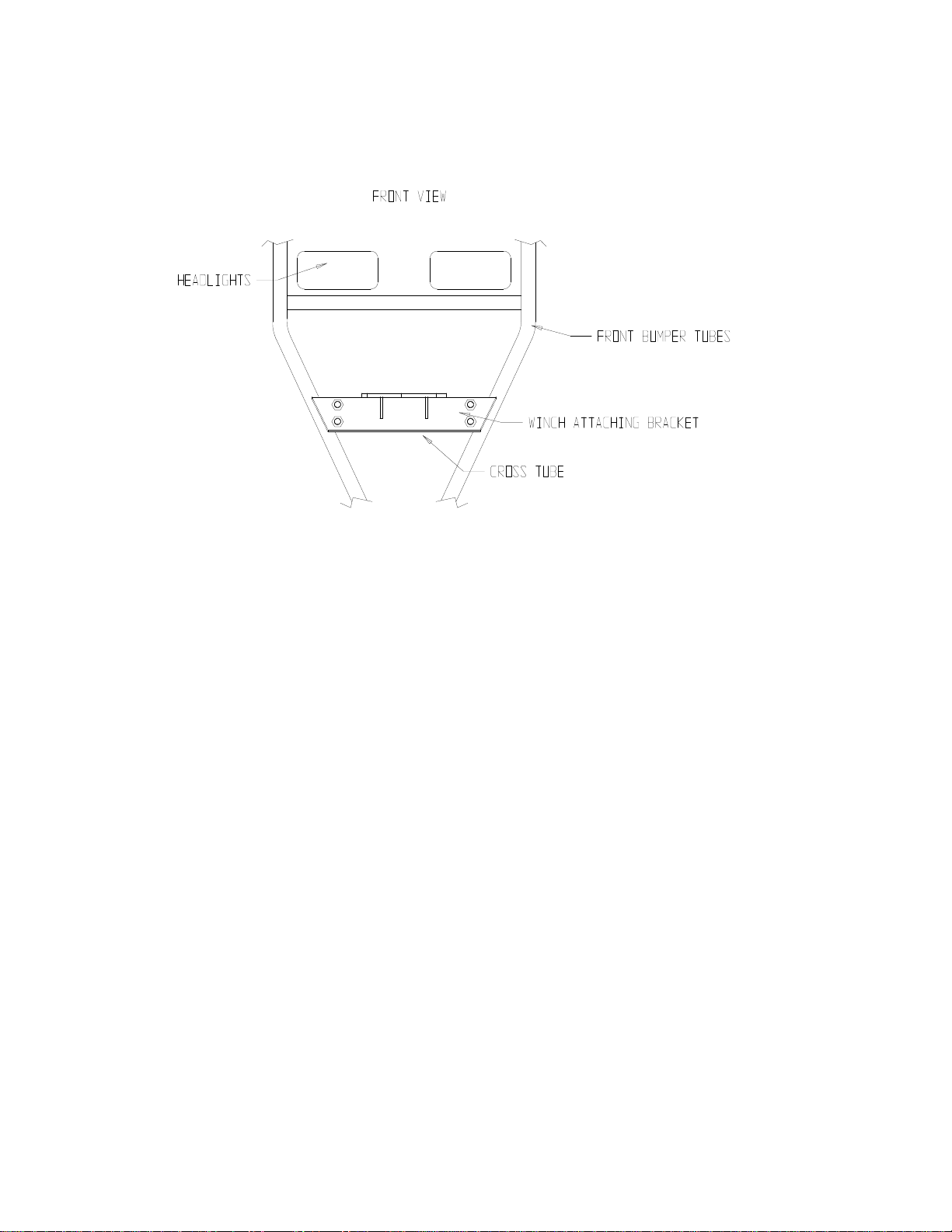

1. Place the Winch Mount Plate against the lower cross tube on the front bumper tubes.
See diagram below. Center the Winch Mount Plate on the cross tube and secure the
Winch Mount Plate to the ATV using the two 5/16” U-bolts. See the diagram below.
CYCLE COUNTRY 1500/2000 WINCH INSTALLATION INSTRUCTIONS
Mount the Roller Hawse Mount Plate between the Winch and Winch Mount Plate.
Mount the Winch to the Winch Mount Plate using the 5/16” x 1” bolts, being sure the
Winch Motor is to the LEFT side of the ATV.
Remove one of the long rollers and feed the winch cable through the roller hawse. Next
reinstall the roller. Be sure roller moves freely.
Go to instruction #3.
WARN WINCH INSTALLATION INSTRUCTIONS
Remove the Hawse Mount from the Hawse Frame by removing the two Locknuts. Attach
the Hawse Frame to the Short side of the Factory Hawse using the two 3/8" x 1" Bolts.
Using the four 5/16" bolts supplied with the winch attach the winch and hawse to the
Winch Mount Plate according to the instructions supplied with the Warn Winch. Be sure
the winch motor is to the RIGHT side of the machine.
Remove one of the long rollers and feed the winch cable through the roller hawse. Next
reinstall the roller. Be sure roller moves freely.
Go to next instruction #3.
3. See Winch Wiring Instructions supplied with the Winch for proper installation.
3
4
CAUTION
BE AWARE OF THE CABLE STOP CONTACTING THE ROLLER
HAWSE WHEN THE CABLE IS WOUND IN.
FAILURE TO RELEASE THE SWITCH MAY CAUSE DAMAGE T
O
WINCH PARTS OR TO THE ATV.
When using the Winch to raise and lower a Cycle Country Plow, a
Cable Stop must be installed.

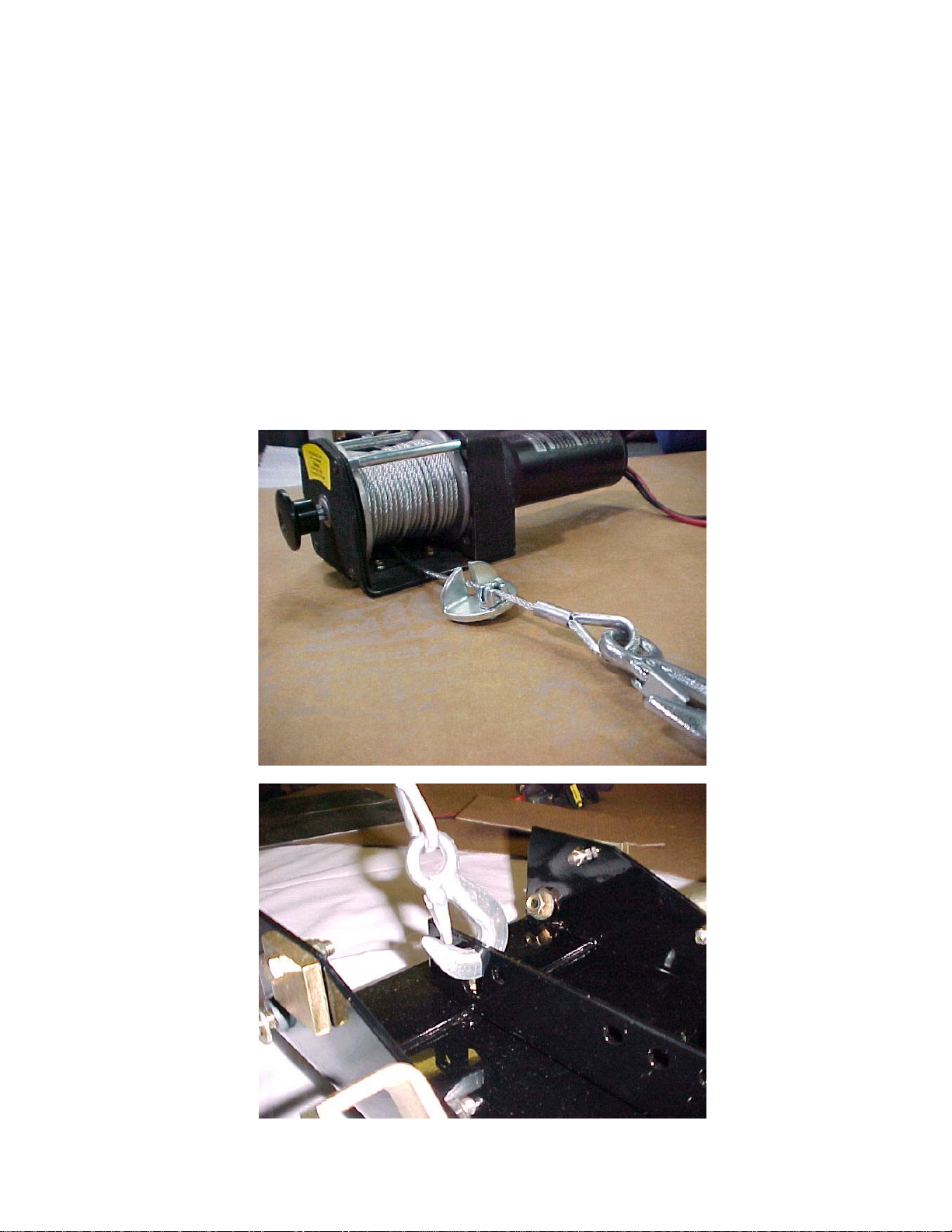

Hook the Winch Cable to the CYC0345 (U608) (item #4 on your 15-0001 push tube
kit) through the slotted hole. Carefully raise the blade until the top of the push tube
are no closer than 1” anywhere on the ATV. Place the Cable Stop onto the Winch
Cable up against the Winch Hawse. Secure the Cable Stop to the Winch Cable using
the Cable Clamp Assembly as shown in the pictures below.
ONE YEAR LIMITED WARRANTY
For the period of one year from the purchase date Cycle Country Accessories
Corporation will replace for the original purchaser, free of charge, any part or parts, when
found, upon examination by Cycle Country Accessories Corporation, to be defective in
material, workmanship, or both.
All transportation cost incurred by the purchaser in submitting the material to
Cycle Country Accessories Corporation for replacement under this warranty must be
borne by the purchaser. If Cycle Country Accessories Corporation determines that the
product must be returned to the factory for credit please call 1-800-841-2222 for an RMA
number and shipping instructions.
The warranty does not apply to parts that have been damaged by accident,
alteration, abuse, improper lubrication, normal wear, or other causes beyond Cycle
Country Accessories Corporation’s control. Products such as engines, electric motors,
and actuators may carry an original manufacturer’s warranty. Please call Cycle Country
Accessories Corporation for information.
1701 38TH AVE W
PO BOX 257
SPENCER, IA 51301
PHONE: 712-262-4191
FAX: 712-262-0248
SERVICE: 800-841-2222
E-MAIL: ccac
@
c
y
clecountr
y
.com
5
Cycle Country Accessories Corporation has been a world-renowned manufacturer of quality
ATV products since 1981 and we hope you will enjoy your new Cycle Country accessory.
We’re the Industry Snow Blade leader:
42”, 48”, 54”, 60” & 72” Straight Blades
52” & 60” State Plows
Power ‘V’ Blade
If a winch is what you must have, then you’ve come to the right place:
1500lb, 2500lb and 3000lb Winches
We also have an extensive line of winch mounts for both Cycle Country and Warn winches
If you need to haul more gear on your quad, check out our baskets:
Front Basket
Rear Basket
Rear Drop Basket
If you need to mow the trail before you go riding one of these will help:
Our 54” finish cut Quick Silver54 can be mounted in front or towed behind your ATV
The 48” Rough Cut will handle your toughest mowing jobs
The Rough Cut 44 provides an economical way to handle all your mowing needs
If you are into deer hunting and want to make a food plot, you will love our 3 Point
Hitch & Implements:
Rear Blade Moldboard Plow Spreader
Furrower Rake
Cultivator Disk Harrow
And many more accessories to help you Work Hard and Play Hard:
For more information call us at 1-800-841-2222, or on the web at www.cyclecountry.com
