CYP QU-18D Manuale utente
QU-12D/14D/18D
1 to 2/1 to 4/1 to 8
Distribution Amps
OPERATION MANUAL
Safety Precautions
Please read all instructions before attempting to unpack or install or
operate this equipment, and before connecting the power supply.
Please keep the following in mind as you unpack and install this
equipment:
Always follow basic safety precautions to reduce the risk of
fire, electrical shock and injury to persons.
To prevent fire or shock hazard, do not expose the unit to rain,
moisture or install this product near water.
Never spill liquid of any kind on or into this product.
Never push an object of any kind into this product through
module openings or empty slots, as you may damage parts.
Do not attach the power supply cabling to building surfaces.
Do not allow anything to rest on the power cabling or allow it to
be abused by persons walking on it.
To protect the equipment from overheating, do not block the
slots and openings in the module housing that provide
ventilation.
Revision History
Version No Date Summary of Change
VR0 20110901 Preliminary Release
VR1 20120307 Combine 1x2 & 1x4
Table of Contents
1
1
1
1
2
3
4
4
4
5
6
1. Introduction ……………………..……………………...…........….…….
2. Applications …………………..………………….……...................…..
3. Package Contents ………………………...........……….................…
4. System Requirements ……………..……….........………............…….
5. Features …………………………………………......……........…...……
6. Specications ………………………………...……..........………....….
7. Operation Controls and Functions ……………...……..............……
7.1 Front Panel ..............................................................................
7.2 Rear Panel .…………………………………..…….......…...….…
8. Connection and Installation ….………………….........…..…..…......
9. Acronyms …......................................................................................
1. Introduction
2. Applications
Simultaneous multi-channel display
Showroom display
Educational demonstration
Installation usage
3. Package Contents
DVI Splitter
5V DC Power Adaptor
Operation Manual
4. System Requirements
Input source equipment such as PC/NB or Blu-ray player signal with DVI or
HDMI to DVI adaptor cable and output to display monitor or TV with DVI
connection cable.
1
The QU-12D/14D/18D are high performance, HDCP compliant, DVI
distribution amplifiers allowing one DVI input to be distributed to multiple
displays simultaneously. Each of the buffered outputs can run up to 15 meters
(8-bit) and can be cascaded up to 3 layers.
5. Features
HDMI 1.3 and DVI 1.0 compliant
Supports PC resolutions: VGA to WUXGA
Supports HDTV resolutions : 480p to 1080p
Can be cascaded up to 3 layers
Each of the buffered output can run up to 15m/8bits or 10m/12bits
EDID: The device will read EDID of output 1 and will record it
2
6. Specications
Input Port 1 x DVI
Output Ports 2/4/8 x DVI
Audio Sampling Rate Up to 192 kHz
Power Supply 5V DC / 2.6A (US/EU standards, CE/FCC/UL certified)
ESD Protection Human body model: ±8kV (air-gap discharge)
±6kV (contact discharge)
Dimensions (mm) 102 (W) x 125 (D) x 30 (H)/2S
102 (W) x 141 (D) x 38 (H)/4S
240 (W) x 103 (D) x 29 (H)/8S
Weight(g) 280/', 550/', 550/'
Chassis Material Metal
Silkscreen Color Black
Operating Temperature 0˚C ~ 40˚C / 32˚F ~ 104˚F
Storage Temperature -20˚C ~ 60˚C / -4˚F ~ 140˚F
Power Consumption 3.5W/2S, 6W/4S,10W/8S
Relative Humidity 20 ~ 90%RH (non-condensing)
3
7. Operation Controls and Functions
7.1 Front Panel
① ① ② ③ ① ④ ⑤
DC 5V
DVI OUT
POWER
1
DVI OUT
8
DVI OUT
7
DVI INSYNC
① DVI OUT 7/8/1: These slots are to connect to the displays with DVI cables.
② SYNC LED: This LED will illuminate in RED when the source signal is
connected and detected by the unit.
③ DVI IN: This slot is to connect with input source equipment such as graphic
card or PC for input signal sending.
④ POWER LED: This LED will illuminate when the power is connected with
power supply.
⑤ DC 5V: Plug the 5V DC power supply into the unit and connect the
adaptor to AC wall outlet.
7.2 Rear Panel
①
DVI OUT
2
DVI OUT
3
DVI OUT
4
DVI OUT
5
DVI OUT
6
① DVI OUT 2~6: These slots are to connect to the displays with DVI cables.
4

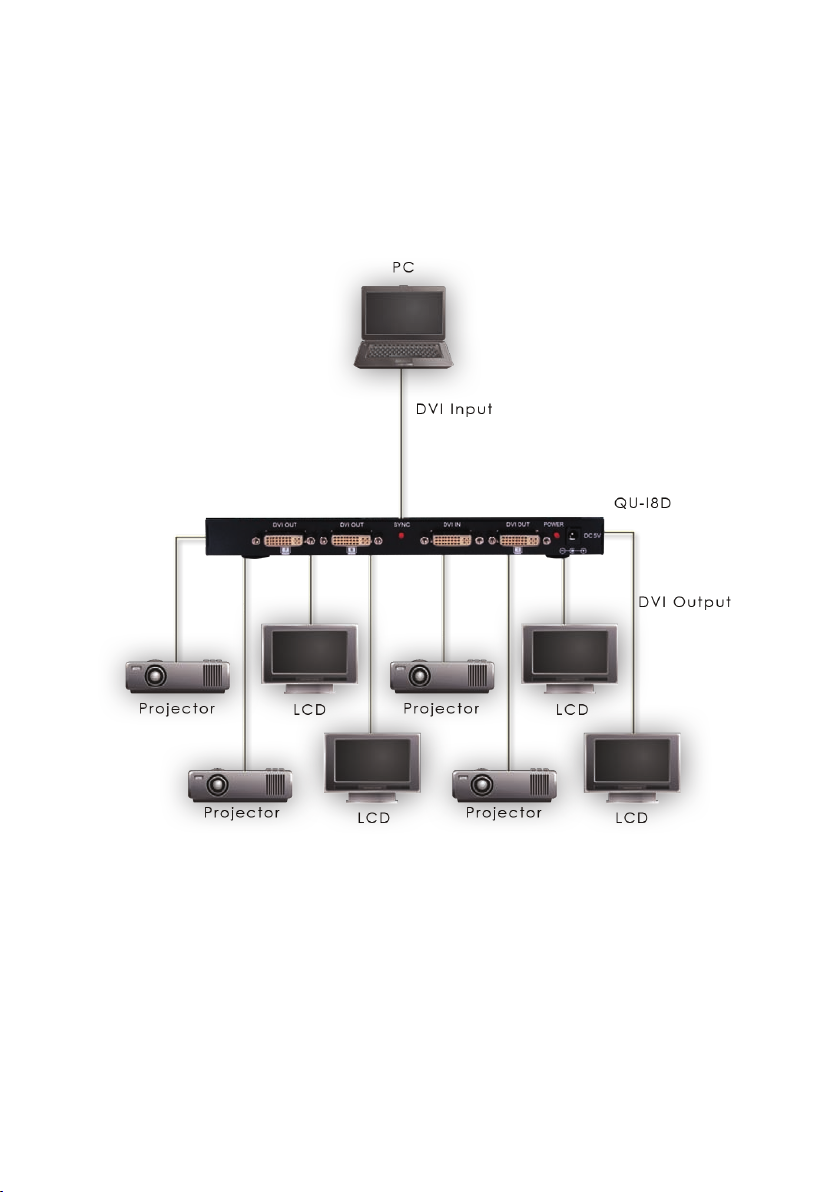

8. Connection and Installation
5
Acronyms A
Acronym Complete Term
DVI Digital Visual Interface
HDCP High-bandwidth Digital Content Protection
HDMI High-Definition Multimedia Interface
6
A
