Video System
Converter
Operation Manual
CDM-160
TABLE OF CONTENTS
1. Introduction.................................................................................1
2. Main Features............................................................................. 1
3. Hardware Description................................................................ 2
3.1 Front Panel.............................................................................2
3.2 Rear Panel............................................................................. 2
4. Connections and Installation.................................................... 3
5. Specifications.............................................................................. 3
1
1. Introduction
The Video System Converter is designed to convert video signal from source of
NTSC,N4 PAL, PAL M, PAL N and SECAM systems (automatically detected), to
NTSC or PAL signal selectable for the connected display to work properly. It is a
convenient device for users to connect source and display of different TV systems,
with the on-panel H.pos. adjusters which is easy to fine-tune screen offset caused
by display of different type.
2. Main Features
● Supports digital conversion from NTSC, N4, PAL, PAL M, PAL N and SECAM to
NTSC/PAL.
● Converts 525 lines to/from 625 lines.
● Converts refresh frequency between 60Hz and 50Hz.
● Provides color bar pattern when there is no signal present.
● System is capable with 8 Mb field memory.
2
3. Hardware Description
The following sections describe the hardware components of this converter
box.

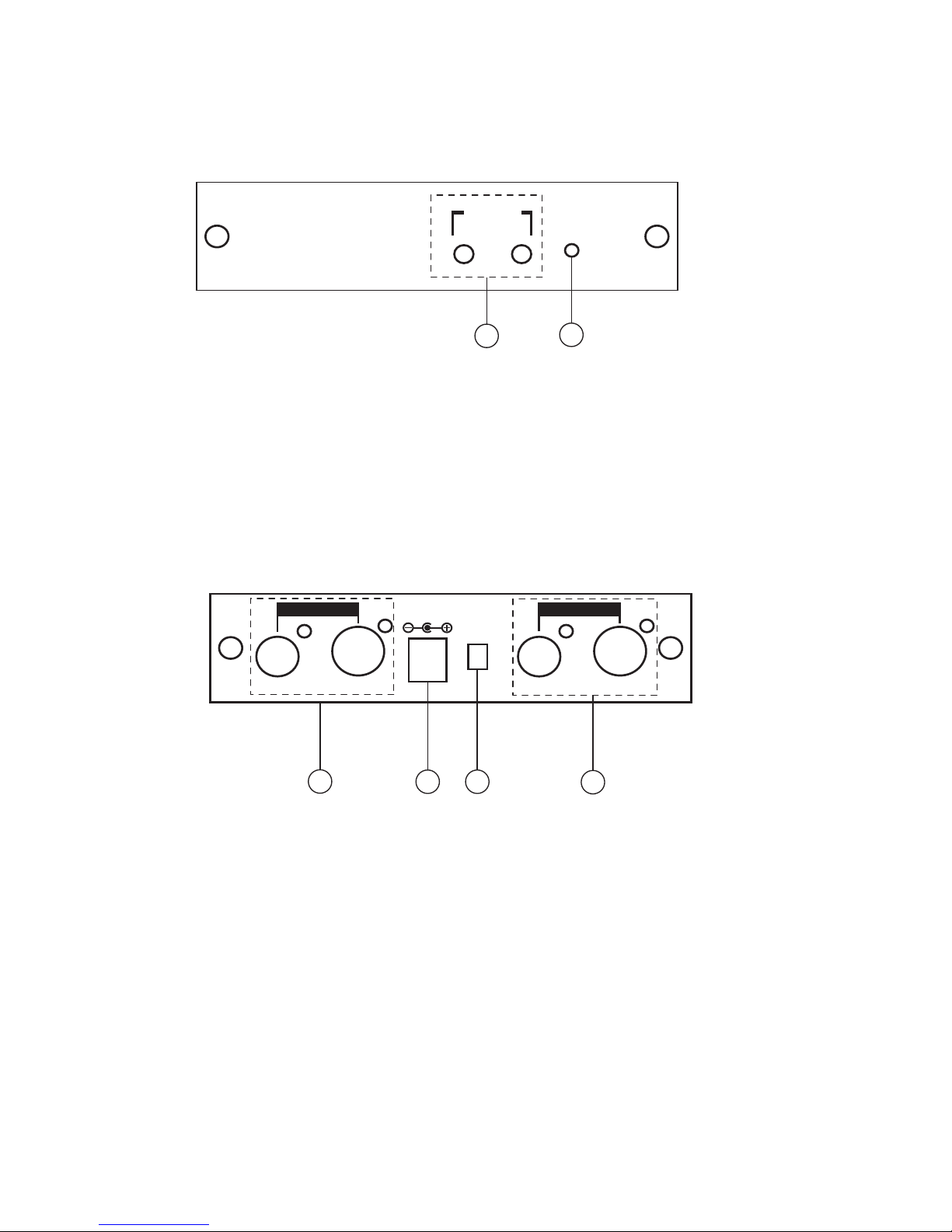

3.1. Front Panel
1. H. POS. Center: To adjust the display to right/left.
2. Power LED: The LED indicator will illuminate when the unit is powered on.
3.2. Rear Panel
1. Video input: Connect to video source using video composite or S-Video
cable.
2. DC 5V/1A: Plug the 5VDC power supply into the unit and connect the adaptor
to AC wall outlet.
3. NTSC/PAL: Select the output signal. NTSC supports 3.58 format only.
4. Video output: Connect to display using video composite or S-Video cable.
1
1
2
POWER
-
+
H. POS.
CENTER
CDM-160
Video System Converter
INPUT
NTSC
PAL
V S V S
DC 5V OUTPUT
2 3 4
3
NTSC or PAL
Video Recorder
PAL
NTSC
or
SECAM
Satellite Receiver
NTSC
or
PAL TV
Camcorder

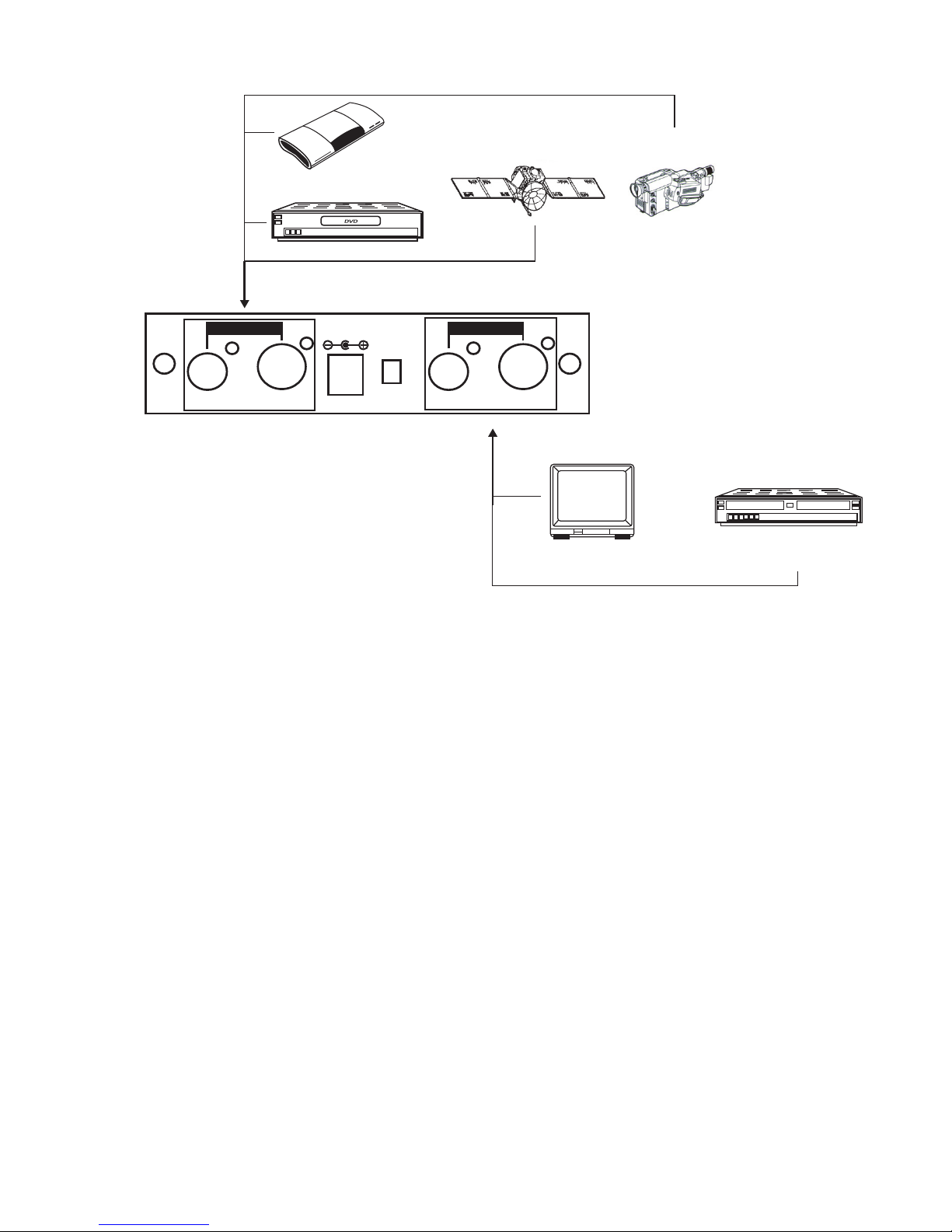

4. Connections and Installation
5. Specifications
INPUT
NTSC
PAL
V S V S
DC 5V OUTPUT
DVD Player
Set-Top-Box
Input Systems
Output Systems
Input Port
Output Port
Sampling Frequency
Digital Code Bit
Line
Field
Power Supply
Dimensions (mm)
Weight (g)
Chassis Material
Silkscreen Color
Operating Temperature
NTSC, N4, PAL, PAL M, PAL N and SECAM
NTSC 3.58, PAL
Video/S-Video
Video/S-Video
Y:13.5MHz
R-Y:6.75MHz
B-Y:6.75MHz
R: 8 bits
G: 8 bits
B: 8 bits
525/625
60/50
5V/1A DC (US/EU standards, CE/FCC/UL certified),
Center positive
125 (w) x 110 (D) x 30 (H)
350
Aluminum
Black
0°C~40°C
2008.1.28 MPM-CDM160
Home page: http://www.cypress.com.tw
CYPRESS TECHNOLOGY CO., LTD.
