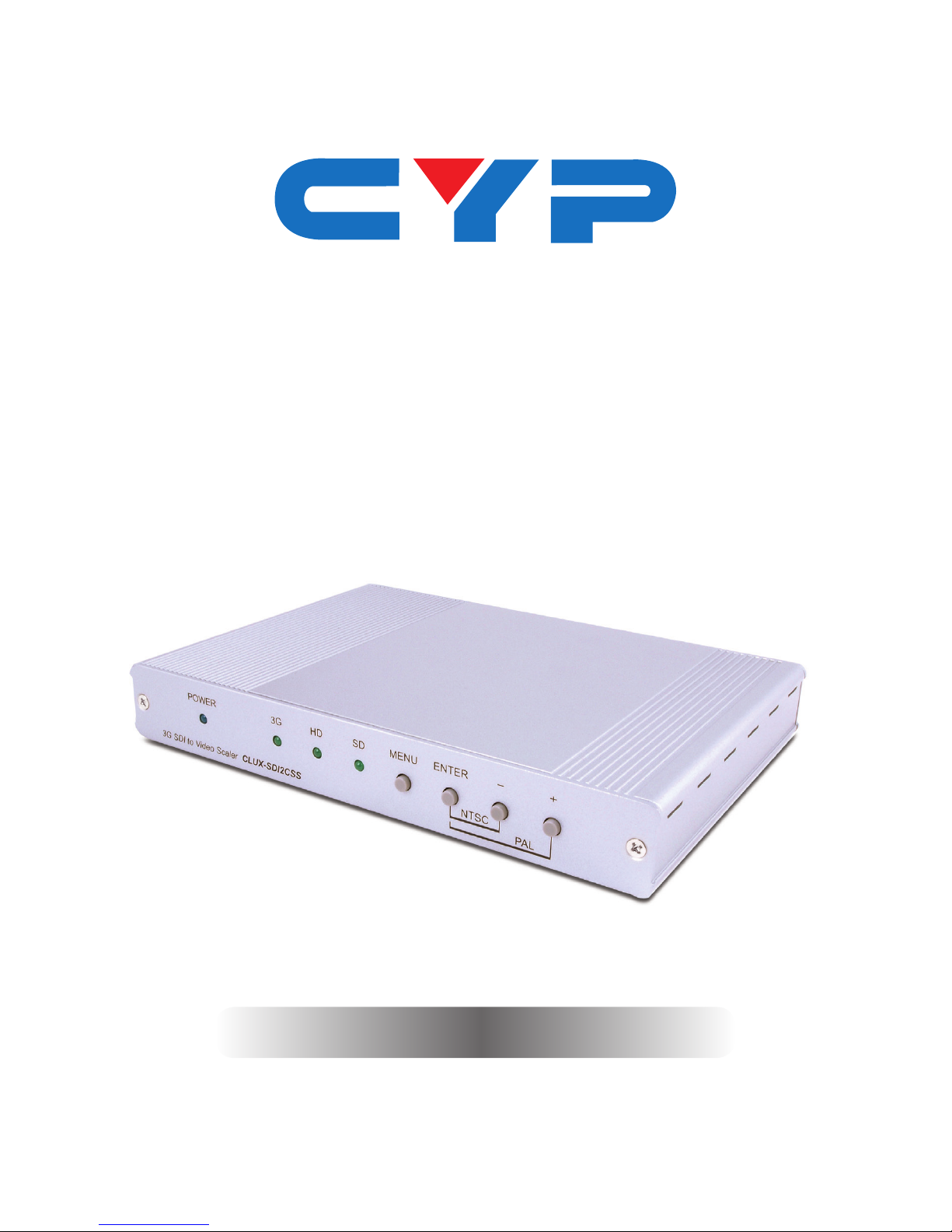

CYP CLUX-SDI2CSS Manuale utente
CLUX-SDI2CSS
SDI to CV/SV Scaler with Audio
Operation Manual
Operation Manual
DISCLAIMERS
The information in this manual has been carefully checked and
is believed to be accurate. Cypress Technology assumes no
responsibility for any infringements of patents or other rights of third
parties which may result from its use.
Cypress Technology assumes no responsibility for any inaccuracies
that may be contained in this document. Cypress also makes no
commitment to update or to keep current the information contained
in this document.
Cypress Technology reserves the right to make improvements to this
document and/or product at any time and without notice.
COPYRIGHT NOTICE
No part of this document may be reproduced, transmitted,
transcribed, stored in a retrieval system, or any of its part translated
into any language or computer le, in any form or by any means—
electronic, mechanical, magnetic, optical, chemical, manual, or
otherwise—without express written permission and consent from
Cypress Technology.
© Copyright 2011 by Cypress Technology.
All Rights Reserved.
Version 1.1 August 2011
TRADEMARK ACKNOWLEDGMENTS
All products or service names mentioned in this document may be
trademarks of the companies with which they are associated.
SAFETY PRECAUTIONS
Please read all instructions before attempting to unpack, install or
operate this equipment and before connecting the power supply.
Please keep the following in mind as you unpack and install this
equipment:
• Always follow basic safety precautions to reduce the risk of re,
electrical shock and injury to persons.
• To prevent re or shock hazard, do not expose the unit to rain,
moisture or install this product near water.
• Never spill liquid of any kind on or into this product.
• Never push an object of any kind into this product through any
openings or empty slots in the unit, as you may damage parts
inside the unit.
• Do not attach the power supply cabling to building surfaces.
• Use only the supplied power supply unit (PSU). Do not use the PSU
if it is damaged.
• Do not allow anything to rest on the power cabling or allow any
weight to be placed upon it or any person walk on it.
• To protect the unit from overheating, do not block any vents or
openings in the unit housing that provide ventilation and allow for
sufcient space for air to circulate around the unit.
REVISION HISTORY
VERSION NO. DATE DD/MM/YY SUMMARY OF CHANGE
VR0 13/05/11 Preliminary Release
VR1 28/09/11 Spec. Transmission Typo
VS1 17/07/12 Updated format/diagrams/SDI
standards
VS2 19/07/12 First release
CONTENTS
1. Introduction............................................ 1
2. Applications........................................... 1
3. Package Contents ................................ 1
4. System Requirements............................ 1
5. Features.................................................. 2
6. Operation Controls and Functions....... 3
6.1 Front Panel ........................................3
6.2 Rear Panel.........................................4
7 OSD Menu and Functions ...................... 5
7.1 Display ...............................................6
7.2 Color ..................................................6
7.3 SDI Audio...........................................7
7.4 Factory Reset .............................7
7.5 Information.................................8
8. Connection Diagram ............................ 9
9. Specications ...................................... 10
10. Acronyms ........................................... 11
1
1. INTRODUCTION
The SDI to CV/SV Scaler allows SD, HD and 3G-SDI signals to be shown
on CV/SV display. This means that it is now easier for professionals to
distribute and extend their SDI signal while giving the ability to display
work on PC/HD display. Furthermore, thanks to coaxial (S/PDIF) and
L/R audio outputs users can output audio in both digital and analog
formats while the loop-through 3G-SDI design benets users by letting
them simultaneous show content on SDI, Composite Video and S-Video
displays.
2. APPLICATIONS
• Broadcast video signal transmission to SDI display
• 3G-SDI signal conversion into Composite Video (CVBS)/S-Video
3. PACKAGE CONTENTS
• SDI to CV/SV Scaler with Audio
• 5 V/2.6 A DC Power Adaptor
• Operation Manual
4. SYSTEM REQUIREMENTS
Input broadcast video with an SDI cable and output to SDI and/or
Composite Video (CVBS)/S-Video displays or recording Devices with
suitable connection cables.
2
5. FEATURES
• Supports SD-SDI, HD-SDI and 3G-SDI input signals with auto-detection
• Supports CV/SV and SDI (bypass) output simultaneously
• SDI interface operates at bitrates of 2.970 Gbit/s, 2.970/1.001 Gbit/s,
1.485 Gbit/s, 1.485/1.001 Gbit/s and 270 Mb/s
• Supports SDI input/output distance up to 100 meters (3G-SDI), 200
meters (HD-SDI), or 300 meters (SD-SDI)
• Scale any SDI signal to CV/SV of NTSC or PAL format
• Supports SDI input modes:
1. SD-SDI: SMPTE 259M-C, at bitrates of 270 Mbit/s
2. HD-SDI: SMPTE 292M, at bitrates of 1.485 Gbit/s and
1.485/1.001 Gbit/s
3. 3G-SDI: SMPTE 424M/425M-AB, at bitrates of 2.970 Gbit/s and
2.970/1.001 Gbit/s
• Equalized and re-clocked loop output
• Alternative audio output to coaxial and analog 2CH
3
6. OPERATION CONTROLS AND FUNCTIONS

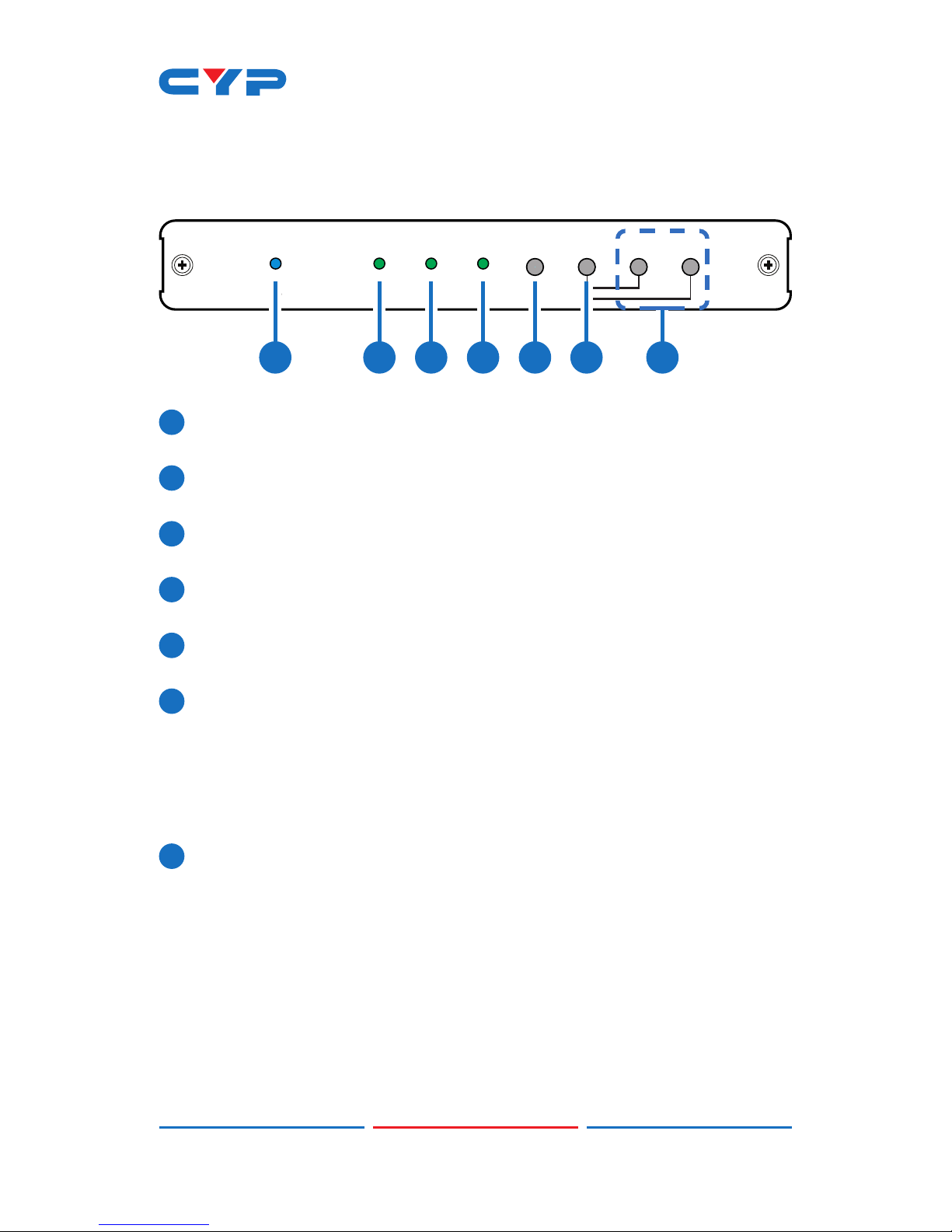

6.1 Front Panel
POWER3GHDSDMENUENTER
-
+
NTSC
PAL
3G SDI to Video Scaler CLUX-SDI2CSS
2 3 4 5 6 71
1
Power LED: The LED will illuminate blue when the device is
connected to a power supply.
2
3G LED: This LED illuminate green when a 3G-SDI input signal is
detected.
3
HD LED: This LED illuminate green when a HD-SDI input signal is
detected.
4
SD LED: This LED illuminate green when a SD-SDI input signal is
detected.
5
MENU: Press this button to enter/exit the On-Screen Display (OSD)
menu.
6
ENTER: Press this button to conrm your selection. Press both ENTER
and 'Minus' (−) buttons together to switch the Composite or S-Video
output to NTSC format or press both ENTER and 'Plus' (+) buttons
together to switch to switch the Composite or S-Video output to
PAL format. After making the selection, press ENTER to conrm the
output format.
7
−/+: Press these buttons to move up or down the OSD selections.
4

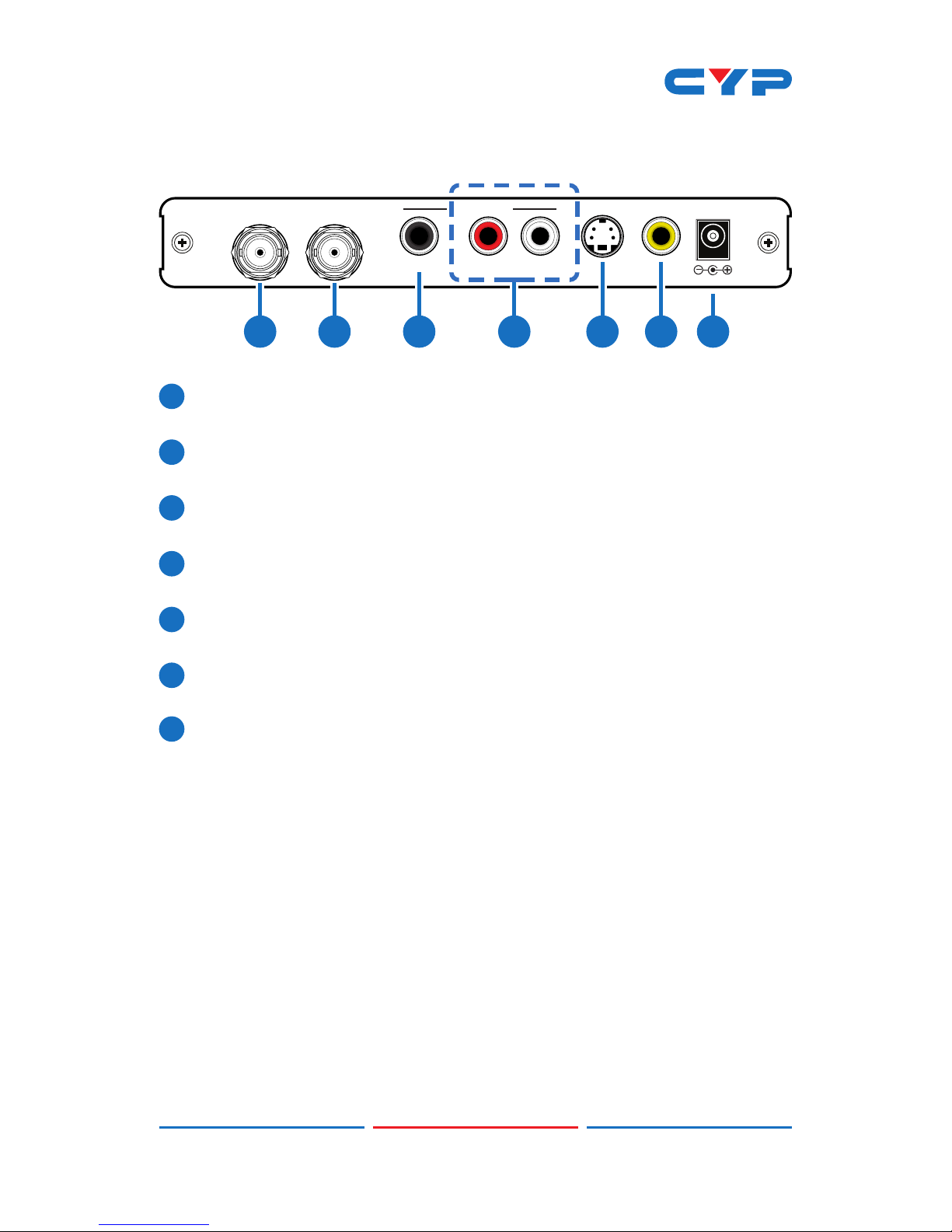

6.2 Rear Panel
SDI IN SDI OUT
AUDIO OUT DC 5V
COAXIAL R L
S VIDEOVIDEO
1 2 3 4 5 6 7
1
SDI IN: Connect to the SDI output of the SDI source device.
Accepts SD,HD or 3G SDI signals.
2
SDI OUT: Provides a 'loop-through' SDI signal output for connection
to a SDI display.
3
AUDIO OUT COAXIAL: Digital Audio output (SP/DIF). Connect to an
amplier or recording device with a suitable digital coaxial input.
4AUDIO OUT R/L: Analogue audio output (L/R Stereo). Connect to
an amplier or recording device with a suitable analogue input.
5S-VIDEO: Analogue S-Video output. Connect to an display or
recording device with a S-Video input.
6VIDEO: Analogue Composite Video (CVBS) output. Connect to an
display or recording device with a Video input.
7DC 5V: Plug the 5 V DC power supply into the unit and connect the
adaptor to an AC outlet. The 'POWER' LED will illuminate blue when
the power is ON.
5
7 OSD MENU AND FUNCTIONS
First Layer Second Layer Third Layer
Display
Output NTSC
PAL
Size
Full
Over Scan
Under 1
Under 2
Letter Box
Pan Scan
Exit
Color
Contrast 0~255 (105)
Brightness 0~192 (96)
R 0~255 (128)
G 0~255 (128)
B 0~255 (128)
R Offset 0~64 (32)
G Offset 0~64 (32)
B Offset 0~64 (32)
Exit
SDI Audio
Group 1
Group 2
Group 3
Group 4
Auto
Off
Factory Reset Yes
Information Input, Output and Revision
