CYP DCT-21 Manuale utente

DCT-21

HD Audio Center

Operation Manual

DISCLAIMERS

The information in this manual has been carefully checked and

is believed to be accurate. Cypress Technology assumes no

responsibility for any infringements of patents or other rights of third

parties which may result from its use.

Cypress Technology assumes no responsibility for any inaccuracies

that may be contained in this document. Cypress also makes no

commitment to update or to keep current the information contained

in this document.

Cypress Technology reserves the right to make improvements to this

document and/or product at any time and without notice.

No part of this document may be reproduced, transmitted,

transcribed, stored in a retrieval system, or any of its part translated

into any language or computer le, in any form or by any means—

electronic, mechanical, magnetic, optical, chemical, manual, or

otherwise—without express written permission and consent from

Cypress Technology.

Version 1.1 August 2011

TRADEMARK ACKNOWLEDGMENTS

All products or service names mentioned in this document may be

trademarks of the companies with which they are associated.

SAFETY PRECAUTIONS

Please read all instructions before attempting to unpack, install or

operate this equipment and before connecting the power supply.

Please keep the following in mind as you unpack and install this

equipment:

• Always follow basic safety precautions to reduce the risk of re,

electrical shock and injury to persons.

• To prevent re or shock hazard, do not expose the unit to rain,

moisture or install this product near water.

• Never spill liquid of any kind on or into this product.

• Never push an object of any kind into this product through any

openings or empty slots in the unit, as you may damage parts

inside the unit.

• Do not attach the power supply cabling to building surfaces.

• Use only the supplied power supply unit (PSU). Do not use the PSU

if it is damaged.

• Do not allow anything to rest on the power cabling or allow any

weight to be placed upon it or any person walk on it.

• To protect the unit from overheating, do not block any vents or

openings in the unit housing that provide ventilation and allow for

sufcient space for air to circulate around the unit.

REVISION HISTORY

VERSION NO. DATE DD/MM/YY SUMMARY OF CHANGE

RDV1 01/07/11 Preliminary Release

RDV2 16/01/12

VS0 13/08/12 Updated format/diagrams

RDV3 17/08/12 OLED Menu

VS0 21/11/12 Revised features list

CONTENTS

1. Introduction............................................ 1

2. Applications........................................... 1

3. Package Contents ................................ 1

4. System Requirements............................ 2

5. Features.................................................. 2

6. Operation Controls and Functions....... 4

6.1 Front Panel ........................................4

6.2 Rear Panel.........................................5

6.3 Top Panel ..........................................6

6.4 Remote Control................................6

6.5 OLED Menu .......................................7

7. Connection Diagram ............................ 8

8. Specications ........................................ 9

9. Acronyms ............................................. 10

1. INTRODUCTION

The HD Audio Center is designed to allow multiple audio sources to

be controlled, switched and output to a variety of audio equipment.

With its 6 audio inputs (including an HDMI input) and 6 audio outputs

(including a 6.3mm headphone output) you can integrate and

convert any digital or analog audio source to any type of amplier or

active speakers.

This device has an built-in sampling rate converter which can

upscale audio signals between 44.1 kHz to 192 kHz (24-bit). With HDMI

connectivity, it allows the user to embed or de-embed audio within

the HDMI signal path.

For professionals, the Ti TPA6120A2 headphone amplier, XLR (Low-

noise Professional Balanced output) and 6.3mm headphone jack (3.5

mini-jack adaptor supplied) offer unparalleled audio quality. With a

highly accurate PLL and low jitter reduction clock system, and with an

OLED display and IR remote for controlling the device the HD Audio

Center is an incredibly useful tool for getting the most out of your

audio devices.

2. APPLICATIONS

• Multiple input/output Audio Center

• Audio format and sampling rate conversion

• Professional audio system integration with XLR balanced outputs

• Mac/PC USB audio output support

• Analog to digital or digital to analog audio conversion

• HDMI audio embedding or de-embedding

3. PACKAGE CONTENTS

• 1×HD Audio Center

• 1×Remote Control (with battery)

• 1×6.3mm to 3.5mm Headphone Adaptor

• 1×Software CD

• 1×5 V/3 A DC Power Adaptor

• Operation Manual

4. SYSTEM REQUIREMENTS

Input source equipment such as PC (USB) or DVD player with relevant

connection cables and output to amplier, active speakers or

headphones

5. FEATURES

Main

• 6 Input, 6 Output HD Audio Center

• 4 Digital Inputs, 2 Analog Inputs

• 3 Digital Outputs, 2 Analog Outputs and Headphone Output

• Full system control from IR remote or main control dial via OLED

display.

Digital

• HDMI, USB, Optical and Coaxial digital audio inputs support LPCM

stereo

• HDMI input supports LPCM stereo in all modes but can pass surround

sound signal whilst in bypass mode

• All digital inputs support 192kHz sampling rate at up to 24-bit

resolution

• HDMI, Optical and Coaxial digital outputs

• All digital inputs can be SRC (Sample Rate Conversion) to 44.1, 48,

88.2, 96, 176.4 and 192 kHz via DSP Engine (Digital Signal Processing)

• Highly accurate PLL and low jitter reduction clock system

• HDMI Audio output (video is always bypassed to HDMI output) can

either output the incoming HDMI (HDMI Bypass Mode) or embed

the selected audio signal (HDMI Input Mode)

Analog

• Built-in Ti TPA6120A2 high quality headphone amplier output

• Professional XLR balanced stereo output

• RCA analog stereo output

• RCA analog stereo input

• Mini-jack (3.5mm) stereo input

• Total Harmonic Distortion (THD): Less than 100dB (-20dBFS)

• Analog inputs provide digital output sampling rates up to 192 kHz

Misc

• IR Remote with direct source, power and mute buttons

• HDMI audio embedding or de-embedding

• Volume control of analog and headphone outputs or just

headphone output via remote or main control dial

• Direct power and mute button on unit

• High viewing angle OLED display

• Headphone output fades in after system is muted

• 6.3mm headphone output (3.5mm mini-jack adaptor supplied)

6. OPERATION CONTROLS AND FUNCTIONS

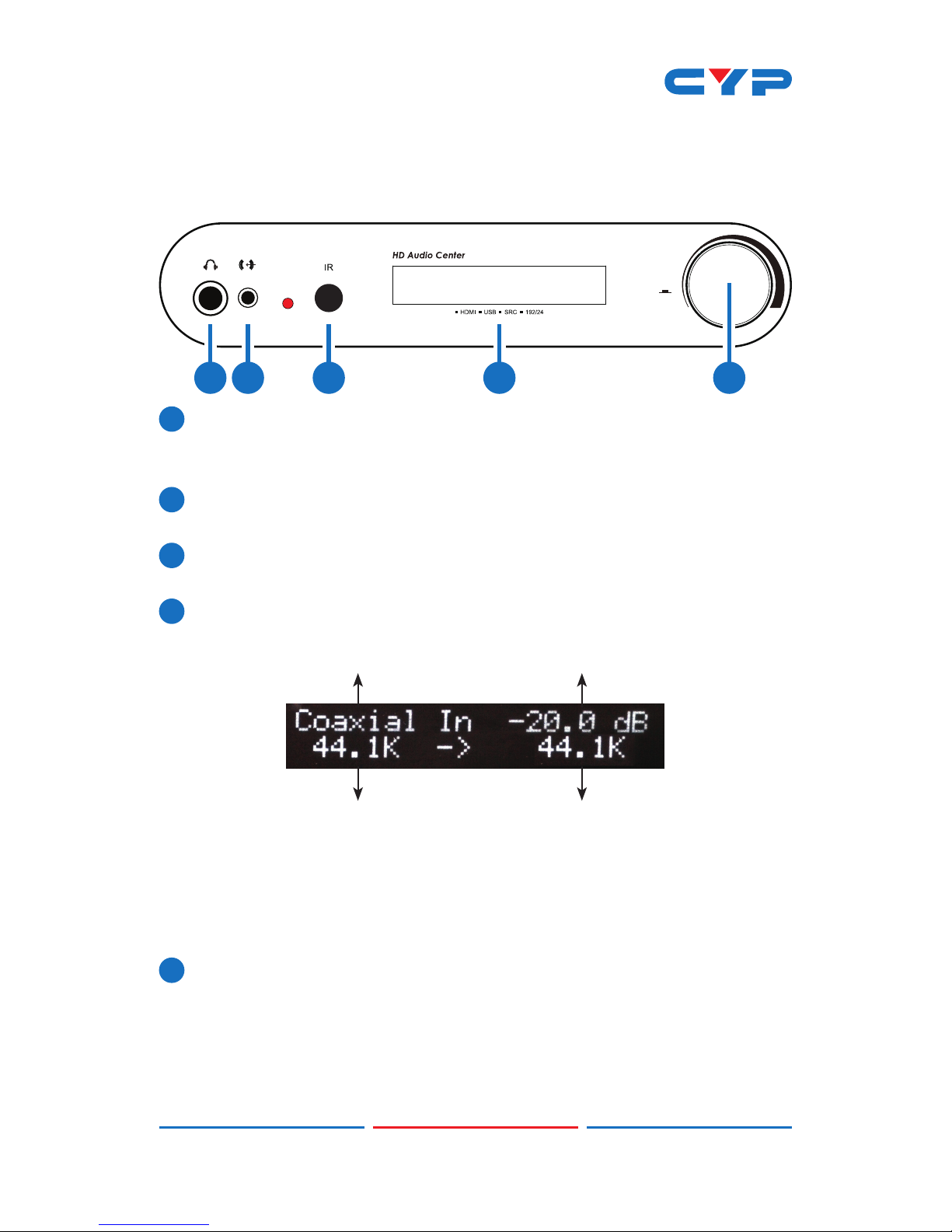

6.1 Front Panel

MENUMENU

1 2 3 4 5

6.3mm Headphone Output: Connect to 6.3mm professional

headphone set for user to enjoy the individual professional audio

sound.

3.5mm Line-level Input: Connect 3.5mm mini-jack cable to any

audio equipment for stereo input audio signal.

IR: IR receiver window. Accepts the IR signal from the supplied

remote control.

4OLED: Displays the input/output selection, volume setting, sampling

rate and audio channels.

A B

C D

A. Input source

B. Headphone or analog line level volume or system mute

C. Input sampling rate

D. Output sampling rate

MENU/VOLUME Controller: Turn to adjust the volume. Press inwards

to enter into the menu and turn it to select the desire setting, press

again to conrm the selection.

Note: The Volume and Mute functions only affect the headphone

and analog line-out volume levels, all other outputs are not

affected.

6.2 Rear Panel

DC 5V

HDMI IN

HDMI OUT

USB

OUT

COAX.

OPT.

IN IN

OUT R

XLR OUTXLR OUT L

DC 5V USB

OUT

COAX.

OPT.

IN IN

OUT R

XLR OUTXLR OUT L

HDMI IN

HDMI OUT

1 2 3 5

6 7

DC 5V: Plug the 5V DC power supply into the unit and connect the

adaptor to an AC outlet.

HDMI IN/OUT: Connect to an HDMI source such as a satellite box

or DVD Audio player and output to an HDMI HDTV/AV Receiver for

display output.

USB: Connect to a PC/MAC source for USB audio signal input.

COAX OUT/IN: Connect the COAX IN to a coaxial digital audio

input source such as set-top box or CD player and the COAX OUT

to an amplier or active speakers with a coaxial cable.

OPT. OUT/IN: Connect the OPT. IN to an optical digital audio input

source such as a DVD/CD player or PS3 and the OPT. OUT to an

amplier or active speakers with an optical cable.

L/R IN/OUT: Connect the L/R IN to an analog stereo input source

such as a CD player or media player and the L/R OUT to amplier

or active speakers with RCA jack cables.

XLR L/R OUT: Connect to an amplier with balanced XLR inputs or

directly to professional balanced equipment with XLR cables.

Note:

HDMI Input Mode: In this mode, whatever audio input is selected

will be routed to the HDMI output as well as all other outputs.

HDMI Bypass Mode: In this mode HDMI video and audio will always

be routed to the HDMI output no matter what input is selected,

whilst all other outputs will output the audio from the selected

input. This function allows the user to have two distinct audio

pathways through the unit.
