DCT-3A

Digital to Analog

Audio Converter

Operation Manual

DCT-3A

Safety Precautions

Please read all instructions before attempting to unpack or install or

operate this equipment, and before connecting the power supply.

Please keep the following in mind as you unpack and install this

equipment:

 Always follow basic safety precautions to reduce the risk of

ﬁre, electrical shock and injury to persons.

 To prevent ﬁre or shock hazard, do not expose the unit to rain,

moisture or install this product near water.

 Never spill liquid of any kind on or into this product.

 Never push an object of any kind into this product through

module openings or empty slots, as you may damage parts.

 Do not attach the power supply cabling to building surfaces.

 Do not allow anything to rest on the power cabling or allow it to

be abused by persons walking on it.

 To protect the equipment from overheating, do not block the

slots and openings in the module housing that provide

ventilation.

Revision History

Version No Date Summary of Change

VR0 20110722 Preliminary Release

Table of Contents

1

1

1

1

1

2

3

3

3

4

5

6

1. Introduction ……………………..……………………...…........….…….

2. Applications …………………………………………......……........……

3. Package Contents ………………………………...……..........…....….

4. System Requirements ………………………………...……............….

5. Features ………………………………...……............…........................

6. Specications ………………………………...……............…..............

7. Operation Controls and Functions..................................................

7.1 Front Panel ..............................................................................

7.2 Rear Panel .…………………………………..…….......…...…...

7.3 Top Panel .…………………………………..…….........…...…...

8. Connection and Installation ….………………….........…..…..…......

9. Acronyms …......................................................................................

1. Introduction

The Coaxial/Optical to R/L audio converter is an easy to use product that

converts Coaxial or Optical audio signals into R/L audio. Accepting digital

audio signals from either Coaxial or Optical sources, this gadget features a

well-designed switch that determines which digital input signal is active and

thus converted into an analog audio signal (L/R). With its compact, elegant

and LED design that makes easier for users to link up and make an useful of

the device instantly.

2. Applications

 Digital Coaxial input to analog audio output

 Digital Optical input to analog audio output

3. Package Contents

 Digital to Analog Audio Converter

 5V / 1A DC Power adaptor

 Operation Manual

4. System Requirements

Input source equipment such as DVD/Blu-ray player or audio ampliﬁer and

output active speaker or headphone with connection cables.

5. Features



Supports digital audio input (Coaxial/Optical) and analog audio

output (R/L).



Integrated digital interpolator ﬁlter and Digital to Analog Converter (DAC).



Supports non-compression digital stereo audio input.



Compact size and easy to install.



Supports SPDIF 192K/24 bits of data for the left and right channel.

1

6. Specications

Input Ports Coaxial and Optical

Input Format SPDIF LPCM 2 CH, 24 bit

Sample Frequency 32kHz, 44.1 KHz, 48 KHz, 88.2KHz, 96 KHz, 176.4KHz

up to 192KHz

Output Ports R/L stereo

Output Level 2Vrms

Output Impedance 600Ω

Power Supply

5V/1A DC linear power adaptor (US/EU standards,

CE/FCC/UL certiﬁed)

Or 5V/1.2 switching power adaptor (with universal

plug. CE/FCC/UL certiﬁed)

Dimensions (mm) 42(W) x 40.5(D) x 22(H)

Weight(g) 25

Chassis Material Plastic

Silkscreen Color White

Operating Temperature 0°C ~ 40°C

Power Consumption 0.74W

2

7. Operation Controls and Functions

7.1 Front Panel

②①

DC 5V

Coax

Optical

① Coaxial/Optical switcher: Moving the switch determines which input

Audio source is active and will be converted to R/L audio.

② Power: Plug 5V DC power supply into the unit and connect the adaptor

to AC wall outlet.

7.2 Rear Panel

①

Coax OpticalIn

②

Out LR

① Coaxial/Optical input: Connect the Coaxial/Optical inputs into the

Coaxial/Optical audio source, such as a DVD player or Set Top Box.

② R/L output: Connect the R/L audio output to the input of your audio

device or display.

3

7.3 Top Panel

①

Digital to Analog

Audio Converter

Optical Coax

① Coaxial/Optical input LED: The LED light will illuminate according to the

fall of input selection swtich. The right side LED represent Optical input and

the left side LED represent Coaxial input.

4

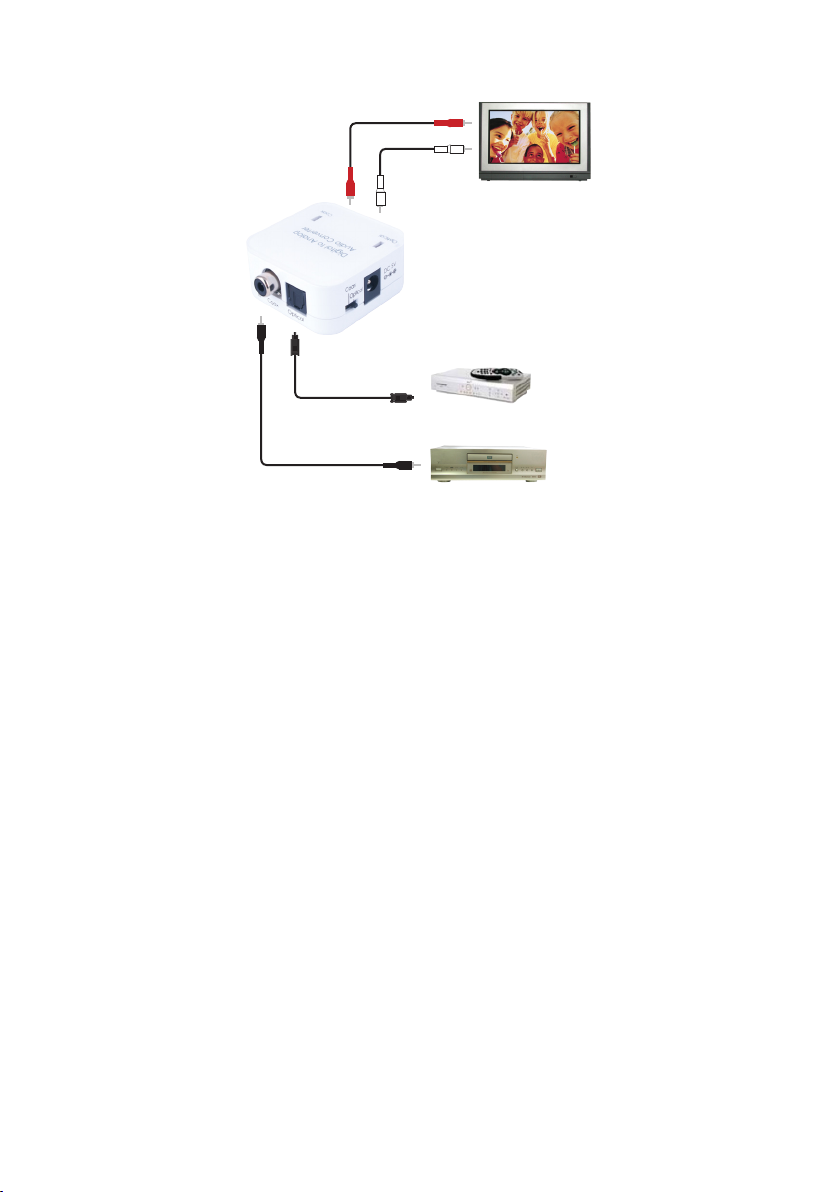

8. Connection and Installation

LCD TV

DVD

STB

R/L

COAXIAL

OPTICAL

5

Acronyms A

Acronym Complete Term

6
