Cypher Labs AlgoRhythm Duet Manuale utente
Uncompressed. Uncommon. Unlocked.
The AlgoRhythm Duet headphone amplifier is perhaps the closest yet to true desktop quality
in a portable format. Hear the lowest lows and highest highs. Drive both IEM’s and large planar
magnetic headphones. Ultra low deep and clean background, powerful bass, bold, authoritative
and expansive.
12
The AlgoRhythm Duet features three gain settings, balanced input and output using a mini-
4 pin connector and single ended 3.5mm input and output. Markings are laser etched on
extruded aluminum for durability.
TECHNICAL
TECHNICAL
www.facebook.com/cypherlabs
Frequency response in both balanced and unbalanced mode: 5Hz-150kHz ±1dB
Gain Settings: Low: -6dB / Medium: +3.5dB / High: +15dB
Balanced output power with both channels driven:
70mW into 32Ω/ 100mW into 50Ω/ 240mW into 300Ω/ 120mW into 600Ω
Unbalanced output power with both channels driven:
70mW into 32Ω/ 100mW into 50Ω/ 60mW into 300Ω/ 30mW into 600Ω
Impedance: <1 ΩOutput
Playtime: 10-14 hours, rechargeable
Lithium-18650 battery
Recharge Time: 3 hours with included
micro USB wall power adapter
Two inputs and two outputs: Single
ended and 4 pin balanced to pair with
many MP3 players, Apple and
Android devices.
Automatic input detection and switching
Leather pad to protect devices from
scratching
Cypher Labs silicone straps to bundle
your devices
One year Cypher Labs parts and labor
warranty
3 4
PRODUCT USE

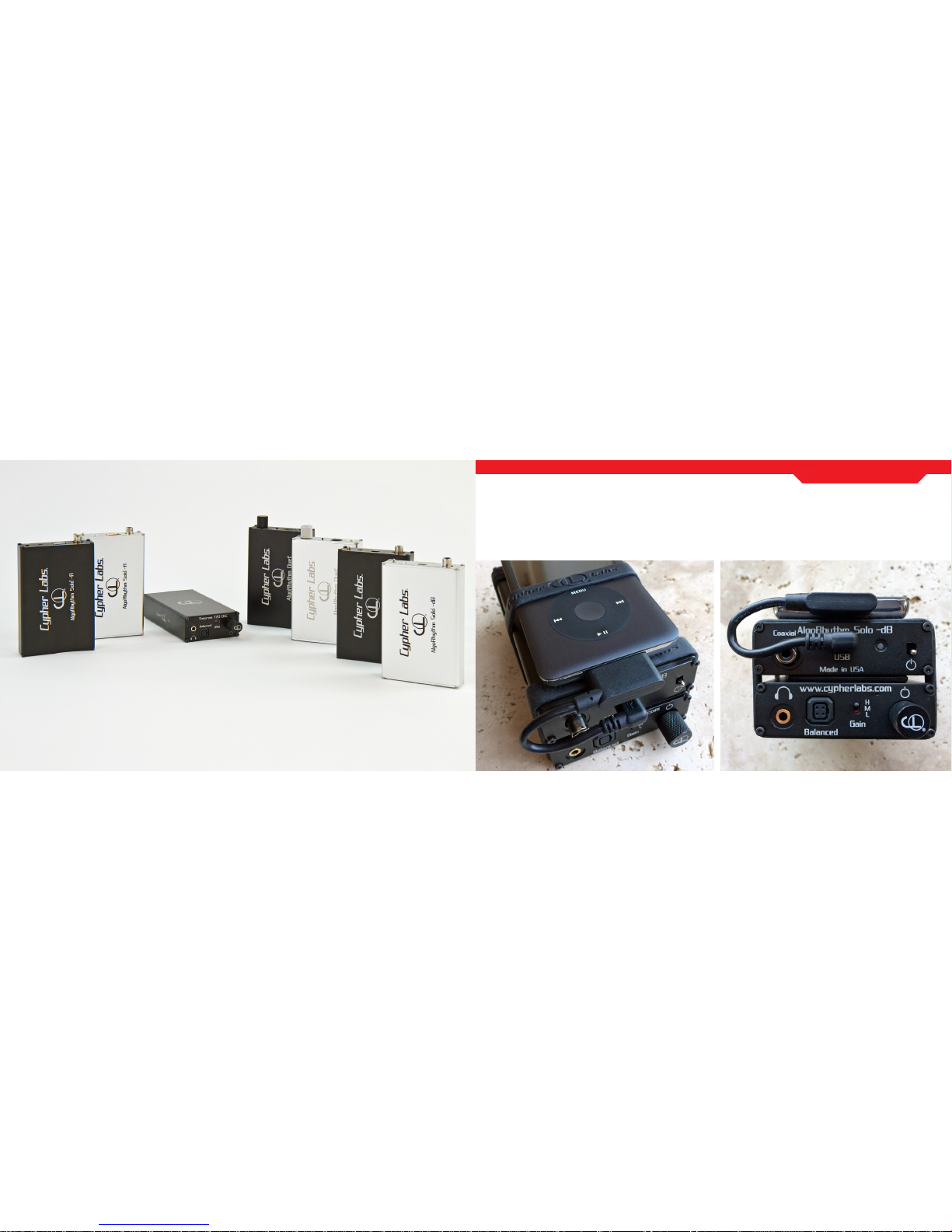

Pair with either of our DAC’s – the AlgoRhythm Solo –R or AlgoRhythm Solo –dB when playing
lossless tracks.
5 6
www.cypherlabs.com
CYPHER LABS is pleased to offer suggestions on the use of its various products. However, CYPHER LABS neither assumes responsibility for any omissions or errors
nor assumes liability for any damages that result from the use of its products in accordance with information provided by CYPHER LABS, either verbal or written.
CYPHER LABS warrants only that the parts manufactured by it will be as specified and free of defects.
Except as otherwise provided herein, no other warranties, expressed or implied, are made with respect to these products; including, but not limited to, any implied
warranty of merchantability or fitness for a particular purpose. CYPHER LABS, LLC assumes no liability for any damages, losses or expenses resulting directly or
indirectly from product use.
CYPHER LABS, LLC warrants our products to be free of defects in materials and workmanship for a period of
one (1) year from the date of purchase. Your warranty period will be measured from your date of purchase.
You must provide proof of purchase in the form of a purchase receipt, invoice or other valid purchase
document. We request that you contact us if you feel your product is not working properly. We can often
solve product issues by phone or e-mail, saving you the time and expense of returning the unit. If we require
you to return the product, contact us via email and we will issue a Return Authorization to expedite the
handling of your warranty claim. We will repair or replace any defective product or part when notified within
the warranty period, and will return the product via domestic ground shipping at no charge. The following
issues do not result from a manufacturing defect and are not covered under this warranty:
This WARRANTY is VOID if the unit shows evidence of having been tampered with or shows evidence of being
damaged as a result of excessive corrosion; or current, heat, moisture or vibration; misapplication; misuse or other
operating conditions outside of CYPHER LABS’s control
Damage resulting from severe impact, crushing or mechanical harm
Normal wear and tear
Failed batteries
Any action of the purchaser, including but not limited to mishandling, operation outside of design limits, improper
repair, or unauthorized modification
Components which wear are not warranted, including but not limited to contact points and fuses
WARRANTY
www.cypherlabs.com7
© Cypher Labs LLC. AlgoRhythm Duet® is a registered trademark of Cypher Labs LLC.
