Cypress CHQV-2H Manuale utente
CHQV-2H
HDMI to HDMI Scaler Box
Operation Manual
CHQV-2H
Disclaimers
The information in this manual has been carefully checked and
is believed to be accurate. Cypress Technology assumes no
responsibility for any infringements of patents or other rights of third
parties which may result from its use.
Cypress Technology assumes no responsibility for any inaccuracies
that may be contained in this document. Cypress also makes
no commitment to update or to keep current the information
contained in this document.
Cypress Technology reserves the right to make improvements to this
document and/or product at any time and without notice.
Copyright Notice
No part of this document may be reproduced, transmitted,
transcribed, stored in a retrieval system, or any of its part translated
into any language or computer file, in any form or by any means
- electronic, mechanical, magnetic, optical, chemical, manual,
or otherwise - without express written permission and consent from
Cypress Technology.
© Copyright 2011 by Cypress Technology.
All Rights Reserved.
Version 1.0 January 2011
Trademark Acknowledgments
All products or service names mentioned in this document may be
trademarks of the companies with which they are associated.
Safety Precautions
Please read all instructions before attempting to unpack or install or
operate this equipment, and before connecting the power supply.
Please keep the following in mind as you unpack and install this
equipment:
Always follow basic safety precautions to reduce the risk of
fire, electrical shock and injury to persons.
To prevent fire or shock hazard, do not expose the unit to rain,
moisture or install this product near water.
Never spill liquid of any kind on or into this product.
Never push an object of any kind into this product through
module openings or empty slots, as you may damage parts.
Do not attach the power supply cabling to building surfaces.
Do not allow anything to rest on the power cabling or allow it to
be abused by persons walking on it.
To protect the equipment from overheating, do not block the
slots and openings in the module housing that provide
ventilation.
Revision History
Version No Date Summary of Change
RDV1 20110114 Preliminary Release
Table of Contents
1
1
1
1
2
3
4
4
5
6
6
7
1. Introduction ……………………..……………………...…........….…….
2. Applications …………………..………………….……...................…..
3. Package Contents ………………………...........……….................…
4. System Requirements ……………..……….........………............…….
5. Features …………………………………………......……........…...……
6. Specications ………………………………...……..........………....….
7. Operation Controls and Functions ……………...……..............……
7.1 Front Panel ..............................................................................
7.2 Rear Panel .…………………………………..…….......…...….…
8. Remote Control .......................…......……………..........…..…....…...
9. Connection and Installation ….………………….........…..…..…......
10. Acronyms …......................................................................................
1. Introduction
This Scaler Box is designed for the Blu-ray DVD players, Digital TV, Cable and
Satellite Set-Top Box (STB), Internet Digital Media Adapters, Audio-Video
Receivers and Digital Recorders markets. This Scaler Box is unlike anything you
have ever purchased. Giving you the freedom to enjoy the full benefits of
high resolution video by recreating a cinema like experience in the comfort
of your home, this device is a worthy addition to any home entertainment
system. In addition, the HD inputs have been improved, allowing this Scaler
Box to deliver crisp, stunning and noise free full HD video.
2. Applications
Up scales low resolution video quality to HD resolution
To improve incoming low resolution to noise free full HD video
3. Package Contents
HDMI to HDMI scaler box
Operation Manual
5V /1.2A USB Power Adaptor
4. System Requirements
HDMI input port connected to the source/HDMI system with HDMI port and
output connected to the display/HDMI system with HDMI port.
1
5. Features
Full HQV quality de-interlacing
Improved adaptive motion processing for difficult and poor quality video
scenes
Temporal Noise Reduction (TNR)-Reduces noise caused by on film grain,
random noise, sensor noise and light fluctuations
Block Artifact Reduction (BAR)-Reduces Compression block artifact
Mosquito Noise Reduction (MNR)-Reduces mosquito noise
12-bit color space conversion on input and output
Supports Deep Color at 36-bit color depth and xvYCC color gamut
HDMI output resolution 480p@50/60Hz, 720p@50/60Hz, 1080p@50/60Hz
Powered by its USB connection, or by an AC connection using an
adaptor
2
6. Specications
Frequency bandwidth 2.25Gbps
Input port 1 x HDMI
Output port 1 x HDMI
Output Resolution 480p@50/60Hz, 720p@50/60Hz, 1080p@50/60Hz
Power Supply 5VDC/1.2A (US/EU standards, CE/FCC/UL certified)
ESD Protection Human body model: ± 8kV (air-gap discharge)
± 4kV (contact discharge)
Dimensions (mm) 110(W) x 65(D) x 26(H)
Weight(g) 200
Chassis Material Metal
Silkscreen Color Black
Operating Temperature 0˚C ~ 40˚C / 32˚F ~ 104˚F
Storage Temperature -20˚C ~ 60˚C / -4˚F ~ 140˚F
Relative Humidity 20~90% RH (no condensation)
3
7. Operation Controls and Functions
The following sections describe the hardware components of the unit.

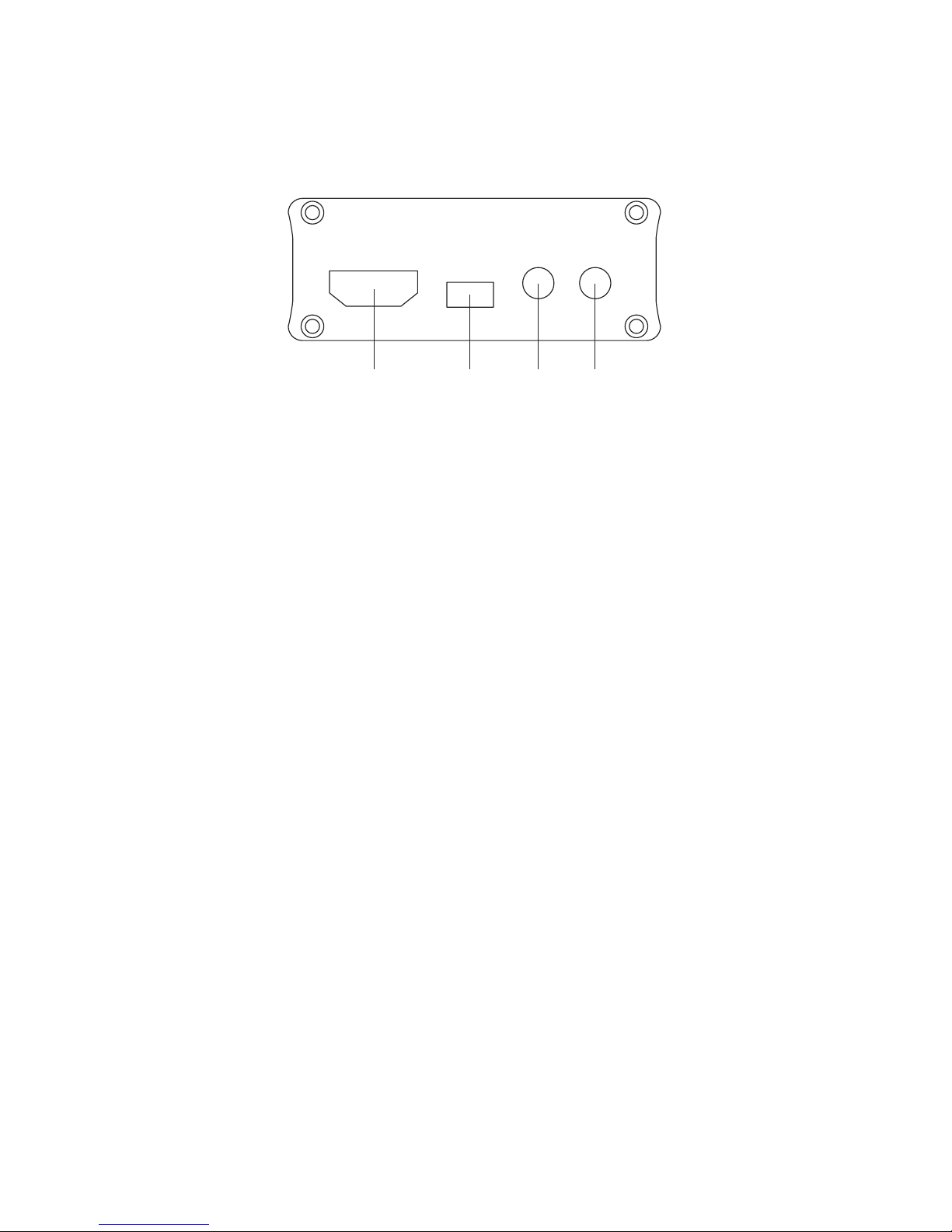

7.1 Front Panel
② ③ ④①
HDMI IN MODE OUTPUTUSB 5V
HDMI IN USB 5V MODE OUTPUT
① HDMI IN: Connect this HDMI input connector to the HDMI output
connector of your HDMI source equipment using certified HDMI cable
or connect this HDMI input connector to the DVI output of your DVI source
equipment using DVI cable together with DVI to HDMI adaptor. The HDMI
input resolution support 480i~1080p and VGA~WUXGA.
② USB 5V IN: The system can attach the mini-USB power adaptor or powered
using from a USB port of a PC or other source.
③ Mode button: Pressing “MODE” will toggle between the following 3
available noise reduction settings:
Auto: This is for normal video from sources such as Broadcast, Cable
Box, DVD. The Matchbox will automatically apply noise reduction and
resolution enhancement as needed.
StreamClean Low: This is for higher quality streamed content – e.g.
Netflix Streaming or IP Set top box. A little compression noise reduction
and resolution enhancement are applied.
StreamClean High: This is for lower quality streamed content from
Internet sources – e.g. YouTube. A lot of compression noise reduction
and resolution enhancement are applied.
④ Output button: Pressing the “OUTPUT” button will toggle between the 3
output resolutions -1080p, 720p and 480p.
4

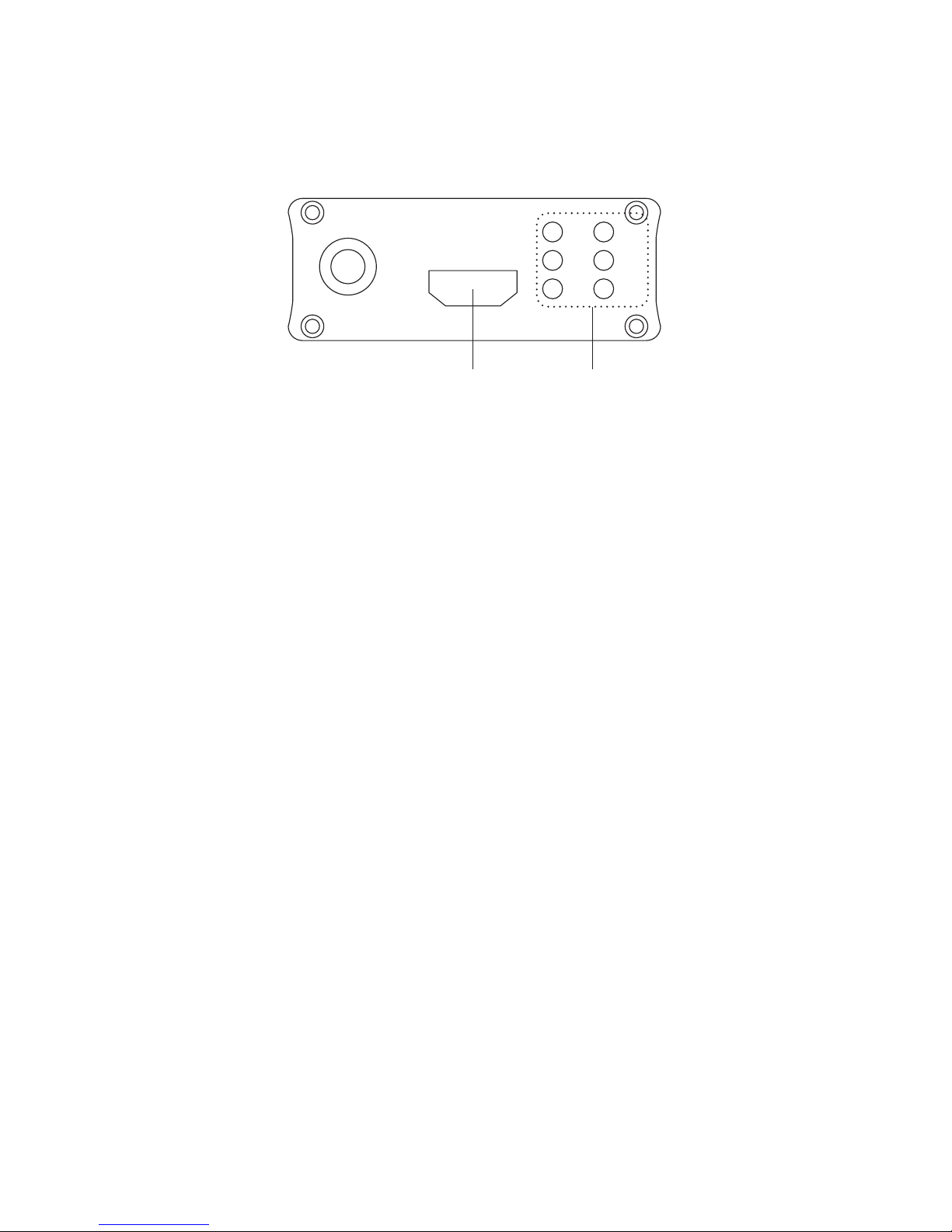

7.2 Rear Panel
① ②
HDMI OUT
1080P AUTO
720P HIGH
480P LOW
HDMI OUT
1080P AUTO
720P HIGH
480P LOW
① HDMI out: Scaled digital HDMI output. Connect this output to the HDMI
display and the output resolution support -1080p, 720p and 480p.
② Mode and Output LED indicators: Several status LEDs on the output side of
the system show the current output format and noise reduction setting.
5
8. Remote control
① 480P: Force 480p output from the IDT HQV
Matchbox.
② 720P: Force 720p output from the IDT HQV
Matchbox.
③ 1080P: Force 1080p output from the IDT
HQV Matchbox.
④ HQV: Auto: This preset puts the video
processing to HQV Auto mode.
Note that the Detail Enhancement will
change to high mode by default when this
button is pressed.
⑤ StreamClean: Low: This preset puts the
video processing on the IDT HQV
Matchbox to StreamClean Low mode.
⑥ StreamClean: High: This preset puts the video processing on the IDT HQV
Matchbox to StreamClean High mode.
⑦ Detail: Toggles between Resolution Enhancement On and OFF.
⑧ Demo: This button controls the split-screen mode to demo the Matchbox
noise reduction capabilities. Toggles between 3 modes : split-screen on
50%, split-screen scrolling and OFF.
9. Connection and Installation
DVD
STB
HD TV
HDMI to HDMI
Scaler Box
MODE
DEMO
HIGHAUTO LOW
HQV
Matchbox
Detail
480P 720P 1080P
OUTPUT
HQV StreamClean
③
⑧
⑥
①
⑦
④
②
⑤
6
