cytiva P-1 Manuale utente
Table of Contents
Important user information ................................................................................................... iii
1 Introduction ........................................................................................................ 5
2 Product Description ........................................................................................... 6
2.1 Main panel ........................................................................................................................................................ 7
2.2 Side panel .......................................................................................................................................................... 9
2.3 The pump mechanism ................................................................................................................................. 11
3 Installation .......................................................................................................... 12
3.1 Unpacking ......................................................................................................................................................... 13
3.2 Mains installation .......................................................................................................................................... 14
3.3 Assembling the pump tubing .................................................................................................................... 16
3.4 Inserting the tubing ...................................................................................................................................... 17
3.5 Setting the flow rate ...................................................................................................................................... 18
4 Operation ............................................................................................................ 19
4.1 Using Peristaltic Pump P-1 in chromatography ................................................................................. 20
4.2 Connecting the pump .................................................................................................................................. 21
4.3 Connections to the remote control socket .......................................................................................... 23
4.4 Calibration of volume information .......................................................................................................... 24
5 Maintenance ....................................................................................................... 25
6 Technical Specifications .................................................................................... 27
7 Accessories and Spare Parts ............................................................................. 28
Appendix A: Solvent resistance of the pump tubing .............................................. 29
Table of Contents
2 Peristaltic Pump P-1 User Manual 59469801 AM
Important user information
All users must read this entire manual to fully understand the safe use of Peristaltic
Pump P-1.
IMPORTANT
Peristaltic Pump P-1 is intended for research use only, and should
not be used in any clinical or in vitro procedures for diagnostic
purposes.
Safety notices
This manual contains warnings and cautions concerning the safe use of the product.
See definitions below.
WARNING
The WARNING symbol and notice highlight instructions that must
be followed to avoid personal injury. Do not proceed until all stated
conditions are clearly understood and met.
CAUTION
The CAUTION notice highlights instructions that must be followed
to avoid damage to the product or other equipment. Do not
proceed until all stated conditions are met and clearly understood.
Notes
A Note is used to indicate information that is important for trouble-free and optimal
use of the product.
Recycling
This symbol indicates that the waste of electrical and electronic
equipment must not be disposed as unsorted municipal waste and
must be collected separately. Please contact an authorized represen-
tative of the manufacturer for information concerning the decommis-
sioning of equipment.
Important user information
Peristaltic Pump P-1 User Manual 59469801 AM iii
WARNING
This is a Class A product. In a domestic environment, it might cause
radio interference, in which case the user might be required to take
appropriate measures.
WARNING
All repairs should be done by personnel authorized by Cytiva. Do
not open any covers or replace parts unless specifically stated in
the instructions.
Important user information
iv Peristaltic Pump P-1 User Manual 59469801 AM
1 Introduction
Intended use
Peristaltic Pump P-1, (Code No. 18-1110-91), is a single channel laboratory pump for
use in liquid chromatography and other applications where accurately controlled liquid
flows are required.
Functional description
Pumping action is provided by a roller cage driven by a stepper motor controlled by a
range selector and a continuously variable potentiometer. The motor speed is almost
independent of temperature (0–40 °C) and load thus giving an accurate and reprodu-
cible flow rate under all conditions.
An asymmetric shape gives the pump a very low pulsation in the forward direction. The
reverse direction has a pulsation which is more similar to traditional peristaltic pumps.
Maximum flow function and a connector for remote control and pulse counting are
provided.
1 Introduction
Peristaltic Pump P-1 User Manual 59469801 AM 5
2.1 Main panel
Roller cage
Pressure plate
Tubing connector
Flow rate pot.
Flow switch Flow rate switch
Run/Stop
switch
Flow LED

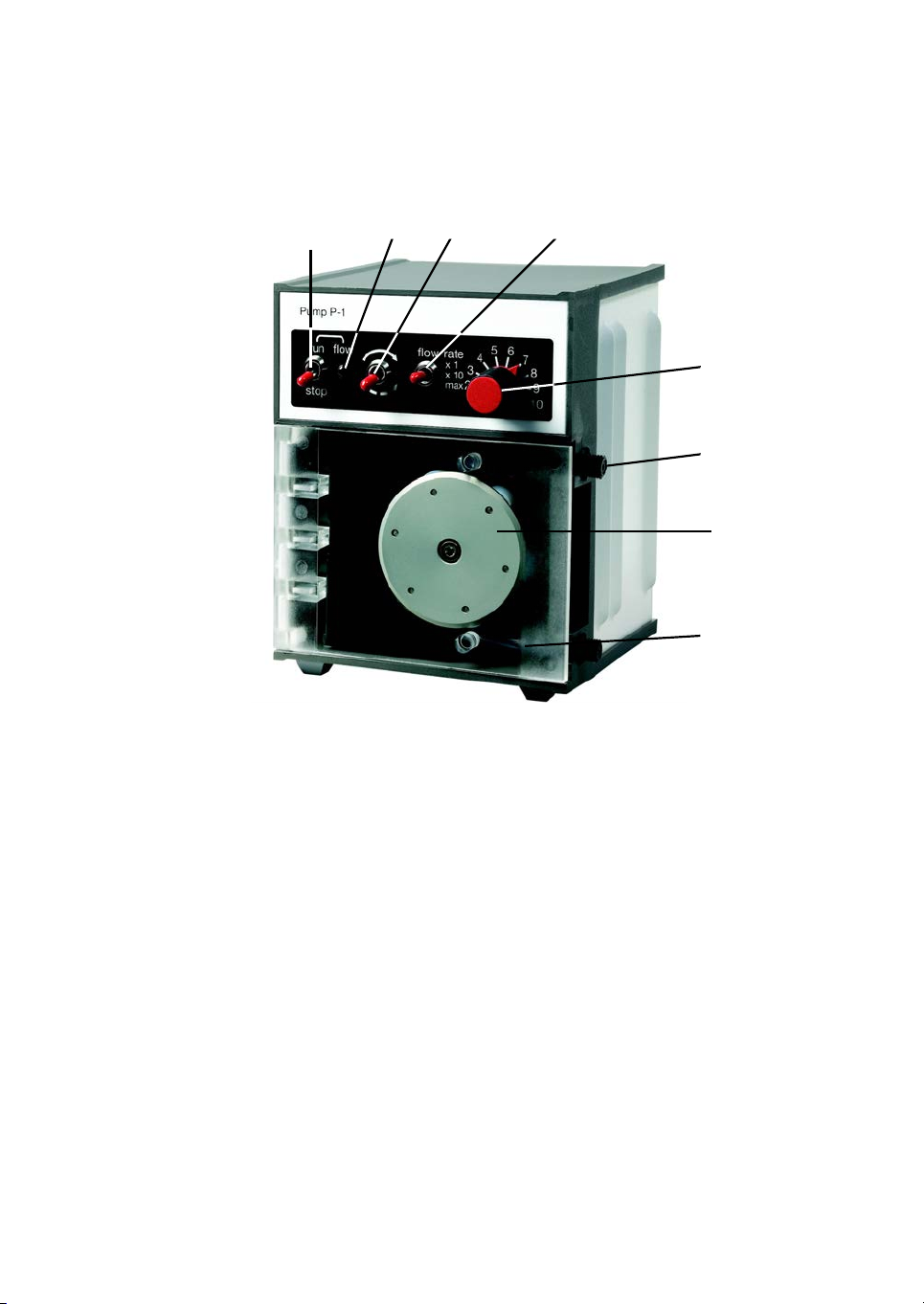

Figure 2.1: The front panel
RUN/STOP Switch
Starts and stops the pump. Can be overridden by the remote control.
Flow LED
Indicates that the pump is turned on. The pump will now run if not overridden by the
remote control.
Flow Switch
A switch to reverse the flow.
Note: Because of the asymmetric design of the pressure plate, the forward direc-
tion (unbroken arrow on the switch) shows less pulsation than the reverse
direction (broken arrow).
2 Product Description
2.1 Main panel
Peristaltic Pump P-1 User Manual 59469801 AM 7
Flow rate switch
A range selector for the flow rate. The switch gives a ten-fold variation of the flow rate.
Pressing the switch to the spring loaded bottom position gives maximum flow rate
independent of the potentiometer setting.
Flow rate potentiometer
A continuously variable potentiometer for the control of the flow rate. Gives a linear
response in the range from 1 to 10.
Flow rate guide
Approx. flow rate (ml/ml
Setting
1 2 3 4 5 6 7 8 9 10
×10 ×1
500 50
400 40
300 30
200 20
100 10

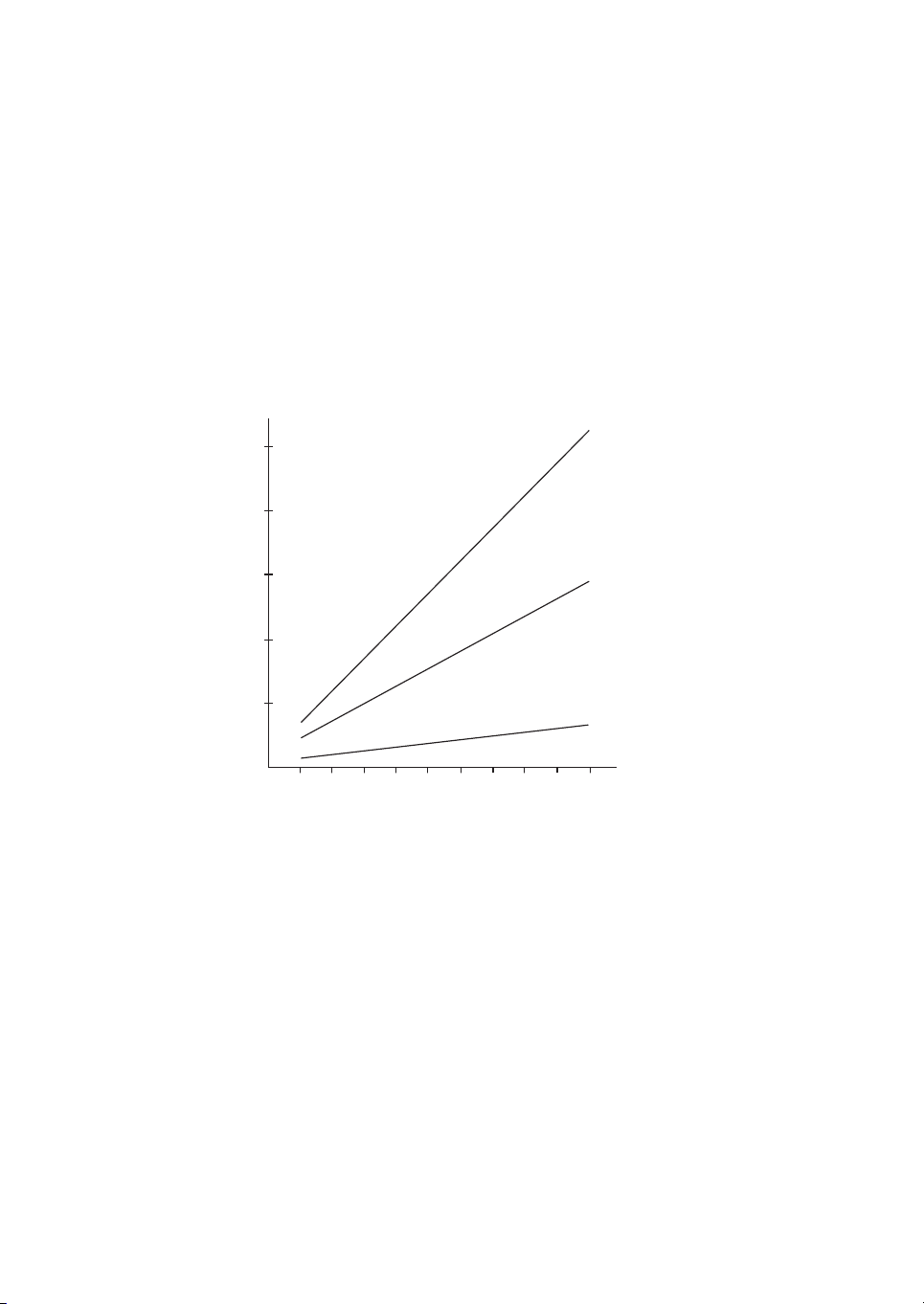

Figure 2.2: Flow rate guide
A guide showing the relationship between the flow rate and the setting for different
tube diameters is delivered with the equipment. One side of the flow rate guide is adhe-
sive and should be used to stick the guide onto the clear plastic lid.
2 Product Description
2.1 Main panel
8 Peristaltic Pump P-1 User Manual 59469801 AM
2.2 Side panel
Remote

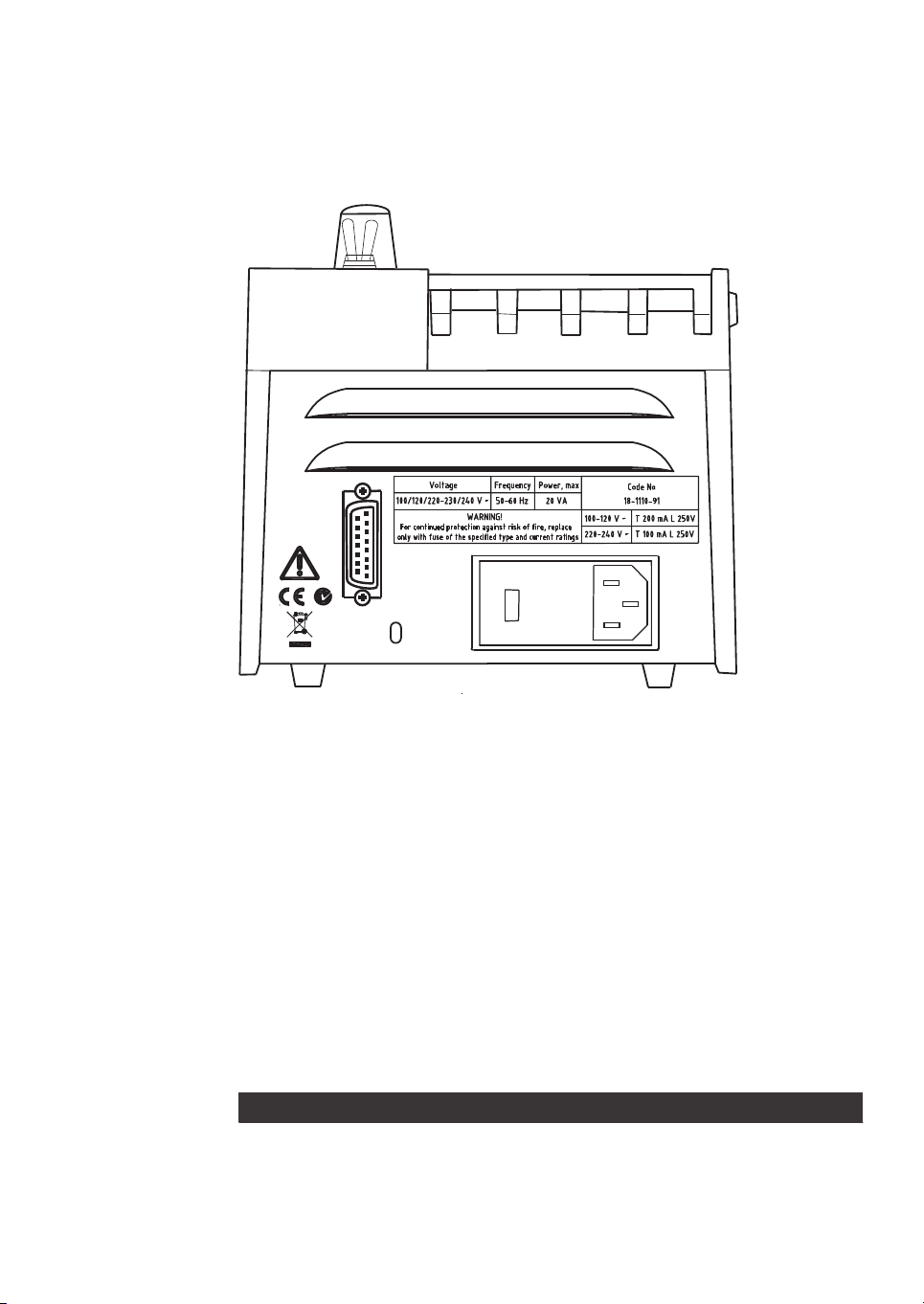

Figure 2.3: The side panel viewed when the pump is on its back
Mains voltage selector
The socket for mains inlet contains a rotary switch for selection of the appropriate
voltage. The voltages are 100, 120, 230 and 240 V.
Note: Use 230 V setting for 220 V~ mains.
Fuse
Protects the electronics from damage in case of short circuiting. The fuse is located in
the same place as the mains voltage selector. See Fig. 3.1, on page 15.
Remote control
15 pin connector of D-type. The numbers referred to are imprinted on the connector.
Table 2.1: Outputs (TTL open collector 5V)
Pin number Function Technical data
Pin 4 Output, rotation direc-
tion sensin
0=Pump On, 1=Pump off
2 Product Description
2.2 Side panel
Peristaltic Pump P-1 User Manual 59469801 AM 9
Pin number Function Technical data
Pin 13 Output , actual speed TTL open collector 5V
0=Pump On, 1=Pump off
Pin 15 Earth
Pin 10 ON/OFF 0=Pump On, 1=Pump off
Table 2.2: Inputs (TTL Activation)
Pin number Function Technical data
Pin 12 Internal/external speed
control
TTL activation
1=internal, 0=external
Pin 14 External speed control 0–200 Hz, pin 12 must be
0 (see above).
Pin 3 Internal/external rotation
control
1= internal, 0= external
Pin 2 External rotation control 1= forwards, 0=back-
wards.
Pin 3 must be 0 (see
above)
2 Product Description
2.2 Side panel
10 Peristaltic Pump P-1 User Manual 59469801 AM
