D & b audiotechnik Z5458 Guida rapida

ZZ5458

AL Base plate

Rigging manual 1.1 en

General information

Z5458

AL Base plate Rigging manual

Version: 1.1 en, 10/2019, D2748.EN .01

rights reserved.

Keep this document with the product or in a safe place

so that it is available for future reference.

We recommend you to regularly check the d&b website for the

latest version of this document.

When reselling this product, hand over this document to the new

owner.

If you supply d&b products, please draw the attention of your

customers to this document. Enclose the relevant documents with

the systems. If you require additional documents for this purpose,

you can order them from d&b.

d&b audiotechnik GmbH & Co. KG

Eugen-Adolff-Straße 134, D-71522 Backnang, Germany

T +49-7191-9669-0, F +49-7191-95 00 00

[email protected], www.dbaudio.com

Contents

1 Z5458 AL Base plate........................................................... 4

1.1 Safety........................................................................................... 4

1.1.1 Intended use............................................................................ 4

1.1.2 General safety......................................................................... 4

1.1.3 Load safety information........................................................... 4

1.2 Scope of supply.......................................................................... 4

2 A-Series rigging components.......................................... 5

2.1 Locking pins................................................................................. 5

2.2 Ring cotter................................................................................... 6

2.3 Cabinet rigging mechanism....................................................... 7

2.3.1 Front link mechanism............................................................... 7

2.3.2 Splay link mechanism.............................................................. 7

2.3.3 Setting the splay angle(s)....................................................... 8

2.3.4 Splay link of the Base plate.................................................... 9

3 Rigging/derigging............................................................ 10

3.1 Preparing the setup.................................................................. 10

3.2 Order of assembly................................................................... 10

3.2.1 AL ground stack.................................................................... 10

3.2.2 Mixed ground stack.............................................................. 14

3.3 Derigging.................................................................................. 14

4 Care and maintenance.................................................... 15

4.1 Transport/storing...................................................................... 15

4.2 Visual and functional inspection.............................................. 15

5 Declarations......................................................................... 16

5.1 Manufacturer's declaration...................................................... 16

5.2 Disposal.................................................................................... 16

Contents

d&b Z5458

AL Base plate Rigging manual 1.1 en 3

Z5458 AL Base plate

1.1 Safety

1.1.1 Intended use

The Z5458 AL Base plate must only be used in conjunction with

the d&b A-Series AL60/AL90 and ALi60/ALi90 cabinets, as

described in this manual.

1.1.2 General safety

Installation and setup should only be carried out by qualified and

authorized personnel observing the valid national Rules for the

Prevention of Accidents (RPA).

Always carry out a visual and functional inspection of the items

before use. In case there is any doubt as to the proper functioning

and safety of the items, these must be withdrawn from use

immediately.

Please also refer to Þ Chapter 4 "Care and maintenance"

on page 15 .

1.1.3 Load safety information

NOTICE!

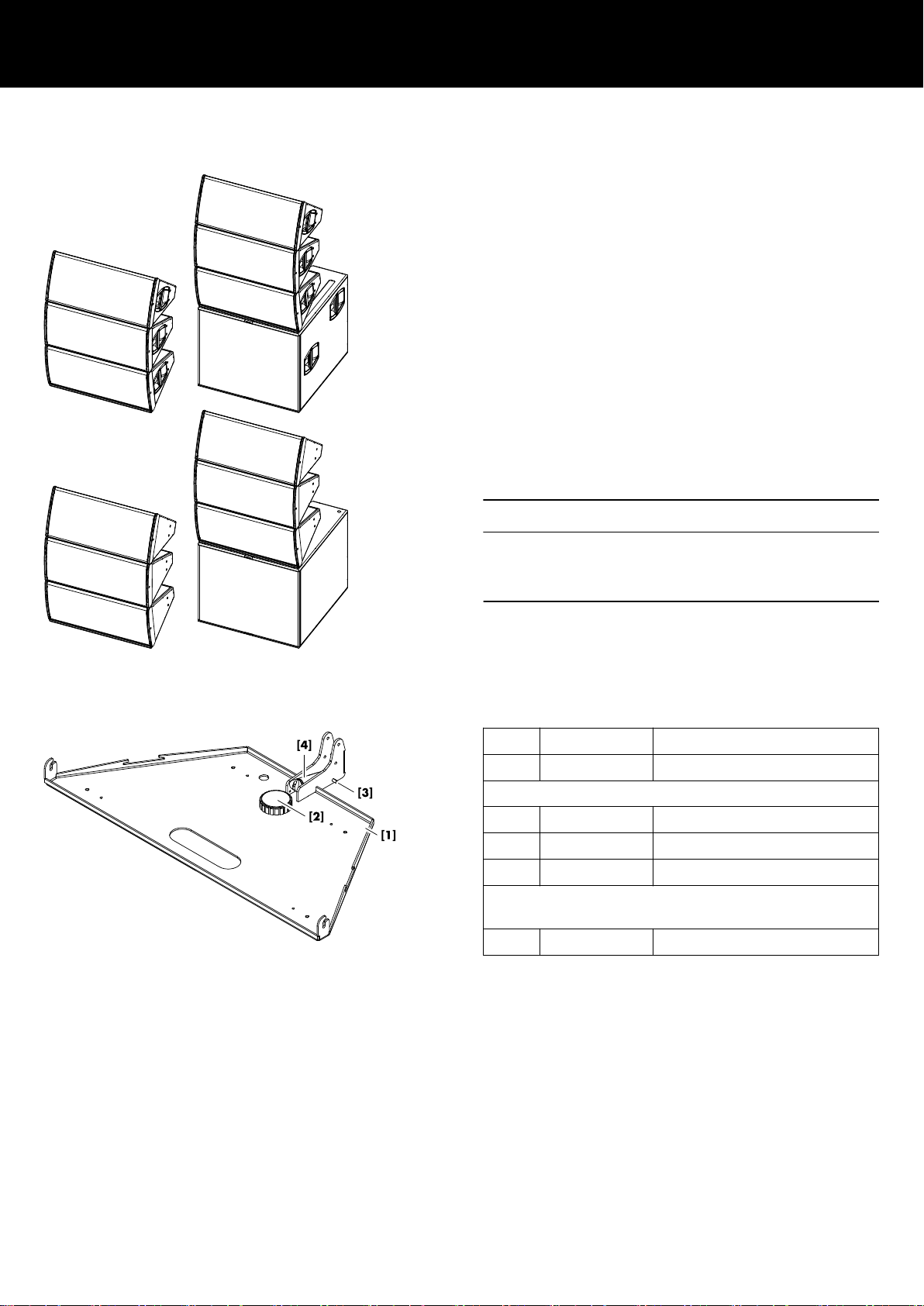

The Z5458 AL Base plate is designed to stack a total of 3 x AL60/

AL90 or ALi60/ALi90 cabinets either directly on the ground or on

top of applicable subwoofer.

1.2 Scope of supply

Please verify the shipment for completeness and proper condition

of the items.

Qty. d&b Code Description

1Z5458 d&b AL Base plate [1]

Including:

1 Hand bolt M20 x 25 [2]

1 Locking pin 5 x 35 mm [3]

1 AL Splay link [4]

All items are undetachably attached to the plate using steel wire

ropes.

1 D2748.EN .01 Z5458 Rigging manual

1 Z5458 AL Base plate

d&b Z5458

AL Base plate Rigging manual 1.1 en4

A-Series rigging components

2.1 Locking pins

WARNING!

Potential risk of personal injury and/or

damage to material!

The steel wires of the Locking pins are not intended to carry any

load. The cabinet's weight must only be carried by the Front and

Splay/Rear links in conjunction with the front and rear rigging

strands of the loudspeaker cabinets and the rigging components.

Ensure all Locking pins are fully inserted and securely locked

before lifting any load.

The A-Series loudspeaker cabinets and rigging components are

equipped with a Locking pin 5 x 35 mm.

Note: The Locking pins are undetachably attached to the

different rigging components on the cabinet using steel wires.

Throughout this manual these steel wires are not shown in the

corresponding illustrations.

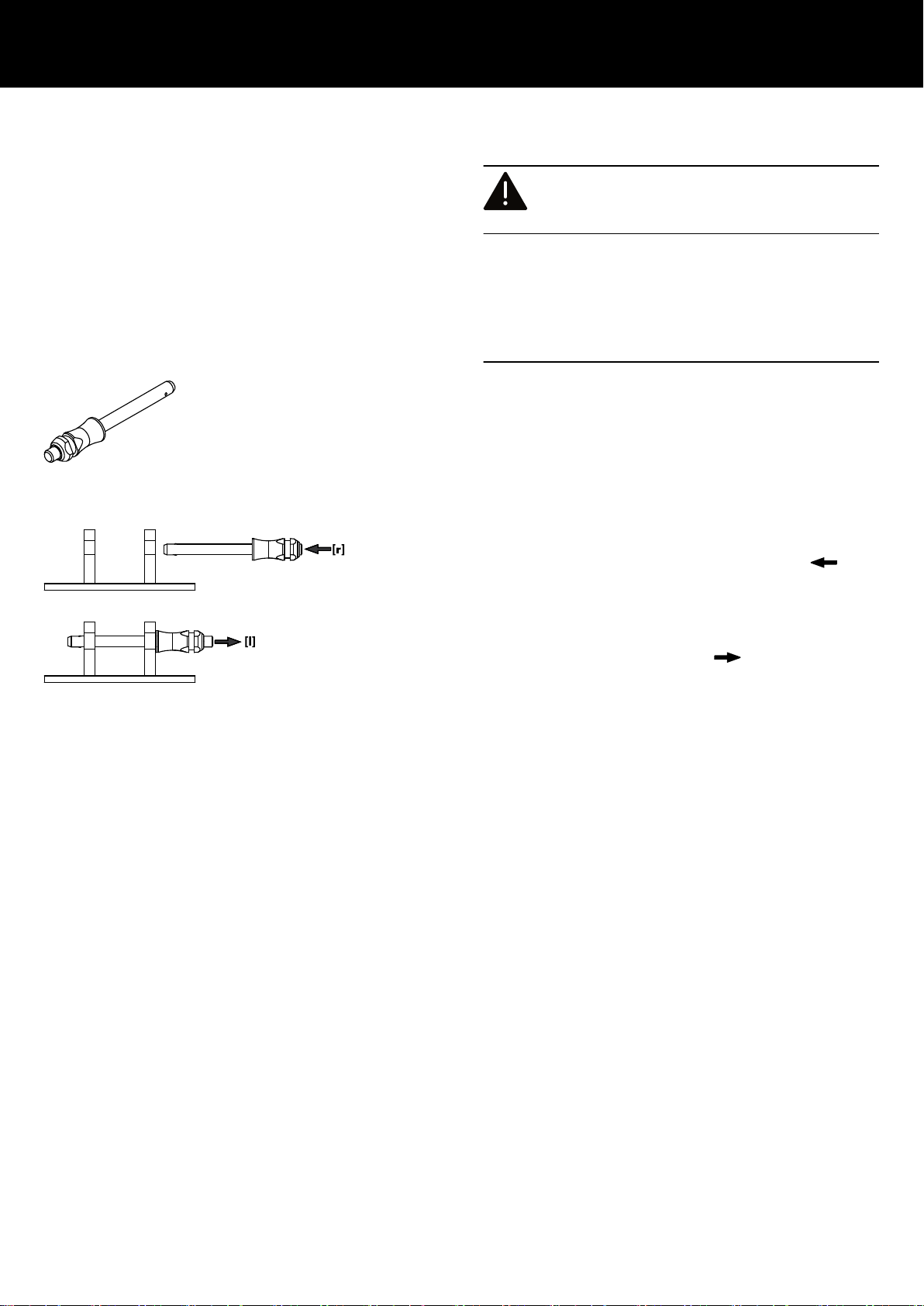

Functionality (Quick lock mechanism)

Proceed as follows:

1. Press the button to release the locking mechanism ( [r]).

2. Remove the Locking pin through the respective link or socket.

3. Insert the Locking pin through the respective link or socket until

it is fixed in place.

4. Release the button to lock the pin ( [l]).

5. Recheck the Locking pin is securely locked by briefly pulling

the Locking pin towards you.

2 A-Series rigging components

d&b Z5458

AL Base plate Rigging manual 1.1 en 5

A-Series rigging components

2.2 Ring cotter

In connection with the A-Series rigging system, ring cotters are used

for the following items to prevent the respective item from

slackening and/or loosening:

▪ Fixing bolt of the base plate splay link.

▪ Fixing bolt of the cabinet's splay link.

Function of the ring cotter

By default, the ring cotters are "locked" to prevent them from

loosening.

For modification reasons such as altering the position of the

Frame's Rear link or exchanging a shackle, it may be necessary to

temporarily remove the ring cotter and reattach it afterwards.

For this purpose proceed as follows:

1. Unlock

Unlock the ring cotter by pushing up the front wire loop over

the straight wire shaft.

2. Release and remove

Push down the rear wire loop until the ring cotter snaps over

the edge of the bolt and remove the ring cotter.

3. Refit and lock

Refit the ring cotter by pushing the straight wire shaft through

the hole and pressing the front wire loop underneath the

straight wire shaft.

Ring cotter

Ring cotter locked

d&b Z5458

AL Base plate Rigging manual 1.1 en6

A-Series rigging components

2.3 Cabinet rigging mechanism

The cabinets are mechanically connected to the Flying frame and

subsequent loudspeakers using the Front links on both sides of the

cabinet front and the central Splay link on the rear rigging strand

of the cabinet.

All necessary rigging components are mounted to the cabinet and

slide out or fold out when needed.

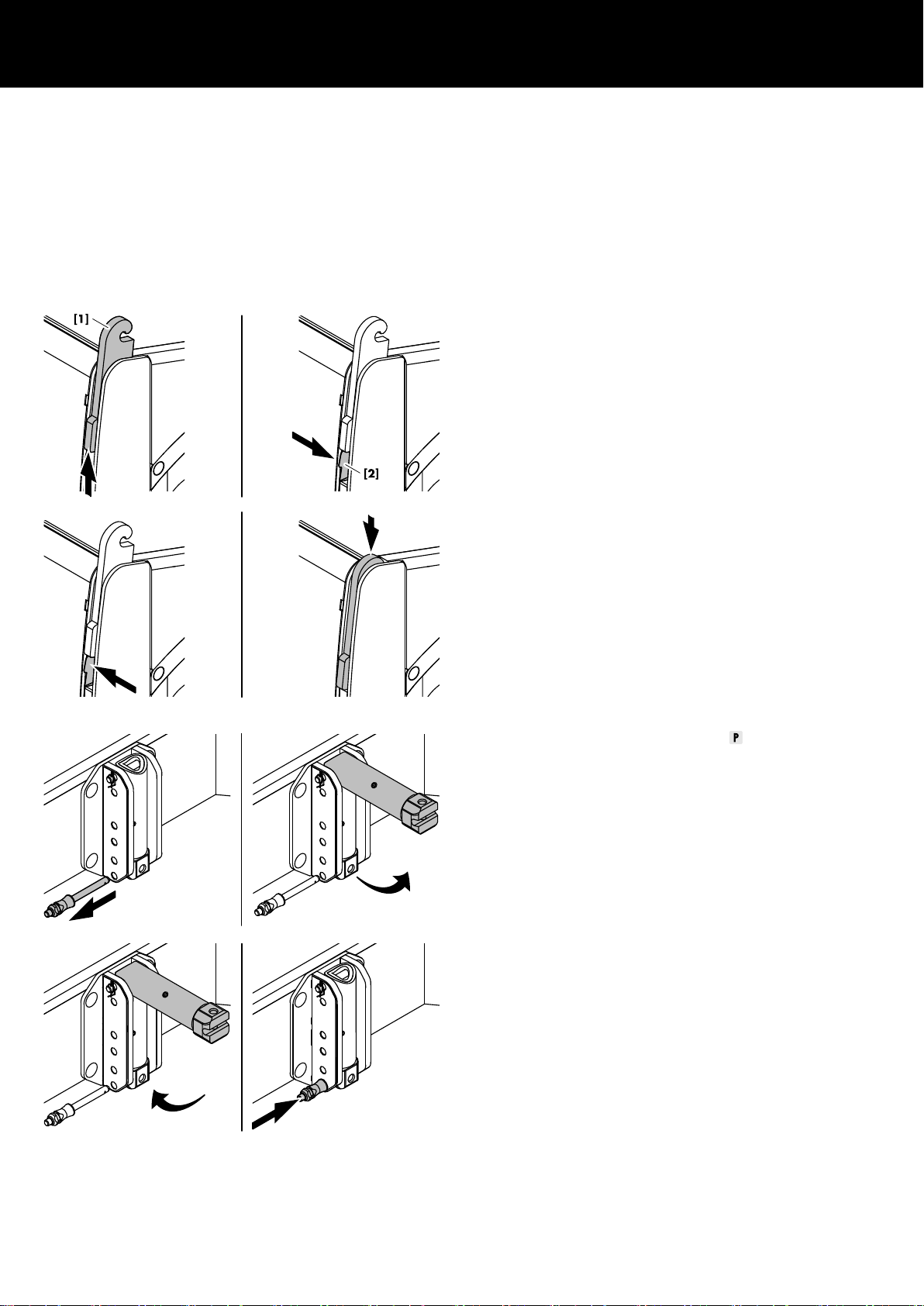

2.3.1 Front link mechanism

To extend and/or park the Front link, proceed as follows:

1. Slide out the Front link [1] up to its stop position.

↳Once the Front link is fully extended, it will be automatically

fixed in place by the spring steel sheet [2].

2. To slide the Front link back into its park position, press the

spring steel sheet towards the front grill.

3. Slide the Front link back into its park position.

2.3.2 Splay link mechanism

The Splay link is fixed in its park position ( ) by a Locking pin.

1. Release the Locking pin and fold out the Splay link.

2. To park the Splay link, proceed in reverse order and ensure

the extension tube is fully pushed in and the head is aligned

correspondingly, as shown in the graphic opposite.

d&b Z5458

AL Base plate Rigging manual 1.1 en 7

A-Series rigging components

2.3.3 Setting the splay angle(s)

Splay angles between adjacent cabinets can be set in the range

from 20° to 40° in 5° increments resulting in a total coverage of

50° up to 70° for two cabinets, with a maximum total coverage of

150° for four cabinets.

Splay angles can also be set symmetrically or asymmetrically,

depending on the application.

For this purpose, the Splay link provides two different lengths:

Standard or Extended.

Together with the corresponding Hole grid on the rear rigging

strand, the desired splay angles can be set in the range from 20°

to 40° in 5° increments.

The Splay link is constructed as a cylindrical extender (we call it

the 'Trombone';).

The extension tube head can be turned counter clockwise by 90°

and back again.

To change between the Standard and Extended positions, proceed

as follows:

Standard length

1. Fold out the Splay link as previously described.

2. Turn the extension tube head counter clockwise by 90° to fix

the standard length of the Splay link.

Extended length

1. Fold out the Splay link as previously described.

2. Pull out the extension tube to its stop position.

3. Turn the extension tube head counter clockwise by 90° to fix

the extended length of the Splay link.

Standard | Extended | Hole grid

Splay link lengths and correlation to the hole grid on the rear rigging strand.

d&b Z5458

AL Base plate Rigging manual 1.1 en8

A-Series rigging components

2.3.4 Splay link of the Base plate

The rear rigging slot of the Base plate is also equipped with a

Splay link. Depending on its position in the hole grid of the rigging

slot and on its set length (Standard or Extended), the Splay link

allows either an uptilt or a downtilt of the first cabinet.

Up In combination with the 35° hole on the rear rigging

strand of the first cabinet and with the Splay link set to

'Standard' length, the rigging slot of the Base plate

allows for uptilt angles of 5° (upper hole), 10° (center

hole) and 15° (bottom hole).

Down In combination with the 20° hole on the rear rigging

strand of the first cabinet and with the Splay link set to

'Extended' length, the rigging slot of the Base plate

allows for downtilt angles of –10° (upper hole), –5°

(center hole) and 00° (bottom hole), shown as an

example in the graphic opposite.

The splay angle(s) of the next (two) cabinet(s) is/are set in the

same manner as described in the previous sections.

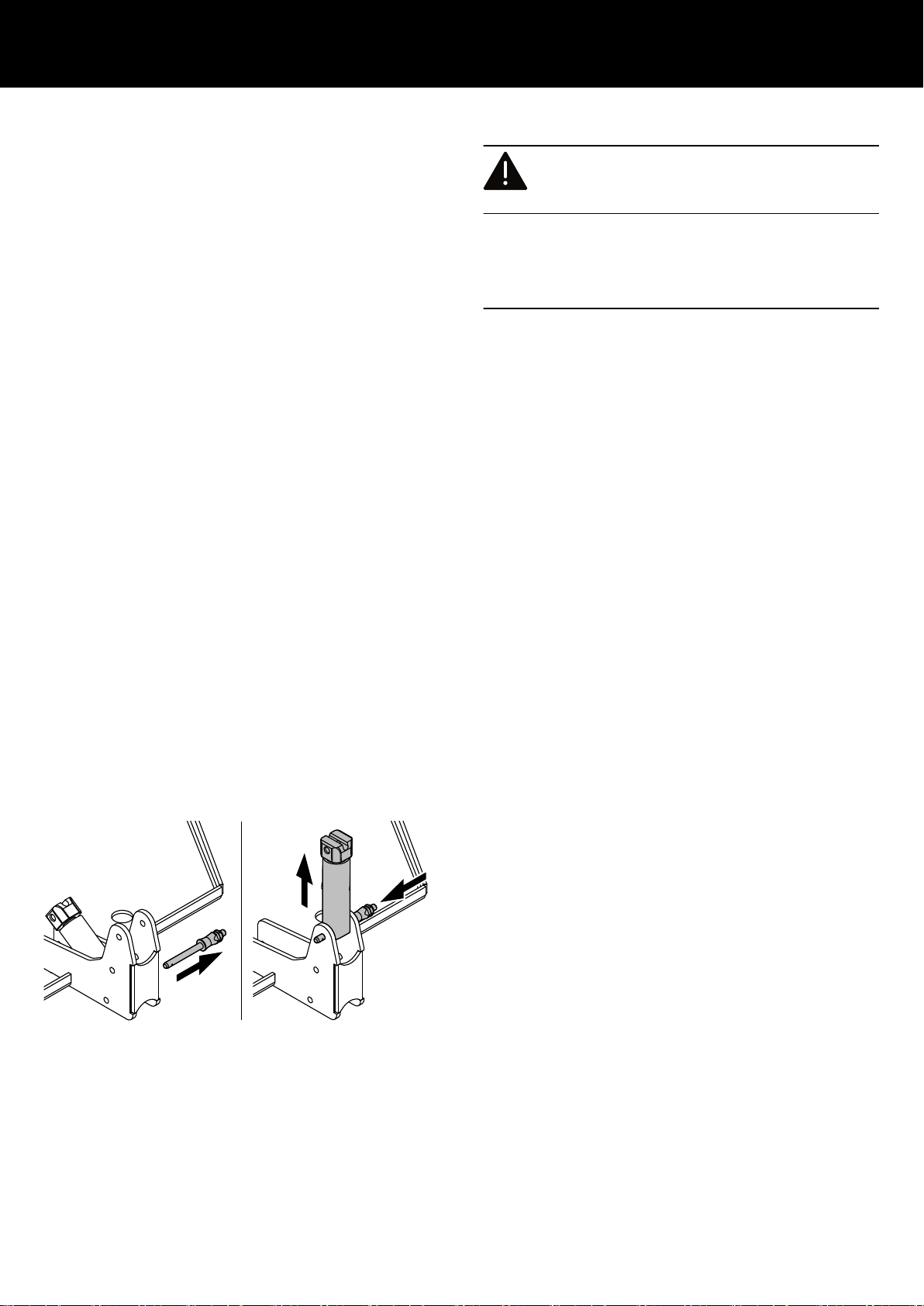

Changing the Splay link position

To easily change the position of the Splay link of the Base plate, it

is fixed using the corresponding Locking pin.

To change the position of the Splay link, proceed as follows:

1. Release the Locking pin.

2. Move the Splay link to the desired hole position in the rigging

slot.

3. Insert the Locking pin and ensure the pin is fully inserted and

properly locked.

d&b Z5458

AL Base plate Rigging manual 1.1 en 9

Rigging/derigging

WARNING!

Potential risk of personal injury and/or

damage to material!

Always secure ground stacked setups against movement and

possible tipping over.

Observe the maximum number of cabinets permitted. This is

particularly important when setting up mixed ground stacks.

3.1 Preparing the setup

General

Check the acoustical and mechanical setup using ArrayCalc.

When on site first:

▪ Clear the working areas and ensure there is enough space to

set up the ground stack.

▪ Prepare the cables and link cables according to the number of

amplifier channels and cabinets used.

Inspections before setup

Before setting up the ground stack, carry out a visual inspection of

all system components for faults. This also includes the

loudspeakers and in particular the rigging parts of the cabinets

(Front and Splay/Rear links).

Damaged components must be withdrawn from use immediately.

Please also follow the instructions given in Þ Chapter 4 "Care and

maintenance" on page 15.

3.2 Order of assembly

3.2.1 AL ground stack

1. Prepare the Base plate

1. Fix the Splay link of the Base plate in the required hole

position.

2. Position the Base plate on the ground.

3 Rigging/derigging

d&b Z5458

AL Base plate Rigging manual 1.1 en10

Indice

Altri manuali d & b audiotechnik Rack e supporto

d & b audiotechnik

d & b audiotechnik Z5080 Manuale utente

d & b audiotechnik

d & b audiotechnik Z5554 Manuale utente

d & b audiotechnik

d & b audiotechnik Z5455 Guida rapida

d & b audiotechnik

d & b audiotechnik Z5383 Manuale utente

d & b audiotechnik

d & b audiotechnik Z5440 Manuale utente

d & b audiotechnik

d & b audiotechnik SL Series Guida rapida

d & b audiotechnik

d & b audiotechnik Z5401 Wall mount S Manuale utente

d & b audiotechnik

d & b audiotechnik Z5399 Manuale utente

d & b audiotechnik

d & b audiotechnik Z5442 Manuale utente

d & b audiotechnik

d & b audiotechnik Z5601.002 Manuale utente

d & b audiotechnik

d & b audiotechnik Z5409 Manuale utente

d & b audiotechnik

d & b audiotechnik Z Series Manuale utente

d & b audiotechnik

d & b audiotechnik Z5330.050 Manuale utente

d & b audiotechnik

d & b audiotechnik Z5398 Manuale utente

d & b audiotechnik

d & b audiotechnik Z5459 Manuale utente

d & b audiotechnik

d & b audiotechnik Z Series Guida rapida

d & b audiotechnik

d & b audiotechnik Z5394 Guida rapida

d & b audiotechnik

d & b audiotechnik Z5778 Guida rapida

d & b audiotechnik

d & b audiotechnik SL Series Guida rapida

d & b audiotechnik

d & b audiotechnik Z5786 Guida rapida

d & b audiotechnik

d & b audiotechnik Z5560 Manuale utente

d & b audiotechnik

d & b audiotechnik Z5043 Manuale utente

d & b audiotechnik

d & b audiotechnik Z5576.000 Manuale utente

d & b audiotechnik

d & b audiotechnik Z Series Manuale utente

Manuali Rack e supporto popolari di altre marche

Salamander

Salamander Acadia AC/W/L400/WH Manuale utente

Fohhn

Fohhn VAT-09 Guida utente

ricoo

ricoo FS0522 Manuale utente

AMSOIL

AMSOIL BMK-22 Guida rapida

Kargo Master

Kargo Master 48220 Manuale utente

Milestone AV Technologies

Milestone AV Technologies SIMPLICITY SLF2 Manuale utente

ricoo

ricoo S1222 Manuale utente

Ready-Set-Mount

Ready-Set-Mount RSMCM602 Manuale utente

VidaBox

VidaBox VB MNT FFS2 Manuale utente

Welch Allyn

Welch Allyn 48960 Manuale utente

Arkon

Arkon CM035-ST-2 Manuale utente

PROEL

PROEL PLWIN60C Manuale utente

Agilent Technologies

Agilent Technologies E2609B Manuale utente

Mustang

Mustang MV-ARM4 Manuale utente

Mounting Solutions

Mounting Solutions WRM-320 Manuale utente

Pyle

Pyle PMKSPAD1 Manuale utente

ShelterIt

ShelterIt 21208 Manuale utente

SPL

SPL RackPack?4 1040 Manuale utente

d & b audiotechnik Z5458 Guida rapida

Manuali Rack e supporto popolari di altre marche
