D-Link DGE-530T Manuale utente

After you click OK,the Install Shield Wizard page will appear:

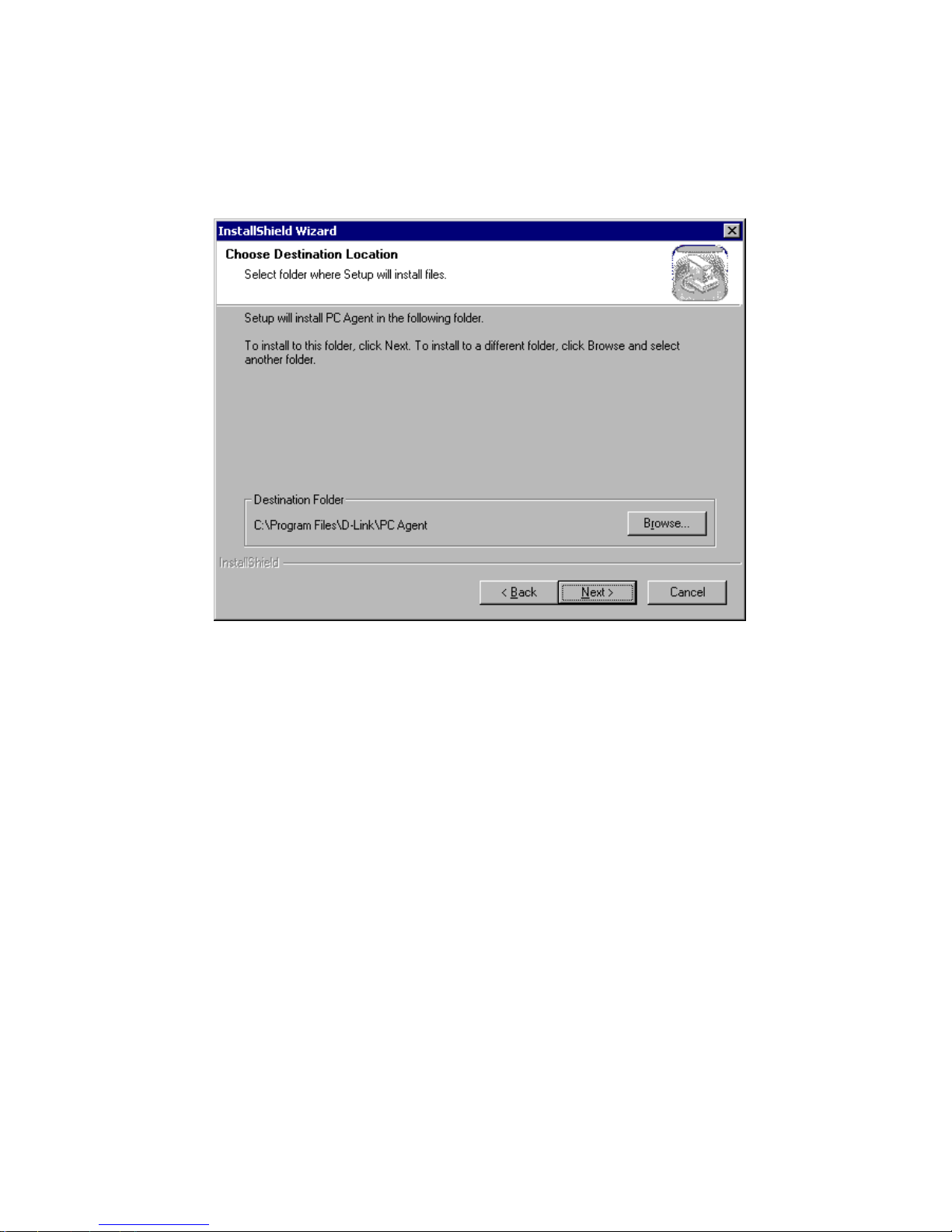

Click Next and the following Choose Destination Location page will

appear: Click Browse to select another folder to install PC Agent.

Otherwise click Next to select the default folder C:\Program Files\D-

Link\PC Agent.

The Install Shield Wizard will come to completion. Click Finish to restart

the computer.

Go to Start#Programs#D-Link PC Agent#D-Link

PC Agent

After you enter personal settings and click OK,the D-Link PC Agent

becomes an icon in the taskbar.

Double-click the D-Link PC Agent icon to bring up the

D-Link Ethernet Adapter Agent:

Under Options check “Auto launch when Windows start up” so that the

D-Link Ethernet Adapter Agent will automatically appear when

Windows starts up.

Click Personal to enter settings for name, location, and contact as in

Step 3.

Click Password to set the password to desired from default password of

“private.”

Now you can use any MIB browser, for example the

D-Link MIB compiler, to view information on the

workstation with the DGE-530Tcard SNMP Agent

feature.

The D-Link Network Adapter SNMP Agent supports

the following functions of the dlk_pc.mib:

Function Description

hrSystemUptime The amount of time

since this host was

last initialized.

hrSystemDate The host's notion of

the local date and

time of day.

hrSystemTimeZone

The current local

time zone, expressed

in hours west of

Greenwich. If

unknown, the value -

1 shall be returned.

hrSystemInitialLoad

Device

This index of the
