D-Link DHP?P308AV Manuale utente

User Manual

DHP‑P308AV / DHP‑P309AV

Version 2.10 | 02/25/2014

PowerLine AV 500 Passthrough Mini Adapter

2D-Link DHP-P308AV/DHP-P309AV User Manual

D-Link reserves the right to revise this publication and to make changes in the content hereof without obligation to notify any

person or organization of such revisions or changes.

Manual Revisions

Trademarks

D-Link and the D-Link logo are trademarks or registered trademarks of D-Link Corporation or its subsidiaries in the United

States or other countries. All other company or product names mentioned herein are trademarks or registered trademarks of

their respective companies.

from D-Link Systems, Inc.

Preface

Revision Date Description

1.0 May 07, 2013 • Initial release for hardware revision B1

2.0 November 07, 2013 • Initial release for hardware revision C1

2.1 February 25, 2014 • Product feature update

3D-Link DHP-P308AV/DHP-P309AV User Manual

Table of Contents

Preface .........................................................................................2

Manual Revisions .......................................................................... 2

Trademarks ..................................................................................... 2

Product Overview ......................................................................4

Package Contents .........................................................................4

System Requirements ................................................................. 4

Introduction ................................................................................... 5

Features ............................................................................................5

Hardware Overview ..................................................................... 6

LEDs ........................................................................................... 6

Connection ............................................................................. 7

Hardware Installation ...............................................................8

Push Button Security ................................................................... 9

Powerline Installation Considerations ................................12

Troubleshooting ..................................................................... 14

Technical Specications ........................................................ 15

Table of Contents

4D-Link DHP-P308AV/DHP-P309AV User Manual

Section 1 - Product Overview

DHP-P308AV

• D-Link DHP-P308AV PowerLine AV 500 Passthrough Mini Adapter

• Ethernet Cable

• Quick Install Guide

DHP-P309AV

• D-Link DHP-P308AV PowerLine AV 500 Passthrough Mini Adapter X2

• Ethernet Cable X2

• Quick Install Guide

System Requirements

• Windows® 7, Windows Vista®, XP (with Service Pack 3)

• Ethernet interface (10/100 Mbps)

• PC with 1.5GHz Processor

• 1 GB Memory

Product Overview

Package Contents

5D-Link DHP-P308AV/DHP-P309AV User Manual

Section 1 - Product Overview

Introduction

D-Link announces a fast PowerLine AV 500 Passthrough Mini Adapter which allows you to connect your home computers,

networking devices and gaming devices through the most pervasive medium in your house - the electric powerlines - and

share Internet connections, printers, transfer les, play games, and more.

Features

• Provides Ethernet to Powerline Connection

• Faster than 200Mbps*

• One Ethernet port

• Plug & Play, Easy Installation

• Push Button Security

• Power Saving mode

• Integrated Passthrough Power Socket with Noise Filtering

* Maximum throughput based on theoretical transmission PHY rate. Actual date throughput will vary. Network conditions and environmental factors, including volume of trac

and network overhead, may lower actual data throughput rate. Interference from devices that emit electrical noise, such as vacuum cleaners and hair dryers, may adversely aect

the performance of this product. This product may interfere with devices such as lighting systems that have a dimmer switch, short wave radios, or other powerline devices that

do not follow the HomePlug AV and IEEE1901 standard. Powerline AV 500 products feature a more ecient processor than current 200 Mbps Powerline AV products to provide

faster speeds.

6D-Link DHP-P308AV/DHP-P309AV User Manual

Section 1 - Product Overview

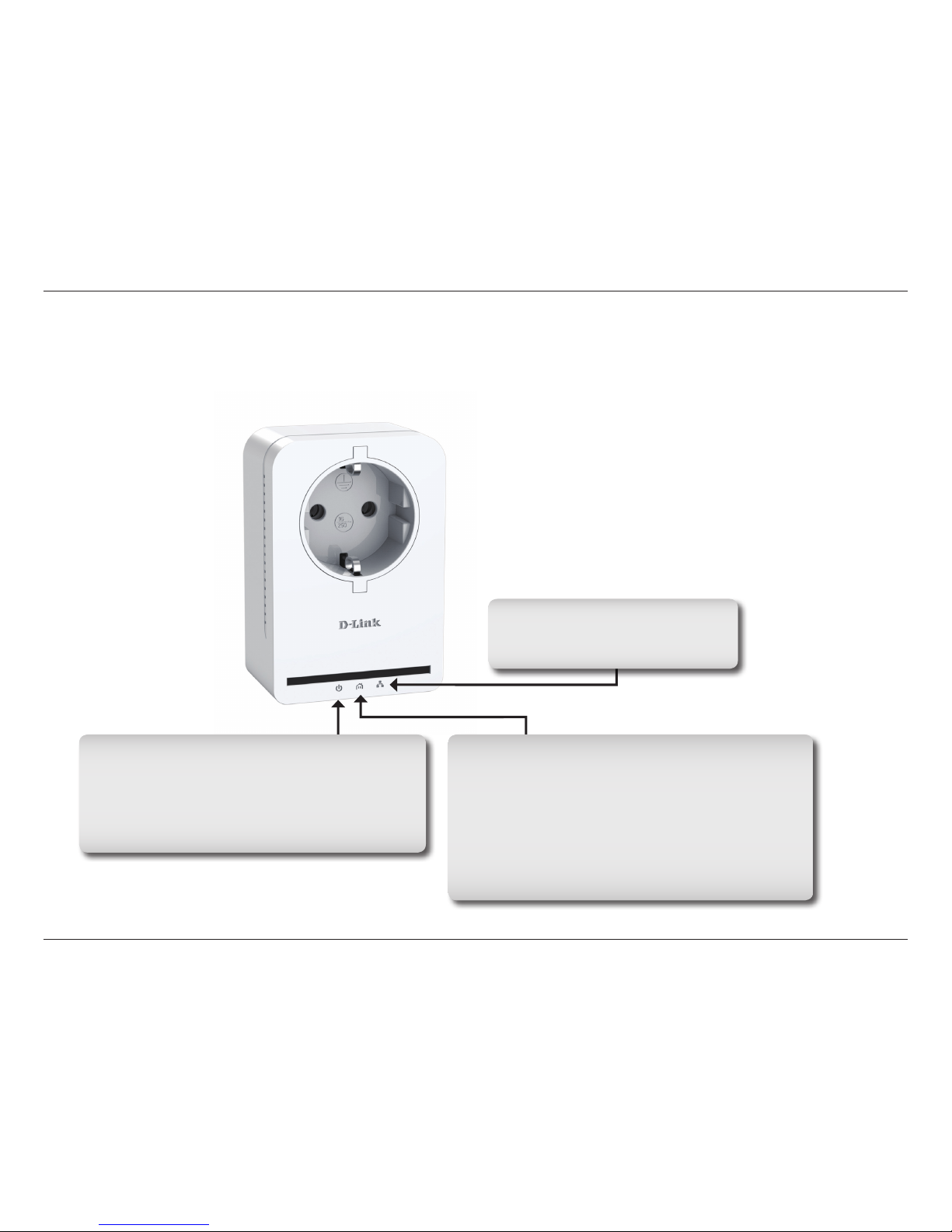

Hardware Overview

LEDs

Power LED

• Solid. The device is receiving electrical power.

• Blinking. The device is setting itself up after reset or

simple connect button was pressed or power saving

mode enabled.

• O. The device is not receiving electrical power.

Powerline LED

• Solid. The device is connected to a Powerline network.

• Off. The device has not found any other compatible

Powerline devices using the same encryption key.

The color indicates the Powerline link rate:

• Green. The Powerline link rate is best.

• Amber. The Powerline link rate is better.

• Red. The Powerline link rate is good.

Ethernet LED

• Solid. The Ethernet port is linked.

• O. There is no Ethernet connection.

7D-Link DHP-P308AV/DHP-P309AV User Manual

Section 1 - Product Overview

Hardware Overview

Connection

Ethernet Port

Connect Ethernet cable to your PC

or Ethernet device.

Simple Connect Button

Press to secure your network or reset

your device back to the factory

default settings. Refer to page 9 for

more information.

8D-Link DHP-P308AV/DHP-P309AV User Manual

Section 2 - Installation

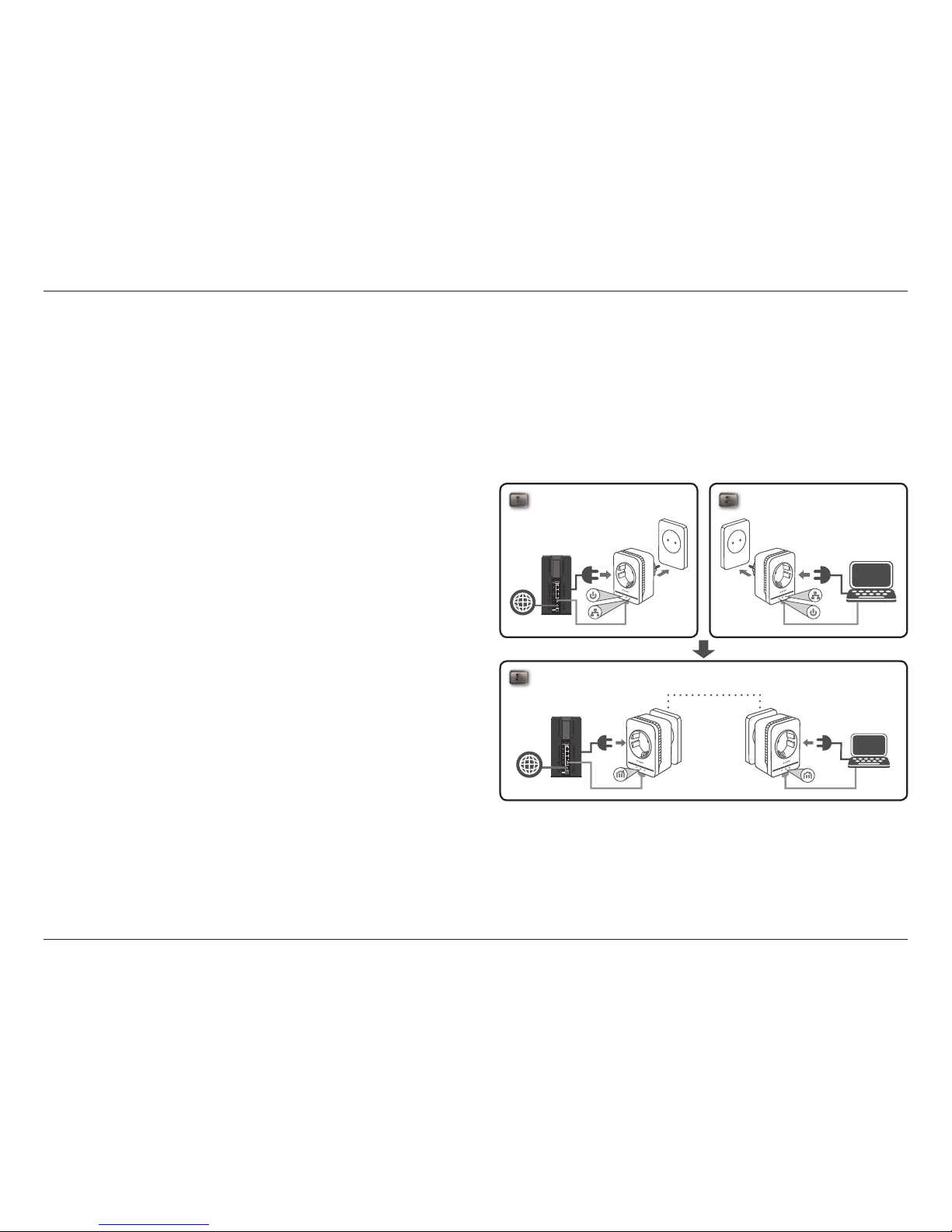

Hardware Installation

Power

Plug in the DHP-P308AV into an AC wall outlet or power strip.

Note: Power source is conrmed when the Power LED on the DHP-P308AV is illuminated.

Connect the Ethernet Cable

Connect the included Ethernet cable to the network cable

connector located on the DHP-P308AV and attach the other

end of the Ethernet cable to the network or PC. Network

Connectivity is conrmed when the Ethernet LED on the

DHP-P308AV are illuminated.

Power Saving Mode Enabled

When you click the Simple Connect button quickly twice,

the DHP-P308AV will go into power saving mode. To wake

the device up, just click the Simple Connect button again.

WARNING! D-Link powerline devices cannot be congured while in

Power Saving Mode enabled.

3ROOM A ROOM B

2ROOM B

DHP-P308AV

1ROOM A

RouterInternet

DHP-P308AV

DHP-P308AV DHP-P308AV

RouterInternet

9D-Link DHP-P308AV/DHP-P309AV User Manual

Section 2 - Installation

Understanding PowerLine AV 500 Passthrough Mini Adapter Security

The PowerLine AV 500 Passthrough Mini Adapters on the same network must use an identical encryption key. The default

encryption key of each PowerLine AV 500 Passthrough Mini Adapter is HomePlug AV. All PowerLine AV 500 Passthrough Mini

Adapters with default encryption key can communicate with each other.

It’s recommended to create a private encryption key for network security purpose. The private encryption key allows you to

protect your network from unauthorized access via the Powerline network. To create a private encryption key instead of the

default encryption key, please follow below steps:

1. All Adapters

Plug in all the adapters to be congured and make sure each device’s encryption key is set to HomePlug AV (default value). If

the encryption key is not set to the default value, press the Simple connect button for 10 seconds for resetting it to the default

value.

2. First Adapter

Press Simple connect button of the rst adapter for no more than three seconds.

The Power LED will start blinking after you release the button. The adapter will create a private, randomly generated encryption

key that each PowerLine AV 500 Passthrough Mini Adapter will use.

Push Button Security

10D-Link DHP-P308AV/DHP-P309AV User Manual

Section 2 - Installation

3. Second Adapter

Within two minutes of pushing the Simple connect button of the rst adapter, press Simple connect button of second adapter

in your Powerline network for no more than three seconds. The Power LED will start blinking after you release the button.

Note: Both Simple connect buttons must be pressed within two minutes.

After above network security setup steps, your Powerline network will be securely congured with the same network encryption

key. The adapters will memorize the security settings even if they are unplugged.

Note: To change the private encryption key, please reset the adapter back to its default value by pressing the Simple Connect

button for 10 second and then follow the security setup procedure above.

4. Adding More Adapters

If you would like to add more than two adapters, press the button of the additional adapter for no more than three seconds.

The Power LED will start blinking after you release the button.

Then press the button of any adapter in your existing Powerline network for no more than three seconds. The Power LED will

start blinking after you release the button.

Note: Both Simple connect buttons must be pressed within two minutes.

After above network security setup steps, your Powerline network will be securely congured with the same network encryption

key.
