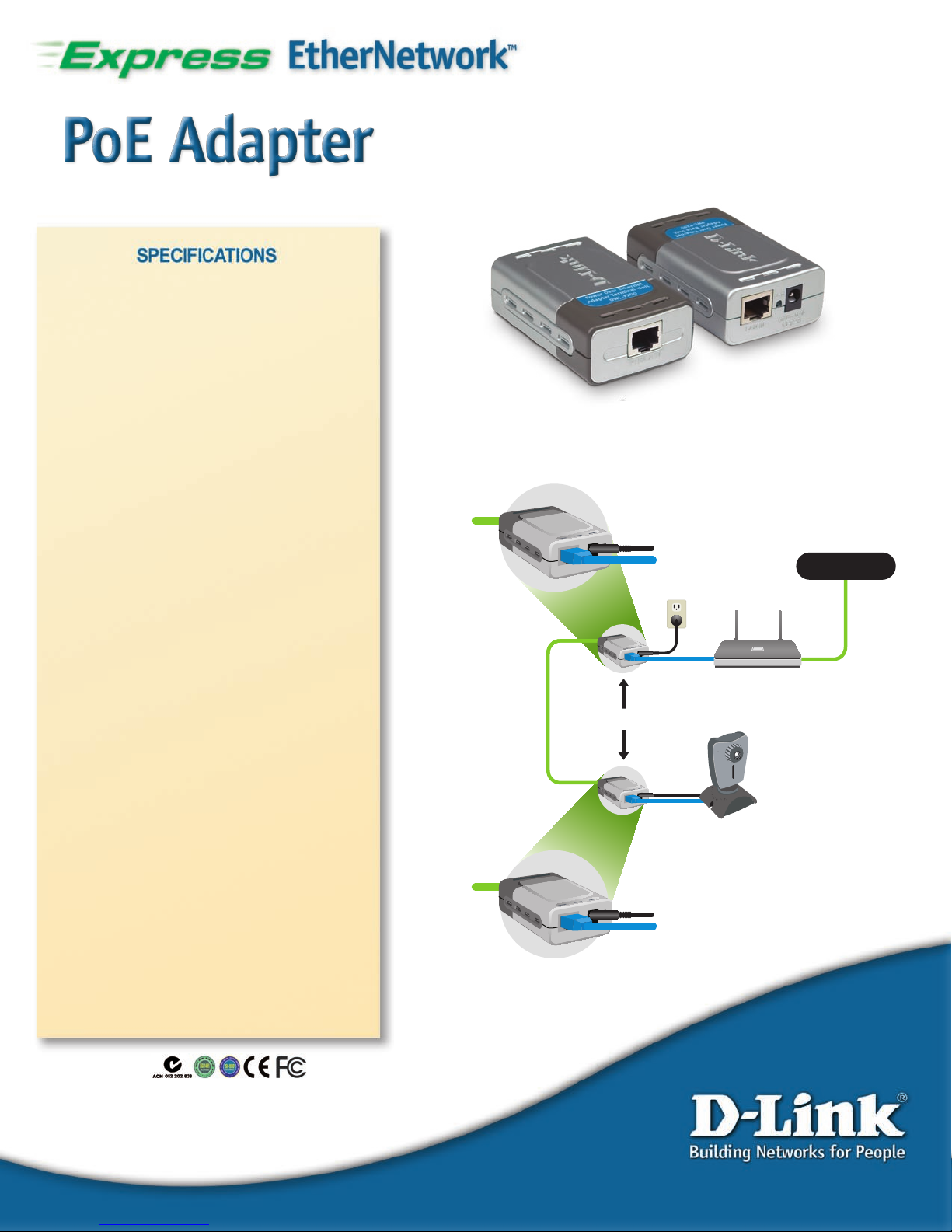

DWL-P200

Deliver Power over Ethernet

to Remote Devices

Plug & Play Installation

D-Link, an industry leader in networking, introduces

the DWL-P200 Power over Ethernet (PoE) Adapter.

The DWL-P200 delivers both data and electrical

power to Ethernet-enabled devices using a single

Ethernet cable. Using Power over Ethernet, you

eliminate the need to place an Ethernet-enabled

device, such as a wireless access point, near a

power outlet, giving you more freedom in placement.

The DWL-P200 is simple to install, requiring no

tools and no software. Its compact size makes

implementation of the DWL-P200 easy. Plug the

base unit into a power outlet, and then connect

the terminal unit to your network device using

any standard Ethernet cable. Once set up, the

terminal device unit can output power2to any

compatible 5V or 12V Ethernet-enabled device.

The DWL-P200 simplies your installation of

Ethernet-enabled devices, such as an Internet

camera or wireless access points, by allowing

you to place it beyond the range of standard

power outlets. You can now mount these devices

to a ceiling or outside without placing them near

a power supply.

With the DWL-P200, both power and data can be

transmitted up to 328 feet (100m) using standard

Ethernet cabling with virtually no reduction

in data throughput. Use the DWL-P200 with

Ethernet-enabled devices where power outlets

are not readily available.

Transmit Power up to

328 Feet (100m)1

Adjustable Output Power

Simpliﬁes Your

Ethernet-enabled

Device Installation

Power over Ethernet

Router

DWL-P200

Data and

Power Out

Power In

Data

Power Out

Data

INTERNET

Data and

Power In

1 Maximun distance per 802.3u specications

2Maximum power output: 5 volts= 2.5 amps; 12 volts = 1 amp

Category 5 (CAT5) Ethernet

Pin Usage

• Data: 1,2,3,6

• Power: 4,5,7,8

LEDs

• Power (Base Unit)

• Power (Terminal Unit)

Voltage (Power Supply)

• Input: 100-240V AC, 50/60Hz

• Output: 48V DC, 400mA

Voltage (Base & Terminal Unit)

• Base Unit Input: 48V DC, 400mA

• Terminal Unit Output: 5V DC,

2.5A or 12V DC, 1A

Temperature

• Operation: 32-104°F (0-40°C)

• Storage: -40-158°F (-40-70°C)

Humidity

• Operation: 10%-80% RH

• Storage: 5%~90% RH

Certiﬁcations

• FCC Class B

• CE

• C-Tick

Dimensions

• 52.0mm (L)

• 80.9mm (W)

• 28.0mm (H)

Weight

• 0.256lbs

Warranty

• 1 Year

Power over Ethernet

D-Link Systems, Inc. 17595 Mt. Herrmann Fountain Valley CA92708-4160 www.dlink.com

Other trademarks or registered trademarks are the property of their respective manufacturers or owners.

Price and specifications are subject to changes without notice. See inside package for warranty details.

* 24/7 Tech Support is available only in USA.
