Section 1 - Product Overview
• D-Link DHP-302 Powerline HD Ethernet Adapter
• CAT5 Ethernet Cable
• CD-ROM with Software and Manual
• Quick Installation Guide
System Requirements
• Windows Vista®, XP (with Service Pack 2) or 2000 (with Service Pack 4)
• PC with 233MHz Processor, 64MB Memory
• Ethernet Adapter (100MBit/s)
Product Overview
Package Contents
4D-Link DHP-302 User Manual
Section 1 - Product Overview
Introduction
D-Link announces a fast, 200Mbps Powerline HD Ethernet Adapter which allows you to network your home computers,
networking devices and gaming devices through the most pervasive medium in your house - the electric powerlines
- and share Internet connections, printers, transfer les, play games, and more. This kit can be used to network two
computers with a 10/100Base-T adapter through powerlines.
Features
• Provides Ethernet to Powerline Connection
• Fast Data Transfer Rate of Up to 200Mbps
• One 10/100 Ethernet port
• Plug & Play, Easy Installation
• Easy to use Management Software
• Congurable QoS for video streaming, VoIP and Gaming
• Congurable encryption key for security
• Firmware Upgrade Support
• Push button security
• Throughput LED
• Power Saving
• LLTD Support
5D-Link DHP-302 User Manual
Section 1 - Product Overview
Hardware Overview
LEDs
Power LED
A solid light indicates that the
device is receiving power.
Throughput LED
A solid green light indicates that the master device has detected another
Powerline device on the network.
Green LED: Power Line speed > 20Mbps (non master unit)
Amber LED: Power Line speed < 20Mbps or > 6Mbps (non master unit)
Red LED: Power Line speed < 6Mbps or link is down. (non master unit)
Ethernet LED
A solid light indicates a connection on
the Ethernet port. The LED blinks during
data transmission.
AP LED
A solid light indicates that the device
is the master unit in the powerline
network.
6D-Link DHP-302 User Manual
Section 1 - Product Overview
Hardware Overview

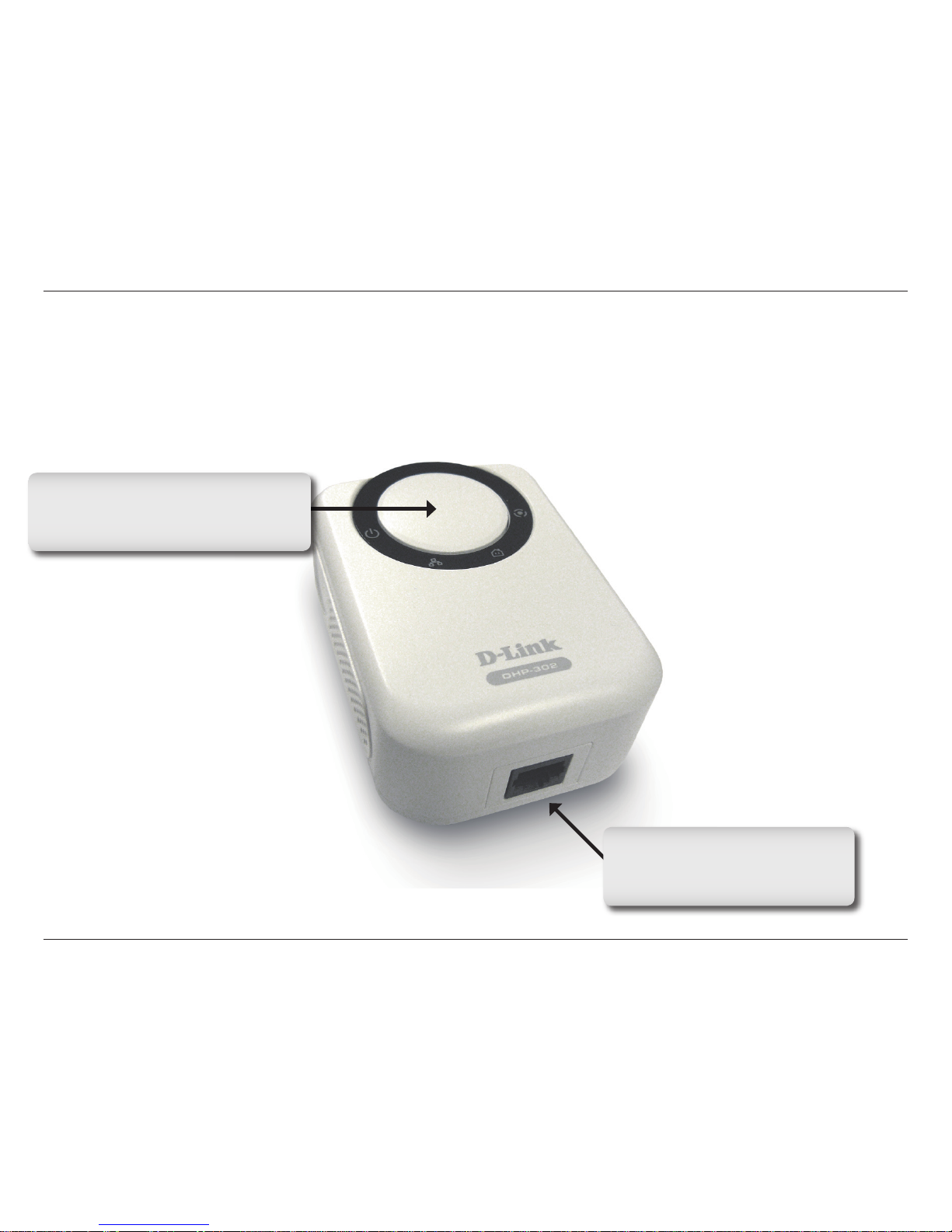

Connection
Ethernet Port
Connect CAT5 Ethernet cable
to the DHP-302 Ethernet port.
Depressable push button
Press to secure your network. Refer
to page 8 for more information.
7D-Link DHP-302 User Manual
Section 2 - Installation
Hardware Installation
Power
Plug in the DHP-302 into an AC wall outlet or power strip.
Note: Power source is conrmed when the green LED Power Indicator on the DHP-302 is illuminated.
Connect the Ethernet Cable
Connect the included Ethernet cable to the network cable connector located on the DHP-302 and attach the
other end of the Ethernet cable to the network or PC. Network Connectivity is conrmed when the green LED
Indicator on the DHP-302 located left of the Power LED is illuminated.
8D-Link DHP-302 User Manual
Section 2 - Installation
Plug in all the adapters to be congured.
Note: It is strongly recommended to designate the local adapter as the one that is directly connected to your router.This local adapter will act
as the security key master in the network. Each additional adapter you proceed to add afterwards will be referred to as a ‘remote’ adapter.
Local adapter

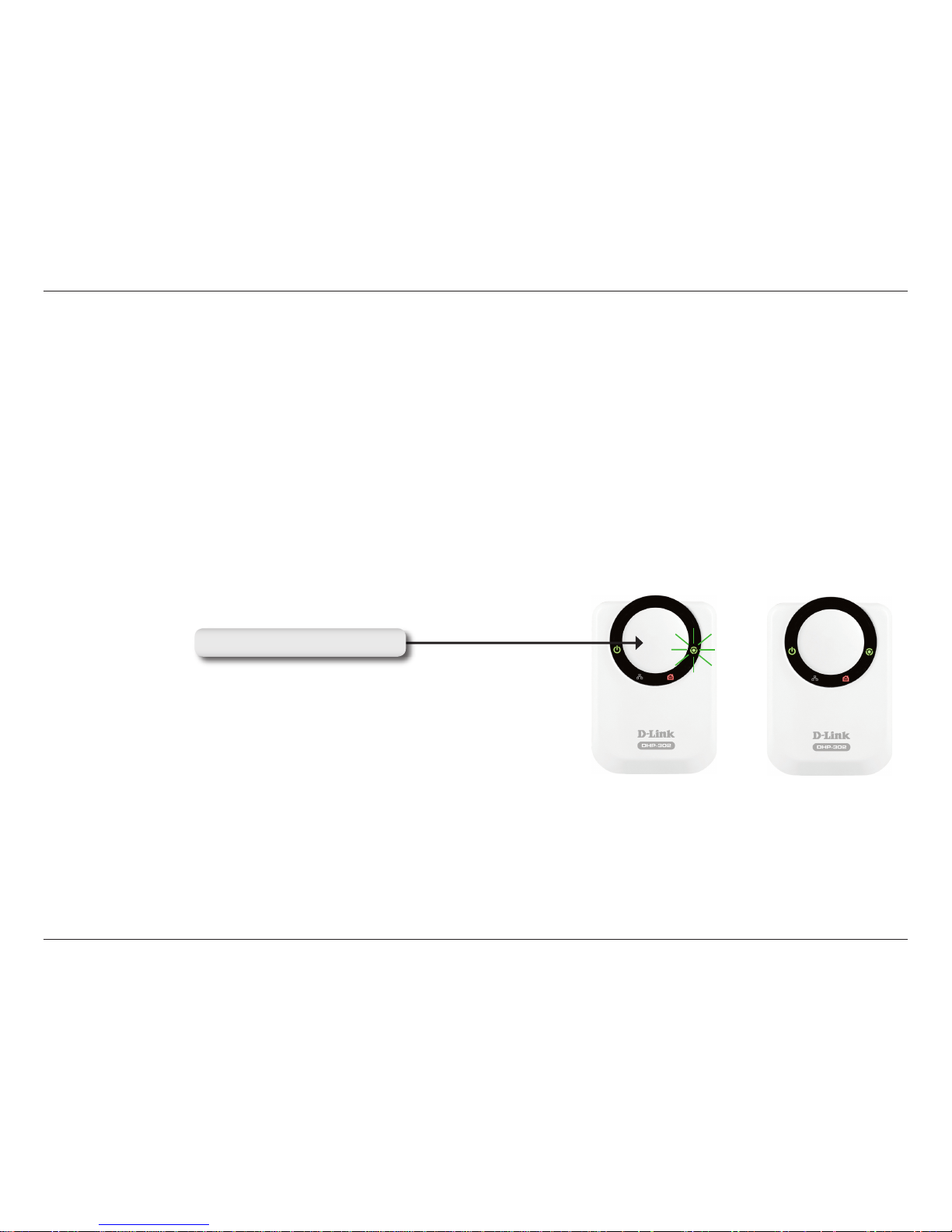

Press and hold the push button down until the local adapter AP LED begins to ash. Wait until the AP LED stops ashing (up to 30
seconds). At this point the local adapter is now assigned as the master adapter in your network.
To proceed securing the remote adapters follow the 3-step process below
Push Button Security
Press and hold the button
Local Adapter Local Adapter
9D-Link DHP-302 User Manual
Section 2 - Installation

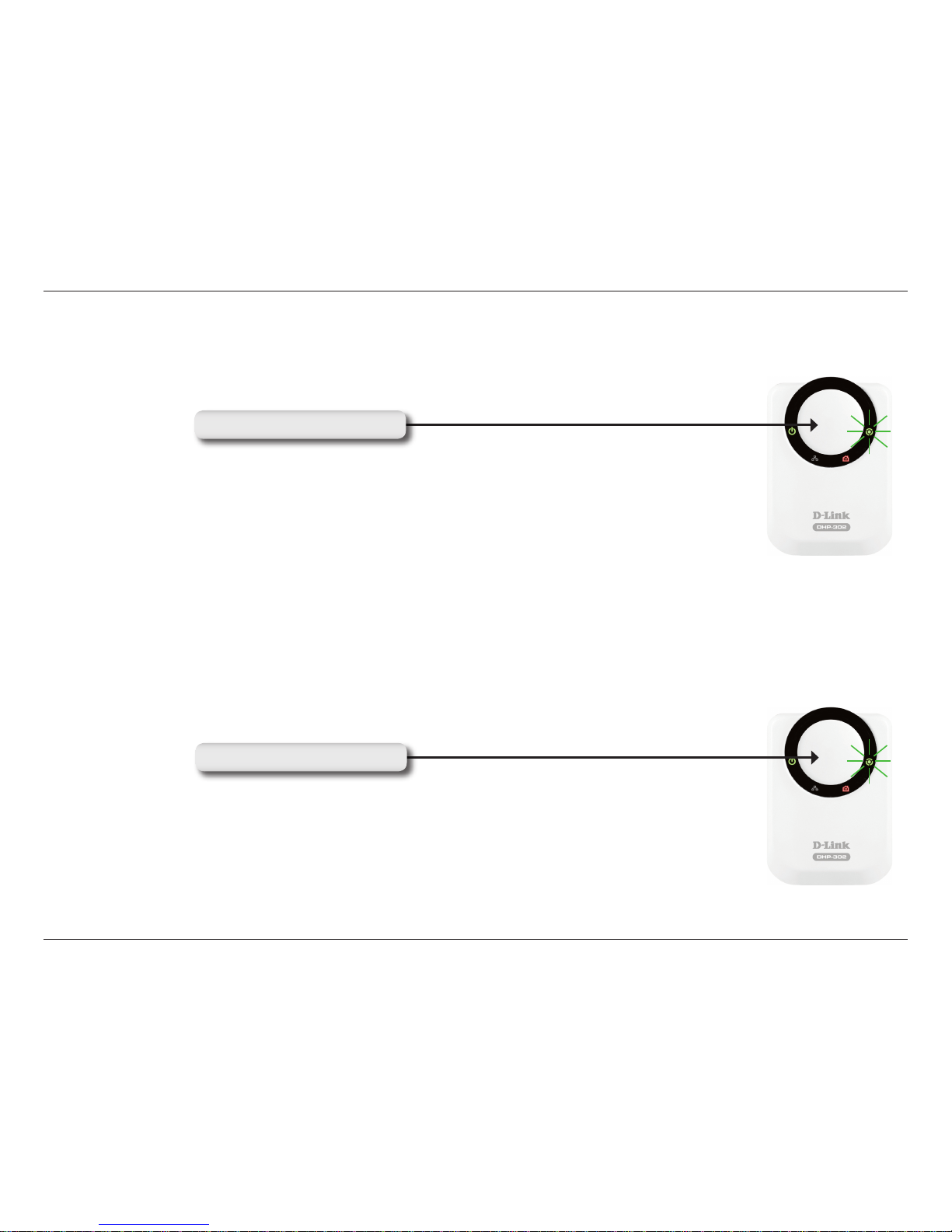

1. Local adapter
Begin by pressing the push button until its AP LED starts to ash. During this ashing phase the adapter is actively waiting for other
adapters to sync
2. Remote (additional) adapters
Push the button on the remote adapter until the AP LED begins ashing. (It is important to ensure the local adapter AP LED is still in the
ashing state while you do this).
Local Adapter
Remote Adapter
Press and hold the button
Press and hold the button
10D-Link DHP-302 User Manual
Section 2 - Installation
3. Synchronization complete
After a few seconds, successful synchronization should occur. This is visible when the remote adapter’s AP LED switches off indicating
that it is securely congured. The local adapter AP LED however, will continue to remain solidly lit and the throughput LED should turn
Green.
Note: When adding more adapters, repeat steps 1 to 3. At the end of this process, only the local adapter should have the AP LED lit.
Also, the adapters will keep their security settings even after the power is removed from the units. To reset / switch-off any adapter security
back to default: Depress and hold (up to 15 seconds) the push button until the AP LED turns off. This will reset the unit back to the factory
default settings
Remote Adapter Local Adapter
