D-Link DCS-56 Manuale utente

This document will guide you through the

basic installation process for your new

D-Link Outdoor Enclosure.

Building Networks for People







Quick Installation Guide

Outdoor Enclosure

Quick Installation Guide

Краткое руководство по установке

Guía de Instalación Rápida

Guia de Instalação Rápida

快速安裝指南

Petunjuk Pemasangan Cepat

D-Link DCS-56 Series Quick Install Guide2





This installation guide provides basic instructions for installing the DCS-56 Series Outdoor

Enclosure. The DCS-56 series are outdoor enclosures designed for use with D-Link’s box

cameras. This IP66-certied enclosure protects your camera against dust and heavy jets

of water. These models include a heater and a blower for a wider range of temperature-

sensitive environments. The DCS-56 series consists of the DCS-56, the DCS-56P, and the

DCS-56W.



- Camera Enclosure

- Mount Bracket

- Wireless Antenna & holder (DCS-56W only)

- Assembly Kit (Anchors, Screws, Allen key)

- Quick Installation Guide

If any of the above items are missing, please contact your reseller.



Mount Bracket

(Connects metal

housing to wall)

Wireless Antenna 

(DCS-56W only)

Camera Enclosure

D-Link DCS-56 Series Quick Install Guide 3



Adjust the holder by loosing the retaining screws and tighten the screws to lock the

desired position.

  Open the camera enclosure and slide the camera into the holder. Tighten the

camera in the holder.



D-Link DCS-56 Series Quick Install Guide4



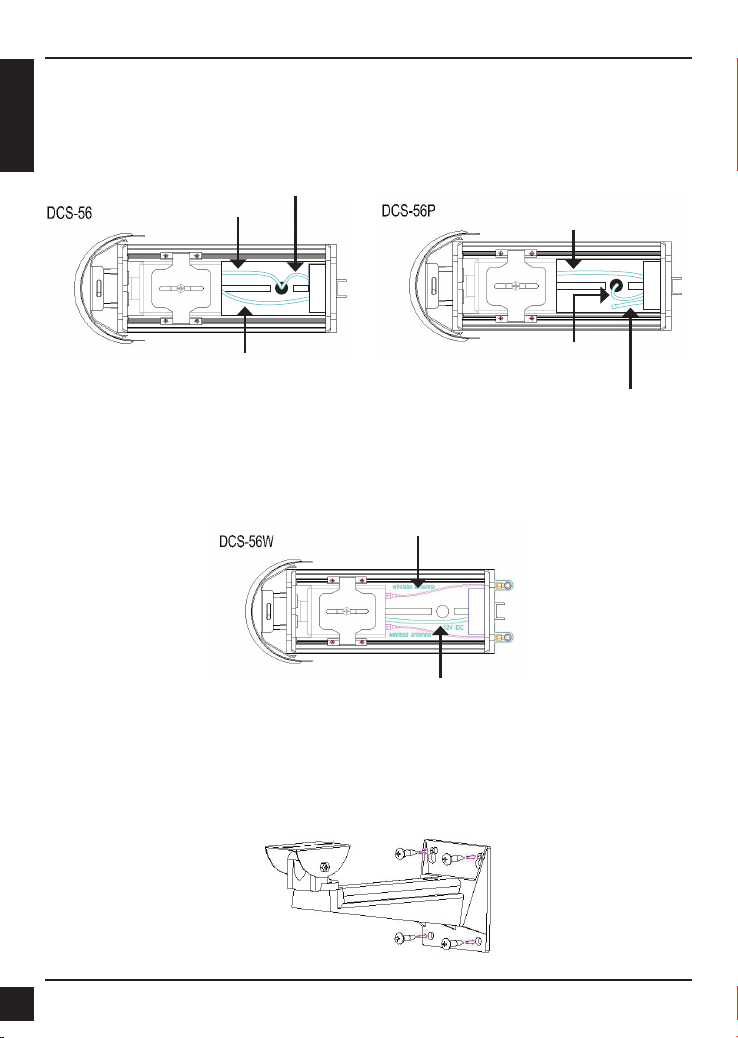

For the DCS-56 and DCS-56P modelsConnect the Ethernet cable to the LAN

port of the camera.

: Do not use the 12 V DC to power the camera via PoE.

 Mount the mount bracket to the location where you want to set up your camera.

To prevent damage to the Ethernet cable, pre-install the cable to the location. 

12 V DC to camera

12 V DC to main board

of enclosure

Ethernet

PoE to main board

of enclosure

PoE to camera

12 V DC to camera

(optional)

For the DCS-56W model, connect the wireless antenna extender to the camera.

Cable for extended

wireless antenna

12 V DC to camera

(optional)

D-Link DCS-56 Series Quick Install Guide 5



 To install the wireless antennas (DCS-56W only), connect the wireless antennas

to the camera enclosure, then attach the antenna holders to the enclosure, and tighten

them in place.

 Install the camera enclosure onto the mount bracket and secure the joint with the

screws provided.

 Adjust the screws accordingly below the camera enclosure to control the camera

position.

This screw controls

the vertical position

adjustment (<180°).

This screw controls the

level position adjustment

(<360°).

D-Link DCS-56 Series Quick Install Guide6



TECHNICAL SUPPORT

Australia:

Tel: 1300-766-868

24/7 Technical Support

Web: http://www.dlink.com.au

E-mail: [email protected]

India:

Tel: +91-22-27626600

Toll Free 1800-22-8998

Web: www.dlink.co.in

E-Mail: [email protected]

Singapore, Thailand, Indonesia,

Malaysia, Philippines, Vietnam:

Singapore - www.dlink.com.sg

Thailand - www.dlink.co.th

Indonesia - www.dlink.co.id

Malaysia - www.dlink.com.my

Philippines - www.dlink.com.ph

Vietnam - www.dlink.com.vn

Korea:

Tel : +82-2-2028-1810

Monday to Friday 9:00am to 6:00pm

Web : http://d-link.co.kr

E-mail : [email protected]

New Zealand:

Tel: 0800-900-900

24/7 Technical Support

Web: http://www.dlink.co.nz

E-mail: [email protected]

South Africa and Sub Sahara

Region:

Tel: +27 12 661 2025

08600 DLINK (for South Africa only)

Monday to Friday 8:30am to 9:00pm South

Africa Time

Web: http://www.d-link.co.za

E-mail: [email protected]

Saudi Arabia (KSA):

Tel: +966 01 217 0008

Fax: +966 01 217 0009

Saturday to Wednesday 9.30AM to 6.30PM

Thursdays 9.30AM to 2.00 PM

E-mail: [email protected]

D-Link Middle East - Dubai, U.A.E.

Plot No. S31102,

Jebel Ali Free Zone South,

P.O.Box 18224, Dubai, U.A.E.

Tel: +971-4-8809022

Fax: +971-4-8809066 / 8809069

Technical Support: +971-4-8809033

General Inquiries: [email protected]

Tech Support: [email protected]

Egypt

1, Makram Ebeid Street - City Lights Building

Nasrcity - Cairo, Egypt

Floor 6, ofce C2

Tel.: +2 02 26718375 - +2 02 26717280

Technical Support: +2 02 26738470

General Inquiries: [email protected]

Tech Support: [email protected]

Kingdom of Saudi Arabia

Ofce # 84 ,

Al Khaleej Building ( Mujamathu Al-Khaleej)

Opp. King Fahd Road, Olaya

Riyadh - Saudi Arabia

Tel: +966 1 217 0008

Technical Support:

+966 1 2170009 / +966 2 6522951

General Inquiries: [email protected]

Tech Support: [email protected]

Pakistan

Islamabad Ofce:

61-A, Jinnah Avenue, Blue Area,

Suite # 11, EBC, Saudi Pak Tower,

Islamabad - Pakistan

Tel.: +92-51-2800397, 2800398

Fax: +92-51-2800399

Karachi Ofce:

D-147/1, KDA Scheme # 1,

Opposite Mudassir Park, Karsaz Road,

Karachi – Pakistan

Phone: +92-21-34548158, 34326649

Fax: +92-21-4375727

Technical Support: +92-21-34548310, 34305069

General Inquiries: [email protected]

Tech Support: [email protected]

You can nd software updates and user documentation on the D-Link website.

Tech Support for customers in

D-Link DCS-56 Series Quick Install Guide 7



TECHNICAL SUPPORT

Iran

Unit 5, 5th Floor, No. 20, 17th Alley , Bokharest

St. , Argentine Sq. ,

Tehran IRAN

Postal Code : 1513833817

Tel: +98-21-88880918,19

+98-21-88706653,54

General Inquiries: [email protected]

Tech Support: [email protected]

Morocco

M.I.T.C

Route de Nouaceur angle RS et CT 1029

Bureau N° 312 ET 337

Casablanca , Maroc

Phone : +212 663 72 73 24

Email: [email protected]

Lebanon RMA center

Dbayeh/Lebanon

PO Box:901589

Tel: +961 4 54 49 71 Ext:14

Fax: +961 4 54 49 71 Ext:12

Email: [email protected]

Bahrain

Technical Support: +973 1 3332904

Kuwait:

Technical Support: + 965 22453939 / +965

22453949

Türkiye Merkez rtibat Ofisi

Ayazağa Maslak yolu

Erdebil Cevahir İş Merkezi No: 5/A Ayazağa /

Maslak İstanbul

Tel: +90 212 2895659

Ücretsiz Müşteri Destek Hattı: 0 800 211 00 65

Web:www.dlink.com.tr

Teknik Destek: [email protected]

073-796-2797

D-Link DCS-56 Series Quick Install Guide8





Данное руководство по установке содержит основные инструкции по установке кожухов

для наружного использования серии DCS-56. Серия кожухов DCS-56 разработана для

использования совместно с камерами D-Link. Данные кожухи, имеющие сертификат IP66,

защищают камеру от пыли и потоков воды. Модели этой серии оснащены обогревателем

и вентилятором для обеспечения работы камеры в широком диапазоне температур. Серия

кожухов DCS-56 включает модели DCS-56, DCS-56P и DCS-56W.



- Кожух для камеры

- Монтажный кронштейн

- Беспроводные антенны и держатели (только для DCS-56W)

- Монтажный комплект (анкеры, винты, шестигранный ключ)

- Краткое руководство по установке

Если что-либо из перечисленного отсутствует, пожалуйста, обратитесь к поставщику.





(для крепления

металлического корпуса

к стене)





(только для DCS-71W)





D-Link DCS-56 Series Quick Install Guide 9





 Отрегулируйте положение держателя, ослабив фиксирующие винты, и затяните

винты, когда держатель будет установлен в требуемое положение.

 Откройте кожух для камеры, вставьте камеру в держатель и закрепите ее в

держателе с помощью винта.

D-Link DCS-56 Series Quick Install Guide10



 Для моделей DCS-56 и DCS-56P подключите Ethernet-кабель к LAN-порту

камеры.

: Не используйте 12 В постоянного тока, если питание камеры будет

осуществляться через PoE.

12 В постоянного тока

к камере

Для модели DCS-56W подключите удлинитель беспроводной антенны к камере.

Кабель для беспроводной

антенны

12 В постоянного тока к

камере (опционально)

 Установите монтажный кронштейн в том месте, где необходимо установить

камеру. Чтобы предотвратить повреждение Ethernet-кабеля, предварительно

проведите кабель к требуемому месту.

12 В постоянного тока к

главной плате кожуха

Ethernet

PoE к главной

плате кожуха

PoE к камере

12 В постоянного тока к

камере (опционально)
