D-Link DCM-200 Manuale utente

Before you start

 Modem MA

onnecting The Cable Modem

Local Cable Service

Please contact your Cable Internet provider to find out the

procedure to register the modem with their network.

The Cable Internet provider will need the following modem information:

 Modem Make and Model i.e. D-Link DCM-200

 Modem Serial Number i.e. HQT10C000180 (normally found on the label at

the bottom of the unit.

C Address i.e. 0050BA2F0804 (on the back of the modem)

onnect the external power adapter into

*NOTE: Use only the AC power

the connector labeled “POWER” and the

other end to the electrical outlet.

adapter supplied with the DCM-2

Cable Modem.

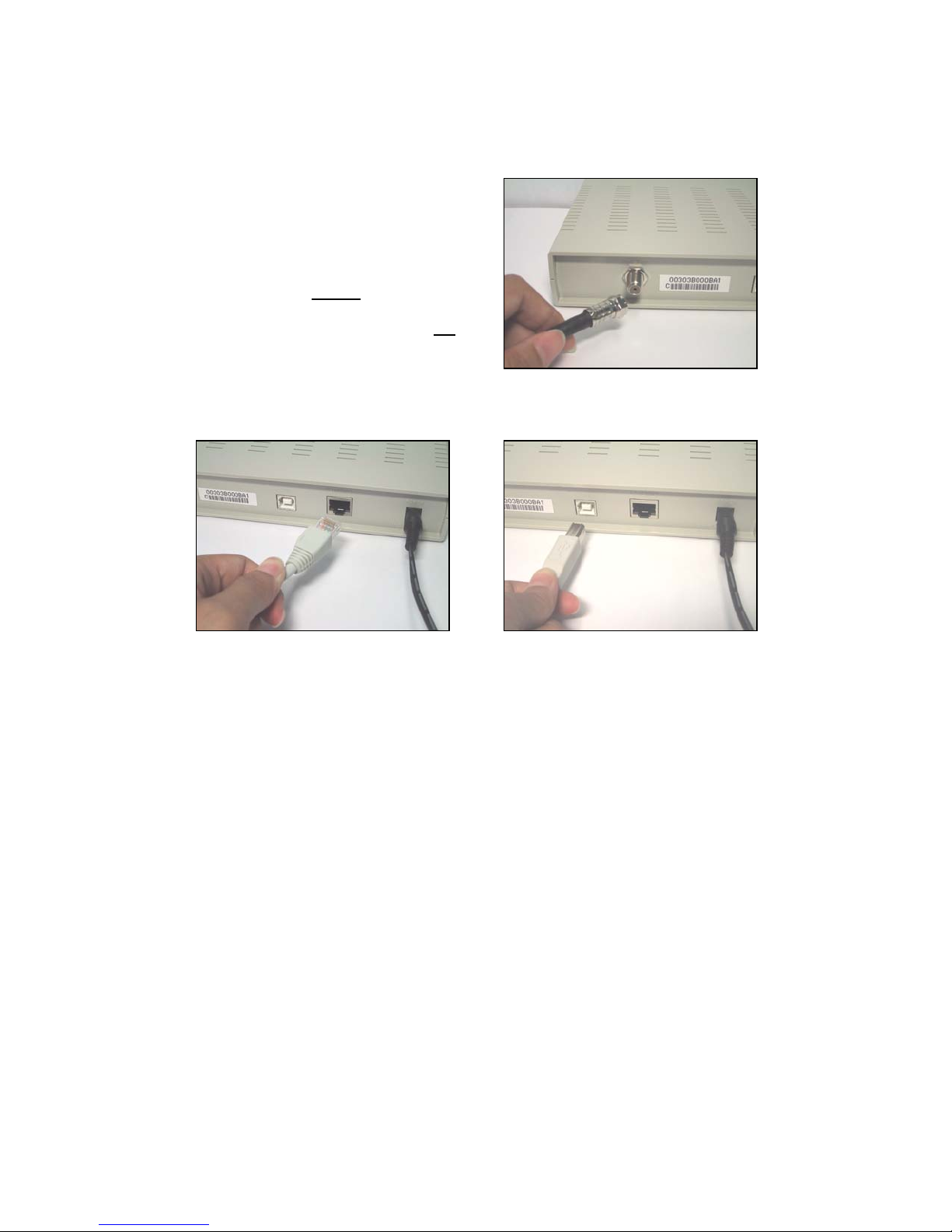

Connecting The Cable Modem Continued…

Connect the coaxial cable provided for the Internet connection to the jack

labeled “CABLE IN” in the back of the cable modem unit.

Wait 1 to 3 minutes for the status light

to illuminate. If the status LED does not

turn “ON,” please contact your

broadband cable company for further

instructions.

NOTE:

* The DCM-200 USB/Ethernet Cable Modem

will work only with the Ethernet port OR the

USB port connected. BOTH PORTS

CANNOT BE CONNECTED

SIMULTANEOUSLY.

Ethernet Cable USB Cable

A2. Connect a USB cable to

the “USB type B” port on

the back of the cable

modem unit. Plug the

other end of the USB

cable into the “USB type

A” outlet on your

computer.

A1. Connect an Ethernet cable to

the port labeled “Ethernet”

on the back of the cable

modem. Plug the other end

of the Ethernet cable into

the Ethernet adapter that is

installed in your computer.

Connecting The Cable Modem Continued…

The final cable modem setup will look like the figures below:

Ethernet Cable Connection USB Cable Connection

*Note: When using the USB Cable Connection, make sure the Status light

located at the front of the modem is “ON” (not blinking) before connecting

the USB cable (type A end) to your computer. DO NOT CONNECT THE

USB CABLE TO YOUR COMPUTER IF THE STATUS LED DOES

NOT SHOW A SOLID LIGHT.

If the STATUS LED continues to blink, please contact your cable provider to

ensure that your cable modem is provisioned* on their network.

* Your cable modem provider will need the model number, serial number

and MAC (Media Access Control) Address of your modem in order to

“provision” your modem on the network.

If you are using the Ethernet cable to make your connection, you have now

completed the installation. Enjoy your new cable modem!

For those using the USB cable connection, please continue with the

installation of the USB drivers, step 4.

USB Driver Installation

Windows XP Page 5

Windows 2000 Page 7

Windows ME Page 11

Windows 98/98SE Page 12

Verifying The Modem Status Lights

Power

Indicator

Activity

Light

Link

Light

Status

Indicator

Verify the Cable Modem connections using the LED indicators

 Power: The Power LED will be “ON” after the modem has been

plugged into an AC power source.

 Link: The Link LED will be “ON” when the connection from the

cable modem to the local network is established. The Link LED

“ON” light means that computers on the local network have access

through the cable modem.

 Act (Activity): This LED indicates that there is “data traffic” activity.

This lighted LED means that data packets are being passed through

the cable modem.

 Status: The Status LED will be “ON” solid when the cable modem is

properly connected to the cable network (ISP). * If your status light

continues to blink, please contact your cable operator for further

instructions.

Installing the USB Drivers

*Note: This installation is only necessary if you are using the USB cable to

connect your cable modem to the computer.

Windows XP Driver Installation

When your computer is running Windows XP, once the USB cable is

connected to the USB interface, the following window will be displayed:

(If this window does not

appear, then go to

Start>Settings>Control

Panel>Switch to Classic

view>click on Add Hardware.

This window will appear.)

Be sure to insert the driver

diskette into a floppy drive.

Click Next

Please wait while the wizard is

searching for the suitable

driver.

Windows XP Continued…

If this Hardware

Installation window shows,

please note that D-Link is

in the process of obtaining

Windows Logo testing

certification.

Click on Continue

Anyway

Please wait while the

drivers are copied onto

your computer.

Windows XP Continued…

Click Finish to complete

the driver installation

procedure. The DCM-200

is now installed.

Please note that before you can begin using the DCM-200 USB/Ethernet

Cable Modem, you must restart your computer.

Windows 2000 Driver Installation

If your computer is running Windows 2000, once the USB cable is connected

to the USB interface, the following window will be displayed:

If the screen above does not appear, then go to Start>Settings>Control

Panel>Add/Remove Hardware. The following window will appear.

Windows 2000 Continued…

Click Next.

Select “Search for a

suitable driver for my

device (recommended)”

and then click Next.

Windows 2000 Continued…

 Select “Floppy disk

drive.”

 Insert the “Floppy disk.”

Click Next.

Click Next to allow

Windows

to install the driver for your

DMC-200 USB/Ethernet

Cable Modem.

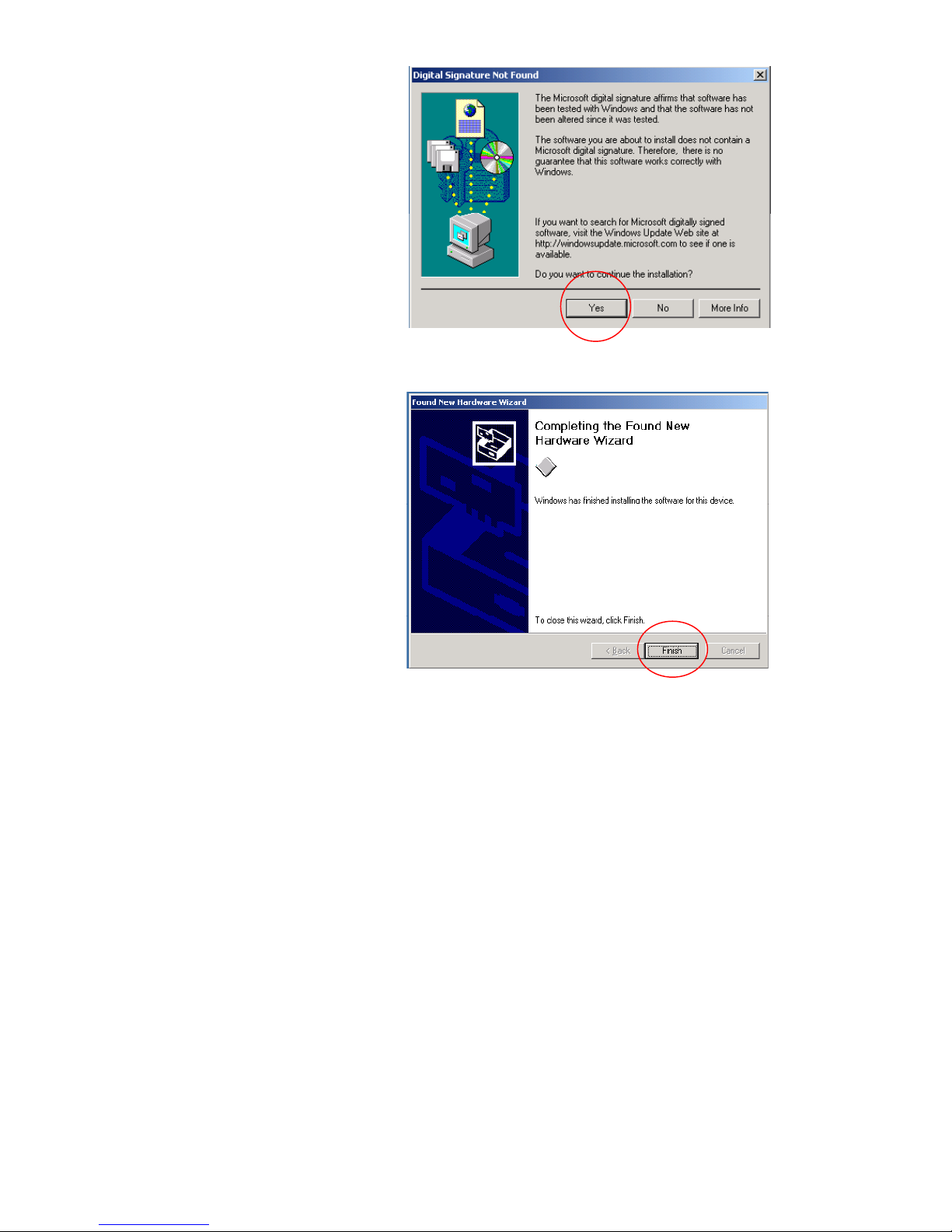

Windows 2000 Continued…

D-Link USB Cable Modem

Click Yes to continue.

Click Finish to complete

the driver installation

procedure. The DCM-200

is now installed.

Please note that before you can begin using the DCM-200 USB/Ethernet

Cable Modem, you must restart your computer.
