2D-Link DNS-323 Quick Install Guide

System Requirements / Package Contents

Package Contents

System Requirements

If any of the above items are missing, please contact your reseller.

• 1GHz Processor / 512 MB RAM

• 200MB available space

• CD-ROM drive

• Internet Explorer 6.0 or Mozilla Firefox 1.0 and above

• 3.5” Internal SATA Hard Drive

• Windows XP SP2 or Windows 2000 SP6

• D-Link DNS-323 2-Bay Network Storage Enclosure

• CD-ROM with Manual and Software

• Quick Installation Guide

• Power Adapter (12V;3A / 5V;3A)

• Power Cable Clip

• CAT5 Ethernet Cable

3 D-Link DNS-323 Quick Install Guide

Hardware Overview

Power Button:

Press once to power on the DNS-323. Press and hold the button

until it begins blinking to power down the device.

Drive LEDs:

These LEDs will be solid BLUE when drives are connected. The

LEDs will blink when the drives are being accessed, formatted or

synchronized. They will illuminate AMBER if a drive has failed.

Activity LED:

This LED will illuminate solid BLUE when there is an Ethernet

connection. It will blink to indicate LAN trafﬁc.

Front View

Power Button

Drive LED

Activity LED

Drive LED

4D-Link DNS-323 Quick Install Guide

Hardware Overview

Rear View

Power Receptacle:

The 12V;3A / 5V;3A power supply connects here.

Ethernet Port:

A Gigabit Ethernet port that connects the DNS-323 to the local

network.

USB Port:

USB Print Server port for connecting a USB printer.

Drive Eject Lever:

Use the provided levers to eject the SATA hard drives.

Ethernet Port

Drive Eject

Lever

Power

Receptacle

USB Port

Drive Eject

Lever

5 D-Link DNS-323 Quick Install Guide

Hardware Installation

1. Access the drive bays by

sliding the faceplate up until it

unlatches from the device.

2. Once the faceplate is unlatched,

pull it off of the device, exposing

the drive bays.

3. Insert a 3.5” SATA hard drive

into each available drive bay.

Make sure to align the drive

connectors to the endpoints in

the DNS-323. Gently push the

drive in until it connects.

6D-Link DNS-323 Quick Install Guide

Hardware Installation

4. Attach the faceplate to the front

of the device.

5. Connect an Ethernet cable into

the available Ethernet port.

This cable should connect the

DNS-323 to your local network

or directly to a computer for

conﬁguration.

6. Finally, connect the power

adapter to the power

receptacle.

7 D-Link DNS-323 Quick Install Guide

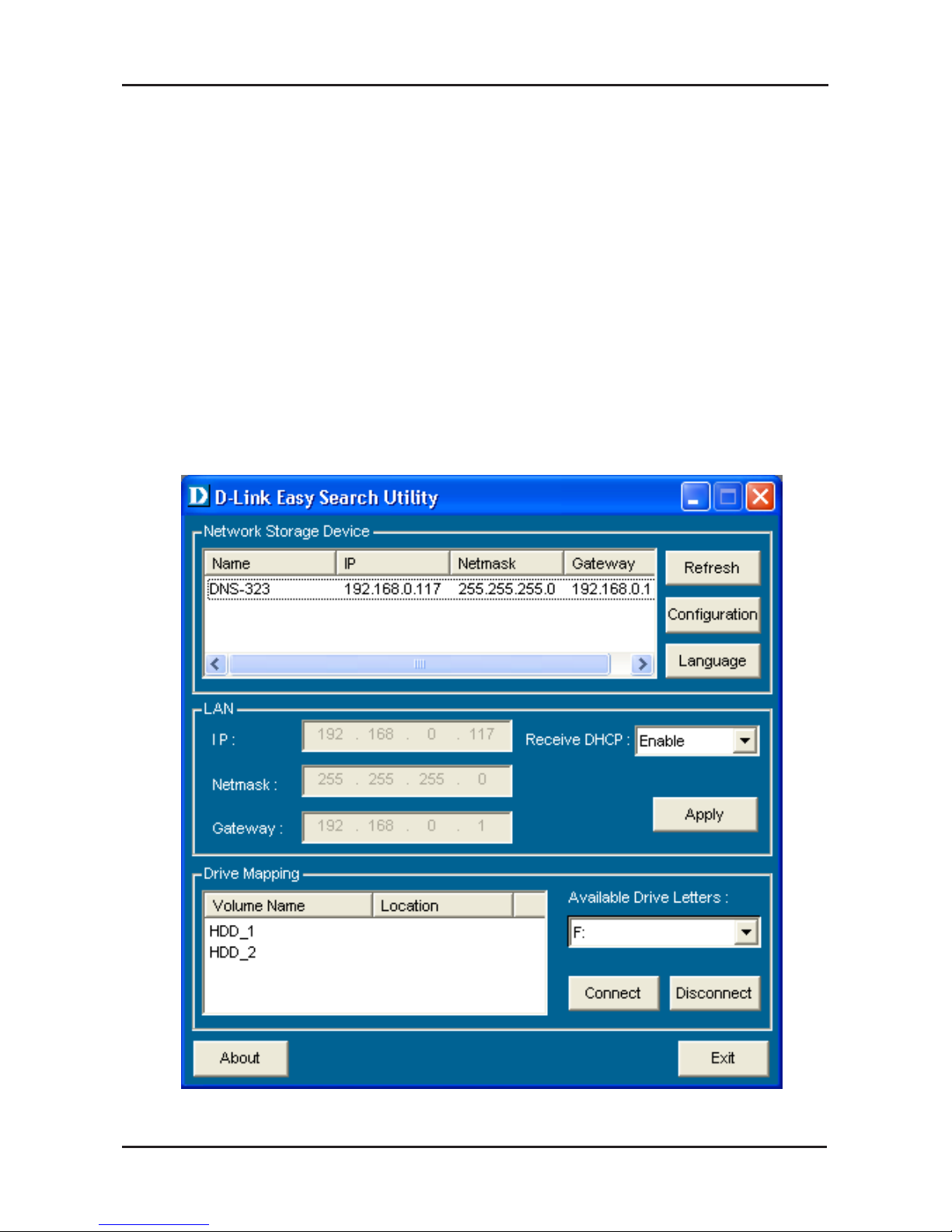

Easy Search Utility

When ﬁrst powered on, during the initial boot sequence, the

DNS-323 will wait to be assigned an IP address via DHCP. If it

does not receive a DHCP assigned IP address, by default it will

boot up with a self-assigned IP address of 192.168.0.32.

The Easy Search Utility provided on the DNS-323 CD-ROM makes

it simple to ﬁnd any DNS-323 devices on your network, and it is

recommended to use the Easy Search Utility when accessing and

conﬁguring the DNS-323 for the ﬁrst time.

8D-Link DNS-323 Quick Install Guide

Conﬁguration

When logging into the DNS-323 for the ﬁrst time, you will be asked

to choose a drive conﬁguration and format the drives. There are four

available options, Standard, JBOD, RAID 0 and RAID 1.

Highlight an available

DNS-323 and click

Configuration to access

the web-based utility.

At the login screen, type

admin for the user name

and leave the password ﬁeld

blank. Click Conﬁg.

Select a type of hard drive

configuration, and click

Next.

Getting Started

From the DNS-323 CD,

select Easy Search Utility.

9 D-Link DNS-323 Quick Install Guide

Conﬁguration

A message appears warning

that when the drives are

formatted all data will

be erased. Click OK to

continue.

Select the disk format type,

EXT2 or EXT3, and click

Next.

As the drives are formatted, a

progress meter will display.

When formatting is complete,

the results will display. Click

Close to continue.

10D-Link DNS-323 Quick Install Guide

Conﬁguration

A message informing you

that the DNS-323 will restart

appears. Click OK.

The DNS-323 will restart.

After the DNS-323 restarts,

type admin for the user name

and leave the password ﬁeld

blank. Click Conﬁg.

Your DNS-323 setup is now complete.
