D-Link 504T Manuale utente

1

Easy set up guide for D-Link 504T .

Step 1.

Remove your current modem/router from your computer set up by

unplugging the cables that are currently connected. Set the

modem/router and cables to one side.

Step 2.

Plug in the power supply to the D-Link 04T.

Step 3.

Using the new cables that came with the D-Link 04T, connect the

Ethernet cable into one of the four LAN ports on the D-Link 04T and

the other end into your computer

.

2

Step 4.

Unplug the existing phone cables from the wall socket. Connect the

supplied D-Link filter to your wall socket using the mini phone cable

provided. Connect a telephone cable from the ADSL port of the filter to

the ASDL port on the D-Link 04T.

Step 5.

Open your web browse. e.g Internet Explorer or Firefox, and enter

10.1.1.1 into the address bar

.

3

Step 6.

A pop up window should appear and ask for a user name and password.

Enter your username (admin) and password (admin) – select ‘OK’.

Step 7.

Run the Set up Wizard.

4

Step 8.

Select ‘Next’.

Step 9.

Select the correct time zone for your location from the drop menu -

Select ‘Next’.

Drop down

menu

5

Step 10.

Select PPPoE/PPPoA and then select ‘next’.

Step 11.

Enter the Username and Password issued to you by your internet service

provider. Leave the VPI and VCI settings as the default values. The

connection type needs to be PPPoE LLC. Select ‘Next’.

Default settings-

VPI = 8

VCI = 3

6

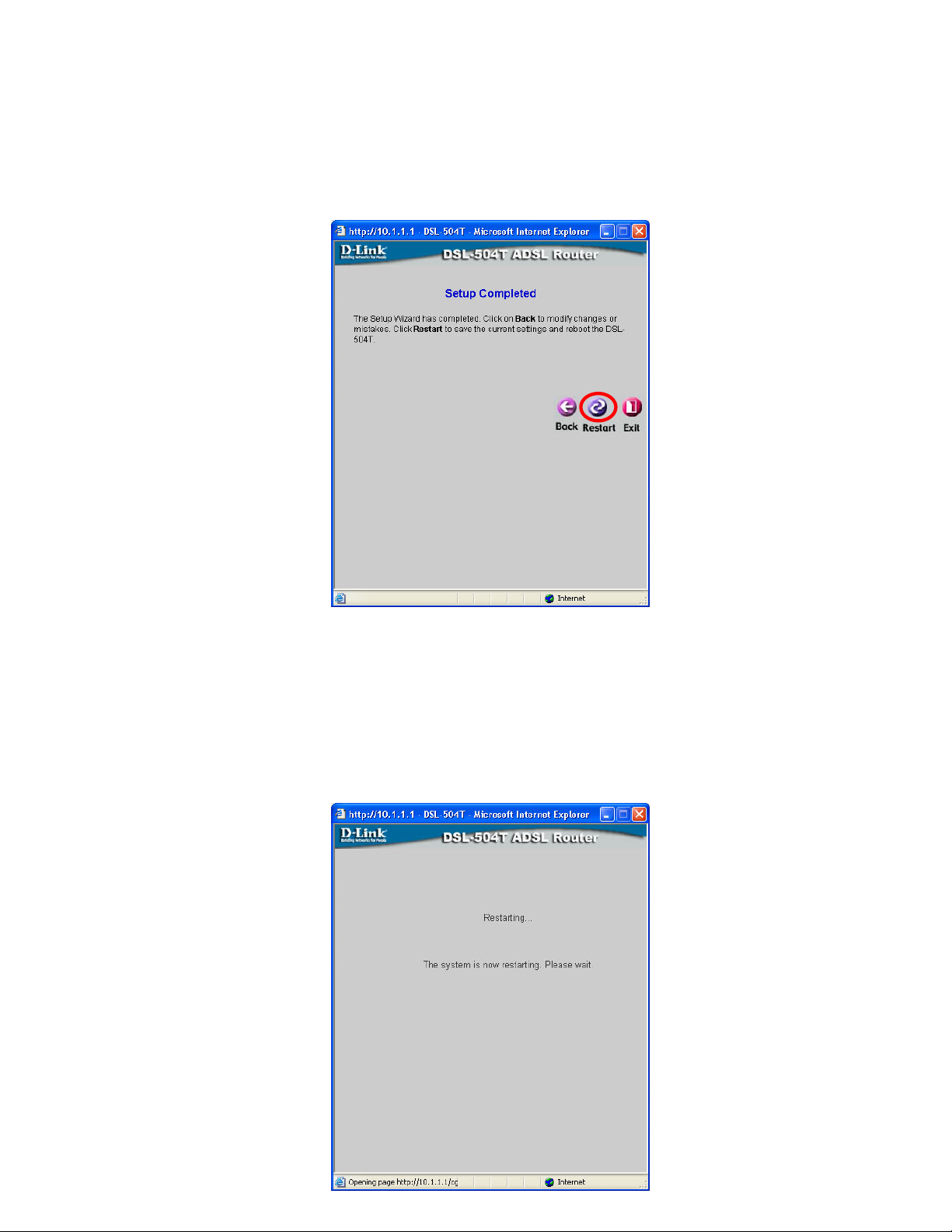

Step 12.

Select Restart.

Step 13.

Wait for the system to restart.

Do not turn off the Router while it is restarting!
