D-Link DFL-210 - NetDefend - Security Appliance Manuale utente

Network

Security Firewall

This Quick Guide will guide you through the installation Process. You are

only moments away from using your new D-Link Network Security Product

Building Networks for People

DFL-210

1.Before You Begin

1.1 Check Your Package Contents....................................................................1

2.Indentifying Components

2.1 FrontView.................................................................................................2

2.2 Rear View.................................................................................................2

2.3 LED Indicators...........................................................................................3

2.4 DefaultInterface AttributeDefinition..........................................................3

3.Connecting the DFL-210

3.1 Setting up Firewall to your Network...........................................................4

4.Configure DFL-210

4.1 Configure your Computer’s IP...................................................................5

4.2 UsingtheSetupWizard..............................................................................6

5.Appendix

5.1 How to Configure Static IP Manually on Microsoft Windows XP...............15

5.2 How to Configure Static IP Manually on Apple MAC OS X............................16

6.Statement

DFL-210 Quick Installation Guide

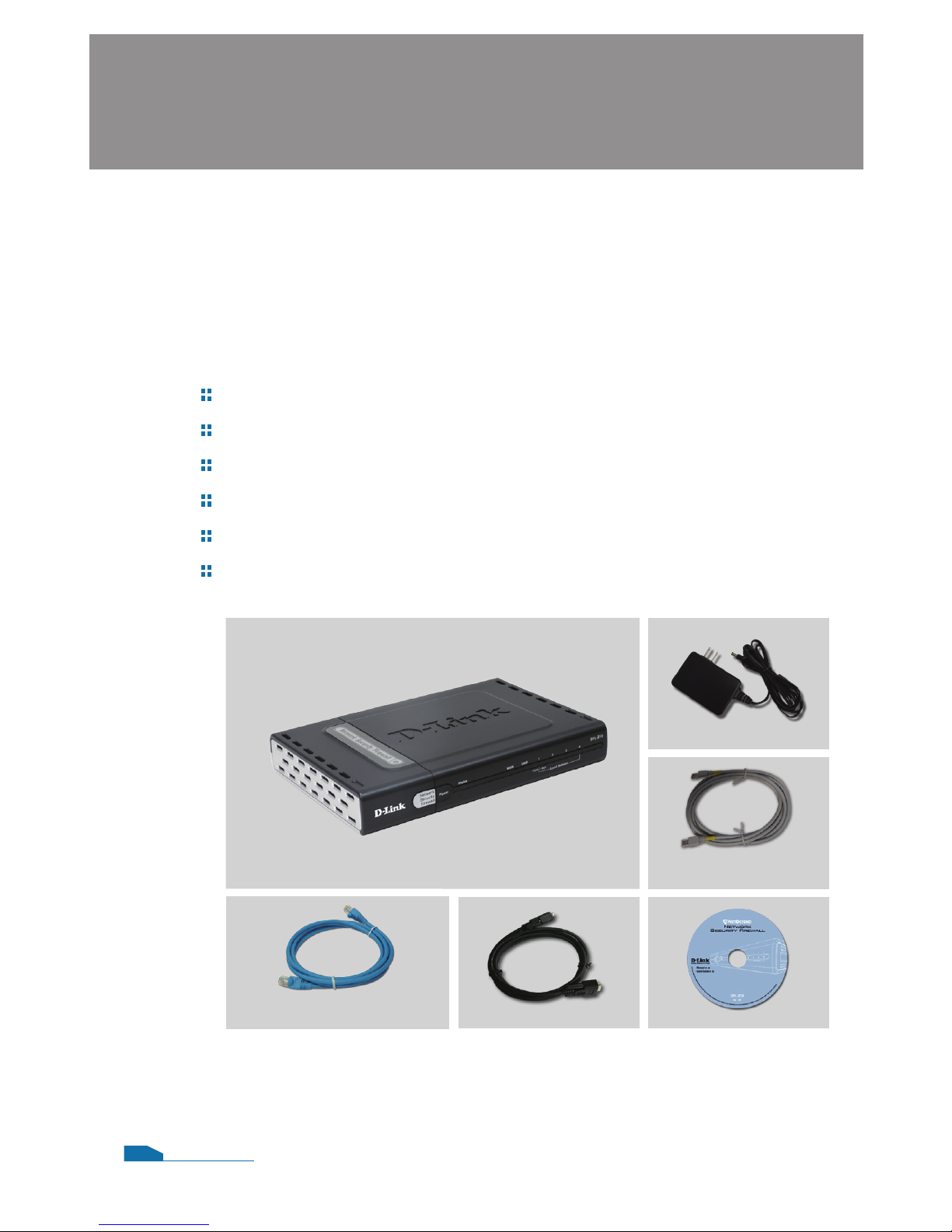

1.1 Check Your Package Contents

Your NetDefend Network Security Firewall package should

contain all the items listed below. If any of these items is found

damaged or missing in your package, report it to your reseller

immediately for replacement.

One (1) DFL-210 NetDefend™ Network Security Firewall

One (1) 5V DC Power Adapter

One (1) Console Cable (RS-232 cable)

One (1) Ethernet (CAT5 UTP/Straight Through) Cable

One (1) Ethernet (CAT5 UTP/Cross-over) Cable

One (1) CD-ROM (containing QIG/Manual )

DFL-210

Before You Begin 1

DFL-210

Power Adapter

Console Cable CD-ROM

Ethernet Cable

(Cross-over)

Ethernet Cable

(Straight-Through)

Identifying Components 2

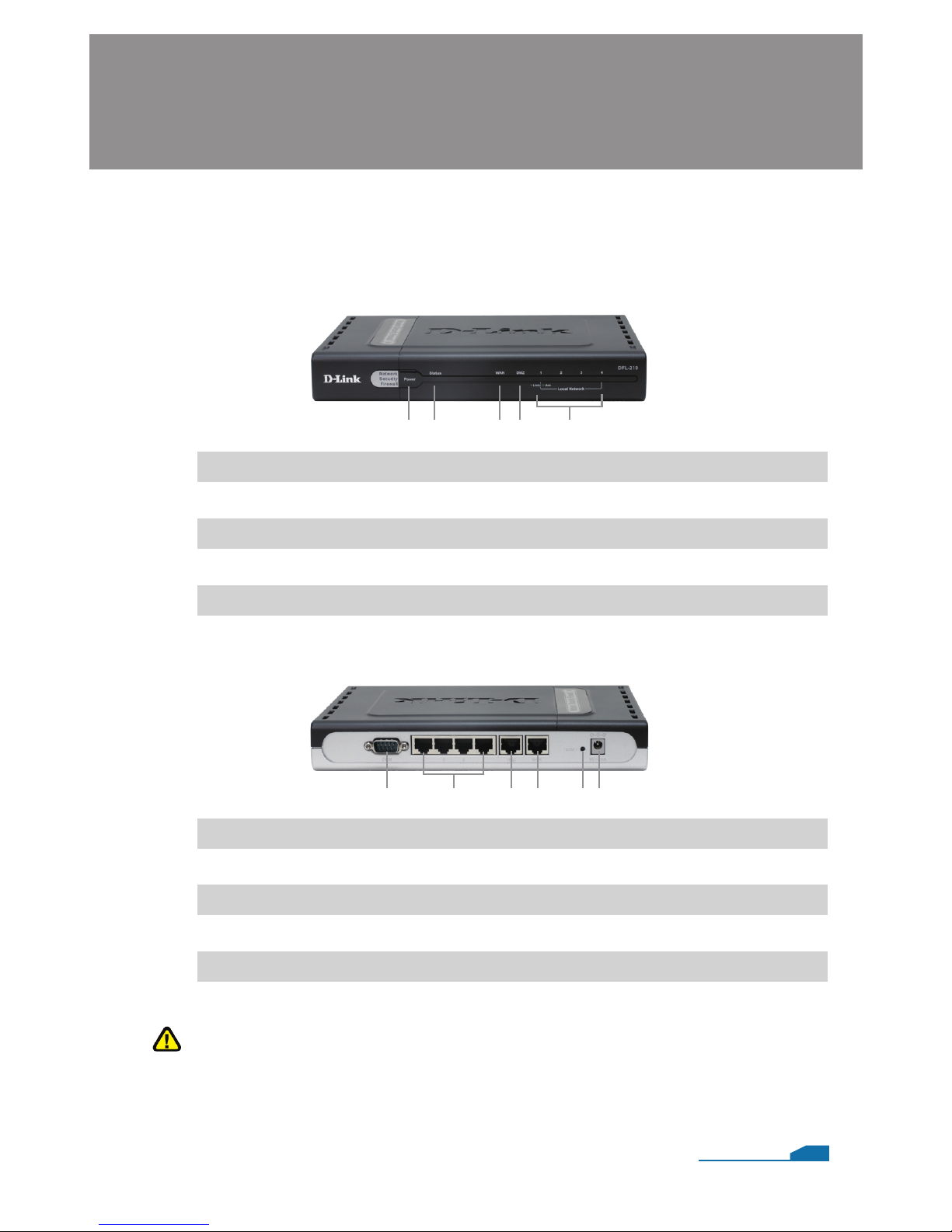

The following illustrates the front panel of the DFL-210 and

explains the front panel’s key components:

2.1 Front View

1. Power LED

2. Status LED

3. WAN LED

4. DMZ LED

5. LAN LED

Power indication of the DFL-210.

System status indication of the DFL-210.

WAN port status indication of the DFL-210.

DMZ port status indication of the DFL-210.

LAN port status indication of the DFL-210.

Note:

WAN interface does not support Auto MDI/MDI-X

(Automatic cable detection for Straight-through and Crossover

function).

1 2 3 4 5

2.2 Rear View

1. Console Port

2. LAN Ports

3. DMZ Port

4. WAN Port

5. Reset

6. Power Receptor

Connects to RS-232 console cable that connects to PC.

These are for the connection of Ethernet cables to the internal network.

This is for the connection of an Ethernet cable to an DMZ network.

This is for the connection of an Ethernet cable to a Cable or DSL modem.

This is for resetting system conguration to factory defaults.

This is for the connection of the power adaper to a wall outlet or power strip.

1 3 4 62 5

2.4 Default Interface Attribute Definition

Note:

NetDefendOS only allows Web GUI access from LAN port by default

for security consideration. Please refer to user manual for more

detail about how to change this conguration.

DFL-210 Quick Installation Guide

Wording on

Front plate

Default name

in rewall

Default interface

type denition

Default interface

IP Address

Default

DHCP Status

WAN WAN DHCP client N/A Enabled

DMZ DMZ Static IP 172.17.100.254/24 Disable

Ports: 1~4 LAN Static IP 192.168.1.1/24 Disable

2.3 LED Indicators

Status

Solid green

Light off

Solid green

Light off

Blinking green

Solid green

Blinking green

Light off

Solid green

Blinking green

Light off

Solid green

Blinking green

Light off

Description

The device is powered on.

The device is powered off.

System is operating properly.

The device is not working.

System is defective, such rmware

upgrade fail.

Link present

Port is sending or receiving data.

No link

Link present

Port is sending or receiving data.

No link

Link present

Port is sending or receiving data.

No link

Color

Green

LED

Power

Status

WAN

DMZ

LAN

Connecting the DFL-210 3

3.1 Connecting Firewall to Your Network

A. First, connect the power cord to the receptor at the back panel of

the DFL-210 and then plug the other end of the power cord to a

wall outlet or power strip. Then powered on the DFL-210 using

the on/off switch. Now the Power LED will turn ON to indicate

proper operation. After the power LED turns on, you need to wait

1-2 minutes for the DFL-210 to boot up completely.

B. Connect an Ethernet cable from the DFL-210 to your Cable/

DSL modem. If the Cable/DSL modem is powered on, wait for

the WAN1 LED on the DFL-210 to light up to show a proper

connection. Otherwise, turn off your Cable/DSL modem, connect

the Ethernet cable from the DFL-210 to your Cable/DSL modem,

and turn on the Cable/DSL modem. Some Cable/DSL modems

may not have an on/off switch and will require you to unplug the

power adapter.

Note:

The default management IP address of the DFL-210 is

192.168.1.1. If you have are using a router that uses DHCP,

there may be a conict if the router uses the same IP address as

the DFL-210. If this is the case, either disconnect the DFL-210

from the router and change the management IP address of the

DFL-210, or change the DHCP settings on your router.

C. Insert an Ethernet cable to the LAN1 port on the front panel of

the DFL-210 and connect it to a port on your network hub or

switch. The LED light above the Ethernet port on the DFL-210

will illuminate to indicate proper connection

D. Connecting the computer that you will use to congure the

DFL-210 to the network hub or switch.

4.1 Configure Your Computer’s IP Address

Make sure that the network adapter in your computer is congured

to use a static IP address with 192.168.1.1 as default gateway and

255.255.255.0 as netmask. Instructions on how to congure the

network adapter can be found in the appendix.

When you have completed the steps in this Quick Installation

Guide, your connected network should look similar to this:

Configure DFL-210 4

Cable/DSL Modem

DFL-210

Switch

Internal

Network

DMZ

Network

(optional)

Computer1 Computer2

Type the default

Username/Password

Username: admin

Pasword: admin

and click Login

4.2 Using the Setup Wizard

The DFL-210 provides Web based conguration. You can congure your DFL-

210 through Internet Explorer 6 and later or Firefox 1.0 and later browser in MS

Windows, Macintosh or UNIX based platforms.

Activate your browser, and ensure your built-in Pop-Up Blocker has been

disabled, so that the Pop-Up Blocker will not block the Startup Wizard while you

initiate the NetDefend Firewall for the rst time.

Additionally, in order to reduce the impact of Pop-Up Blocker, a user-friendly

mechanism has beem implemented in NetDefend Firewalls. A "Startup Wizard"

button is shown on the toolbar since rmware v2.20. This button is available on

the WebGUI while the appliance is initiated with Conguration Version 1. Once

you complete conguration and save/activate the setting, the Startup Wizard

button will be removed automatically from the toolbar while you login WebGUI

next time.

Now, let's start on WebGUI login, type the IP address of the DFL-210, e.g.

https://192.168.1.1, in the Location (for Netscape) or Address (for IE) eld and

press "Enter".

Log on to the DFL-210 web interface.

To start using the DFL-210 web interface you need to log on using the

default username and password.

DFL-210 Quick Installation Guide

Open your Web browser and

type https://192.168.1.1 / into

the URL address box. Then

press the Enter or Return key.

Note:

DFL-210 allows either HTTP or a secure HTTPS connection

from any management host. However, for security reason, by

default only a secure HTTPS connection is allowed.

Step1 - Welcome to the DFL-210 setup wizard!

Step2 - Set up rewall administrator password

First Enter the

username that you want

to use for the admin

account.

Enter the password

that you want to use

for the admin account.

DFL-210 Quick Installation Guide

This wizard will guide

you through the setup of

your DFL-210

Click Next

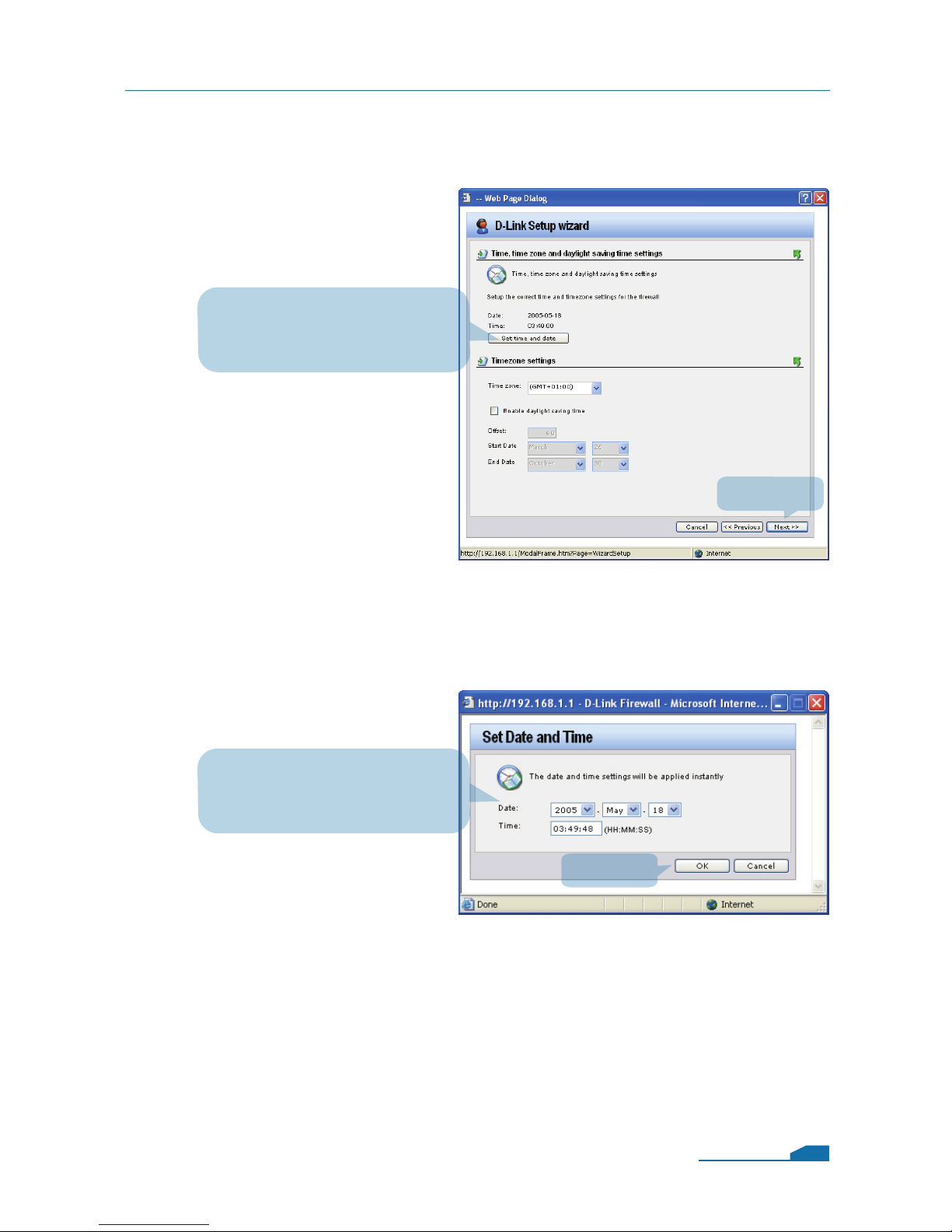

Step 3 - Set up time and date

Click Set time and date

button for setting device

Click Next

Select the appropriate date

Enter the appropriate time

Click OK

DFL-210 Quick Installation Guide
