D-Link DI-304 Manuale di servizio

D-Link (Europe) Ltd.

4th Floor

Merit House

Edgware Road

London NW9 5AB

U.K.

Tel: +44-208-731 5555

Fax: +44-208-731 5511

www.dlink.co.uk ftp//:ftp.dlink.co.uk

Page 1

TECHNICAL BULLETIN

DI-304 Installation Guide for LAN –Internet

1. Introduction

This document explains how to connect to the Internet using a single user account from an Internet Service

Provider. The IP network is a private network and is chosen by the installer. In the example below the private

IP network is 192.168.0.xxx. The service provider may either provide you with a static IP address or more

often a dynamic IP address, that is to say the IP address is assigned to the router at connection time. A local

network IP address still needs to be assigned to the router.

It is assumed the network is already configured and working in terms of network adapters and drivers installed

and configured.

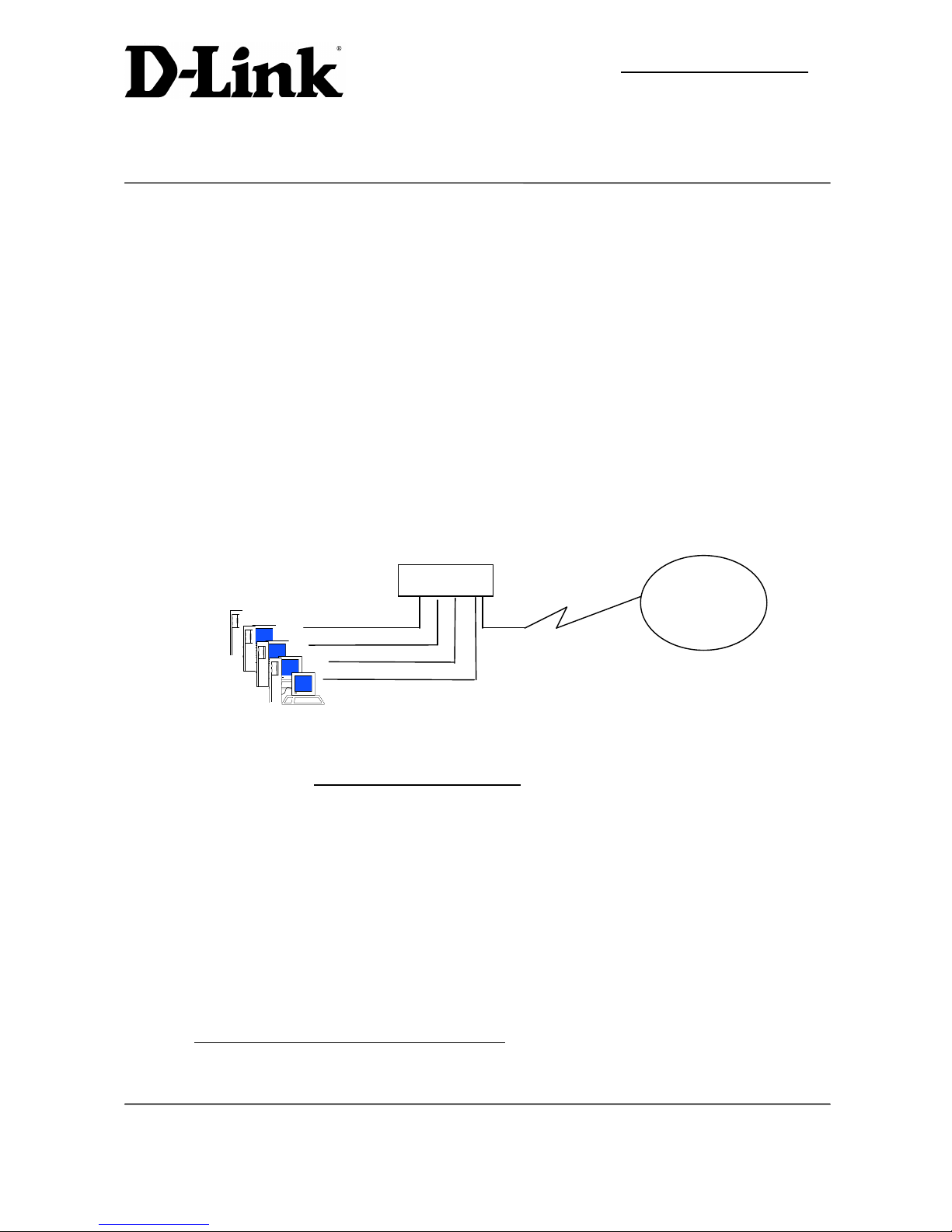

Fig 1.

PC1

PC2

PC3

PC4

The DI-304 does not have a console port for configuration purposes, you must use your windows browser to configure

the DI-304. The router has a default IP address of 192.168.0.1

DI-304

Example Setup Configuration

DI-304 IP 192.168.0.1

PC1 IP DHCP

PC2 IP DHCP

PC3 IP DHCP

PC4 IP DHCP

Subnet for all DHCP

devices

Default Gateway 192.168.0.1

(All PC's)

Internet

All trademarks acknowledged

Page 2

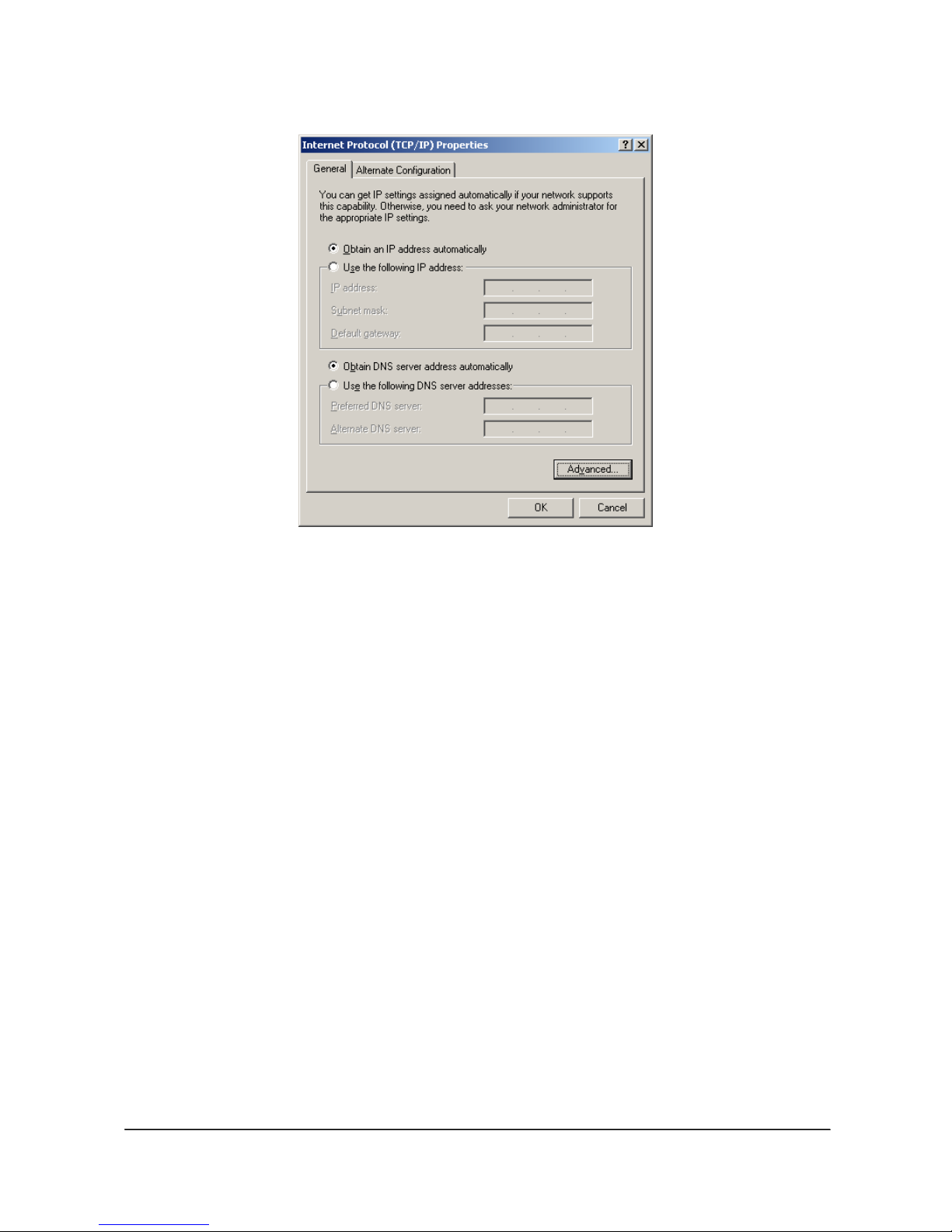

Ensure you PC’s are setup to receive there IP address from a DHCP server. (DI-304 in this case). You will also need to

check and ensure your not running any other DHCP server in network see below.

2. Information required from the ISP.

A certain amount of information is required from your ISP. See list below.

IP address (only for static IP address connections)

Username

Password

ISDN Telephone number to dial

DNS (consists of primary domain name controller IP, and name)

3. Router Configuration

After you have setup your PC to receive an IP address from DHCP server, it should have 192.168.0.100 as its IP

address. The router will be 192.168.0.1. Use your browser and connect to the DI-304.

All trademarks acknowledged

Page 3

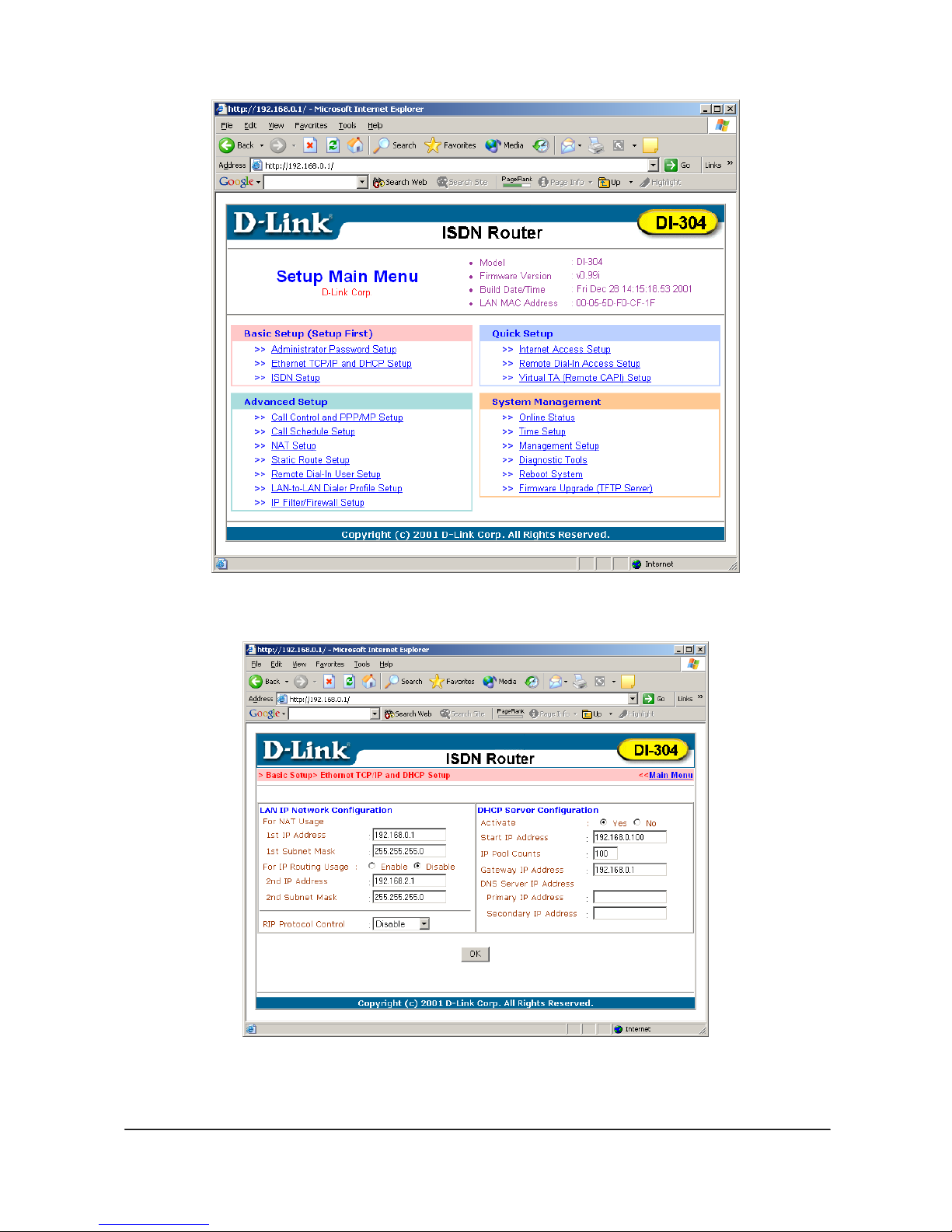

Fig 2 Router main menu.

Fig 3. Router Ethernet Setup

The router defaults to using 192.168.0.0 as the network. DHCP addresses range 192.168.0.100-200. Change these

default setting if you need to. See Fig 3. above.

All trademarks acknowledged

Page 4

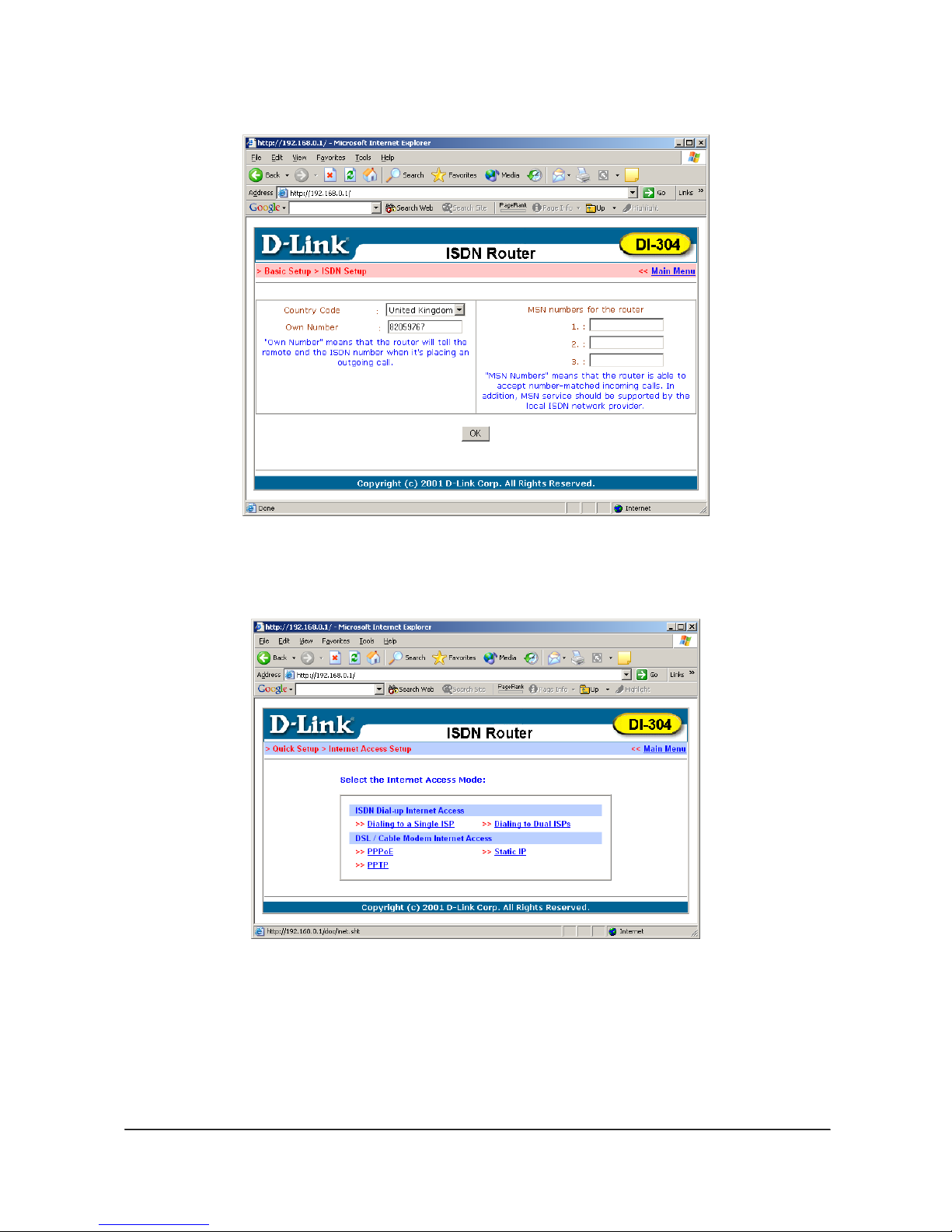

Fig 4. Router ISDN Setup.

Setup the country code and the router’s own ISDN number as in fig 4.

Fig 5. Internet Setup

From the menu in fig 5 select dialling to a single ISP.

All trademarks acknowledged

Page 5

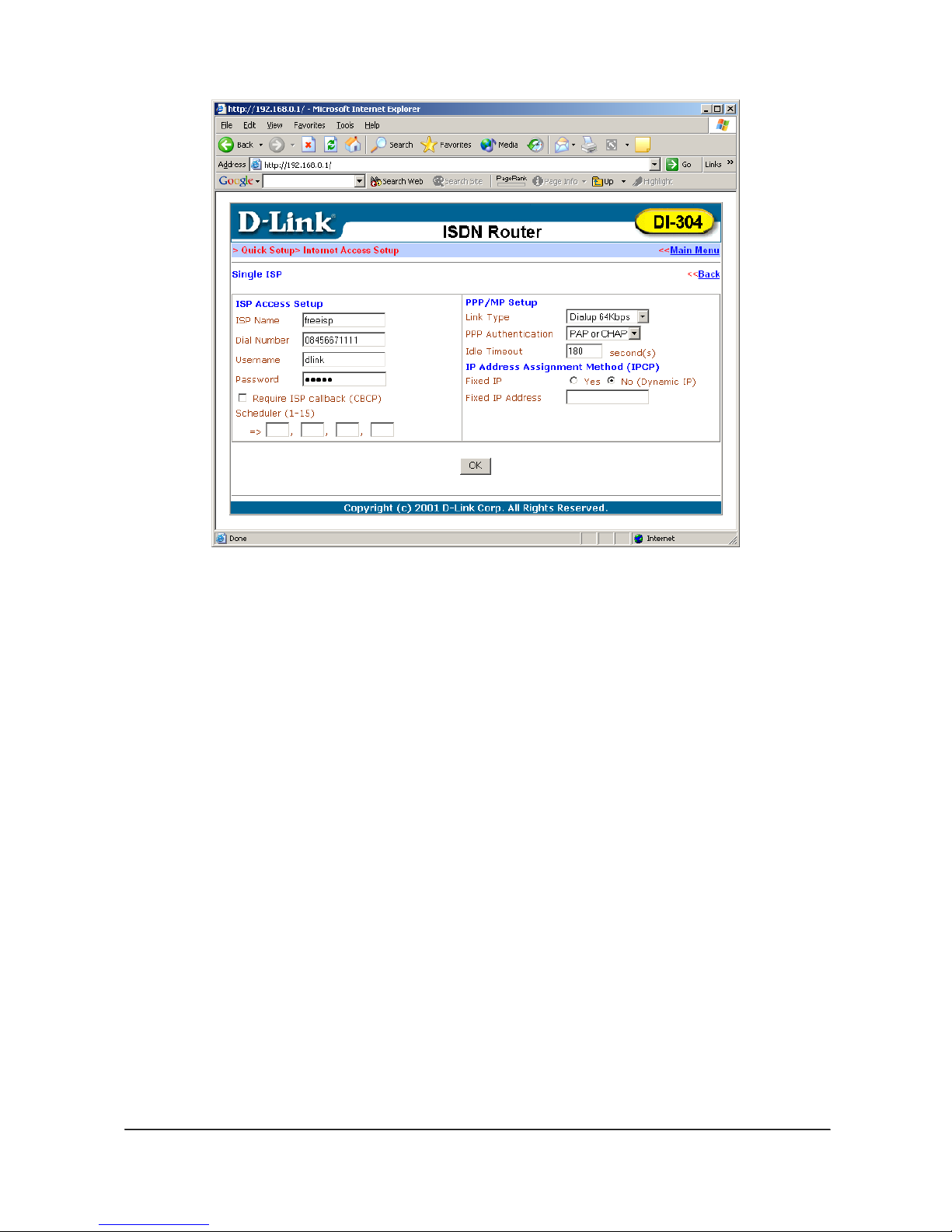

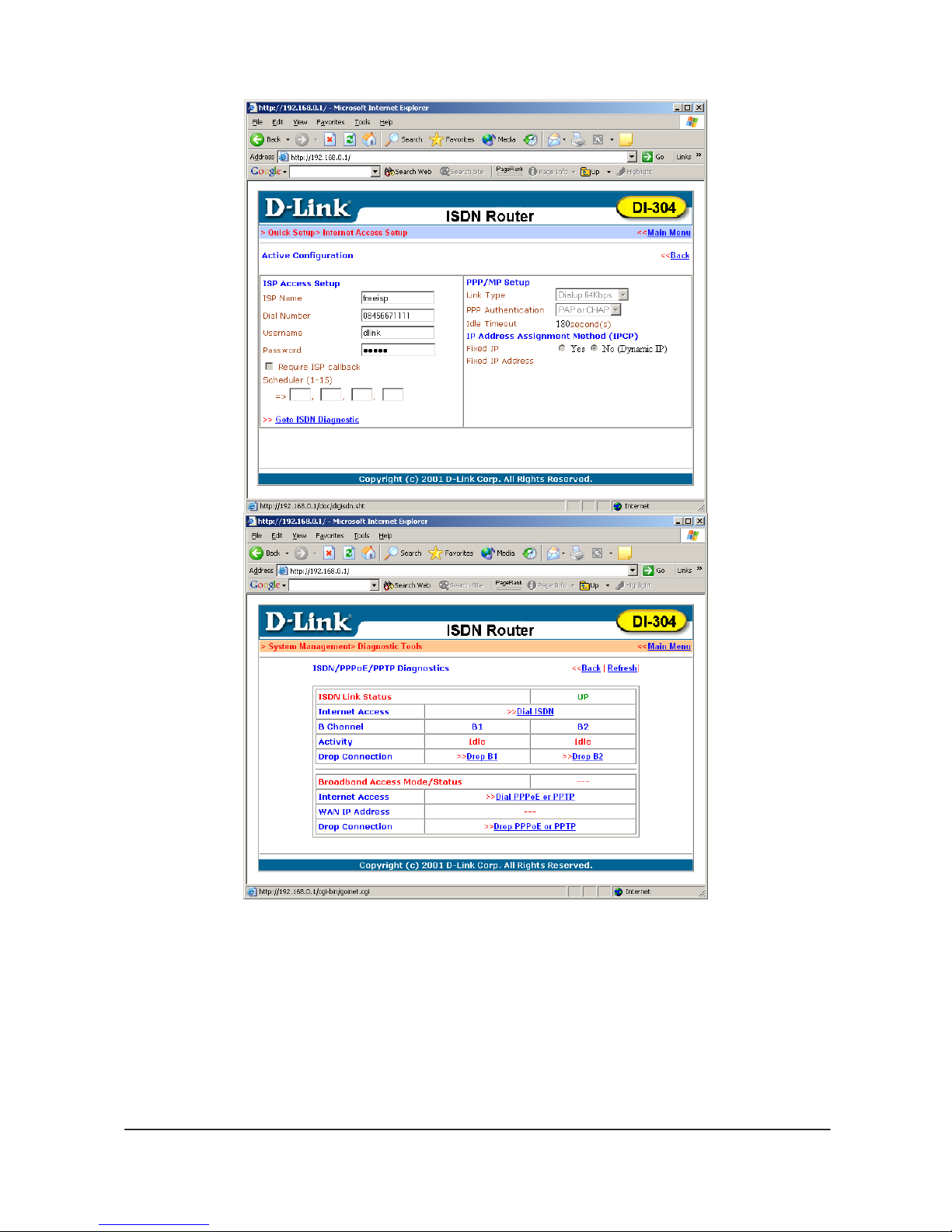

Fig 6. ISP details

Enter your ISP details. For PPP authentication leave the PAP or CHAP setting as the router will negotiate either at

connection time. In the link type, select 64k, 128k or BOD.

After the OK button is selected, you can go to the diagnostics and perform a connection tests.

All trademarks acknowledged

Page 6

Fig 7. Diagnostics

Select the Dial ISDN, you should see the ISP name typed in fig 6 appear in the activity, see fig 8.

All trademarks acknowledged

Page 7

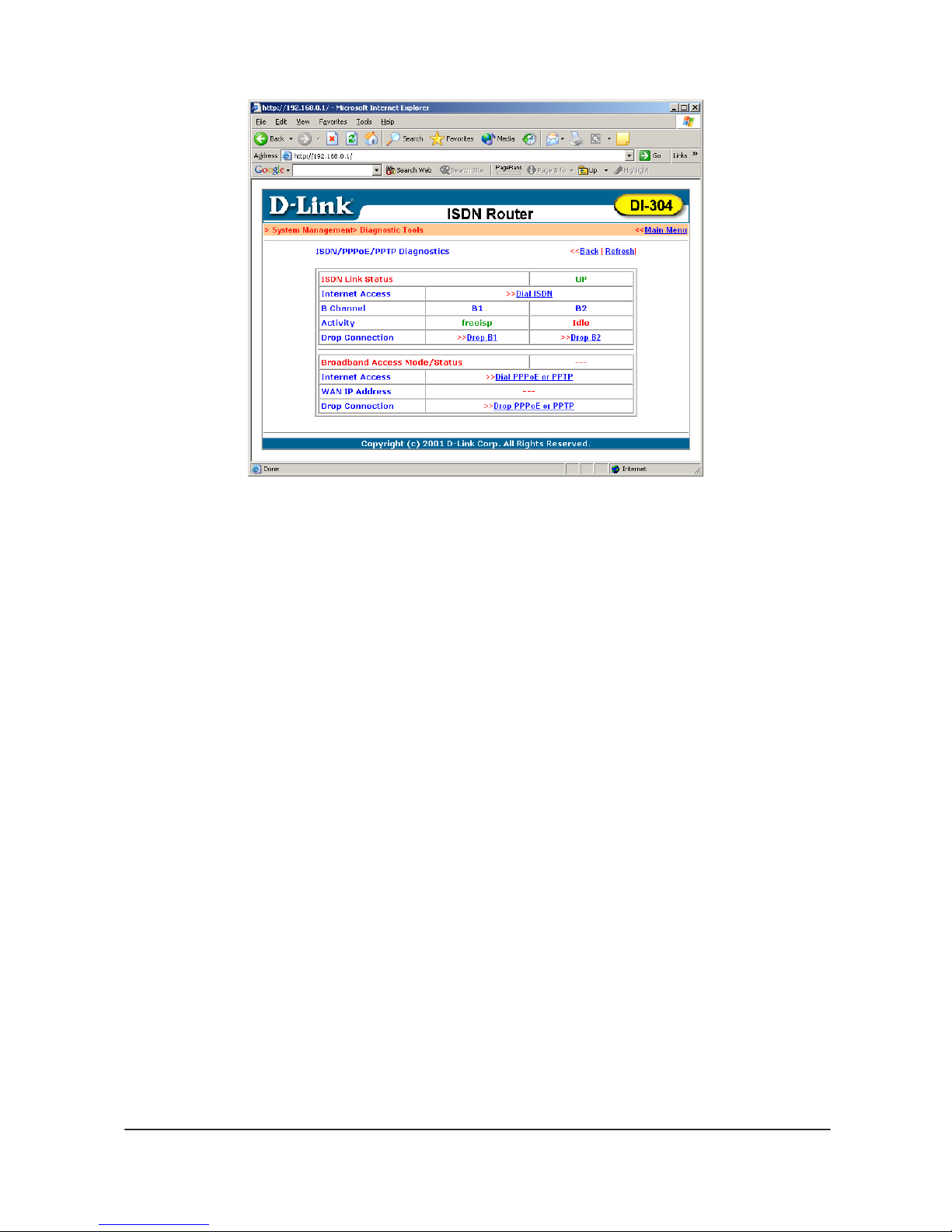

Fig 8. Diagnostics Result.

~ End of Document ~
