D-Link DI-LB60 Manuale utente

2 D-Link Systems, Inc.

DI-LB604 Install GuideSystem Requirements

System Requirements

 Ethernet-based Cable or DSL Modem

 Computers with Windows, Macintosh, or Linux-based

operating systems with an installed Ethernet adapter



Internet Explorer Version 6.0 or Netscape Navigator 7.0 and

above

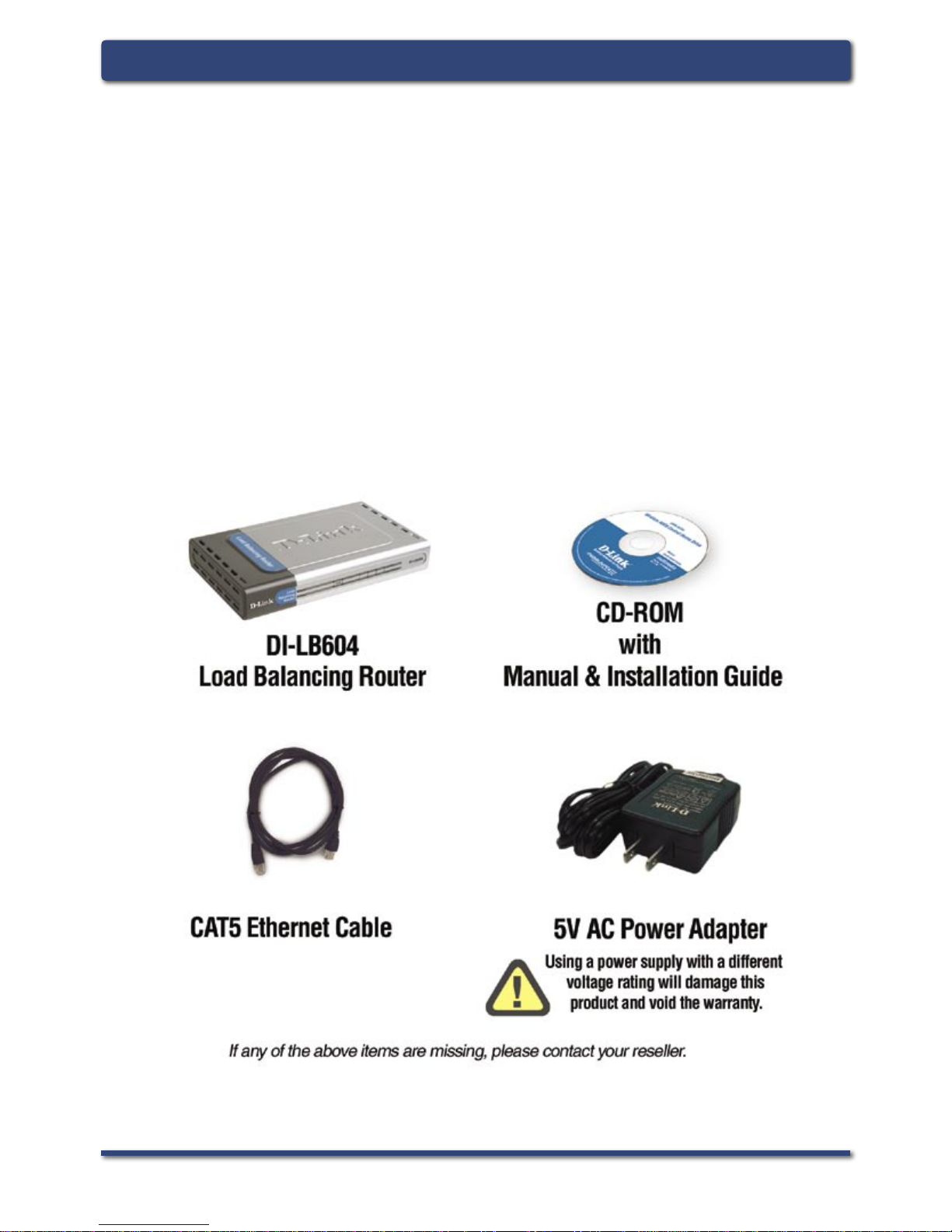

Package Contents

D-Link Systems, Inc. 3

DI-LB604 Install Guide Hardware Overview

Power LED

A solid light indicates a

proper connection to the

proper power supply.

Status LED

This LED will be off to indicate

proper operation and it will blink

during data transmission.

WAN LEDs

A solid light indicates a connection

on the WAN port. These LEDs blink

during data transmission.

Local Network LEDs

A solid light on each port

indicates a connection to an

Ethernet enabled computer.

These LEDs blink during data

transmission.

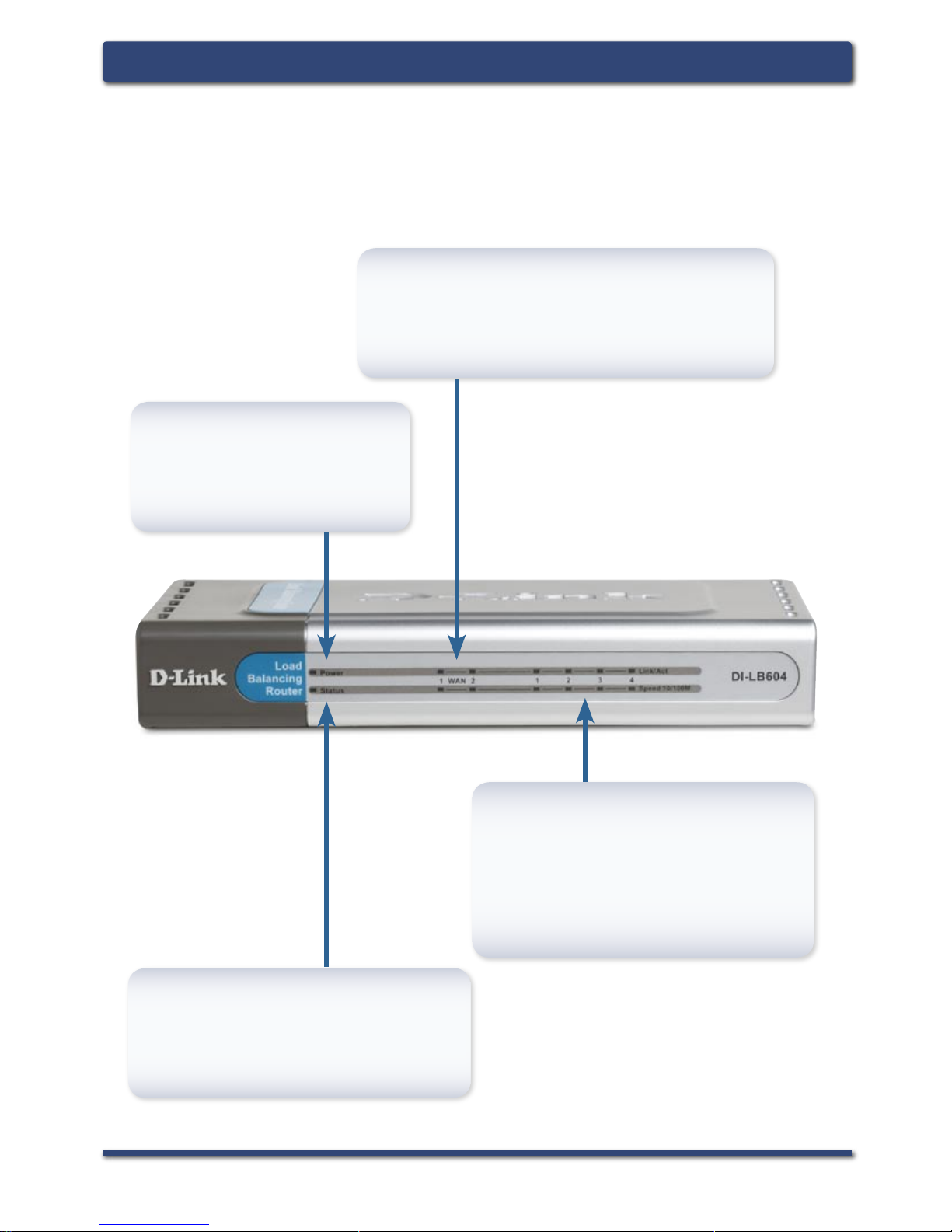

Hardware Overview

Front Panel

4 D-Link Systems, Inc.

DI-LB604 Install GuideHardware Overview

WAN Ports

This is for the connection of

an Ethernet cable to your

Cable or DSL modem.

LAN Ports

These are the connections for Ethernet cables

to Ethernet enabled computers.

Reset Button

Pressing this button restores the Router to its

original factory default settings.

Power Receptor

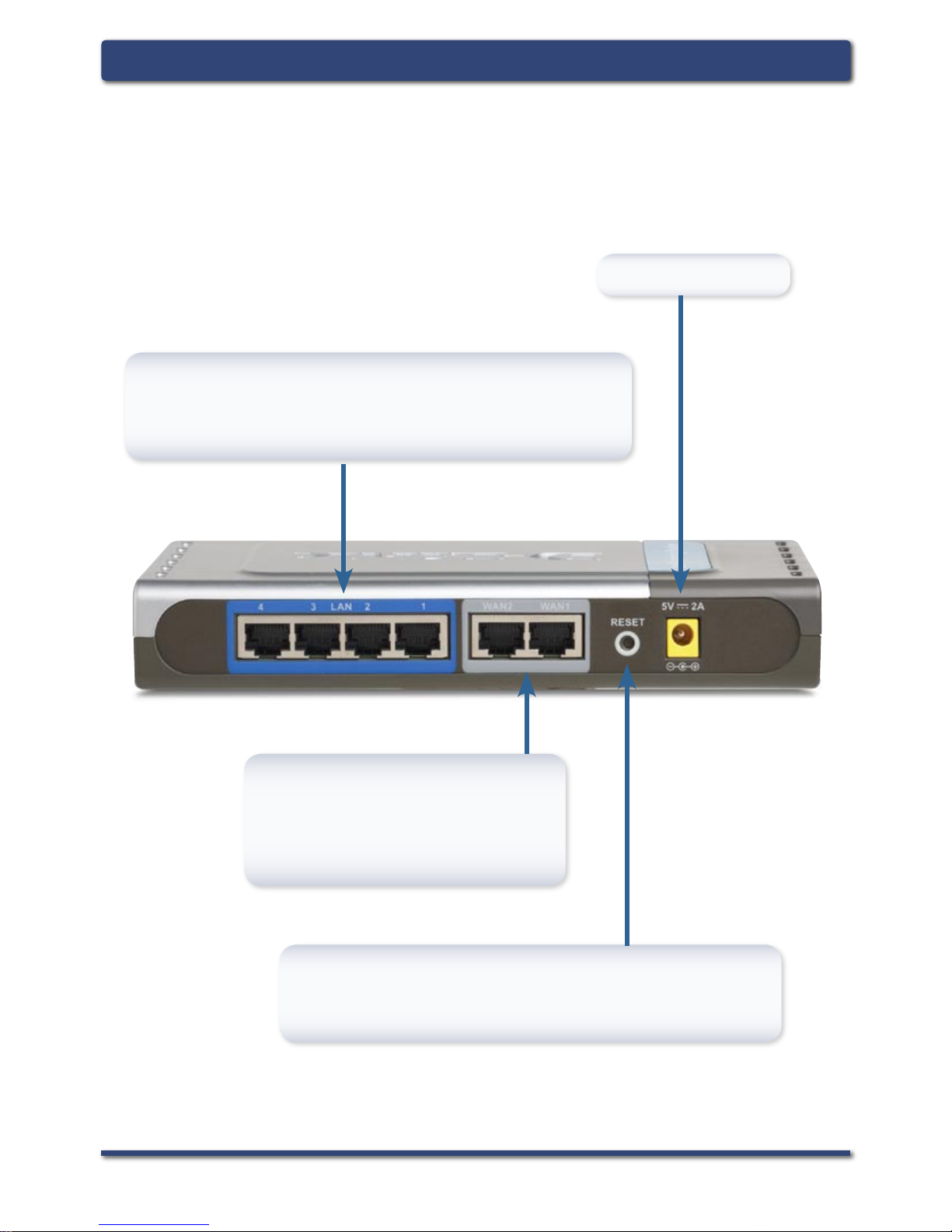

Back Panel Connections

D-Link Systems, Inc. 5

DI-LB604 Install Guide Connecting the DI-LB604

Connecting The DI-LB604 Load

Balancing Router To Your Network

First, connect the power adapter to the receptor at the back

panel of the DI-LB604 and then plug the other end of the power

adapter to a wall outlet or power strip. The Power LED will turn

ON to indicate proper operation.

B. 1. Power off your Cable or DSL modem; some devices

may not have an on/off switch and will require you to

unplug the power adapter. Now, the DI-LB604 should be

powered on and the Cable/DSL modem should be turned off.

2. Cable/DSL modem (Power Off) – DI-LB604 (Power On)

Connect an Ethernet cable to the Ethernet jack located

on the Cable/DSL modem. After the Ethernet cable is

securely connected, power on the Cable/DSL modem

by turning on the unit or plugging in the power adapter.

3. Cable/DSL modem (Power On) – DI-LB604 (Power On)

Insert the other end of the Ethernet cable to the WAN PORT on

the back panel of the DI-LB604. The WAN LED light will illuminate

to indicate proper connection. If the WAN LED is not illuminated,

please go back to step B1 and repeat the instructions.

C. Insert an Ethernet cable to LAN port 1 on the back panel of the

DI-LB604 and an available Ethernet port on the network adapter

in the computer you will use to conﬁgure the DI-LB604. The LED

light for LAN Port 1 will illuminate to indicate proper connection.

(Note: The LAN Ports on the DI-LB604 are Auto-MDI/MDIX.

Meaning you can use a straight-through or crossover Ethernet

cable to the LAN Ports.)

6 D-Link Systems, Inc.

DI-LB604 Install GuideConnecting the DI-LB604

Getting Started

D-Link Systems, Inc. 7

DI-LB604 Install Guide Using The Setup Wizard

Once you have logged

in, the Home screen will

appear.

Using The Setup Wizard

The logon screen will

appear.

Open your Web browser

and type “http://192.168.0.1”

into the URL address box.

Then press the Enter or

Return key.

Type “admin” for the username

and leave the password field

blank.

Click OK

Click Run Wizard

8 D-Link Systems, Inc.

DI-LB604 Install GuideUsing The Setup Wizard

You will see the following

screens:

Click Next

Choose your time zone

from the drop down list.

Click Next

Set up your new password.

You have the option to

establish a password for the

username “admin”.

D-Link Systems, Inc. 9

DI-LB604 Install Guide Using The Setup Wizard

Click Next

If you are unsure of which

setting to select, please

contact your Internet Service

Provider.

Click Next

Select the type of Internet

Connection that is attached

to WAN1.

Enter the needed information

for the type of connection you

have chosen.

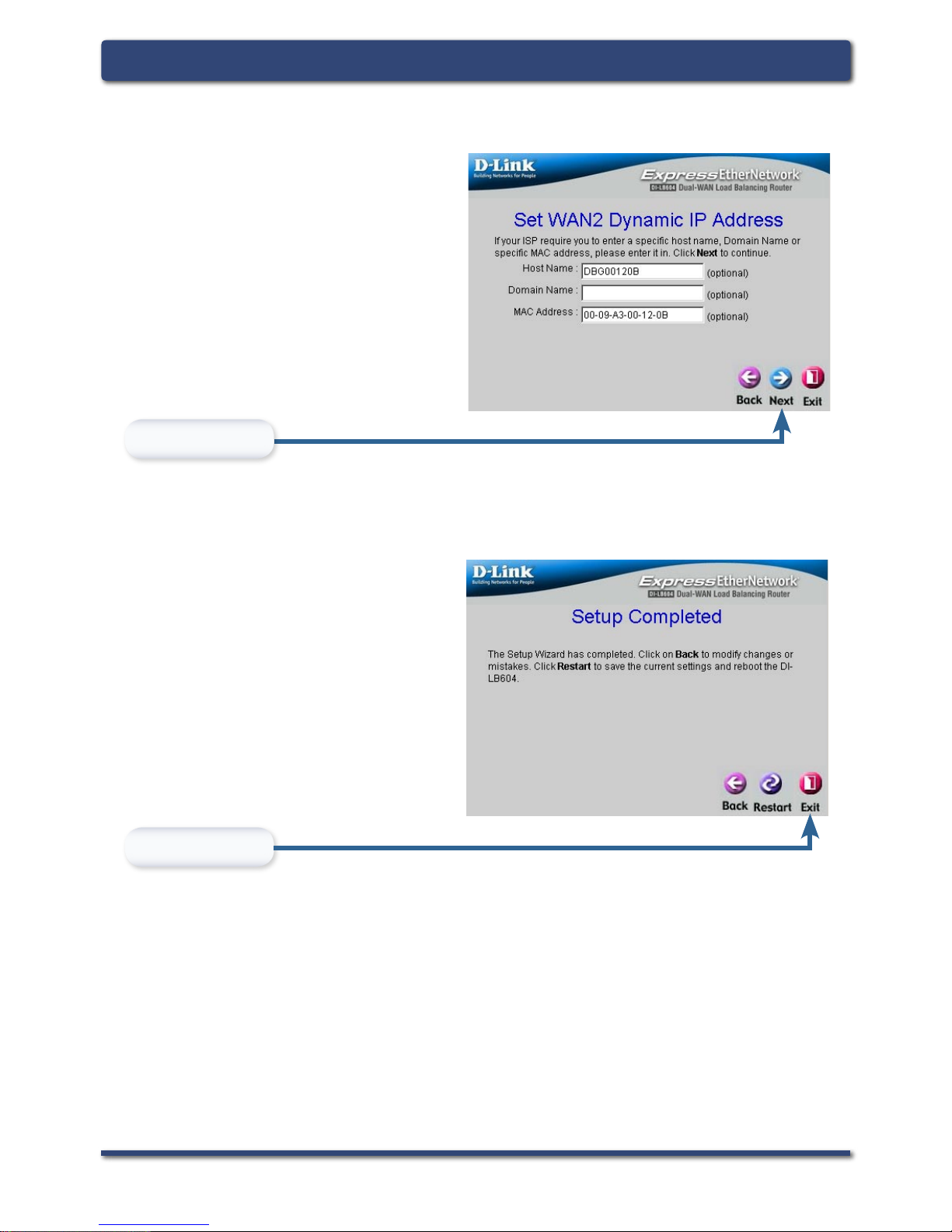

Select the type of Internet

connection that is attached to

WAN2.

10 D-Link Systems, Inc.

DI-LB604 Install GuideUsing The Setup Wizard

Click Next

Your Setup is Complete!

Click Next

Enter the needed information

for the type of connection you

have chosen.
