D-Link DSL-2750U Manuale utente

DSL-2750U

A Diagnostic Utility is provided, to assist, in the event of a problem arising. The

help screens will suggest the appropriate course of action to resolve the issue.

If the Diagnostic Utility is unable to resolve the issue please contact either the

ADSL support line or Router support line - please see contact details and

operating hours below.

Note that the support person will, as a first step, request the outcome of running

the Diagnostic Utility – Please ensure this has been done and the resulting

information is available, prior to making the support call.

ADSL support:

Telephone: 10210

Operating hours: Mon – Fri / 06h00 – 21h00, Weekends / 06h00 – 20h00

Router support:

Telephone: 0860 243578 (0860 2 HELP U)

Website: www.phones4telkom.co.za

Operating hours: Mon-Fri / 08h00-16h30

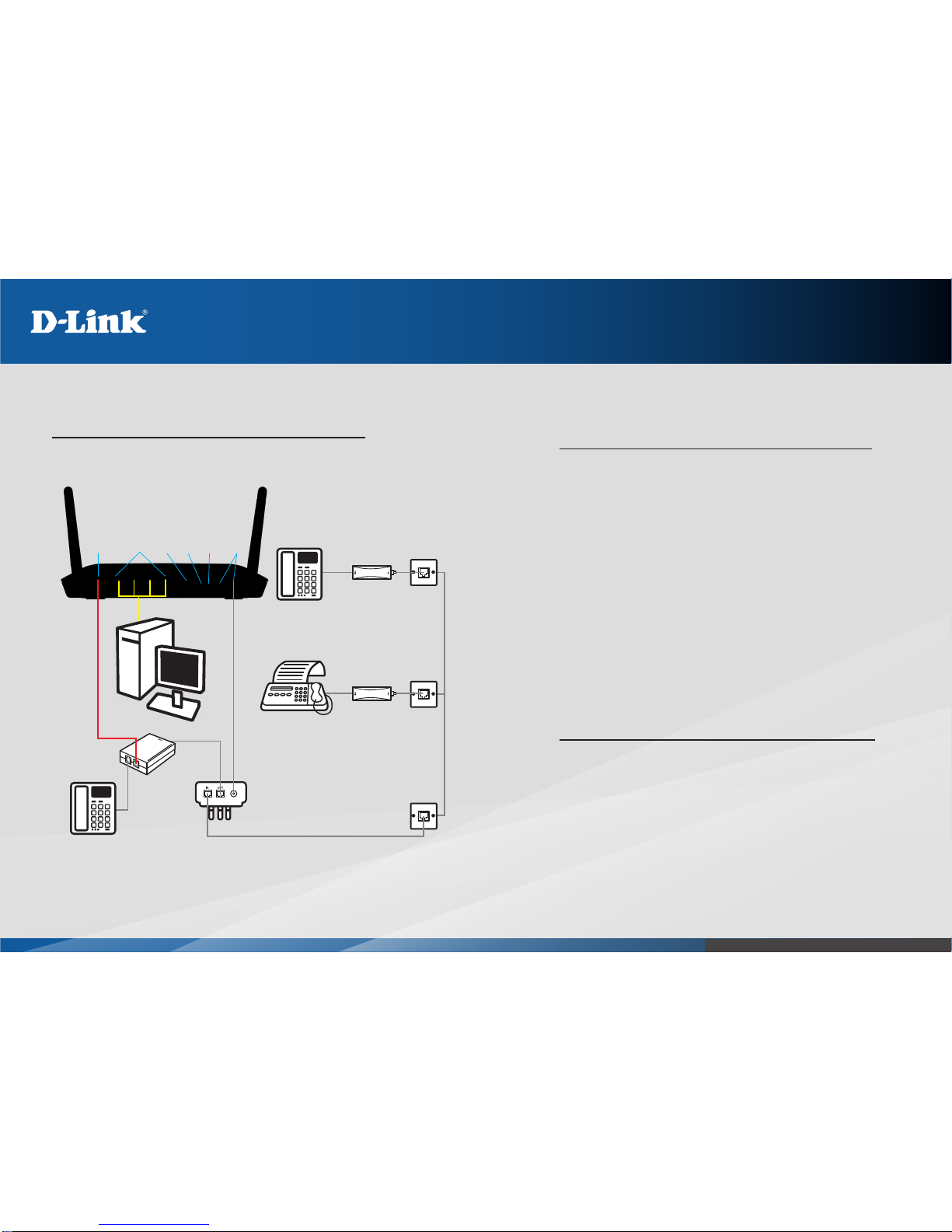

Installation Overview Product Support and Contact Information

Micro-Filter

Splitter

Telephone B

PHONE DSL

Telephone

3-Pin Power Supply/Lightning

Protection Unit

Fax Machine

The Router and Power Supply/Lightning Protection Units are not themselves

guaranteed against lightning or power surges.

The default IP address of the Router webpage is 10.0.0.2

The default administration username is “admin” and the password is “admin”.

It is a security risk to leave your administration password as default – we strongly

recommend you to change it.

This Quick Start Guide only applies to users running Windows Vista, Windows

XP ,Windows 2000 and Windows 7 operating systems.

If using a non Microsoft Windows operating system, please refer to User Manual

on CD for assistance in installing.

We recommend strongly that the user changes the default Wireless Network ID

and the default Wireless Security Key.

The software for the DSL-2750U makes provision for the use of WPA as the

security key.

Note:

Telephone

wall socket

Telephone

wall socket

Telephone

wall socket

Wireless Antenna

Ethernet

LAN

Ports

DSL

Port USB

Port Reset

Button

WLAN

Button

Power

socket

and

Button

Router

DSL-2750U

Line cable jack of the splitter

Micro-Filter

Telephone B

CD Installation

Note:

If a second phone is connected, an additional filter (supplied) should be fitted as

shown, to minimise any interference between voice and data. All wall sockets

require a filter. Additional filters can be purchased from a Telkom Direct Shop.

Splitter

3-Pin Power Supply/Lightning

Protection Unit

3-Pin Power

Supply/Lightning

Protection Unit

Router/Modem

DSL Port Connection

USB Connection

Connect the (DSL) port of the Router, using the (Red) telephone cable, to the port marked (Red, DSL) on the splitter.

Connect the short (Line) cable attached to the splitter, to the port marked out (OUT) on the Power Supply/Lightning

Protection Unit.

Connect the telephone wall socket, using the (Grey) telephone cable, to the port marked (IN) on the Power

Supply/Lightning Protection Unit.

Power Adapter Connection

LAN Connection

Plug the 3-Pin Power

Supply/Lightning Protection

Unit into the wall outlet and

then connect the other end of it

to the Power port of the router

(12VDC IN). Switch on the plug

point on completion of step 5.

Connect the Ethernet LAN

cable to any (Yellow) port

on the router and connect

the other end to the LAN

port of the PC.

Insert the CD into the CD drive of your computer, the installation CD will autostart,

follow the on screen instructions to configure the Router.

PHONE DSL

Optionally, a wireless Internet connection is available using a 3G USB dongle (not

supplied). Storage devices may also be attached via the USB port.

PHONE DSL

Splitter

Telephone

Telephone Set Connection

Connect the telephone set to the splitter port marked (Green, PHONE), using the

cable supplied with the telephone.

Telephone

wall socket

Telephone wall socket

Telephone

wall socket

3.5G Adapter Storage

Router

Router Router

Router

1This pack contains

610000001293L Ver: 1.00(TK)

NOTE: Should the installation

CD not start automatically

please run the setup program

from your CD ROM.

DSL-2750U Router

Installation CD

3-Pin Power Supply/Lightning

Protection Unit

Two RJ-11 Phone Cables

(one is Red, one is Grey) RJ-45 Ethernet Cable

(Yellow) Documents

Splitter Micro-Filter
