Before You Begin

1. If you purchased this Router to share your high-speed Internet connection with other

computers, you must have an established Internet account from an Internet Service Provider

(ISP).

This product can be set upusing

any current web browser, i.e.,

InternetExplorer6orNetscape

Navigator 6.2.3. DSL-502T

DSL Modem Route

2. It is best to use the same computer that is connected to your ISP for configuring the DSL-

502T ADSL Modem Router. The DSL-502T acts as a DHCP server and will assign all the

necessary IP address information on your network. See the Appendix for setting each

network adapter to automatically obtain an IP address.

respecti

ve holders. Software and specifications subject to change without notice.

DSL-502T ADSL Modem Router.

Check Your Package Contents

DSL-502T

ADSL Modem Route

CD-ROM with Click’n Connect Utility,

oduct Documentation and USB Drivers

USB Cable

Telephone Cable (RJ-11)

CAT 5 UTP Ethernet Cable (RJ-45)

Using a power adapter with

a different voltage rating will

damage and void the

warranty for this product.

9V 1A

Power Ada

If any of the above items are missing, please contact your reseller.

Configuring the Router via the D-Link

Click’n Connect Utility

Insert the CD-ROM into your PCs CD Drive. The Click’n Connect utility should

appear automatically. If it does not appear, explore your CD-ROM drive within

Windows, and double-click on the file “dslutility.exe” to start the utility manually.

It is extremely important that you DO NOT connect any cables to the DSL-

502T prior to completing the Click’n Connect Utility.

You can select one of five options:

1. User Manual: This option will open up the DSL-502T user manual. You

will need Adobe Acrobat Reader installed to view the manual.

2. Quick Install Guide: This option will show you a software-based version

of this Quick Install Guide

3. Install Acrobat Reader: Selecting this option will install Adobe Acrobat

Reader onto your PC.

4. Technical Support: Selecting this option will link you to D-Link

Australia/New Zealand Technical Support online.

5. Start Installation: This will commence the installation of the DSL-502T.

Configuring the Router via the D-Link

Click’n Connect Utility

The Click’n Connect utility will guide you through the installation process step-by-

step. Follow the on-screen instructions, then proceed to the next step.

Step 1 - Power Up the Device

Follow the on-

screen

instructions,

then Click

Next to

continue

Connect the Power Adapter from the wall socket to the DSL-502T. Wait for the

Status LED to blink before proceeding onto the next step.

Configuring the Router via the D-Link

Click’n Connect Utility

The Click’n Connect utility will guide you through the installation process step-by-

step. Follow the on-screen instructions, then proceed to the next step.

Step 2 – Select Your Connection Type

elect the connection type that you would like to use to connect the DSL-502T to

02T

Install USB Drivers if USB connection re

uired

Click Next to

continue

Select your

Connection Type

your PC. You can select Ethernet, which uses a network cable to connect it to

your PC, or you can select USB to connect the DSL-502T with a USB cable.

Please note, however, that you will be required to install drivers for the DSL-5

if you proceed with the USB connection option. Click on Install USB Drivers, this

will open a separate program that will install the drivers for you. Once you have

completed with this option, click on Next to continue onto Step 3.

Configuring the Router via the D-Link

Click’n Connect Utility

he Click’n Connect utility will guide you through the installation process step-by-

his section is only relevant if you selected Ethernet as the connection type

tep 3 – Select Your Connection Type – Ethernet

you have selected Ethernet as your connection type, connect your Ethernet

step. Follow the on-screen instructions, then proceed to the next step.

at Step 2. If you selected USB as your connection type, please proceed to

page 7.

Follow the on-

ins ,

screen

tructions

then Click

Next to

continue

cable from the computer to the DSL-502T now. Wait for the Link LED to flash

then click on Next to continue to Step 4.

Configuring the Router via the D-Link

Click’n Connect Utility

The Click’n Connect utility will guide you through the installation process step-by-

step. Follow the on-screen instructions, then proceed to the next step.

This section is only relevant if you selected Ethernet as the connection type

at Step 2. If you selected USB as your connection type, please proceed to

page 7.

Step 4 – Connect the Device to the ADSL Line – Ethernet

you have selected Ethernet as the connection type, connect your ADSL

cket.

nce you have completed this, wait for the ADSL LED to light up, and click on

Follow the on-

screen

instructions,

then Click

Next to

continue

telephone line from the wall socket to the DSL-502T ADSL socket. Please note

that if you are using an ADSL Splitter/Filter, you will need to connect the

telephone line from the DSL socket on the filter to the DSL-502T ADSL so

Next to continue to Step 5 on Page 9.

he Click’n Connect utility will guide you through the installation process step-by-

his section is only relevant if you selected USB as the connection type at

tep 3 – Select Your Connection Type – USB

you have selected USB as your connection type, connect your USB cable from

e computer to the DSL-502T now. Wait for the Link LED to flash, then click on

Configuring the Router via the D-Link

Click’n Connect Utility

step. Follow the on-screen instructions, then proceed to the next step.

Step 2. If you selected Ethernet as your connection type, please go back to

Page 5.

Follow the on-

screen

tructions

then Click

Next to

continue

ins ,

Next to continue to Step 4.

Configuring the Router via the D-Link

Click’n Connect Utility

The Click’n Connect utility will guide you through the installation process step-by-

step. Follow the on-screen instructions, then proceed to the next step.

This section is only relevant if you selected USB as the connection type at

Step 2. If you selected Ethernet as your connection type, please go back to

Page 5.

Step 4 – Connect the Device to the ADSL Line – USB

If you have selected USB as the connection type, connect your ADSL telephone

line from the wall socket to the DSL-502T ADSL socket. Please note that if you

are using an ADSL Splitter/Filter, you will need to connect the telephone line from

the DSL socket on the filter to the DSL-502T ADSL socket.

Once you have completed this, wait for the ADSL LED to light up, and click on

Next to continue to Step 5.

Follow the on-

screen

instructions,

then Click

Next to

continue

Configuring the Router via the D-Link

Click’n Connect Utility

The Click’n Connect utility will guide you through the installation process step-by-

step. Follow the on-screen instructions, then proceed to the next step.

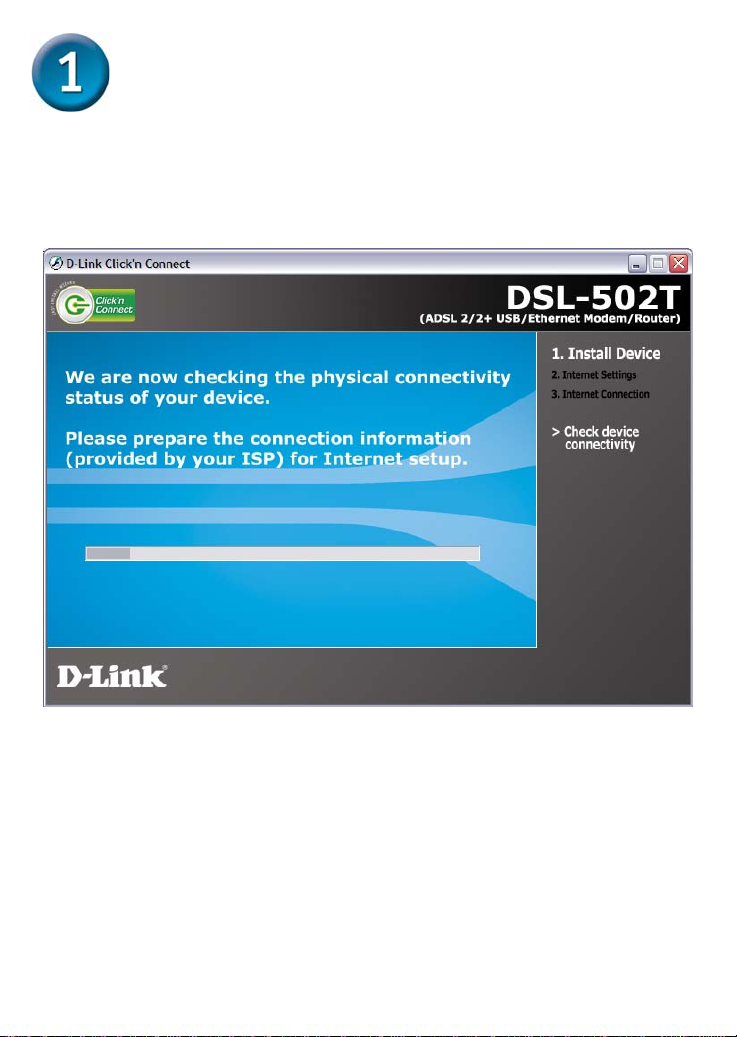

Step 5 – Checking Device Connectivity – Ethernet and USB

The Click’n Connect utility will now check the DSL-502T to make sure it has been

connected correctly. Once it has successfully detected your modem, it will

roceed to the next step automatically.

t this point, you may want to prepare your ADSL account information that is

provided to you by your Internet Service Provider (ISP) as you will require it

shortly.

Configuring the Router via the D-Link

Click’n Connect Utility

The Click’n Connect utility will guide you through the installation process step-by-

step. Follow the on-screen instructions, then proceed to the next step.

Step 6 – ISP Configuration – Ethernet and USB

Click Next to

continue

Select your

ISP

Select your

Country

You will now be prompted to select your Country as well as your Internet

Service Provider (ISP). If your ISP is not listed for your country, select Oth

nter the details that are relevant to you er and

r ISP.e

Once you have completed this step, click on Next to continue.
