D-Link DSL-504 Manuale utente

DSL 504/CZDSL 504/CZ

ADSL RouterADSL Router

Quick Install GuideQuick Install Guide

DSL-504/CZ

ADSL Router

Quick Install GuideQuick Install Guide

for Windows 98/SE/ME/2000

This guide is for installation only. For more detailed information regarding the product and its

features, please refer to the user manual located on the included CD-ROM.

Before you begin:

1. Make sure that an Ethernet NIC is installed and functioning in your PC.

(Follow all installation instructions provided by the manufacturer.)

2. If you have had a service technician install your DSL line, please skip to

Step 4: “Connecting the DSL-504/CZ.” If you are installing DSL yourself,

please follow all instructions.

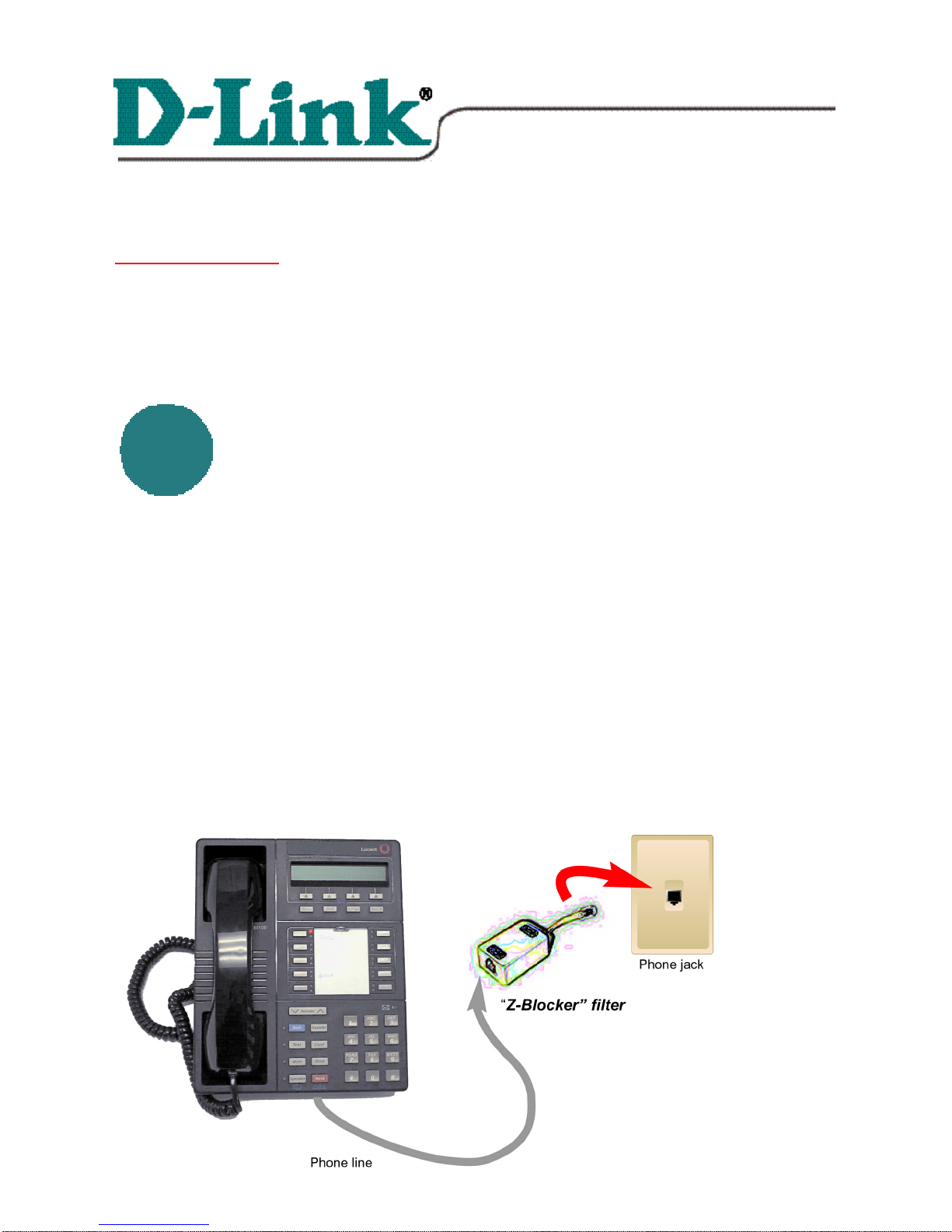

Install a “Z-Blocker” phone filter atInstall a “Z-Blocker” phone filter at EACHEACH

telephone wall jack in your home.telephone wall jack in your home.11

Q: Why do I need these filters?

A: DSL service shares the line with your regular telephone service. In-line

filters prevent these services from interfering with each other, improving both

the telephone audio and DSL data rate.

lDisconnect the existing cord from the wall jack.

lPlug the LINE end of the filter into the wall jack.

lPlug the device into the PHONE jack on the filter.

lUse only one filter for all devices sharing the jack.

If you would like to share your phone jack with the modem and your phone,

then use a standard 2-line adapter.

lInstall the 2-line adapter into the wall jack.

lPlug the RJ-11 cable into one adapter jack.

lPlug the LINE end of a “Z-Blocker” filter into the other adapter jack.

lPlug your telephone devices into the PHONE jack on the “Z-Blocker” filter.

Sharing your phone jack with theSharing your phone jack with the

modem and another device.modem and another device.22

DSL-504/CZ

lRemove the phone. On some phones you must pull out a locking lever

before removing the phone. Then push up on the phone and pull it out from

the wall.

lSlide the filter locking tabs (located at the top and bottom on the front of the

filter) to the UNLOCKED position.

lPlace the filter over the existing wall outlet, aligning the plug and mounting

slots with the socket and mounting tabs on the existing outlet, then push into

place.

lMove the locking tabs to the LOCKED position as indicated in the drawing.

lMount the phone. If your phone has a locking lever, be sure it is unlocked

before you mount it. Position the phone’s plug and mounting slots over the

filter jack and metal mounting pegs. Press the phone in and pull down until

secure.

lIf desired, install your ADSL or Home Phoneline Network (HPN) device

cord into the jack on the left side of the adapter. An answering machine may

also be attached to the jack on the right side of the filter.

Installing the “Z-Blocker” filter on aInstalling the “Z-Blocker” filter on a

wall-mounted telephone, using thewall-mounted telephone, using the

wall-mount filterwall-mount filter

Filter Installation TipsFilter Installation Tips

l DO NOT install a filter on your DSL modem or on any

broadband devices.

l Check the orientation of each filter

1. PHONE jack towards the telephone device.

2. LINE connection towards the wall jack.

l Try to limit the number of filters in your home to the fewest practical.

Do this by 1. Using one filter to isolate several devices.

2. Not installing filters on unused phone jacks.

l Do not use more than one filter for each telephone device or

group of devices.

l Plug the filter directly into the wall jack using only the attached short

cord. If this cannot be done, then use a twisted-pair cable like the data

cable for the modem (i.e., NOT a flat phone cord) to connect the filter to

the wall jack.

Connecting the DSL-504/CZConnecting the DSL-504/CZ

To setup the DSL-504/CZ, begin by connecting it to a power source.

Once the unit power is on, connect one end of the included Ethernet cable to

the DSL-504/CZ’s ethernet port and connect the other end of the cable into

the NIC which is installed in your computer.

If the cable connection is good, a green LED on the front of the DSL-504/CZ

labeled Ethernet/Link will glow steadily.

Connecting the DSL-504/CZConnecting the DSL-504/CZ continuedcontinued

Now connect the phoneline cable from the DSL-504/CZ to your phone jack.

When you have completed all the connections, your DSL-504/CZ will

look like this:

Power Cord

(Plug the other end of the

power cord into the power

outlet.)

Ethernet Cable

(Plug the other end of the

Ethernet cable into the

Ethernet port on the NIC,

which is installed in your

computer.)

Phone line cable

(Plug the other end of the

phone line cable into the

phone jack.)

55 Setting up the ComputerSetting up the Computer

Right-Click the Network

Neighborhood (Win 98/98SE) or My

Network Places (Win ME/2000) icon

on your desktop.

Click Properties

Highlight the line that reads TCP/IP and

points to your installed Ethernet NIC.

Click Properties

At this screen, select the IP Address tab.

Select Obtain an IP Address

Automatically.

Click OK

You will be prompted to

reboot in Win 98/98SE or

ME.

For Windows 2000,

Restart your computer

manually.

Setting up the ComputerSetting up the Computer continuedcontinued

Click Yes

When your computer restarts, you will automatically receive an IP address

from the DSL-504/CZ.

Accessing the DSL-504/CZ’s Web BasedAccessing the DSL-504/CZ’s Web Based

ManagementManagement

The DSL-504/CZ requires

Internet Explorer 4.0 or higher, or

Netscape Communicator 4.0 or

higher.

Please open your Web Browser

and enter this URL:

http://192.168.0.1 This will

launch the DSL-504/CZ’s inte-

grated web-based management

system.

Click on Login to the web-based management module.

The default User Name is admin

and the default Password is also

admin.

Click OK

This Enter Network Password

screen will appear.

Configuring the DSL-504/CZConfiguring the DSL-504/CZ

Click PPPoA Configuration

on WAN in the left column.

Enter the Login User Name

and Password, provided to you

by your Internet Service

Provider (ISP.)

Authentication is set to detect

automatically. If your current

selection does not work, select

“pap.”

Please be certain that

“enabled” is displayed in the

“Connect On Demand” field.

Make sure PVC settings

are entered correctly:

VPI: “0”

VCI: “35”

Click OK

Note: VPI: “0” and VCI: “35” settings are most common among DSL

providers. This will not work for others who have different VPI and

VCI settings. Please contact your service provider for the correct VPI

and VCI settings.
