Windows PPTP Client to DSL-G804V VPN Setup Guide Page 1 of 10

How To Setup PPTP VPN

Between Windows PPTP Client And DSL-G804V.

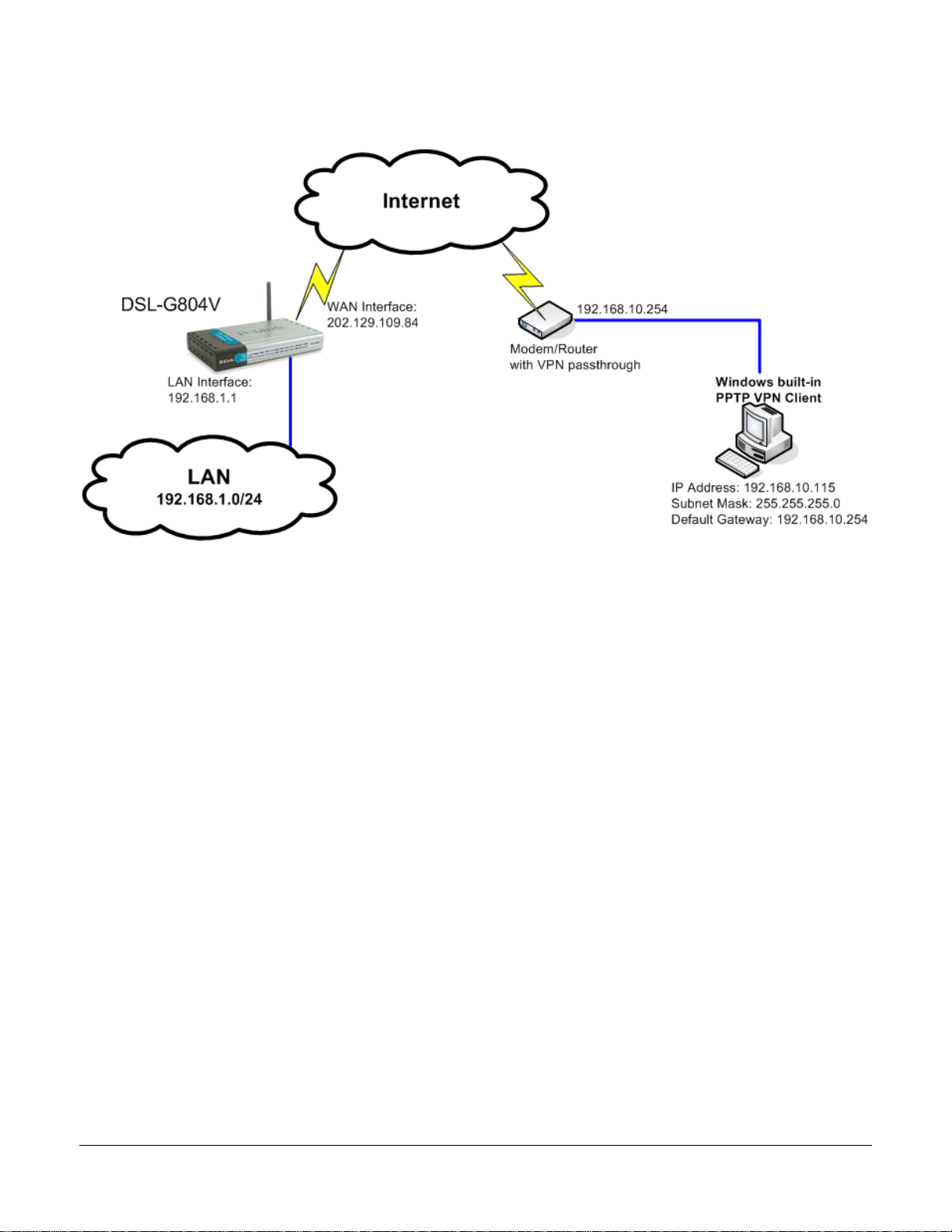

This setup example uses the following network settings:

Office Remote User

Windows PPTP Client to DSL-G804V VPN Setup Guide Page 2 of 10

DSL-G804V Setup

Step 1. Open a web browser (e.g. Internet Explorer) and type the IP address of the DSL-G804V in the address bar (the

default is 192.168.1.1). Press Enter.

Step 2. Enter the username and password (default is admin/admin). Click on OK to login.

Step 3. Click on Advanced at the top. Click on VPN on the left side, then the PPTP option.

Windows PPTP Client to DSL-G804V VPN Setup Guide Page 3 of 10

Step 4. Configure the following:

•Enable after Apply - set to Yes

•Connection Name - enter the connection name

•Connection Type - Select Remote Access

•Service Type - Select Dial-in

•IP Address - enter the IP address to be assigned to the remote user (i.e. 192.168.1.200)

•Username - enter the Username

•Password - enter the Password

•Idle Timeout - enter preferred time out for user (i.e. 5 mins)

•Data Encryption - select Enable

•Key Length - select 128 bits

Once done click “Apply”

Windows PPTP Client to DSL-G804V VPN Setup Guide Page 4 of 10

Step 5. Click on Tools at the top, System on the left side. Click on the Save button to permanently save the changes to

device memory.

Windows PPTP Client to DSL-G804V VPN Setup Guide Page 5 of 10

Windows PPTP Client Setup

To setup your remote client for PPTP VPN connection you can use Windows built-in PPTP client. We will use Windows

XP as an example.

Go to Start > Control Panel > Network Connections.

Windows PPTP Client to DSL-G804V VPN Setup Guide Page 6 of 10

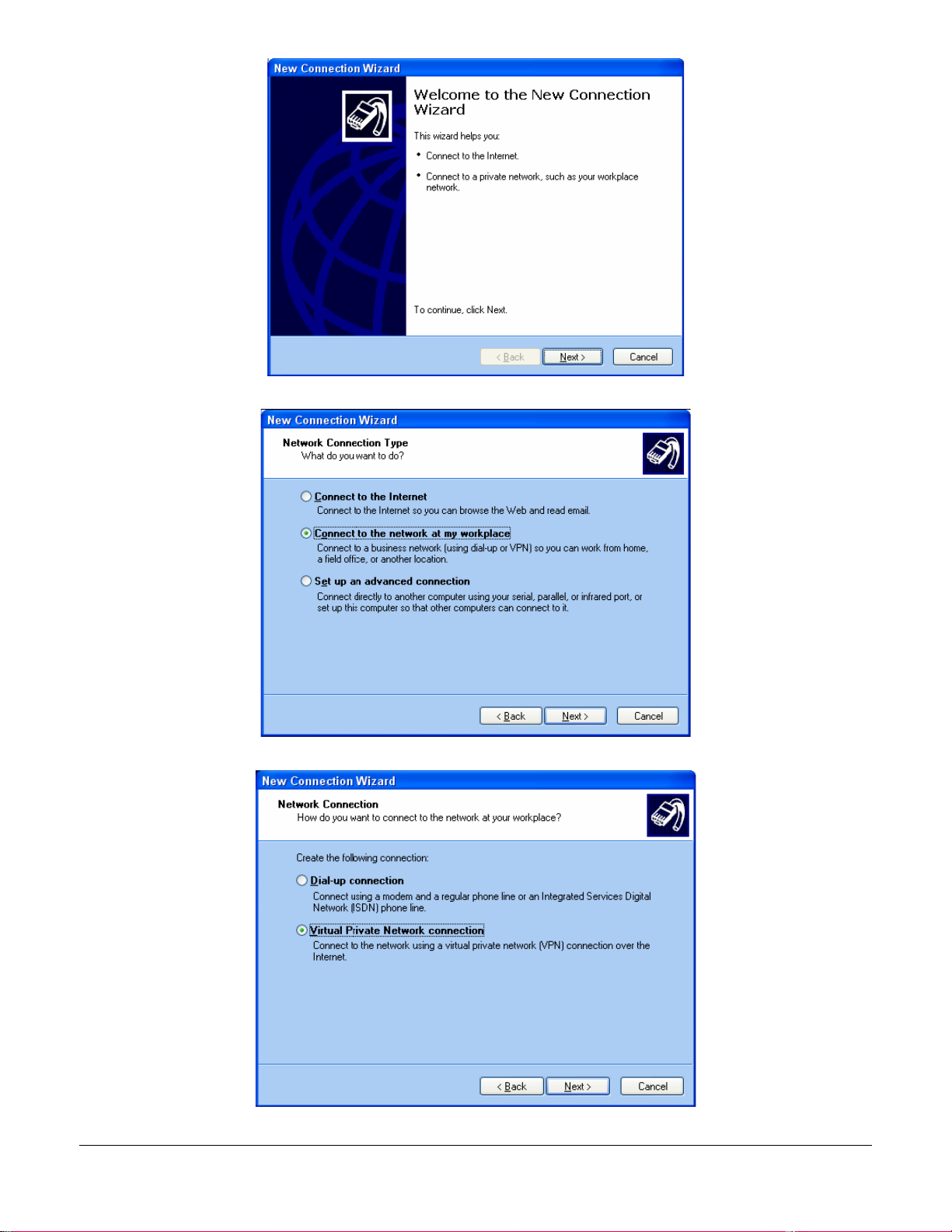

Click on Create New Connection. Follow the prompts in the New Connection Wizard.

Select the “Connect to the network at my workplace” option. Click Next.

Select the “Virtual Private Network connection” option. Click Next.

Windows PPTP Client to DSL-G804V VPN Setup Guide Page 7 of 10

Give the connection a name, e.g. My PPTP Connection. Click Next.

Select “Do not dial the initial connection option”. Click Next.

Windows PPTP Client to DSL-G804V VPN Setup Guide Page 8 of 10

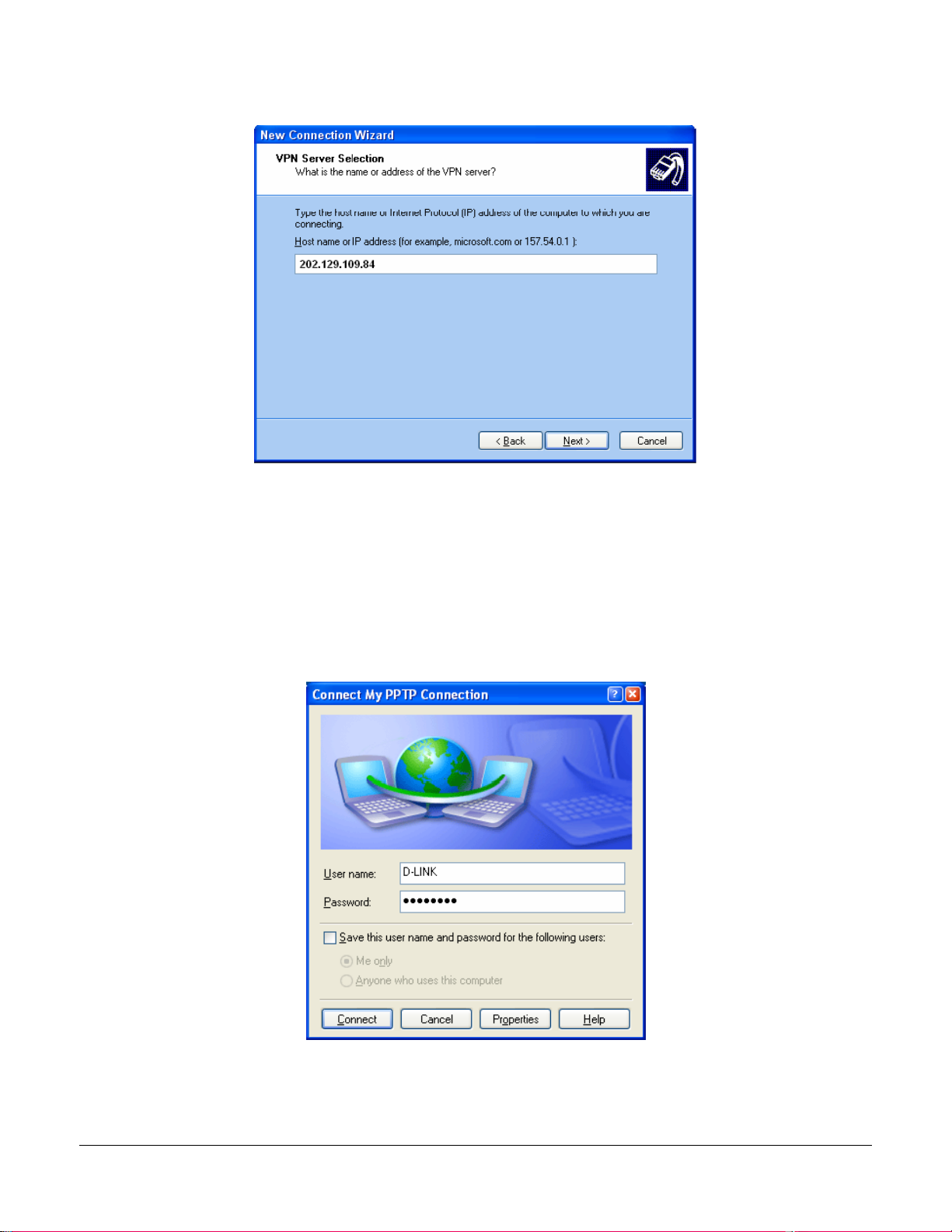

On the VPN Server Selection page under “Host name or IP address” enter the public IP address that the remote VPN

Firewall is getting from the ISP. If you have got a router or a modem with NAT in front of the VPN firewall, use the public

IP address on the modem’s WAN port. Note that the router/modem will need to support VPN passthrough.

Click Next.

Continue with the Connection Wizard and click on Finish when done.

To establish a VPN connection: make sure you have access to the Internet. Make sure the modem or the router you

are using to connect to the Internet supports VPN passthrough. Make sure that the range of IP addresses (subnet) you

are using on this LAN is different from the range used on remote LAN (e.g. if remote LAN is using 192.168.1.x, you can

not use 192.168.1.x on your LAN).

Double-click on the PPTP connection icon that you created earlier and enter the username and password as it was set in

the VPN Firewall (see Step 4 of the router Setup).

Click on Connect. After verifying username and password your computer should establish a PPTP connection.

Windows PPTP Client to DSL-G804V VPN Setup Guide Page 9 of 10

Please note that with its default settings a PPTP connection in Windows is used as remote gateway for all traffic. Hence

you may lose the ability to browse the Internet sites when the PPTP connection is established. To avoid this problem do

the following:

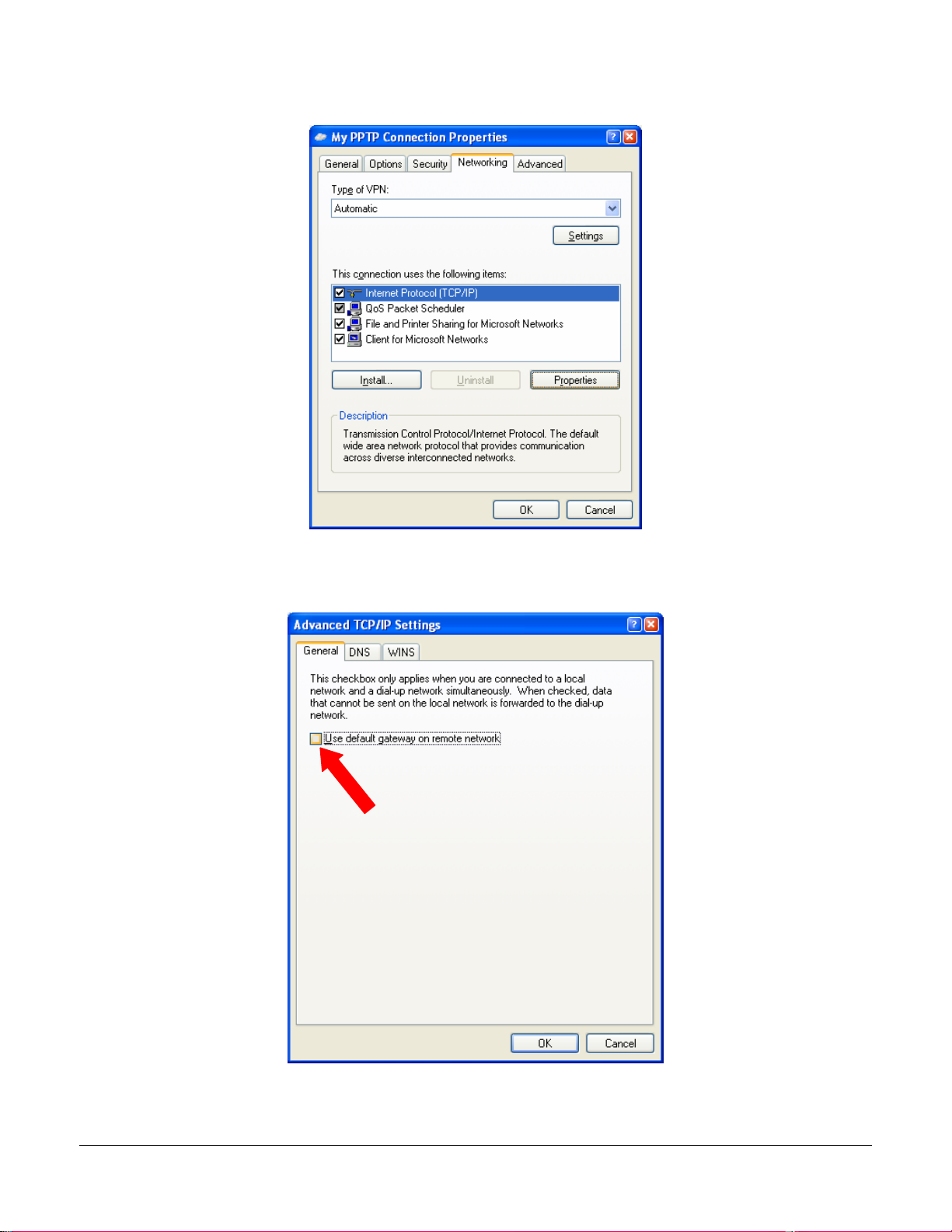

Open your PPTP connection dialog. Click on the Properties button. Select the Networking tab.

Highlight the Internet Protocol (TCP/IP) and click on Properties. Then click on the Advanced… button.

Deselect the “Use default gateway on remote network” option. Click on OK in each window to apply the setting.

Reconnect your PPTP connection.

Windows PPTP Client to DSL-G804V VPN Setup Guide Page 10 of 10

Notes

In order to connect to shared resources via a VPN tunnel you can map remote computers’ drives and folders by opening

Windows Explorer and going to Tools > Map Network Drive (you need to specify the IP address of the computer on

remote network and the name of the shared folder):

Alternatively you can do Search > Computers or People > Computer on Network > specify the IP address of the computer

you are trying to connect to.

If you do not see computers in My Network Places or My Network Neighbourhood you may need to enable NetBIOS over

TCP/IP in Windows.

Note that firewall/antivirus software installed on your or remote computer may stop you from accessing remote network.
