D-Link Express Ethernetwork DI-704P Manuale utente

DI-704P

Ethernet Broadband Router

User’s Manual

(Please refer to the Quick Install Guide for installation instructions.)

-2-

Table of Contents

Introduction..................................................................................................4

Functions and Features.........................................................................4

Introduction to Broadband Router Technology....................................6

Introduction to Firewalls ......................................................................6

Introduction to Local Area Networking ...............................................7

Introduction to Virtual Private Networking..........................................7

Contents of Package .....................................................................................9

Panel Layout...............................................................................................10

Installation Requirements...................................................................11

Network Settings ........................................................................................12

Configuring the Ethernet Broadband Router..............................................14

Start-up and Log in.............................................................................14

Device Information.............................................................................16

Useful Tools........................................................................................17

Setup ...................................................................................................18

DHCP Server ......................................................................................21

Virtual Server......................................................................................22

Special Applications ...........................................................................23

Access Control....................................................................................24

Miscellaneous Items ...........................................................................25

MAC Address Control........................................................................26

Configuring on Unix based Platforms................................................27

Appendix A: Resetting the System Password or the IP Address .............28

Appendix B TCP/IP Configuration for Windows 95/98 ..........................29

-3-

B.1 Install TCP/IP Protocol into Your PC..........................................29

B.2 Set TCP/IP Protocol for Working with the DI-704P ...................31

Technical Specifications.............................................................................38

Contacting Technical Support ....................................................................40

D-Link Locations Worldwide.....................................................................41

Limited Warranty........................................................................................43

Registration.................................................................................................47

-14-

Configuring the Ethernet Broadband Router

The DI-704P provides Web based configuration. You can configure your DI-704P

through your Netscape Communicator or Internet Explorer browser in MS

Windows, Macintosh or UNIX based platforms.

Start-up and Log in

Activate your browser, and disable the proxy or add the IP address of the

DI-704P into the exceptions . Then, type the IP address of the DI-704P into the

Location (for Netscape) or Address (for IE) field and press “Enter.”For example:

http://192.168.0.1.

After the connection is established, you will see the web user interface. There

are two appearances of web user interface: for general users and for the system

administrator.

To log in as an administrator, enter the system password (the factory setting

-15-

is ”admin”) in the System Password field and click on the Log in button. If the

password is correct, the web appearance will be changed into administrator

configure mode. As listed in its main menu, there are several options for system

administration.

-16-

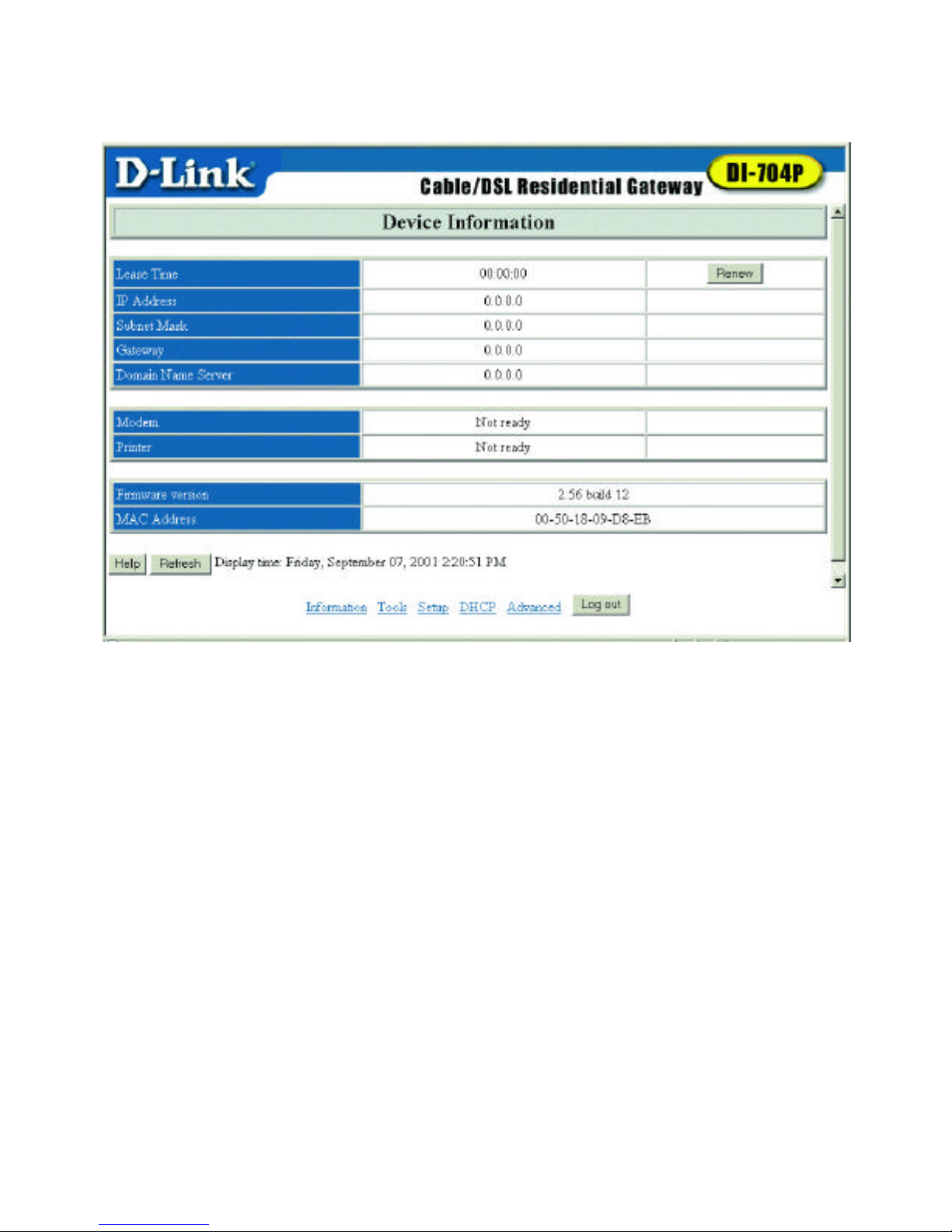

Device Information

This option allows you to observe the DI-704P’s working status:

A. Modem Status

B. Printer Status. The possible kinds of printer status include “Ready,” “Not

ready,” “Printing…,” and “Device error.”

When a job is printing, there may appear a “Kill Job” button on the

“Sidenote” column. You can click this button to stop the current

printing job manually.

-17-

Useful Tools

This function enables you to change the administrator password, and get

information about the Firmware version and the WAN's MAC Address.

At this window you can:

•View the system logs by clicking the View Log button.

•Restart the DI-704P by clicking the Reboot button.

•Backup your settings by clicking the Backup Setting button and save it as

a bin file. Once you want to restore these settings,please click the

Firmware Upgrade button and use the bin file you saved.

•Click the Clone MAC button to copy the MAC address of your PC to be

the MAC address of this device.

•Click the Reset to Default button to reset the settings of this device to the

default values.

•Upgrade the firmware by clicking the Firmware Upgrade button.

Note: we strongly recommend that you change the system password

for security reasons.

-18-

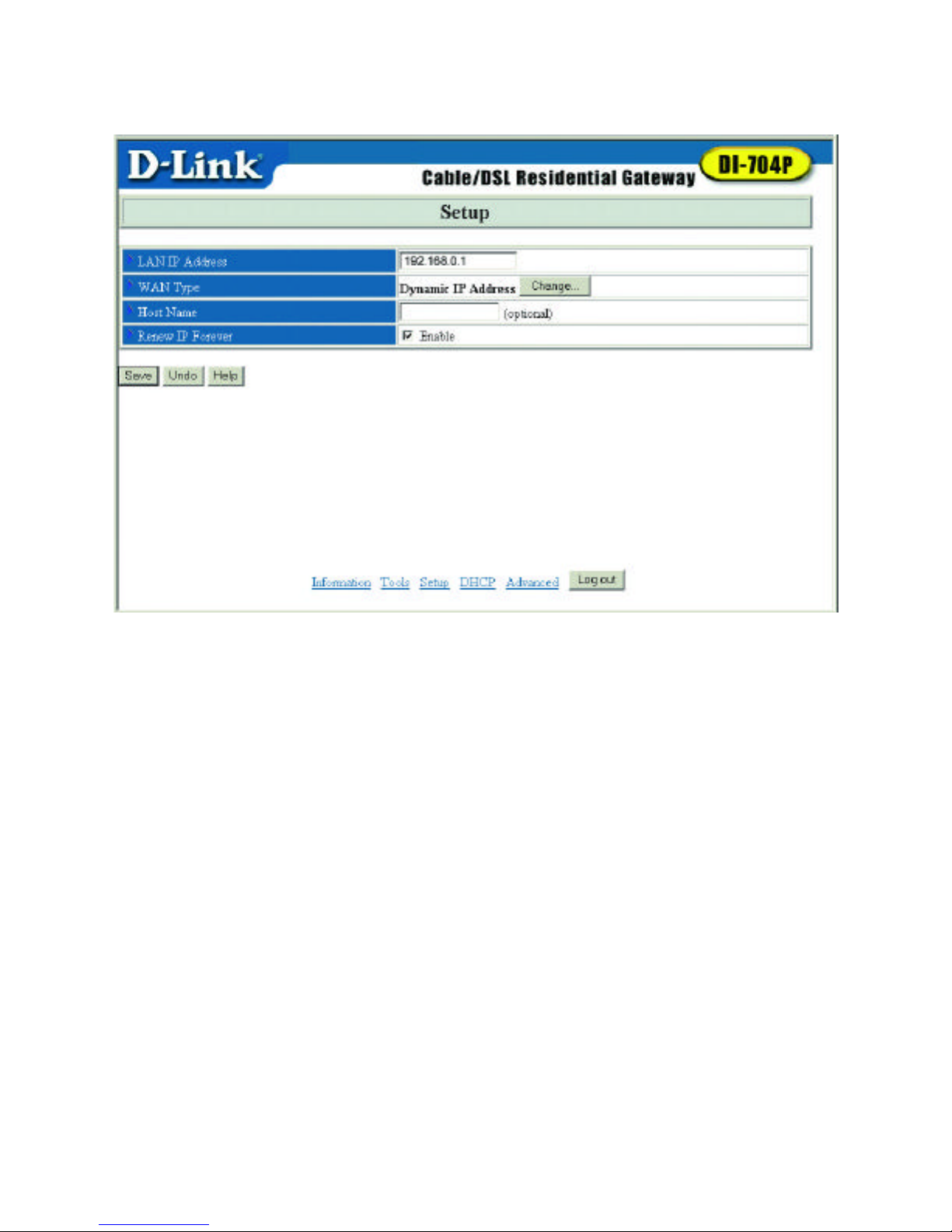

Setup

Before you begin the Setup, you must choose the correct WAN type.

1. LAN IP Address:the DI-704P’s IP address. The default address is

192.168.0.1. You can change the LAN IP Address if needed.

2. WAN Type: your ISP’s WAN Connection type. Click the Change button to

choose from the following five options:

A. Static IP Address:you manually input the IP Address that your ISP

assigned to you.

B. Dynamic IP Address:Obtain an IP address automatically from the

DI-704P’s DHCP Server function.

C. PPP over Ethernet:Some ISPs require the use of PPPoE to connect to

their services.

D. Dial-up Network:To surf the Internet via PSTN/ISDN (a dial-up

modem.)

E. PPTP:Some ISPs require the use of PPTP to connect to their services.

It is specifically for many European ISPs where Alcatel’s ADSL

Network Termination is deployed.

-19-

Below are the five WAN types and the fields required to implement them:

1. Static IP Address

Enter the proper setting provided by your ISP for the following fields:

WAN IP Address, Subnet Mask, Gateway, Primary and Secondary DNS

2. Dynamic IP Address

•Host Name: optional. Required by some ISPs, for example, @Home.

•Renew IP Forever: this feature enables the DI-704P to renew the IP

address automatically when the lease time is expired even if the system

is in an idle state.

3. PPP over Ethernet

•PPPoE Account and Password: the account and password your ISP

assigned to you. If you don't want to change the password, leave the

password field blank.

•PPPoE Service Name: (optional) Input the service name if your ISP

requires it.

•Maximum Idle Time: set the length of “no activity” time at which to

disconnect your PPPoE session. Setting it to “0” will disable this

feature.

4. Dial-up Network

•Dial-up Telephone, Accountand Password: assigned by your ISP. If you

don't want to change the password, keep it empty.

•Primary and Secondary DNS: automatically assigned if they are

configured as "0.0.0.0."

•Maximum Idle Time: the length of “no activity” time at which to

disconnect your dial-up session.

•Baud Rate: the communication speed between the DI-704P and your

MODEM or ISDN TA.

•Extra Setting: needed to optimize the communication quality between

the ISP and your MODEM or ISDN TA

-20-

5. PPTP

Just follow steps below to configure the PPTP WAN type:

•Set My IP Address as the IP address that the ISP assigned to your PC,

e.g. 10.0.0.140.

•Set My Subnet Mask as the mask that the ISP assigned to your PC, e.g.

255.255.255.0.

•Set Server IP Address as the IP address of the DSL modem, e.g.

10.0.0.138.

•Input the PPTP Accountand Password.

•Input the Connection ID if your ISP requires it.

•Save the setting and restart the router.

•In the Command prompt, type PING 4.0.0.1. If the reply is positive,

the router and your PC have been successfully configured for PPTP

WAN type.
