D-Link Express EtherNetwork DI-704UP Manuale utente

This product can be set up

using any current Web browser,

i.e.,Internet Explorer or

Netscape Navigator.

DI-704UP

Ethernet Broadband Router

and USB Print Server

5V AC Power Adapter

specifications subject to change without notice. DI-704UP. 08152003

Before You Begin

1. If you purchased this router to share your high-speed Internet connection with other

computers, you must have either an Ethernet-based Cable or DSL modem with an

established Internet account from an Internet Service Provider (ISP).

2. It is best to use the same computer that is connected to your modem for

configuring the DI-704UP Broadband Router. The DI-704UP acts as a DHCP server

and will assign all the necessary IP address information on your network. See

Appendix at the end of this Quick Installation Guide or the Manual on the CD-

ROM for setting each network adapter to automatically obtain an IP address.

Check Your Package Contents

DI-704UP Ethernet Broadband Router

and USB Print Server

CD-ROM (containing Manual, Warranty and

Print Server Software for Windows)

Ethernet (Straight-Through) Cable

Using a power supply

with a different voltage

rating will damage and void

the warranty of this product.

If any of the above items are missing, please contact your reseller.

Connecting The DI-704UP Broad-

band Router To Your Network

B. WAN Port This is for the

connection of an Ethernet cable

to the Cable or DSL modem

C. LAN Ports These are the

connections for Ethernet cables

to Ethernet enabled computers.

D. USB Printer Port

You can connect a USB

Printer here.

A. Receptor for

Power Adapter.

Reset Button Pressing this

button restores the Router to its

original factory default settings.

A. First, connect the power adapter to the receptor at the back panel of the

DI-704UP and then plug the other end of the power adapter to a wall outlet or

power strip. The Power LED lights up indicating proper operation.

B. 1. Power off your Cable or DSL modem; the devices that do not have a on/off

switch and will require you to unplug the power adapter. Now, the DI-704UP should

be powered on and the Cable / DSL modem should be turned off. Cable / DSL

modem (Power Off) – DI-704UP (Power On)

2.Connect an Ethernet cable to the Ethernet jack located on the Cable / DSL

modem. After the Ethernet cable is securely connected, power on the Cable / DSL

modem by turning on the unit or plugging in the power adapter. Cable / DSL

modem (Power On) – DI-704UP (Power On)

3. Insert the other end of the Ethernet cable to the WAN PORT on the back panel

of the DI-704UP. The WAN LED light will illuminate to indicate proper connection.

If the WAN LED is not illuminated, please go back to step B1 and repeat the

steps.

C. Insert an Ethernet cable to LAN Port 1 on the back panel of the DI-704UP and an

available Ethernet port on the network adapter in the computer you are using to

configure the DI-704UP. The LED light for LAN Port 1 illuminates to indicate proper

connection. (Note: The LAN Ports on the DI-704UP are Auto-MDI/MDIX. Meaning

you can use a straight-through or crossover-Ethernet cable in the LAN Ports.)

D. The USB port on the DI-704UP is used to connect USB printers only. Connect

one end of the printer cable to your printer and the other end to the DI-704UP.

Restart Your Computer

Connecting Additional Computers To

The DI-704UP

Using additional Ethernet (CAT5 UTP) cables, connect your Ethernet-equipped

computers to the remaining Ethernet LAN ports on the back panel of the DI-704UP

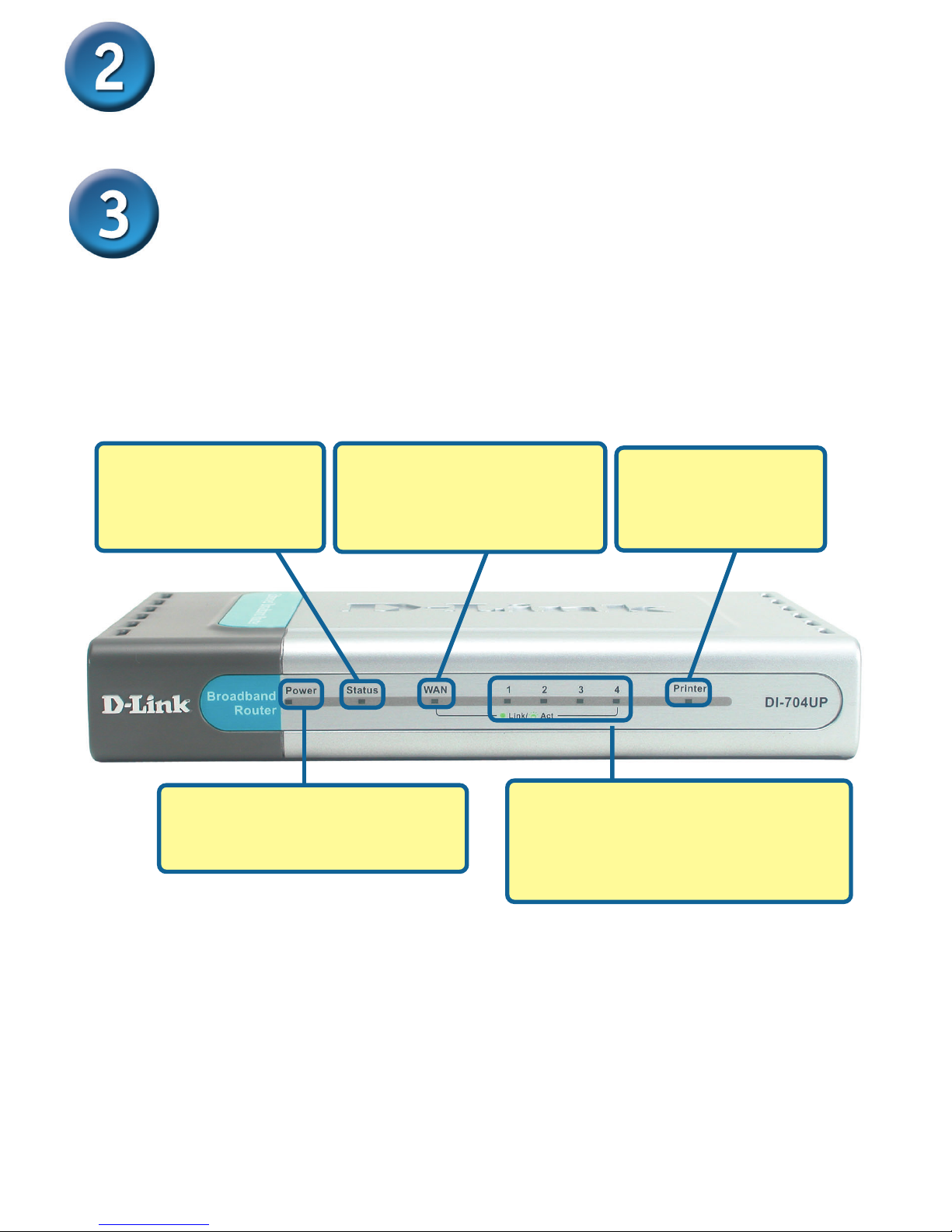

LOCAL NETWORK LEDs – a solid

light on the port indicates a

connection to an Ethernet enabled

computer on ports 1-4. This LED

blinks during data transmission.

POWER LED – a solid light

indicates a proper connection to

the power supply.

Status LED – flashes

consistently to indicate

that the DI-704UP is

working properly.

Printer LED – a solid

light indicates that

Printer connection has

been established.

WAN LED – a solid light

indicates connection on the

WAN port. This LED blinks

during data transmission.

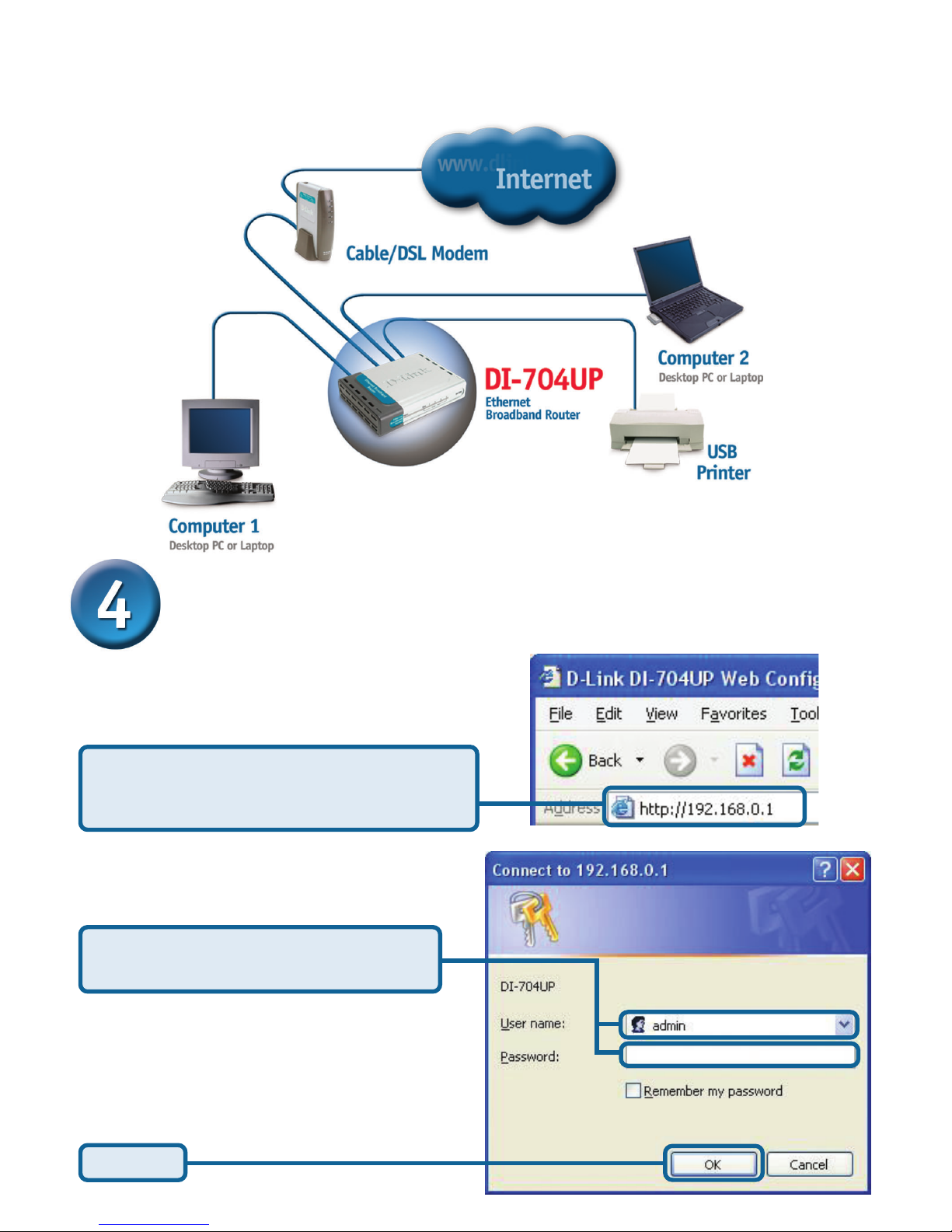

When you have completed the steps in this Quick Installation

Guide, your connected network should look similar to this:

Using The Setup Wizard

The logon pop-up screen appears.

Open your Web browser and type

“http://192.168.0.1” into the URL address

box. Then press the Enter or Return key.

Type “admin” for the username and

leave the password field blank.

Click OK

The Setup Wizard (continued)

Once logged in, the Home screen

appears.

You will see the following screens

Set up your new password.You have the

option to establish a password.

Click Run Wizard

Click Next

The Setup Wizard (continued)

Select your Internet Connection.

If you are unsure of which setting to select,

please contact your Internet Service Provider.

Choose your time zone from the drop

down list.

Click Next

The Router will attempt to auto-detect your

Internet connection and bring up the appro-

priate screen.

If it cannot auto-detect the Internet connec-

tion, the WAN selection screen appears.

The Setup Wizard (continued)

If your ISP requires a Static IP Address, and

this option is selected, then this screen

appears:

If your ISP uses PPPoE (Point-to-Point

Protocol over Ethernet), and this option is

selected, then this screen appears. (Used

mainly for DSL Internet service.)

Enter the IP address information originally

provided to you by your ISP. Make sure all

required fields are completed.

Please be sure to remove any

existing PPPoE client software

installed on your computers.

Enter in the username and password pro-

vided to you by your ISP.

If you selected Dynamic IP Address, this

screen appears: (Used mainly for Cable

Internet service.)

Click the “Clone MAC Address”

button to automatically copy the

MAC address of the network

adapter in your computer. You can

also manually type in the MAC

address.

Click Next

This setup should be done on the computer

that is registered on the ISP’s network.

Click Next

Your Setup is Complete!

Click Restart

Test Internet Connection.

Once returned to the Home tab, close the web browser.

For additional settings or

information, refer to the

Advanced, Tools, or Status

tabs on the Web-management

interface; or to the Manual

located on the CD.

Relaunch your Web browser

(i.e., Internet Explorer or

Netscape Navigator), to link

to your favorite Web site to

test your Internet connection.

Click to Exit

APPENDIX

Insert the installation CD-ROM into the CD-ROM

drive. The following window appears

automatically. If not, please run “autorun.exe” on

the CD-ROM.

Installing the Print Server Software

Wait until the following Welcome dialog appears.

Select the destination folder.

Click Install Print Server Software

Click Next

Select your Windows

operating system

After rebooting your computer, the software installation procedure is finished.

Installing the Print Server Software (continued)

Configuring on Windows 98SE/Me Platforms

After you finish the software installation procedure, your

computer will be capable of network printing provided by

the DI-704UP. On a Windows 95/98 platform, open the

Printers window in the My Computer menu.

Now, you can configure the print server of the DI-704UP:

Find out the corresponding icon of your printer, for

example, the Epson Sylus C60. Right click on that

icon, and then select Properties.

The following screen appears:

When the following window is displayed:

Click Finish

Click OK

Then, the setup program installs the programs

into the destination folder.
