D-Link Express EtherNetwork DFE-670TXD Manuale utente

Installation Guide

D-Link DFE-670TXD

16-bit PC Card

This Installation Guide includes instructions for:

 Windows XP

 Windows 2000

 Windows Me

 Windows 98/98se

Installation Guide Contents:

Section 1: Pre-Installing the Windows XP, 2000, Me and 98/98se Driver

Section 2: Insert the DFE-670TXD into your Laptop

Section 3: Finishing the Windows Installation

Section 4: Technical Support

Package Contents:

Verify that your D-Link DFE-670TXD package contains the following items. If

any items are missing, please contact your reseller.

 D-Link DFE-670TXD

 Drivers on CD-ROM

nual on CD-ROM Ma

!For Windows XP/2000/Me/98: Run the Install CD

BEFORE installing the DFE-670TXD into your laptop.

-1-

Pre-Installing the Windows XP, 2000, Me

and 98/98se Driver

 With your computer ON, insert the Driver CD of the DFE-670TXD into

your CD-ROM Drive.

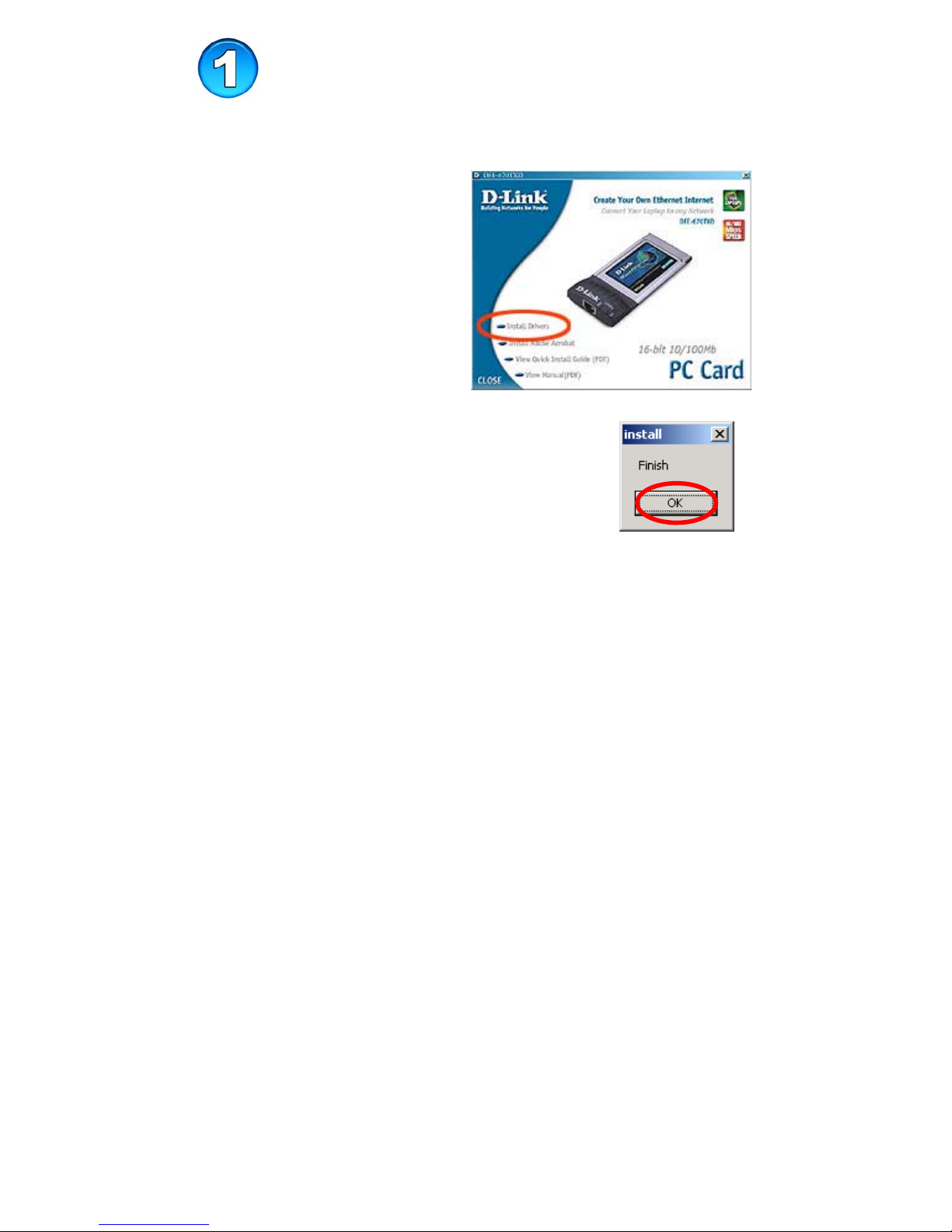

 The Autorun Screen will appear

as shown here.

 Select “Install Drivers” to pre-

install the drivers onto your

computer.

 After a few moments, the “Install Finish” screen

will appear. Select “OK”.

 Select “Yes,” if you are prompted to restart your computer. Restart the

computer manually if the prompt does not occur. (Go to Start > Shut

down > Restart.)

-2-

Insert the DFE-670TXD into your Laptop

This section refers to all users, regardless of which

operating system you use.

You must first install the drivers as explained in Section 1. If you have

not done this and you have inserted the DFE-670TXD into the PC Card

slot, you will need to cancel the New Hardware Wizard, and start over at

the beginning of this installation guide.

 Insert the DFE-670TXD into the Cardbus slot of your laptop.

PC Card Slot

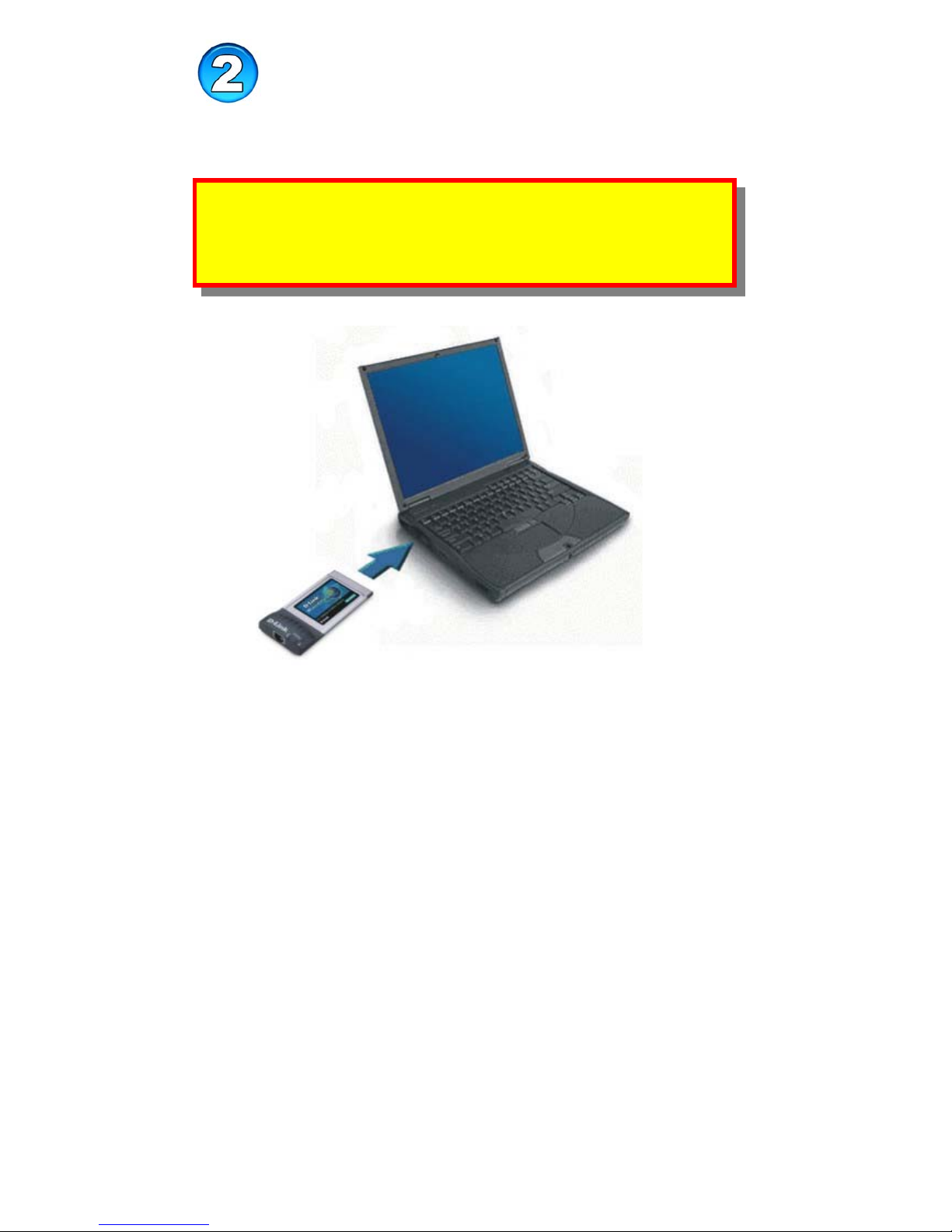

 Gently insert the front end of the DFE-670TXD into the Cardbus slot on

your laptop until it is firmly seated. Make sure that the card is face-up, as

shown. Do not force the insertion.

 Connect an Ethernet Cable (CAT5) from a switch or hub to the DFE-

670TXD.

-3-

Finishing the Windows Installation

To complete the installation of the DFE-670TXD:

 Make sure that the DFE-670TXD CD-ROM is inserted in the CD-ROM

drive

 The DFE-670TXD is inserted into your laptop

 The laptop is turned ON

 See the section below that corresponds to your Operating System to

complete the installation:

Windows XP Users

 Windows XP completes the installation of the DFE-670TXD

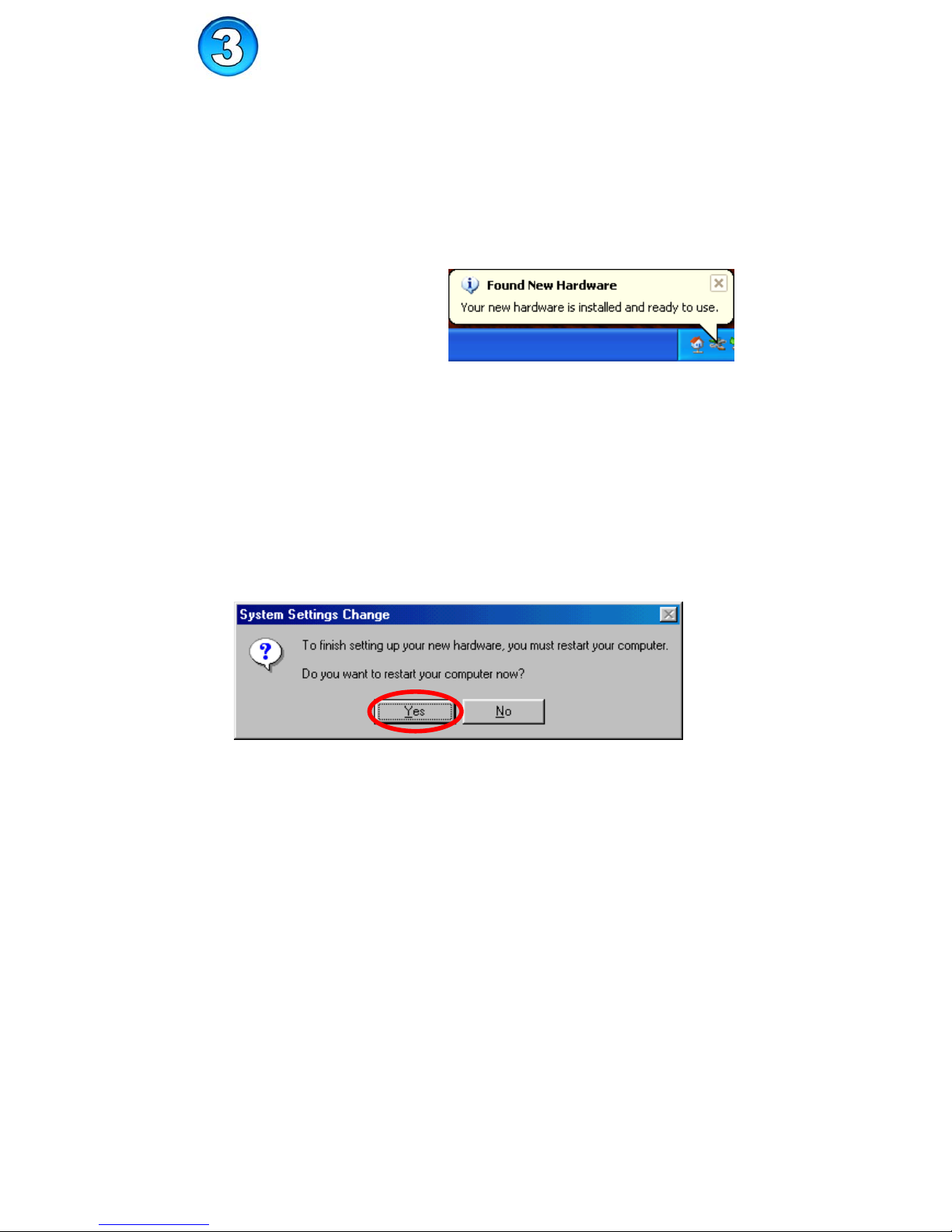

automatically. A “Found

New Hardware” message

will appear in the task bar

to indicate that the

installation is complete.

Windows 2000 Users

 Windows 2000 completes the installation of the DFE-670TXD

automatically. When the “hour glass” disappears, the installation is

complete.

Windows Me & 98/98se Users

 Windows Me & 98/98se installs the drivers automatically.

 If a “Version Conflict” screen appears, select “Yes” to use the newer file

and continue.

 A screen will appear asking you to restart your computer. Select “Yes” to

restart your computer and complete the installation.

-4-

Technical Support

You may need to configure the DFE-670TXD before you can access your network.

Refer to the manual, located on the Driver CD.

The most recent software and user documentation is on the D-Link website.

D-Link provides free technical support for customers within the United States during

the warranty period on this product.

U.S. customers can contact D-Link Technical Support through our web site, or by

phone.

D-Link Technical Support over Telephone:

 (877) 453-5465

 24 Hours a Day, 7 Days a Week

 1-Year Limited Warranty from date of purchase.

D-Link Technical Support over the Internet:

 support.dlink.com

 [email protected]
