D-Link DCS-4622 Manuale utente

This document will guide you through the

basic installation process for your new

D-Link Network Camera.

DCS-4622

Documentation also available on

CD and via the D-Link Website

Quick Installation Guide

Vigilance 360° Full HD PoE Network Camera

Quick Installation Guide

Installationsanleitung

Guide d’installation

Guía de instalación

Guida di Installazione

Краткое руководство по установке

Guia de Instalação Rápida

快速安裝指南

Petunjuk Pemasangan Cepat

D-Link DCS-4622 Quick Installation Guide 1

ENGLISH

Quick Installation Guide

This installation guide provides basic instructions for installing the DCS-4622.

For additional information about how to use the camera, please see the User

Manual which is available on the CD included in this package or from the

D-Link support website.

Package Contents

DCS-4622 Vigilance 360° Full HD PoE Network Camera

Mounting Kit

Manual and Software on CD-ROM

Quick Installation Guide

If any of the above items are missing, please contact your reseller.

Safety Notice:

Installation and servicing should be done by certified technicians so as to

conform to all local codes and prevent voiding your warranty.

D-Link DCS-4622 Quick Installation Guide

ENGLISH

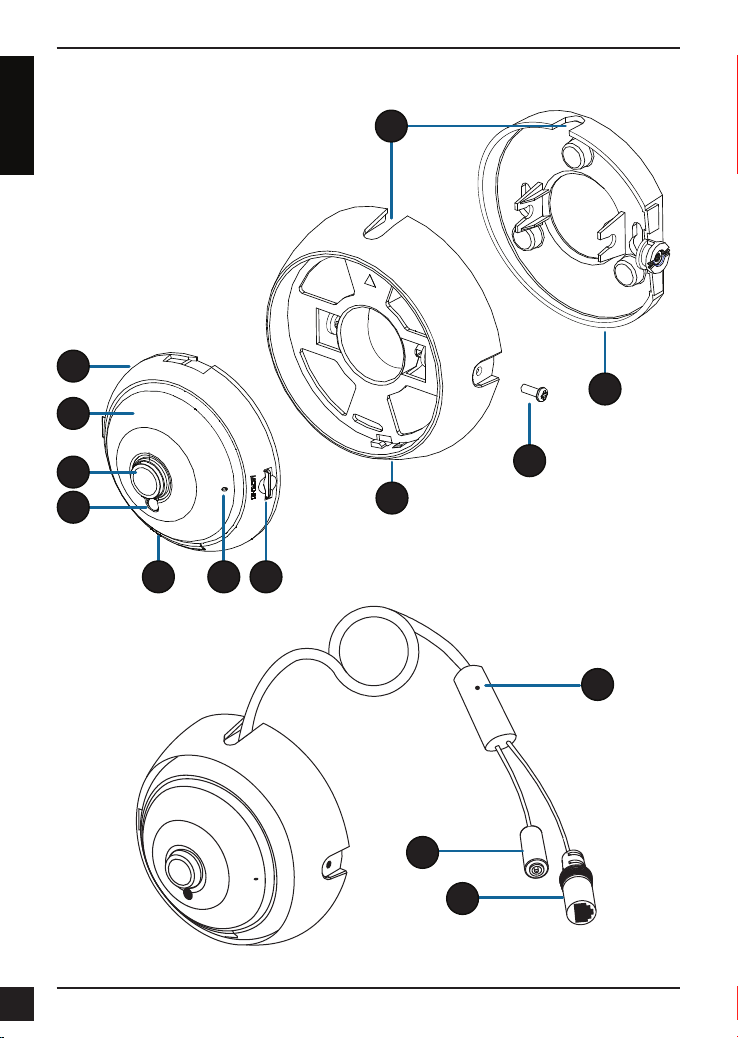

Hardware Overview

6 7

D-Link DCS-4622 Quick Installation Guide 3

ENGLISH

1Speaker

(on back) Onboard speaker for 2-way communication.

2IR LEDs

(behind cover) Provide illumination for low-light environments.

3 Camera Lens Fixed lens to record video of the surrounding area.

4 Light Sensor

The light sensor measures the lighting conditions

and switches between color and infrared

accordingly.

5Power/Status

LED

Red: Camera is on, but not connected to the network

Green: Camera is on and is connected to the network

Flashing Green: Camera is currently streaming video

6 Microphone Records audio from the surrounding area.

7microSD Card

Slot

You can insert a microSD card to save snapshots

and video to it.

8Camera

Mount

Remove the camera from the camera mount by turning

the camera counter-clockwise. Lock the camera in the

camera mount by turning the camera clockwise.

Tilt

Adjustment

Screw

Can be loosened to adjust camera angle, or

removed when separating the camera cover from

the mounting plate.

10 Mounting

Plate

Use the holes on the mounting plate to mount the

camera to a ceiling or wall.

11 Cable

Channels

The camera cable can be passed through the cable

channels or the center of the camera mount when

mounting it.

12 Power

Connector

Connects to an optional 12 V / 1.5 A power adapter

(not included).

13 Ethernet Jack RJ-45 connector for Ethernet to connect the camera

to your network.

14 Reset Button Press and hold for 10 seconds to reset camera back

to the factory default settings.

D-Link DCS-4622 Quick Installation Guide

ENGLISH

Conguring the Camera

Insert the DCS-4622 CD into your computer's CD-ROM drive to begin the

installation. If Autorun is disabled, or if the D-Link Launcher fails to start

automatically, click the Start button and type D:\autorun.exe (where D:

represents the drive letter of your CD-ROM drive) and press Enter.

Click on the D-Link Setup Wizard SE icon that

was created in your Windows Start menu (Start >

D-Link > Setup Wizard SE).

The Setup Wizard will appear and display the

MAC address and IP address of your camera(s).

If you have a DHCP server on your network, a

valid IP Address will be displayed. Otherwise, the

network camera's default static IP 192.168.0.20 will

be displayed. Select your camera, then click the

Wizard button to continue.

Click Setup Wizard and follow the instructions to

install the Setup Wizard.

Enter the Admin ID and password. When logging in

for the first time, the default Admin ID is admin with

the password left blank.

Click the checkboxes if you wish to change the

admin ID and password for the camera, and enter

the new ID and password you wish to use.

Click Next to continue.

Select DHCP if your camera obtains an IP address

automatically from a DHCP server such as a router.

Select Static IP if you want to manually enter the IP

settings for the camera.

Click Next to continue.

D-Link DCS-4622 Quick Installation Guide 5

ENGLISH

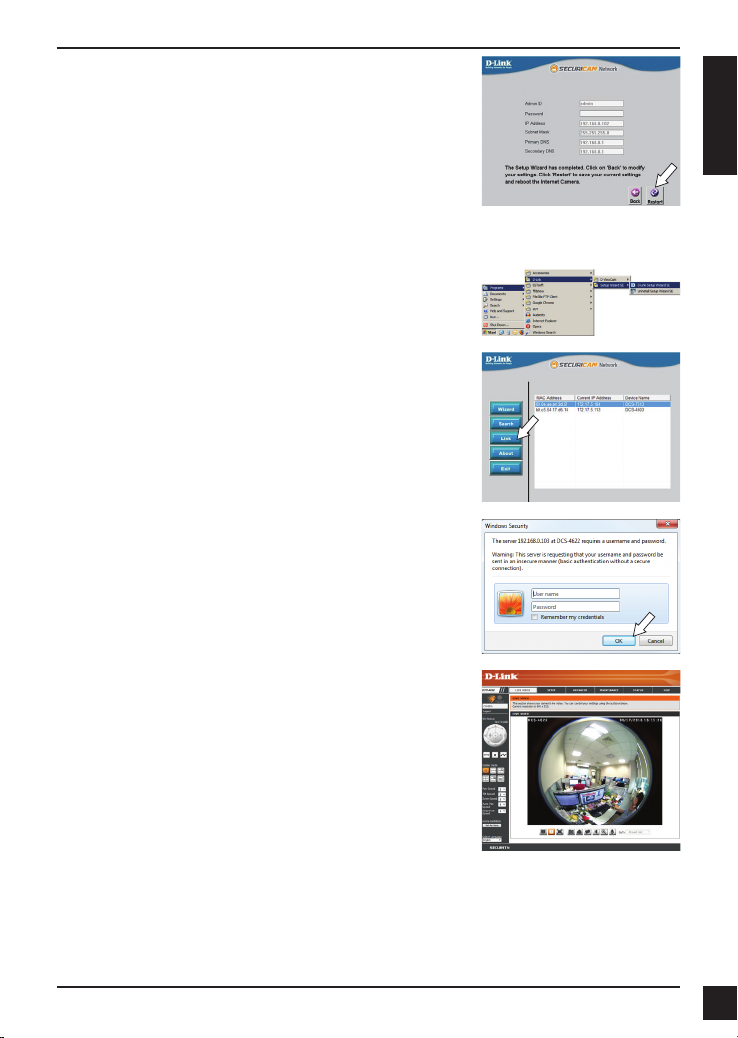

Viewing Your Camera via Web Browser

Click on the D-Link Setup Wizard SE icon that

was created in your Windows Start menu (Start >

D-Link > Setup Wizard SE).

Select the camera and click Link to access the web

configuration.

The Setup Wizard will automatically open your web

browser to the IP address of the camera.

Enter admin as the default username and leave the

password blank. Click OK to continue.

Take a moment to confirm your settings and click

Restart.

This section displays your camera’s live video. You

can select your video profile and view or operate

the camera. For additional information about web

configuration, please refer to the user manual,

which is available on the D-Link website.

D-Link DCS-4622 Quick Installation Guide

ENGLISH

Mounting Instructions

It is highly recommended that you configure and test your camera before

mounting it.

Connect the power and Ethernet cables, or just the

Ethernet cable if you are using a PoE connection.

Place the mounting plate where you want to

position the camera and use a pencil to mark the

two mounting holes.

If you wish to run the camera cables through

the wall or ceiling, mark the center hole as well.

Use a screwdriver to unscrew the tilt adjustment

screw. Pull the mounting plate away from the

camera mount.

Use a 6 mm drill bit to make the required holes

approximately 25 mm deep, then insert the wall

anchors into the holes. Use the screws provided to

attach the mounting bracket to the wall.

If you wish to run the camera cables through

the wall or ceiling, drill the center hole for the

camera cables to pass through.

D-Link DCS-4622 Quick Installation Guide 7

ENGLISH

Additional Information

Additional help and product information is available

online at http://www.dlink.com.

Warranty Information

Please visit http://warranty.dlink.com/ for warranty

information for your region.

Attach the camera mount to the mounting plate.

If you are running the camera cables out the

side of the camera, guide the camera cables

through the cable channel on the camera mount.

Adjust the angle of the camera, then screw

in the tilt adjustment screw until it is snug.

If you wish to insert a microSD card, remove

the camera from the camera mount by turning the

camera counter-clockwise and lifting it away from

the camera mount.

Insert the microSD card with the contacts facing

you.

Reattach the camera to the camera mount and turn

it clockwise to lock it in place.

If you wish to run the camera cables through

the wall or ceiling, pull the cables through the

hole.

D-Link DCS-4622 Quick Installation Guide

DEUTSCH

Installationsanleitung

Diese Installationsanleitung bietet Ihnen grundlegende Anleitungen zur

Installation der DCS-4622. Zusätzliche Informationen zur Verwendung der

Kamera finden Sie im Benutzerhandbuch, das Ihnen auf der CD, die diesem

Paket beiliegt, oder über die D-Link Support-Website zur Verfügung steht.

Packungsinhalt

DCS-4622 Vigilance 360° Full HD PoE Network Camera

Montageset

CD-ROM mit Software und Handbuch

Installationsanleitung

Sollte einer der oben aufgeführten Artikel fehlen, so wenden Sie sich bitte an

Ihren Fachhändler.

Sicherheitshinweis:

Installation und Wartungsarbeiten sollten nur von zertifizierten Technikern

vorgenommen werden, zu jeder Zeit allen örtlich geltenden Richtlinien und

Anforderungen entsprechen sowie verhindern, dass Ihr Garantieanspruch

erlischt.
