D-Link DCS-6111 Manuale utente
2D-Link DCS-6111 Quick Install Guide
System Requirements
• Internet Explorer 6.x or above
• Windows®XP or Windows Vista®
• 1.7GHz processor or higher
• 256MB of RAM
• 1 Ethernet connection
CAT5 Ethernet Cable
Package Contents
Minimum System Requirements
If any of the above items are missing, please contact your reseller.
CD-ROM with Manual
and Setup Wizard
AC Power Adapter
Screwdriver
Dome Enclosure Ring Enclosure
Screws and I/O
Connector
WDR D&N FIXED DOME
Network Camera
DCS-6111
Ver.1.00
DCS-6111
WDR D&N Fixed
Dome Network
Camera
3 D-Link DCS-6111 Quick Install Guide
Hardware Overview
Hardware Overview
Connections
Reset Button
Press and hold the reset button until the Power LED
flashes through its cycle twice.This will reset the camera
to its factory default settings.
Ethernet Cable Connector (PoE)
The IP camera’s side panel features an RJ-45
connector for connections to 10Base-T Ethernet
cabling or 100Base-TX Fast Ethernet cabling.
This network port supports the NWay protocol,
allowing this IP camera to automatically detect
or negotiate the transmission speed of the
network.The Ethernet port can also be used to
power the camera by using a PoE switch.
DC Power Connector
Receptor for the supplied power
adapter.

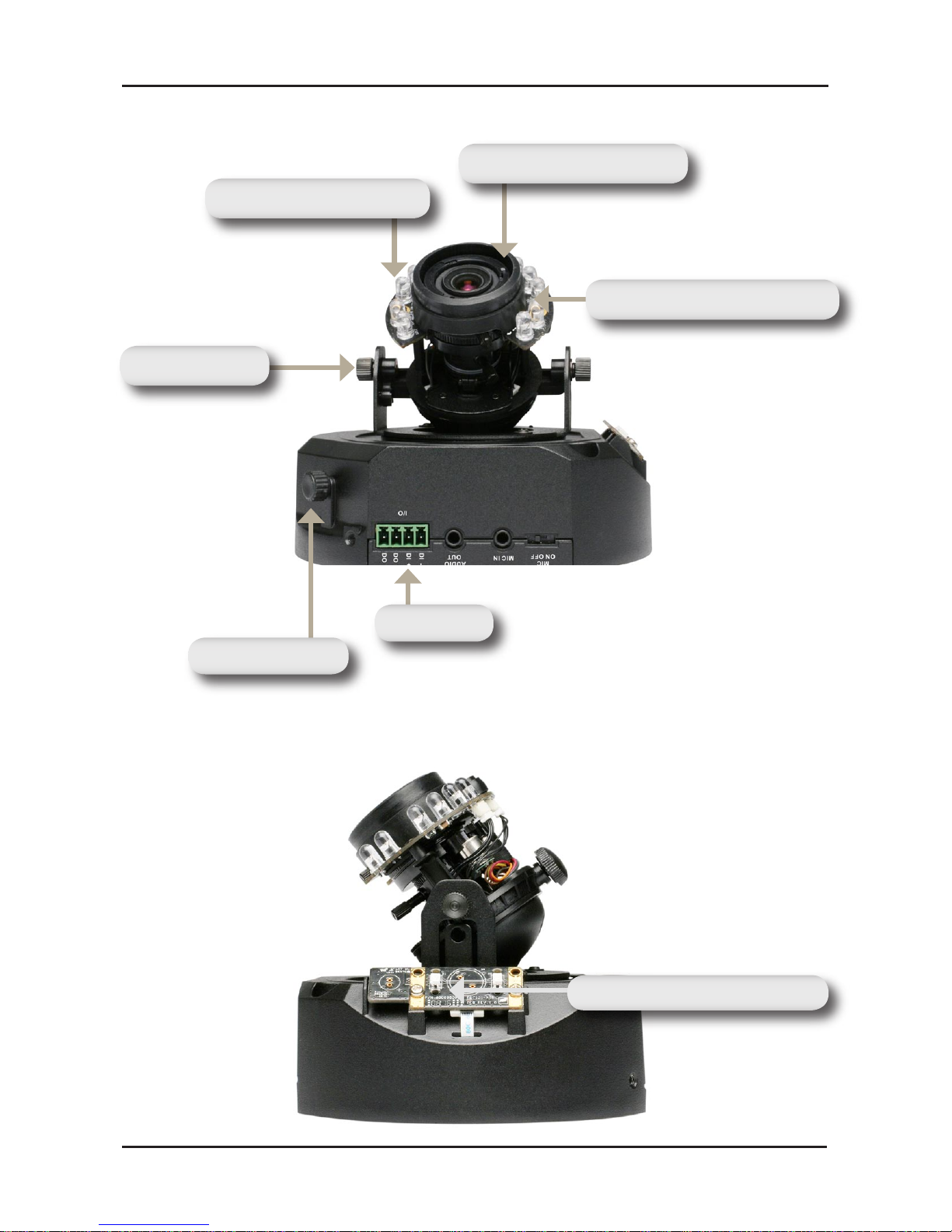

4D-Link DCS-6111 Quick Install Guide
Hardware Overview
DI / DO
Focus Controller
LEDs
Pan Screw
Zoom Controller
Tilt Screw
Adjustment Screw
Power/Activity LED
5 D-Link DCS-6111 Quick Install Guide
Hardware Installation
Hardware Installation
When Mounting to a Ceiling
Find a suitable place to install the
camera by using the alignment
stencil. Place the camera at the
desired operating location and
insert the screws through the two
holes located at the base of the
camera. Use screwdriver to tighten
and secure.
When Mounting to a Wall
Find a suitable place to install the
camera by using the alignment stencil
to find a desired operating location on
the wall. Drill two pilot holes where
the holes of the alignment stencil are
located. Insert the supplied plastic
anchors into the drilled holes, and
align the holes at the base of the
camera with the plastic anchors. Once
aligned, insert the provided screws
through the holes. Use screwdriver
to tighten and secure.
6D-Link DCS-6111 Quick Install Guide
Network Deployment
Network Deployment
General Connection (without PoE)
Connect the IP camera to a switch or router via Ethernet cable
and connect the supplied power cable from the camera to a power
outlet.
Connection with a PoE Switch
If using a PoE switch or router, connect the IP camera via Ethernet
cable, which will provide both power and data transmission over
a single cable.

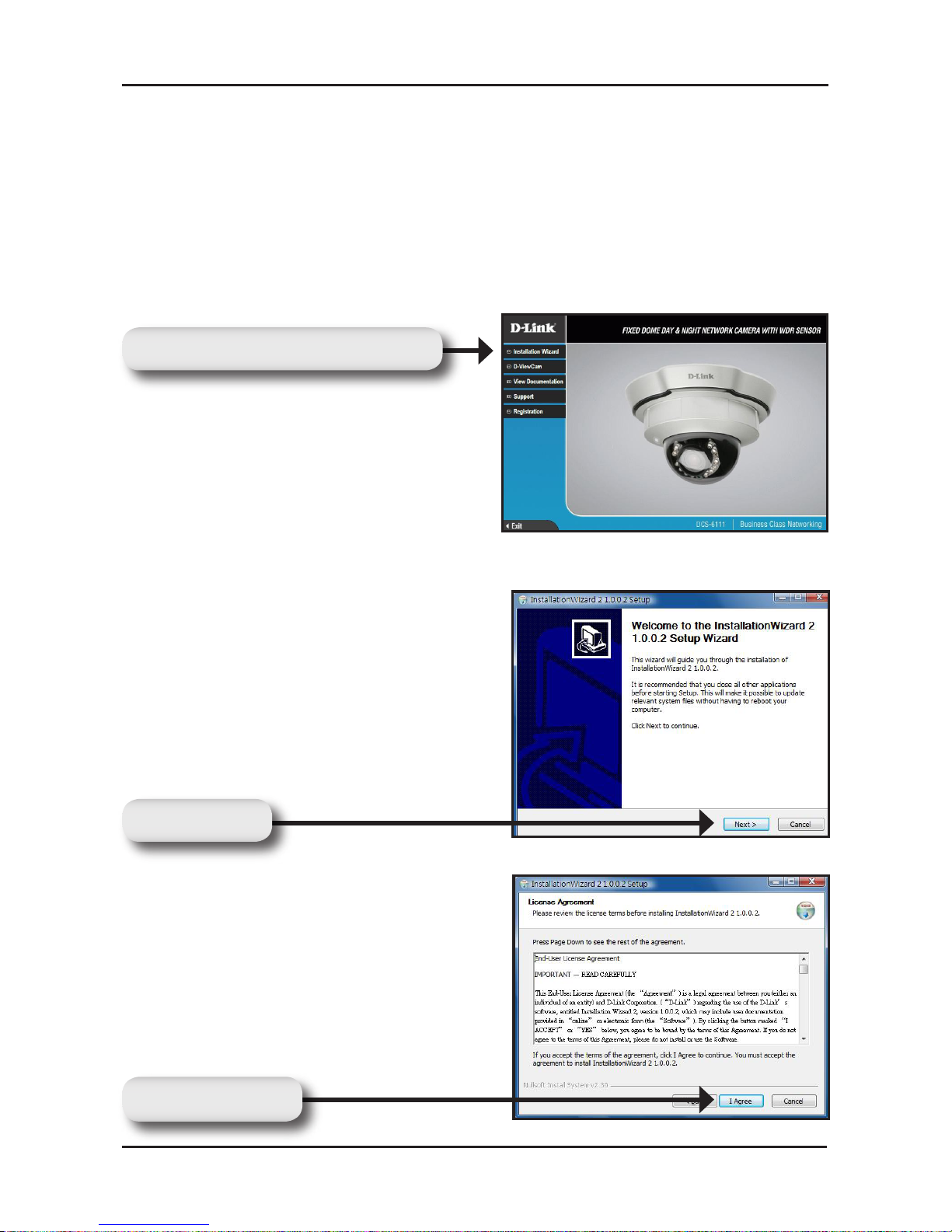

7 D-Link DCS-6111 Quick Install Guide
Software Installation
Turn on the computer and insert the D-Link DCS-6111 Autorun
CD into the CD-ROM drive. The following step-by-step instructions
displayed are shown when using Windows Vista®operating system.
The steps and screens are similar when using other Windows®
operating systems.
Software Installation
Click Next to continue.
Click I Agree to accept the License
Agreement.
Click Next
Click I Agree
Click Installation Wizard
8D-Link DCS-6111 Quick Install Guide
Software Installation
Click Finish to complete the
installation.
To start the installation click
Install.
Note: The installation may take
several minutes to complete.
Click Install
Click Finish
9 D-Link DCS-6111 Quick Install Guide
Configuration
Configuring Your Camera with
the Installation Wizard
Click on the D-Link Installation Wizard icon that was created in your
Windows Start menu.
The Installation Wizard will appear and show the MAC address of
your DCS-6111 and an IP Address (which may or may not be correct
depending on what you have your DCS-6111 connected to). If you
have a DHCP server on your network, there will be a valid IP Address
displayed here.
Note: A DHCP server is a device that supplies the IP address such
as a router.
Click Manual Setup
Enter and confirm a password if you
wish to assign one for your admin
account. Click Next to continue.
Note: The default Admin ID is admin
with the password left blank.
Click Next
10D-Link DCS-6111 Quick Install Guide
Configuration
A new window will pop up to ask if
you want to setup a PPPoE for the
device. Click No for quick setup. For
further information, refer to the user
manual for details.
Check the Get IP by DHCP Server
automatically box to obtain a new
IP address every time the camera
starts up. Click Next to continue.
Select UPnP Port Forwarding if
your router supports this function.
If not, choose Manual to manually
enter your port numbers. Click
Next to continue.
Click Next
Click Next
Click No
