D-Link DSB-C100White Manuale utente
DSB-C100
USB Digital Video Camera
User's Manual
Rev.02(December,2000)
M20001201
Print in Taiwan
Table of Contents
Table of Contents
INTRODUCTION........................................................................................1
HARDWARE INSTALLATION................................................................2
INSTALLING THE CAMERA.....................................................................2
DRIVER INSTALLATION.........................................................................3
INSTALLING THE CAMERA DRIVERS....................................................3
QUALITY & FORMAT ADJUSTMENT..................................................6
DISPLAY UTILITY....................................................................................6
COLOR ADJUSTMENT ..............................................................................8
FORMAT ADJUSTMENT.........................................................................11
UNINSTALLING THE USB DIGITAL VIDEO CAMERA..................13
MACINTOSH OS 8.6 OR ABOVE INSTALLATION……….15
SPECIFICATIONS....................................................................................16
1
1
Introduction
Thank you for purchasing the D-Link DSB-C100 USB
Digital Video Camera. Using state of the art technology, it
can be used with any Windows 98 or above PC for video-
conferencing, to create multimedia presentations, or video
emails.
This guide will walk you through the steps necessary to
install your DSB-C100.
2
2
Hardware Installation
Installation of a D-Link DSB-C100 requires installation of
the camera hardware itself, and then installation of the
software drivers.
Installing the Camera
Please verify that you have Windows 98 or Windows 2000
running and working before attempting to install your
DSB-C100.
Install the camera by plugging its USB type ‘A’ connector
into an available USB port on your PC or on any USB hub
attached to your PC.
No power adapter is
required, the DSB-C100
is powered directly by
the USB Bus.
Once the camera has
been plugged in the Add
New Hardware Wizard
will start automatically.
This concludes the hardware installation section of the
manual.
3
3
Driver Installation
Installing the Camera Drivers
Note: Please have your original Windows CD available, it may
be required to complete the installation.
Once the DSB-C100 has been installed the New
Hardware Wizard will launch:
4
Once again press “Next>” so that your computer will
search for the best driver:
Make sure that the driver diskette that came with your
camera is in your floppy drive and that you have checked
“Floppy disk drives” and then press “Next>”:
5
Once the driver has been installed click “Finish”:
6
4
Quality & Format
Adjustment
Display Utility
Once the driver is installed successfully, it allows three
options of “PC Camera VFW Capture”, “PC Camera
WDM Capture”, and “Uninstall D-Link USB Digital Video
Camera+”.These programs are automatically installed to \
Program \Files directory. The display utility allows you to
view video images from your D-Link USB Digital Video
Camera, and adjust the parameters for best color quality.
To adjust for the best image quality, you need to run the
“PC Camera WDM Capture” display utility, click on
windows Start Menu/Programs/D-Link USB Digital
Video Camera+/Camera/PC Camera WDM Capture.
7

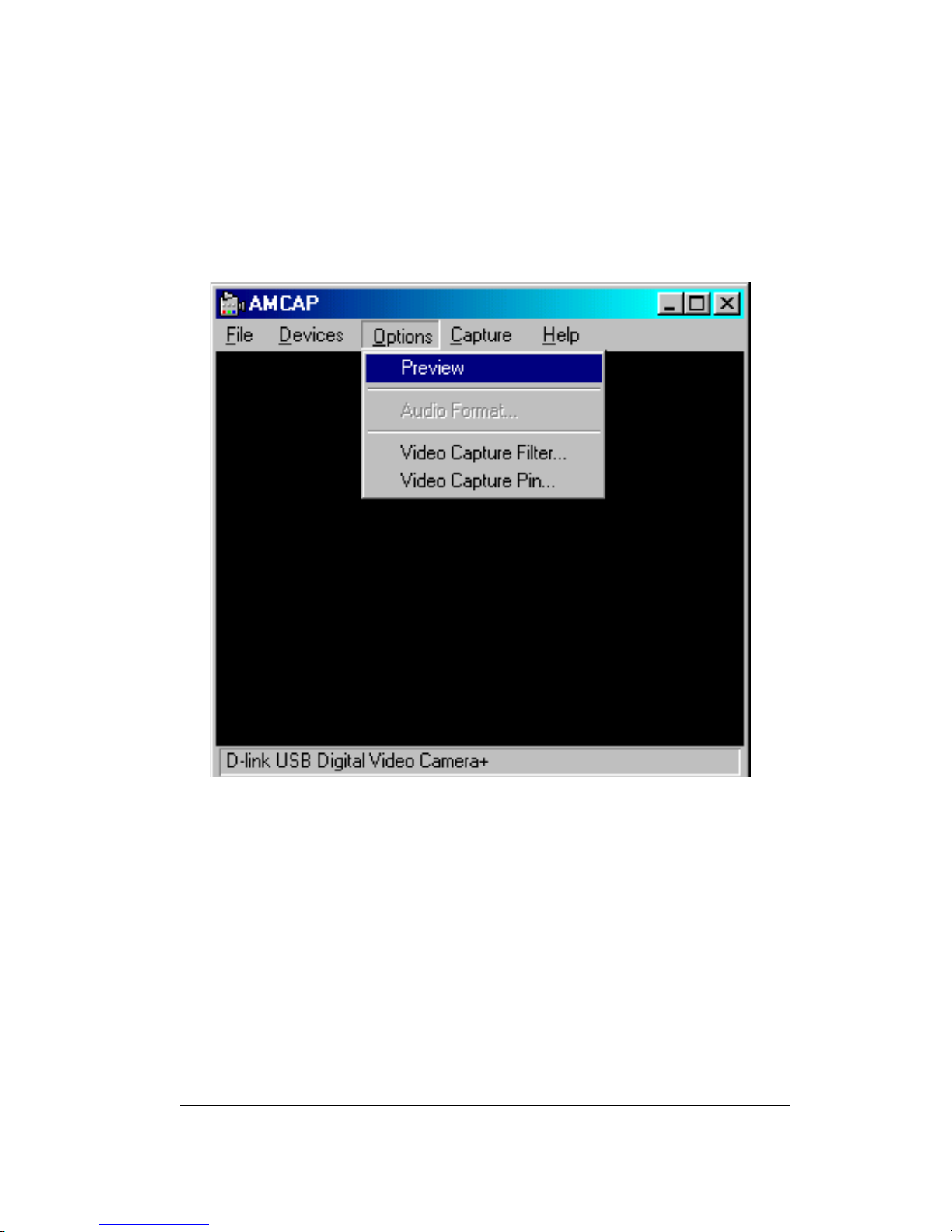

Select Options in the menu bar and in the selection item
choose Preview and this will activate the D-Link USB
Digital Video Camera to start capture images.
However, before you begin utilizing the D-Link USB
Digital Video Camera make sure there is enough lighting in
the scene and adjust the focus on the Digital Video
Camera to gain optimal image quality.
8
Color Adjustment
Once the D-Link USB Digital Video Camera is capturing
images you can start adjusting the colors by selecting the
Options in the menu bar and in the selection item choose
Video Capture Filter. A prompt screen will be displayed
like the one below:
