Before You Begin

This Quick Installation Guide gives step-by-step instructions for setting up the D-Link

DAS-3248 ADSL IP DSLAM. This Quick Installation Guide only introduces you for the main

setup procedure. For more detailed information about complete installation and

configuration, please refer to the User’s Manual on master CD included with your DLSAM.

Check Your Package Contents

If any of the above items are missing, please contact your reseller

holders. Software and specifications subject to change without notice. D-Link ADSL IP DSLAM.

• D-Link DAS-3248 ADSL IP DSLAM

• CD-ROM (containing Manual QIG, EMS and

Warranty)

•Ethernet Cable (CAT5 UTP Straight-Through)

• AC Power Cord

• RS-232 cable

DAS-3248

ADSL IP DSLAM

Using a powe

supply with a

different voltage rating

will damage and void

the warranty for this

product.

Setup the DAS-3248 ADSL IP DSLAM

The DAS-3248 can be installed in a standard 19-inch rack, by using the

mounting brackets provided. Mount the shelf on the rack using the large

screws provided. The procedure to connect and wire the system is as

follows.

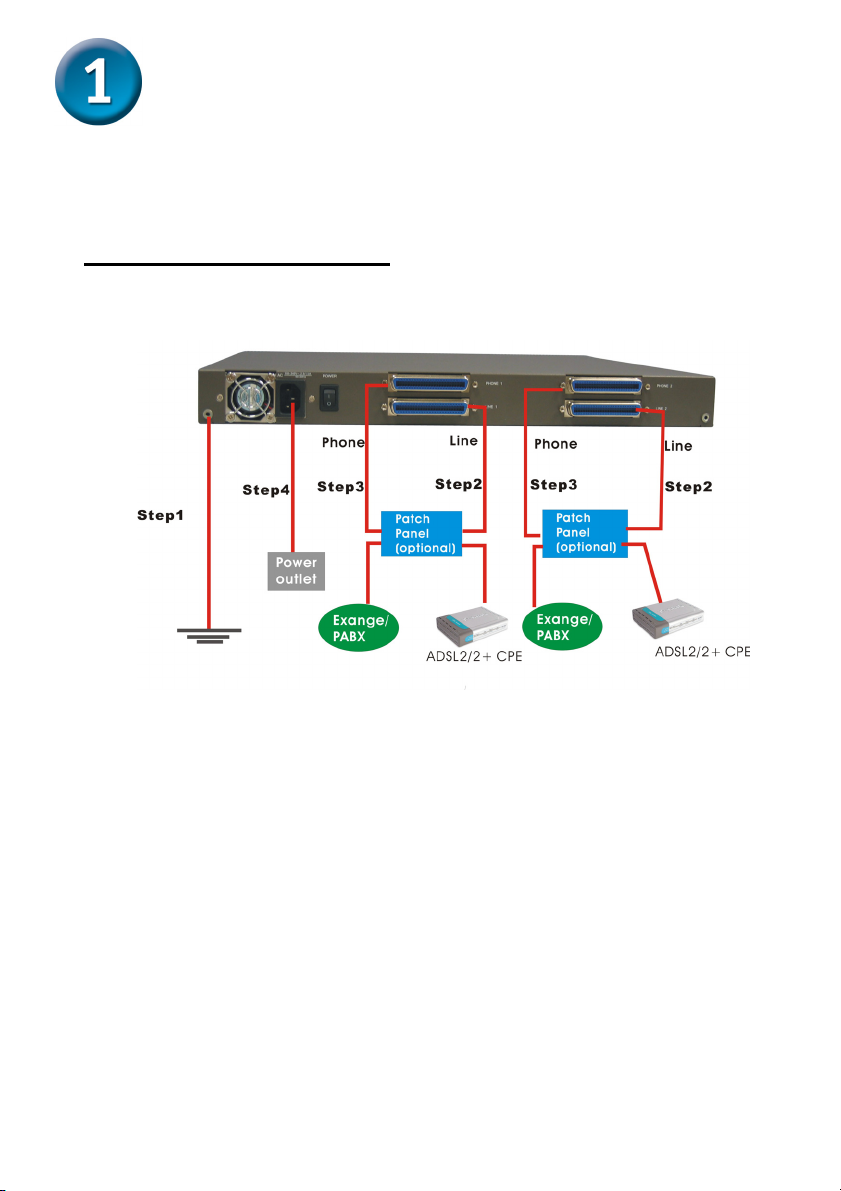

Rear Panel Connection

The following figure shows the rear panel connection of DAS-3248:

Step 1: Ground the DAS-3248 by connecting a grounded wire

Step 2: Connect the ADSL line connector, a 50-pin centronic connector,

of DAS-3248 to CPE by using telco cable. Each line connector

supports 24 ports of ADSL/ADSL2/2+ for Data path from

MDF(Main Distribution Frame).

Step 3: Connect the phone connector, a 50-pin centronic connector, of

DAS-3248 to Exchange/PBX by using telco cable. phone

connector is an optional module supporting Voice path to

Exchange/PBX; it must be along with Line Connector.

Step 4: Connect the power adapter and plug it into an outlet.

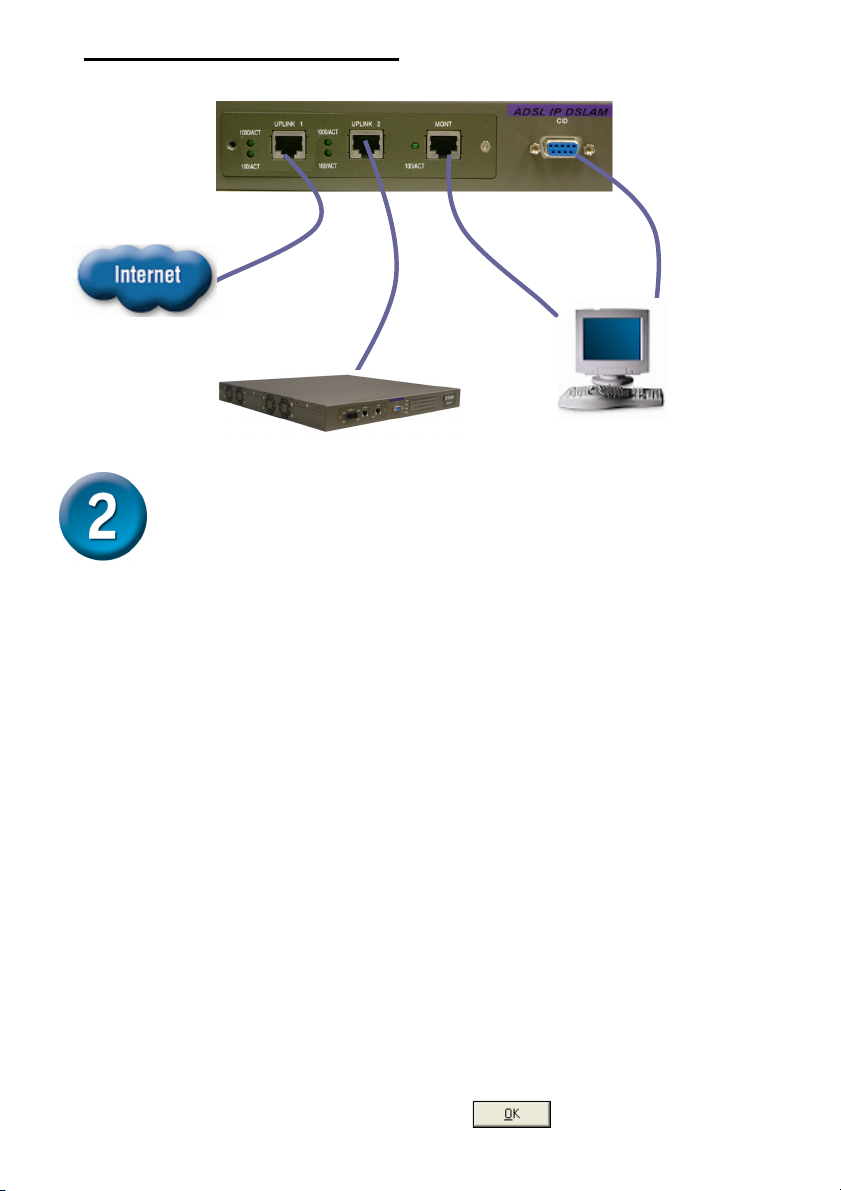

Front Panel Connection

EMS Configuration

This section shows how to prepare the system to perform basic

communication functions through Element Management System (EMS).

Perform initial configuration procedures as follows:

1. Click the EMS button on the screen of autorun to install EMS into

your PC.

2. Before you start to connect to EMS, it is necessary that your PC’s

IP and DAS-3248’s IP are in the same group. Note: DAS-3248’s

default MGNT IP is 10.90.91.91.

3. Create management IPs into the DAS-3248 so that the authorized

IP agent can manage DAS-3248 through EMS. Connect to DAS-

3248 with RS-232 or Ethernet cable, and then write the IPs into

DAS-3248 by telnet or CLI. Input the following commands

sequentially:

a. create snmp comm community public

b. create snmp host ip 10.90.91. xxx community public, where

10.90.91.xxx is the IP of your PC.

c. create snmp traphost ip 10.90.91.xxx community public version

v1, where 10.90.91.xxx is the IP of your PC.

Note: if to use CLI, bits per second, data bits, parity, and flow

control should be set as 9600, 8, none and 1 respectively.

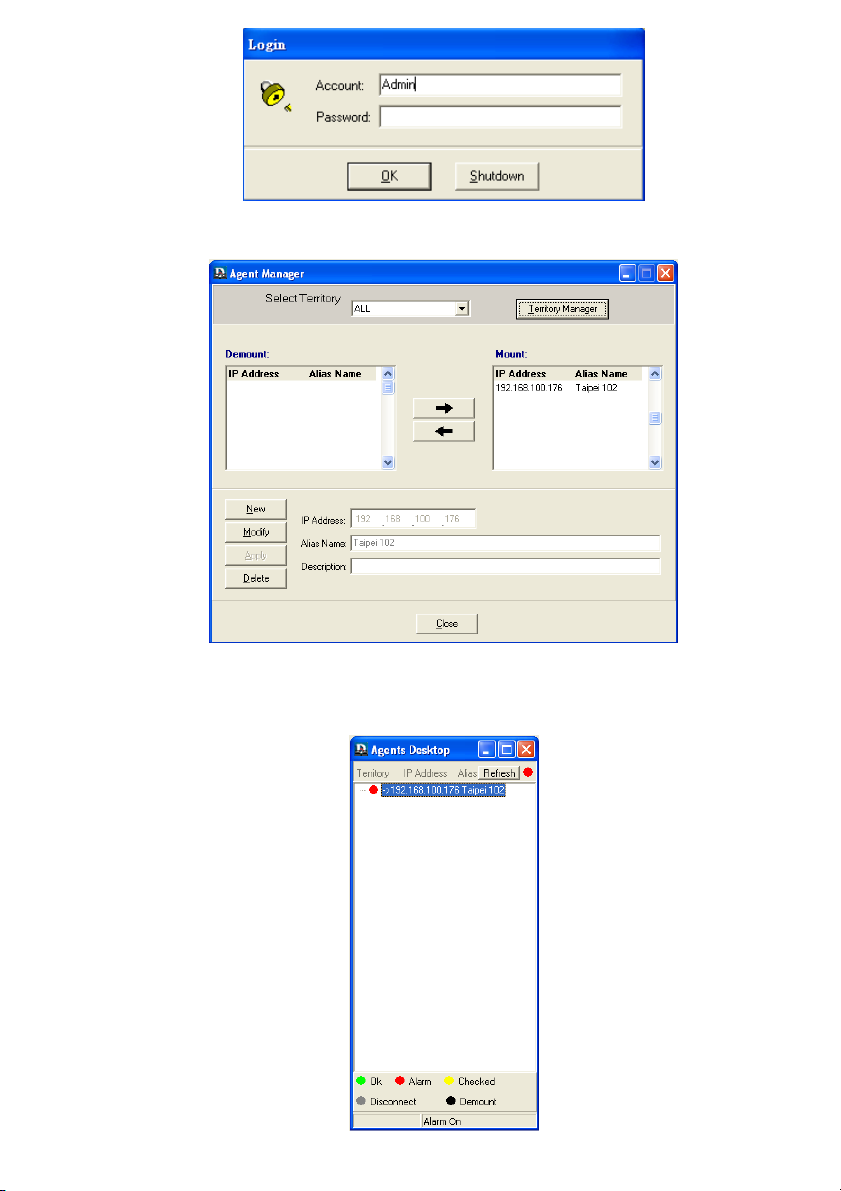

4. Launch the EMS and then log in with the “Admin” for both user

name and password. Click on to enter the EMS system.

Management

Station

Connect to another DAS-3248

5. Add the IP address of DAS-3248 into the Agent manager.

6. Then the IP address and alias name will be displayed on the

Agent Desktop. Double click the 3248’s IP address in the Agent

desktop.

7. After that, you could enter the main menu of EMS for your

configuration.

Default Setting

Click on the Default Setting from the DAS-3248 main menu. The

Default Setting window will be displayed.

Configure the System

Click on the System Information from the DAS-3248 main menu in

which some parameters related to the system are available for

configuration. The DAS-3248 System Information window will appear

as follows:

Configure DSL Profile

Click on the DSL from the Configuration menu. The

DAS-3248 DSL menu tree and related windows will

appear as follows:

Item Description

Line Profile

Configuration

To browse and create ADSL

line profiles.

Alarm Profile

Configuration

To browse and create ADSL

alarm profiles.

Port Configuration To display, modify or delete

the status of the port. It

provides the configuration of

a port’s status.

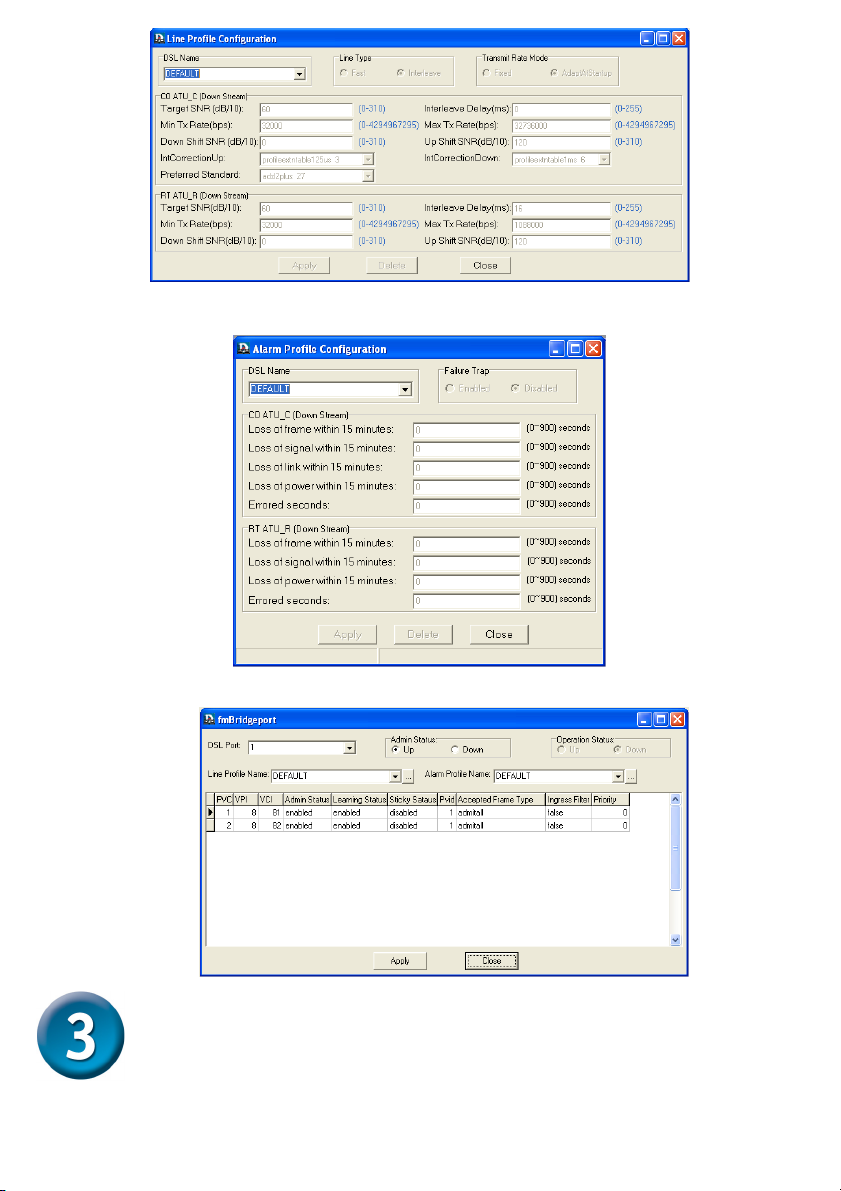

Line Profile Configuration window

Alarm Profile Configuration window

Port Configuration window

Advanced Setting

For more detailed information about complete configuration, please refer

to the User’s Manual on master CD

Technical Support

You can find software updates and user documentation on the

D-Link website.

Tech Support for customers within Australia:

D-Link Technical Support over the Telephone:

1300-766-868

Monday to Friday 8:00am to 8:00pm EST

Saturday 9:00am to 1:00pm EST

D-Link Technical Support over the Internet:

http://www.dlink.com.au

email:[email protected]

Tech Support for customers within New Zealand:

D-Link Technical Support over the Telephone:

0800-900-900

Monday to Friday 8:30am to 8:30pm

Saturday 9:00am to 5:00pm

D-Link Technical Support over the Internet:

http://www.dlink.co.nz

email:[email protected]

Technical Support

You can find software updates and user documentation on the

D-Link website.

Tech Support for customers within South Eastern

Asia and Korea:

D-Link South Eastern Asia and Korea Technical Support

over the Telephone:

+65-6895-5355

Monday to Friday 9:00am to 12:30pm, 2:00pm-6:00pm

Singapore Time

D-Link Technical Support over the Internet:

email:[email protected]

Technical Support

You can find software updates and user documentation on the

D-Link website.

Tech Support for customers within India

D-Link Technical Support over the Telephone:

+91-22-26526741

+91-22-26526696 –ext 161 to 167

Monday to Friday 9:30AM to 7:00PM

D-Link Technical Support over the Internet:

http://ww.dlink.co.in

http://www.dlink.co.in/dlink/drivers/support.asp

ftp://support.dlink.co.in

email: [email protected]
