D-Link DI-713P Manuale utente
DI-713P
Wireless Broadband Router
with Print Server
Quick Install GuideQuick Install Guide
11 Connecting the DI-713P Wireless Router toConnecting the DI-713P Wireless Router to
your networkyour network

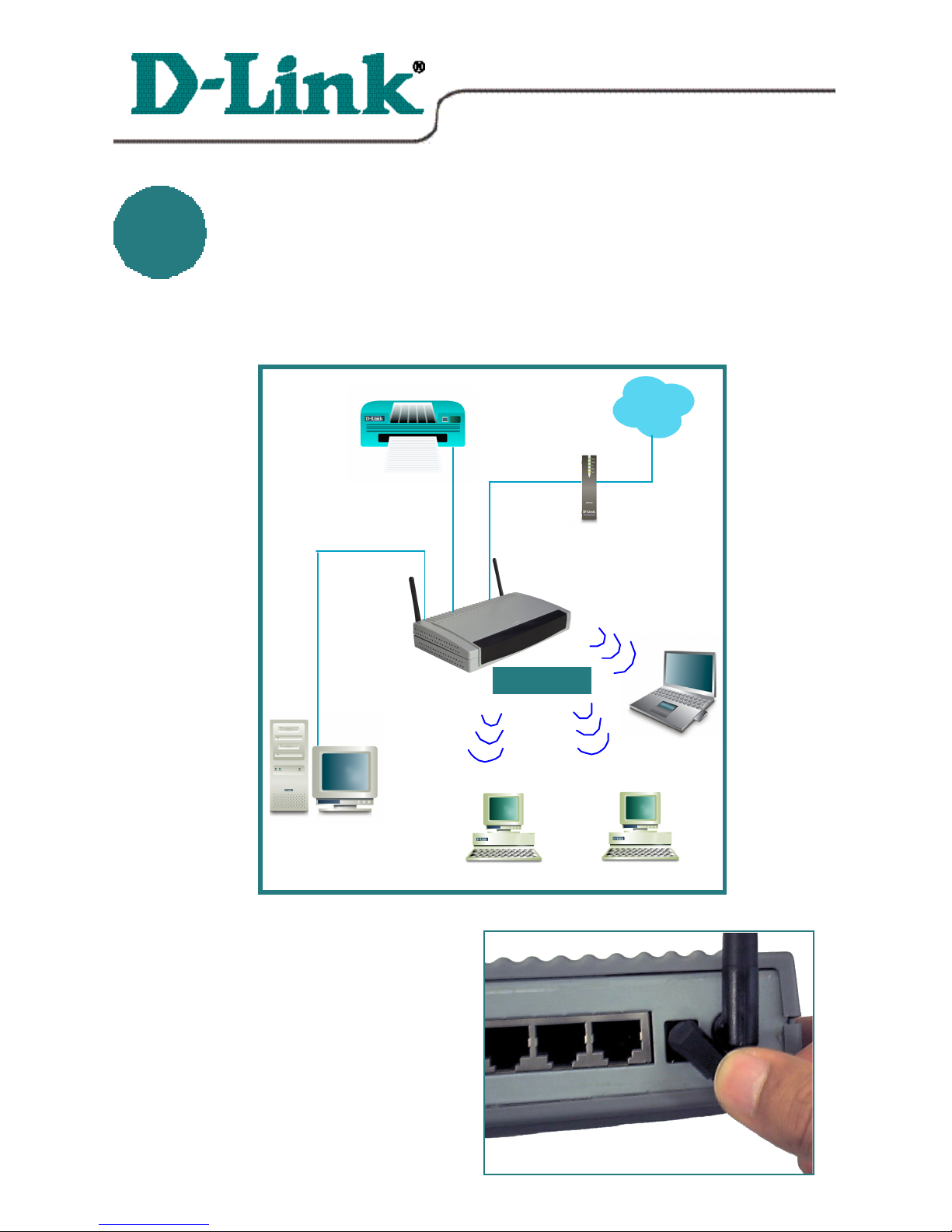

When you have completed the steps in this installation guide, your connected
network may look similar to this:
DI-713P.04.09.01
First,
Plug in the power supply as shown.
The Power LED will turn on
to indicate proper operation.
Internet
Cable/DSL
Modem
Wireless
Networking
DFE-530TX+
DWL-120 DWL-500
DWL-650
DI-713P
WAN port
Printer
LAN port
11
22
Connecting the DI-713P Wireless RouterConnecting the DI-713P Wireless Router
to your networkto your network continuedcontinued
Installing the DI-713PInstalling the DI-713P
Checking the IP Address of the computer being
used to configure the DI-713P Wireless Router

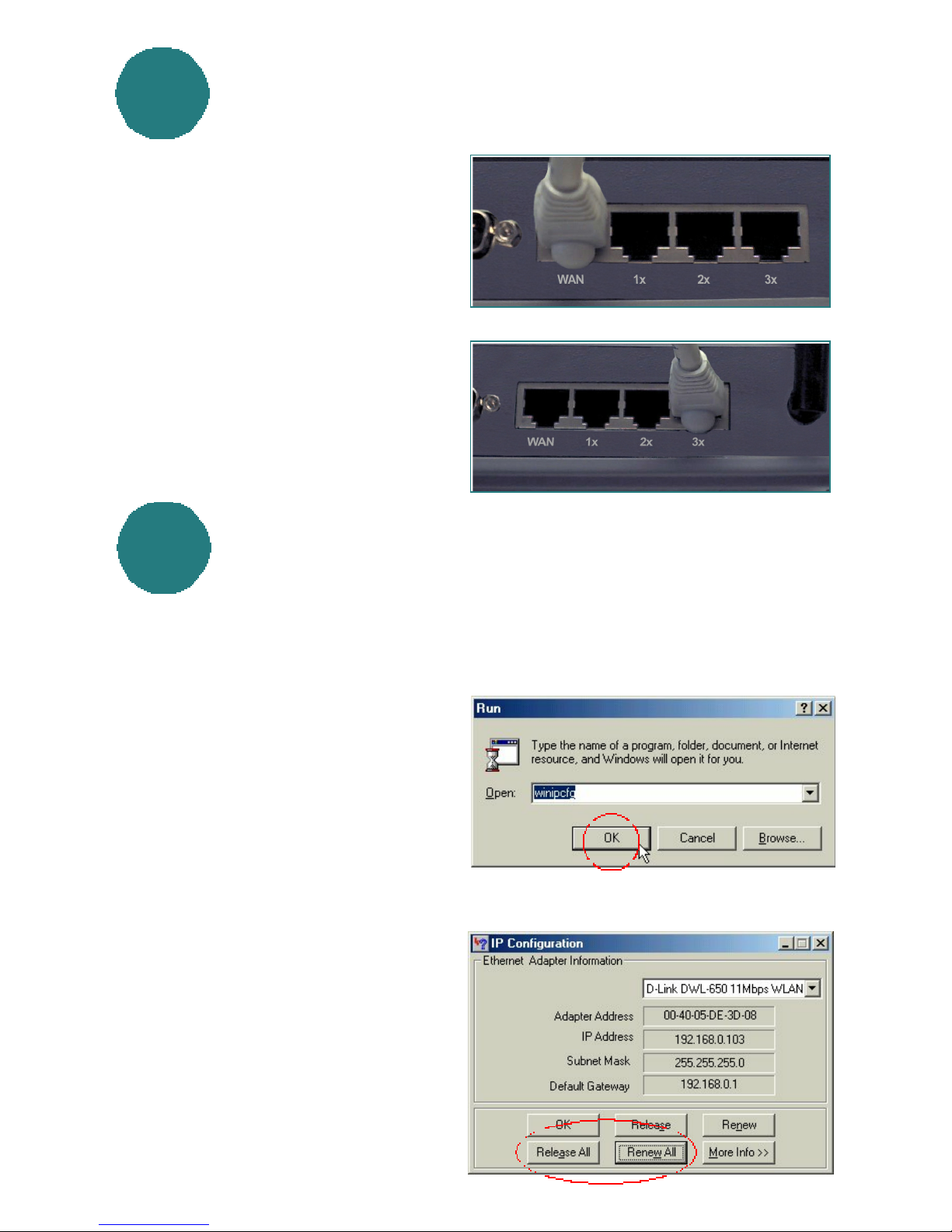

Next, connect the WAN port to the
Cable/DSL modem. The WAN LED
will indicate connection.
Finally, connect computers with eth-
ernet adapters to one of the LAN
ports on the DI-713P.
Go to Start>Run
Type in “WINIPCFG”.
The IP address of the computer must
be between 192.168.0.2 and
192.168.0.254 in order to configure
the router.
Note: If you are manually assign-
ing a static IP, please refer to
Appendix A.
Click on the “Release All” and then
on the “Renew All” button to
obtain an IP address from the broad-
band router between 192.168.0.100.
and 192.168.0.199.
22 Installing the DI-713PInstalling the DI-713P

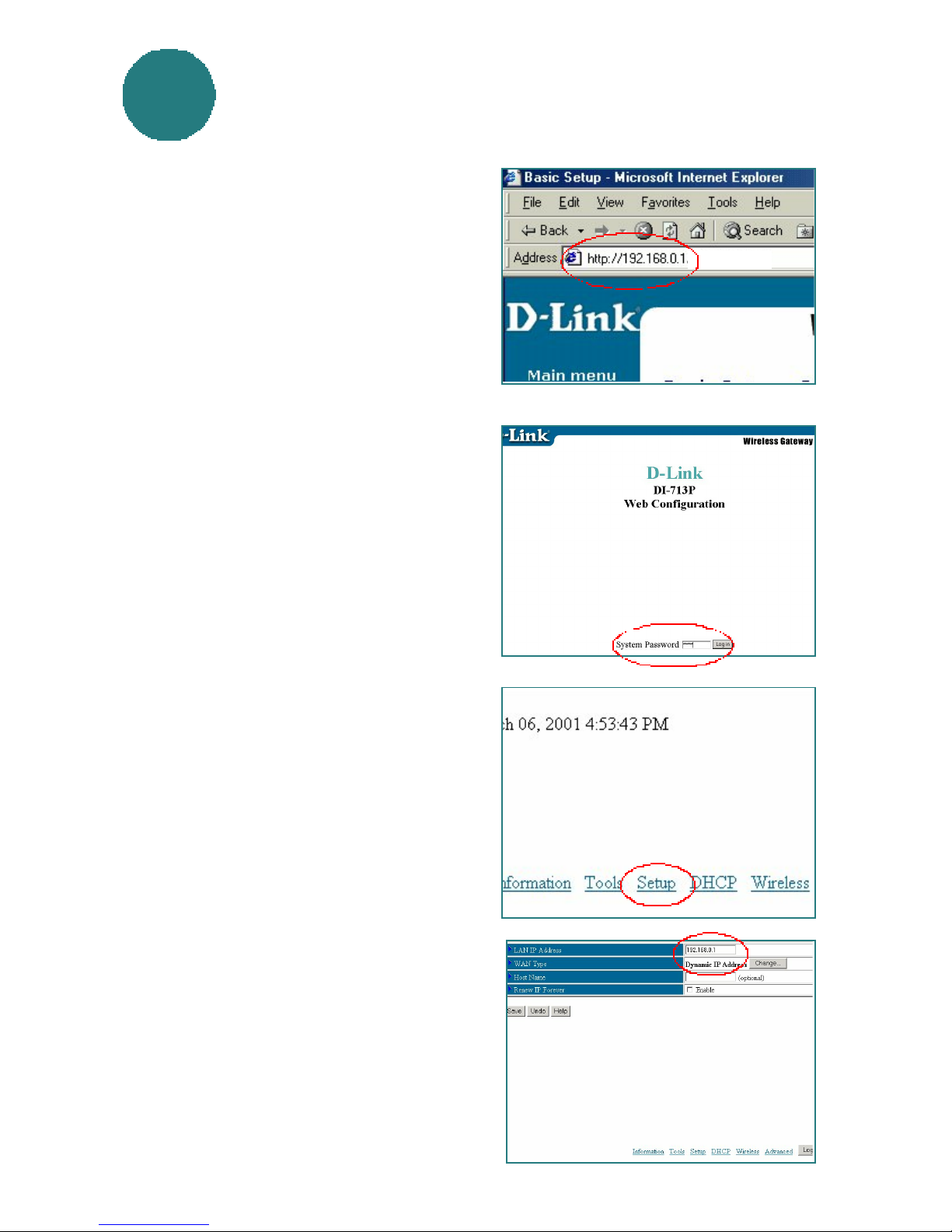

Open the web browser, and type
192.168.0.1 into the URL address box.
Note: Please disable any proxy server
setting for the web browser.
When the login screen appears, type
“admin” in the “System Password”
field.
Click “Login.”
In the following “Device
Information” screen, select “Setup.”
The default IP address of the LAN port
is set to 192.168.0.1
By default, the WAN port is set to
automatically obtain an IP address
from the ISP.
22 Installing the DI-713PInstalling the DI-713P

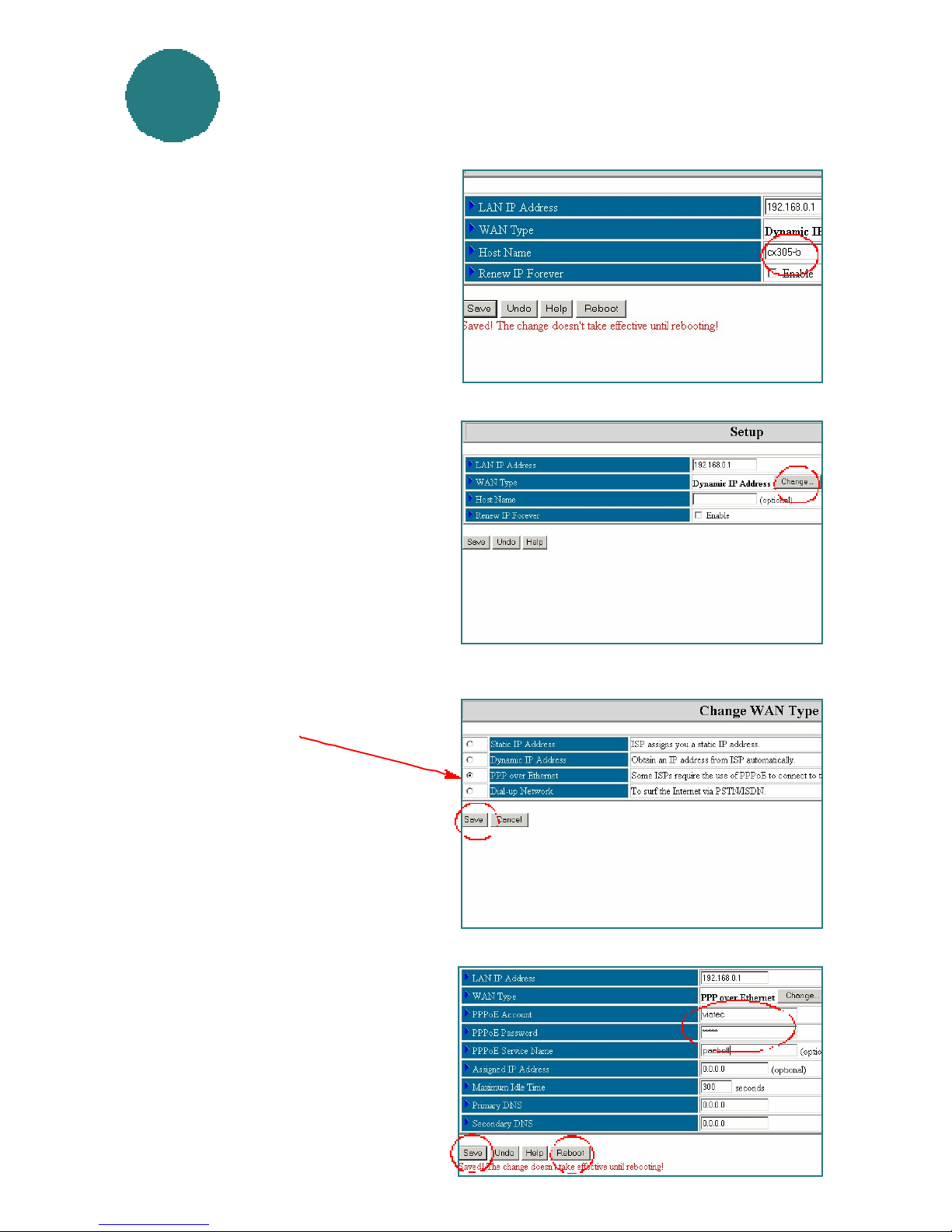

DSL users:
From the setup screen, click on
the “Change” button.
At this screen, select “PPP
over Ethernet.”
Click on “Save.”
Enter the “PPPoE account”
and “PPPoE password.”
Click “Save” and “Reboot” to
save changes.
Cable modem users:
If you are using a cable
modem, enter the “Host
name” given by your cable
provider.
Click on “Save” and “Reboot”
to save changes.
The DI-713P default wireless
settings will work out of the
box with any other D-Link
products.
The factory settings are:
channel: 6
network ssid: “default”

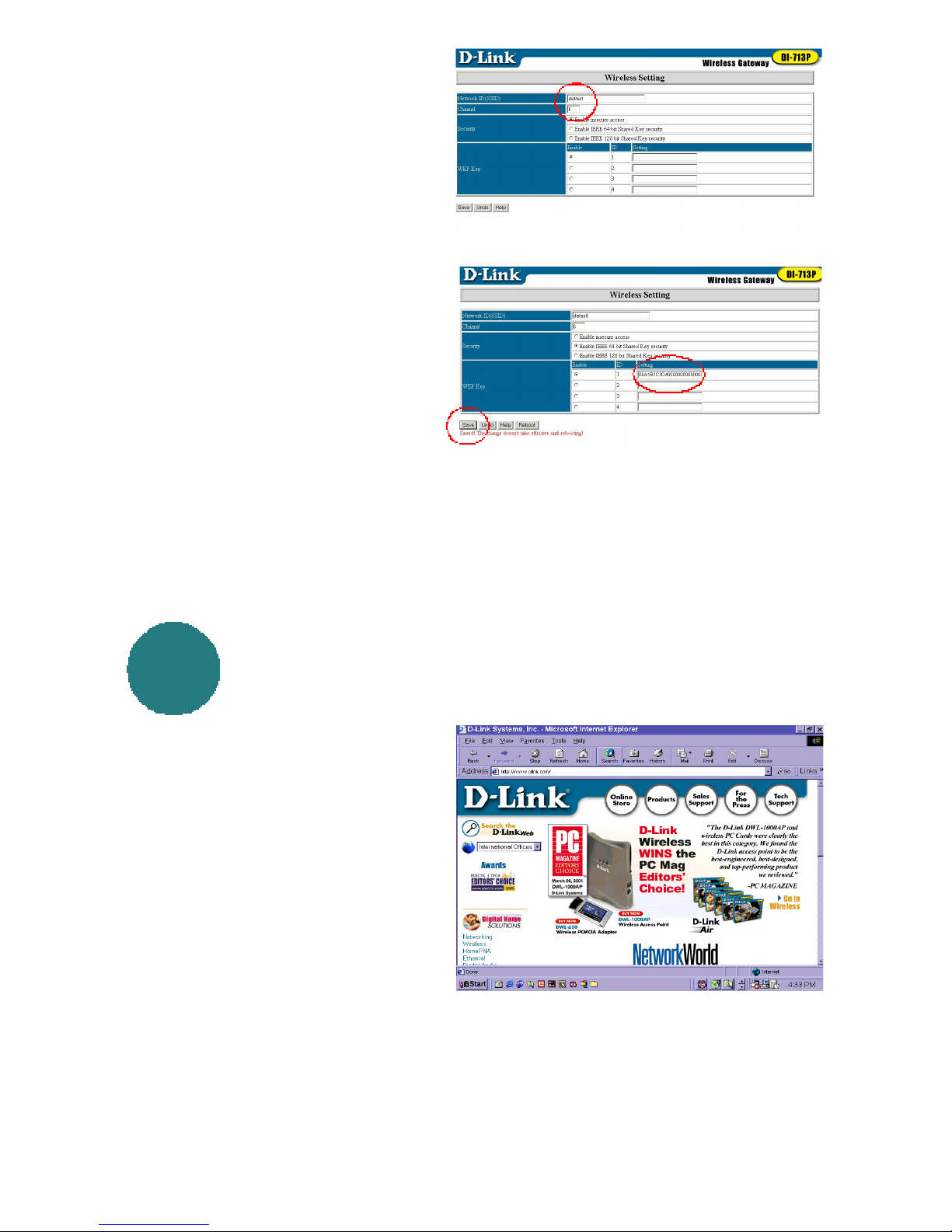

To enable WEP encryption, select
the encryption type. (Enable
either the 64 or the 128 bit
encryption.)
Then enter the encryption key, as
shown.
Note: Each key must consist of 5
pairs of hex digits, which means
that only digits 0-9 and letters A-
F are valid.
Click Save and Restart the com-
puter to save changes.
DI-713p.4.9.01
33 Checking the connection to the InternetChecking the connection to the Internet
To check the connection, open the
web browser and go to your
favorite website.
If you are unable to browse,
please do the following:
1. Refer to Appendix B to check
your connection to the wireless
router.
2. Use “Help” on the Main
Menu.
3. Refer to the troubleshooting
section in the user’s manual.
44 Print Server Installation (Optional)Print Server Installation (Optional)

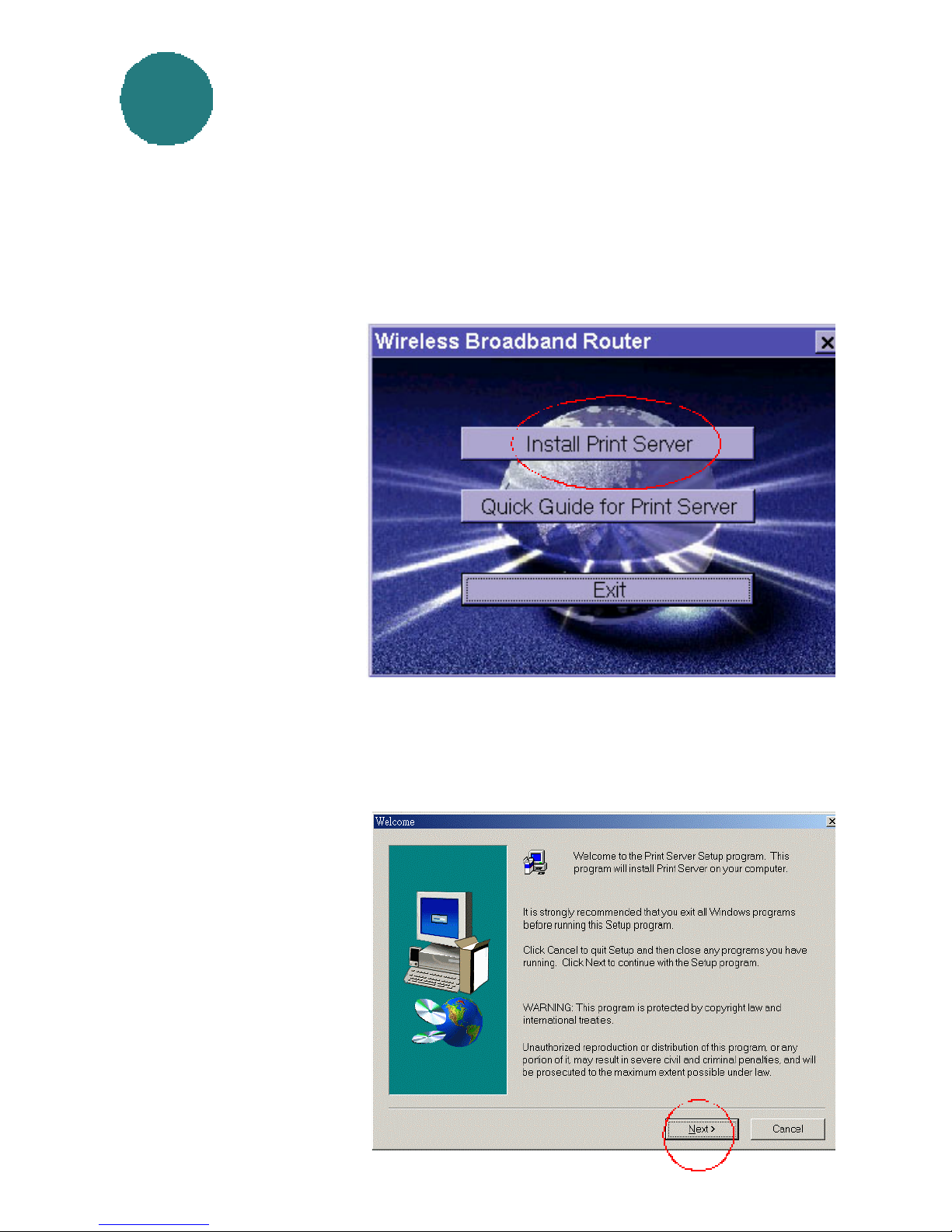

Insert the Print Server
installation CD into the
CD-ROM drive. The fol-
lowing screen will
appear. If the CD does
not automatically run,
then click on
“install.exe” on the CD.
NOTE: If you choose to use the print server function, plug the printer cable
from your printer into the printer port on the DI-713P..
Click on “Install Print
Server.”
At the Welcome screen,
Installing the Print Server
Click Next

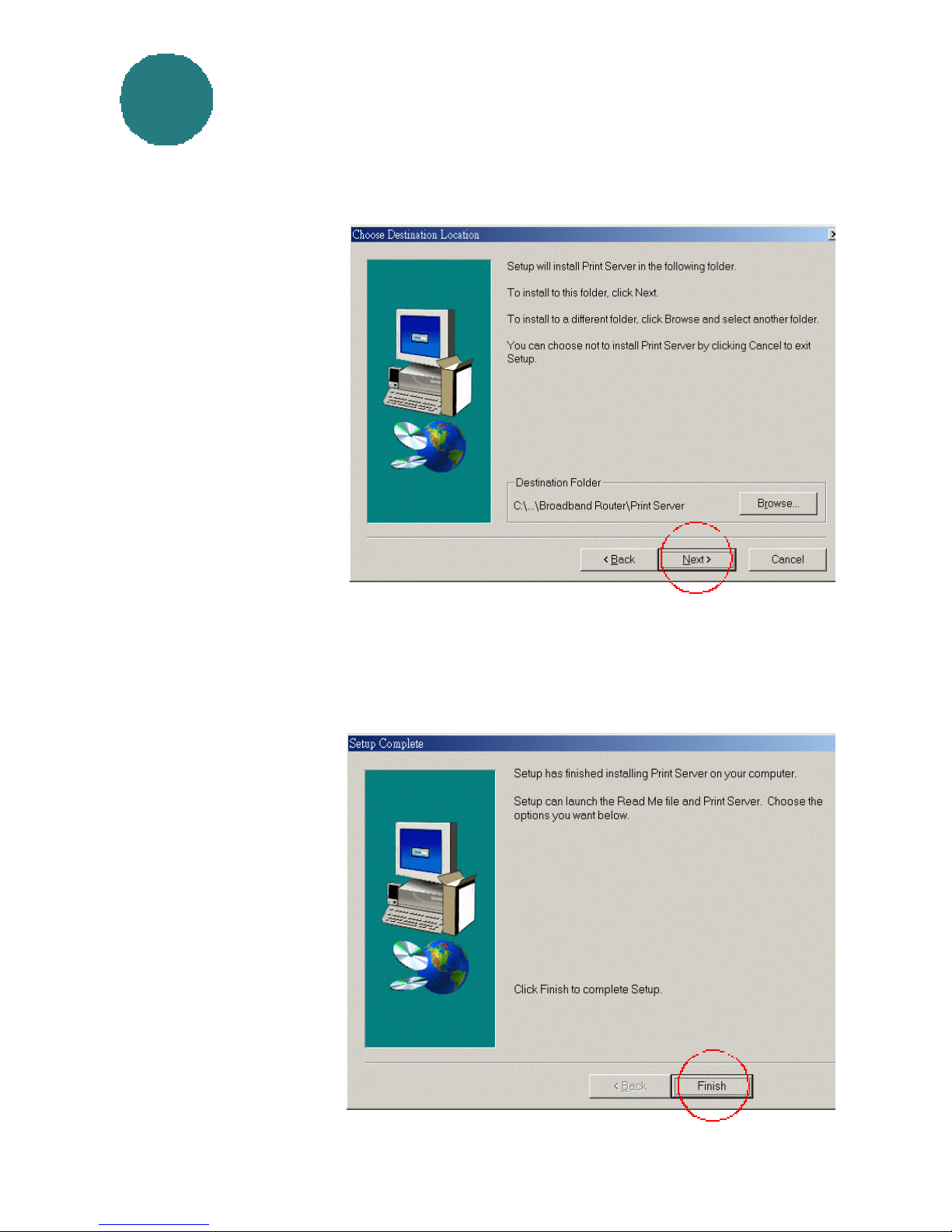

To select the default
folder,
Click Next
Note: Please Click Browse to select an alternate folder.
44 Print Server Installation (Optional)Print Server Installation (Optional)
continued
When this window is
displayed,
Click Finish

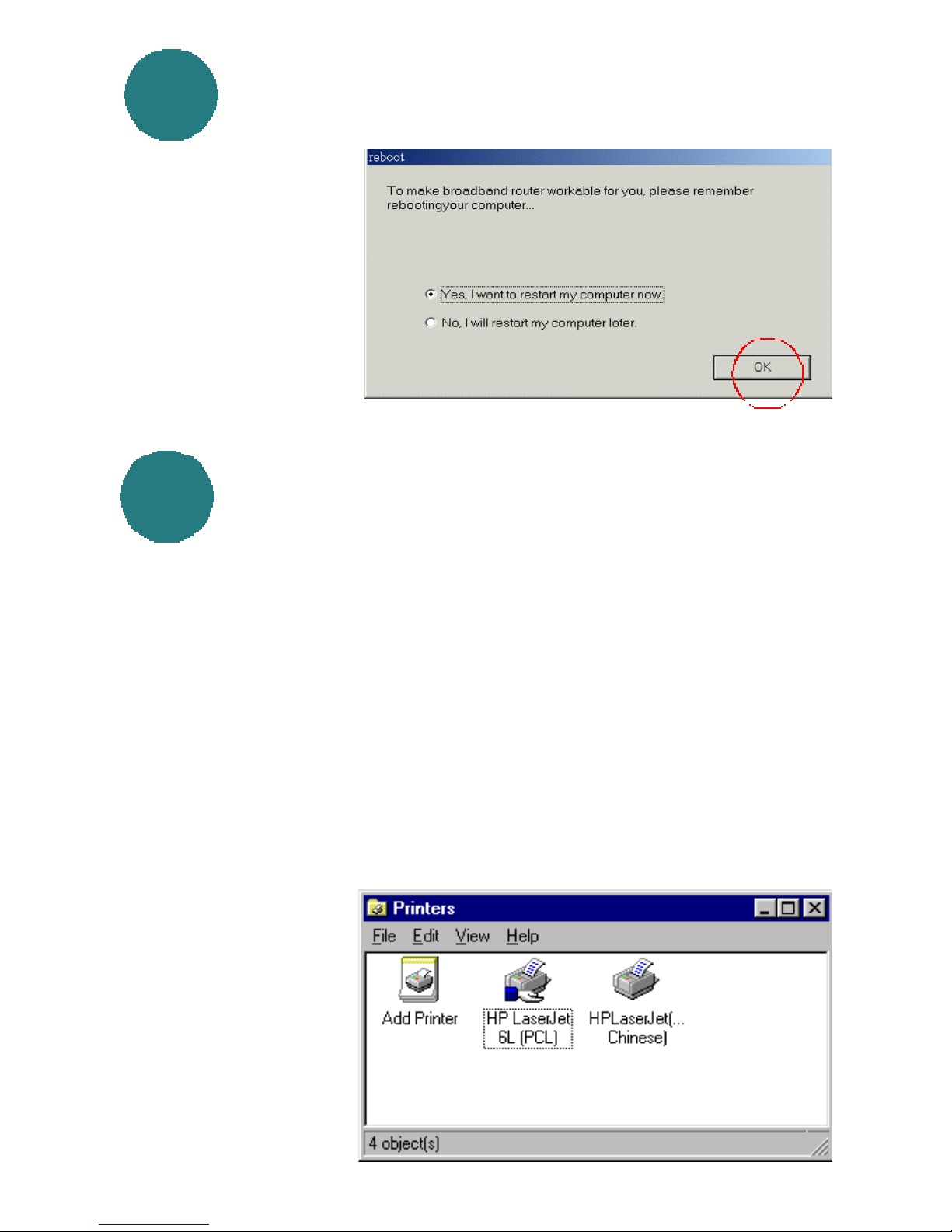

Select Yes, I want to
restart my computer.
Go to
START>
SETTINGS>
PRINTERS
Right Click on the
printer icon that corre-
sponds to the printer
you have connected to
the DI-713P.
Click OK
After the computer has restarted, the software installation is complete.
Note: If your printer is not installed, go to START>SETTINGS>PRINTERS.
Double Click on the “Add Printer” icon. Follow the “Add Printer Wizard.”
When requested to specify a port, select “DLink LPT Port (Print Server.)”
When setting up the printer, please use the drivers provided by the printer
manufacturer. Once you have set up your printer, please continue with the
configuration as follows. Please follow the configuration that corresponds to
your Operating System.
44 Print Server Installation (Optional)Print Server Installation (Optional)
continued
55 Configuring your printerConfiguring your printer
A) Configuring your printer inA) Configuring your printer in WINDOWS 98WINDOWS 98
If you are using Windows 98, please follow these instructions:
A) Configuring your printer inA) Configuring your printer in WINDOWS 98WINDOWS 98
continued
55 Configuring your printerConfiguring your printer continued

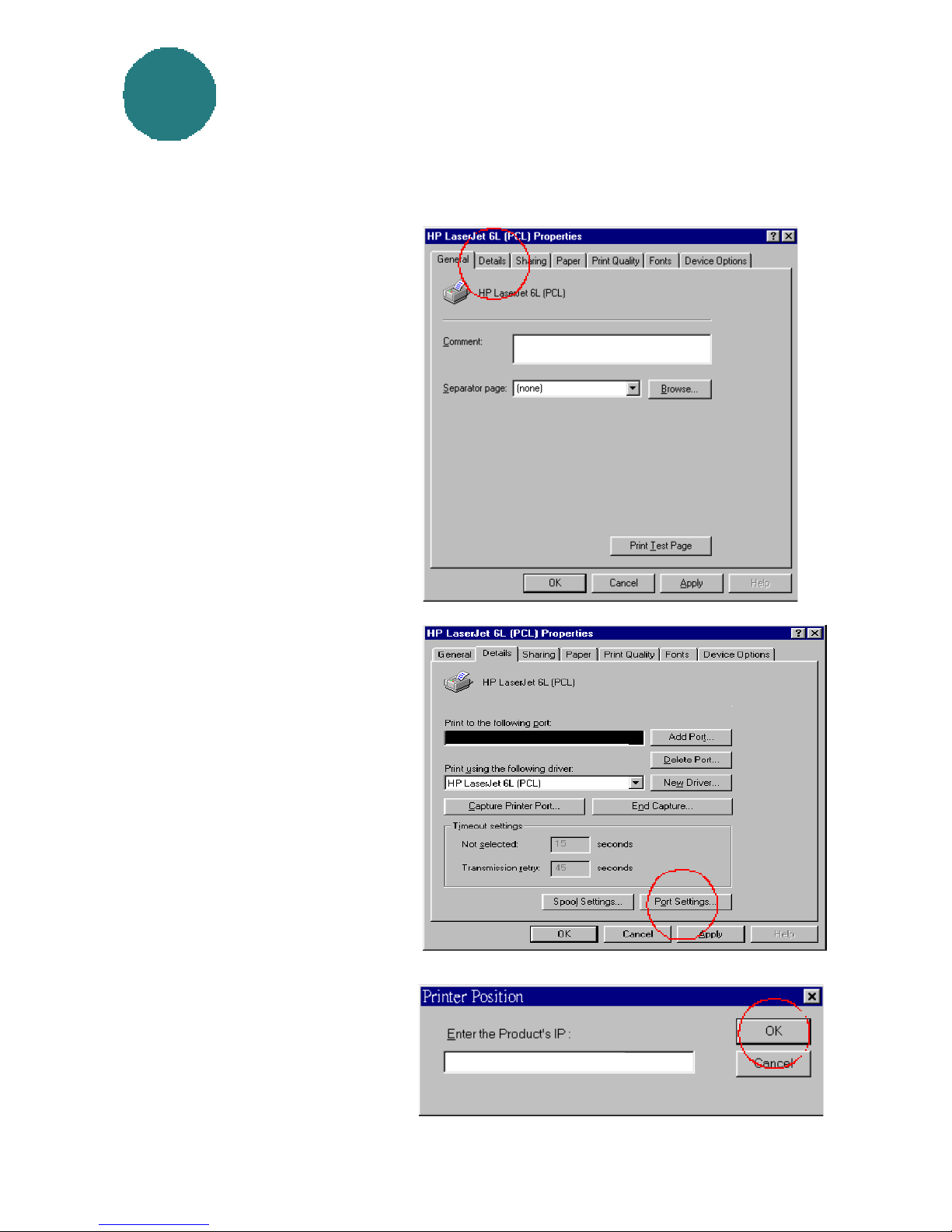

Select Properties.
Choose the Details tab.
At the “Add Port” menu,
choose “D-Link LPT port
(Print Server).”
Please make sure the proper
printer driver is selected.
Click “Port Settings”
Type in the IP address of the
DI-713P.
Click OK
In the previous window, make
sure the settings are correct.
Click OK
You have completed configuring your printer with Windows 98.
D-Link LPT Port (Print Server)
192.168.0.1
Go to START>
SETTINGS>
PRINTERS.
Right Click on the
printer icon that corre-
sponds with the printer
that you have connected
to the DI-713P.

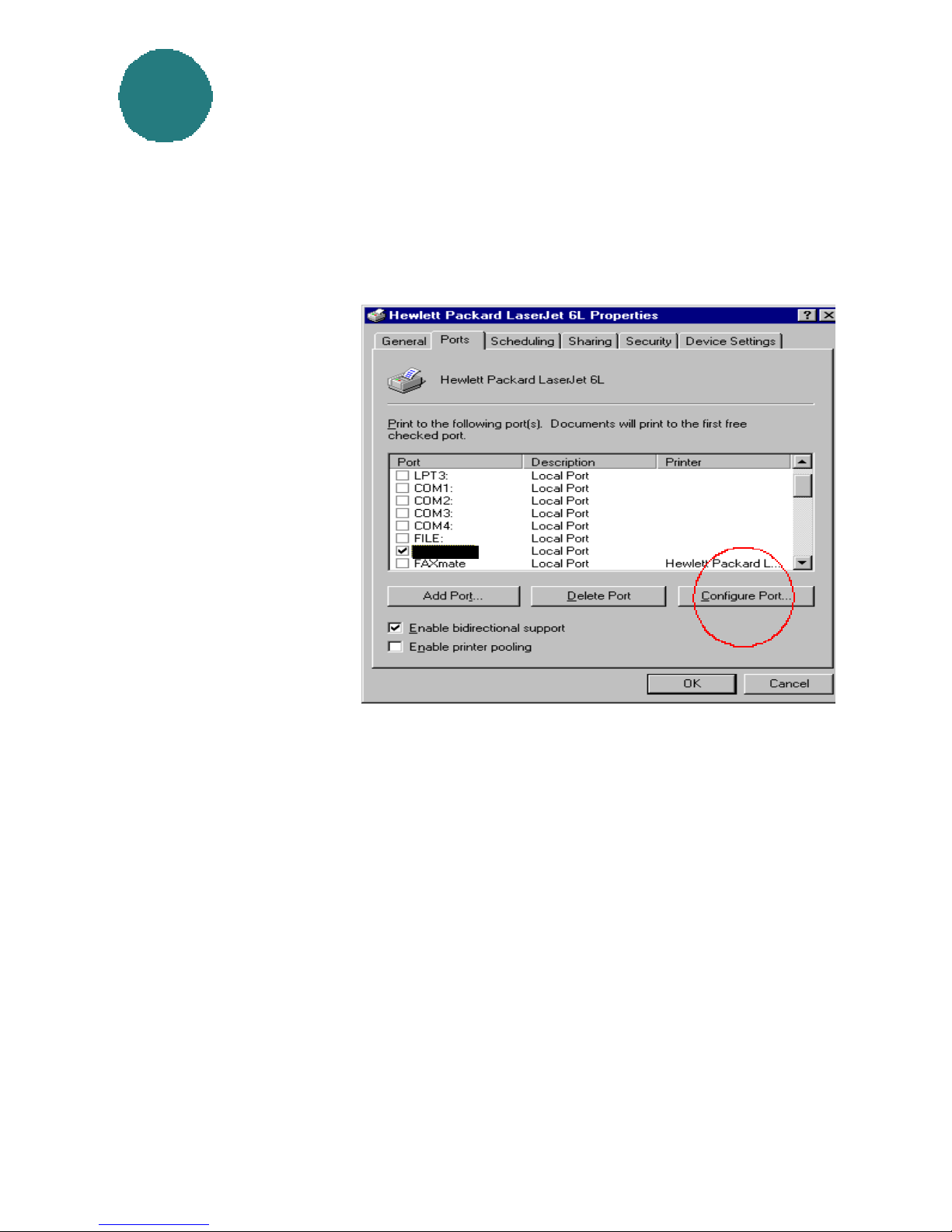

Select Properties,
choose the Ports tab.
Make sure that the
D-Link port is high-
lighted as shown.
Click Configure Port.
Enter IP address.
Click OK at both
screens.
55
D-Link LPT Port
Configuring your printerConfiguring your printer continued
B) Configuring your printer inB) Configuring your printer in WINDOWS NTWINDOWS NT
If you are using Windows NT, please follow these instructions:
You have completed configuring your printer in Windows NT.
