D-Link DI-714 Manuale utente

Before you begin…

Make sure that any existing Firewall Software/Devices are disabled and/or shutdown before

beginning installation of your new D-Link DI-714 Wireless Broadband Router.

• DI-714 Wireless Broadband Router

• Manual

• Quick Installation Guide

• Power Adapter

• CAT5 UTP Cable

If any of the above items are missing, please contact your reseller.

When you have completed the steps in this installation guide, your

connected network may look similar to this:

Connecting the DI-714 Wireless

Router to your network

Contents of Package

-2-

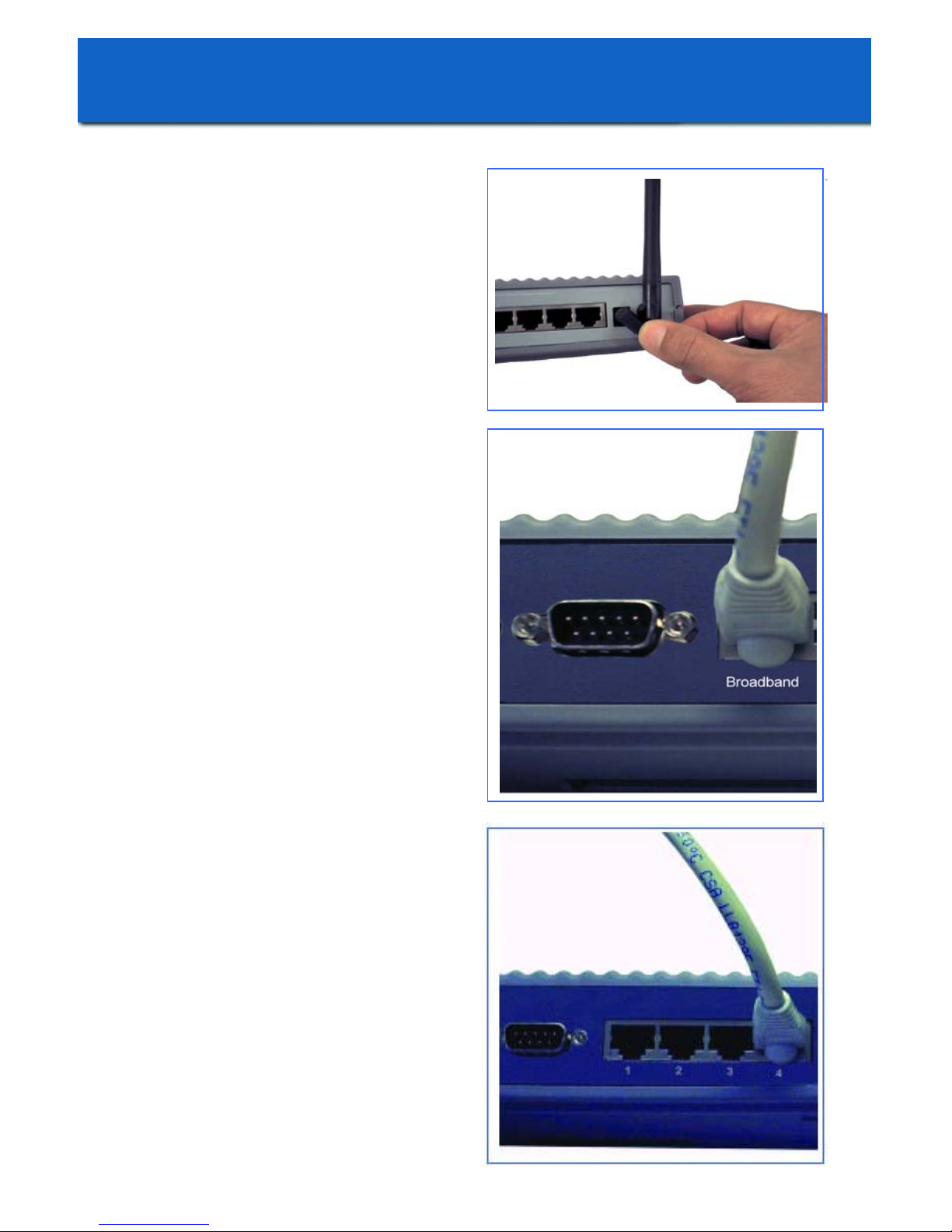

First, plug in the power supply

as shown.

The Power LED will turn “on”

to indicate proper operation.

Using CAT5 UTP cable, connect

computers that are equipped with

Ethernet adapters to one of the four

Ethernet LAN ports on the DI-714.

The LED for the specific

Local Ethernet Port will light up

to indicate connection.

Next, using a CAT5 UTP cable,

connect the Broadband (WAN) port to

the Cable or DSL modem.

The Broadband LED will light up to

indicate connection.

Connecting the DI-714 Wireless

Router to your network

Checking the IP Address of the computer being used to

configure the DI-714 Wireless Router

-3-

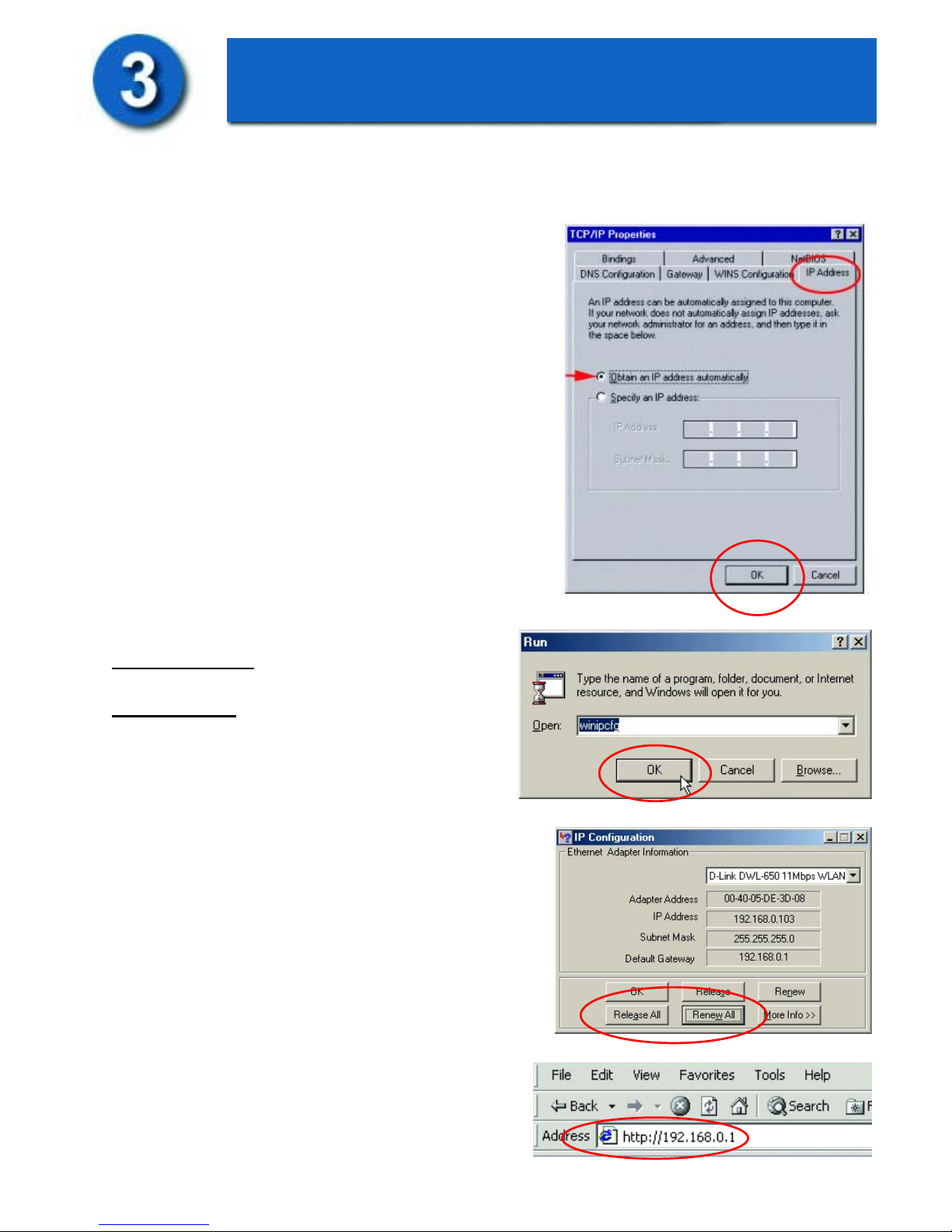

Next, go to Start>Run

For Win98/ME: Type in “winipcfg” and

click “OK.”

For Win2000: Type “cmd,” then

“ipconfig” and hit “Enter.” Your IP

Address will be displayed. The IP address of

the computer must be between 192.168.0.2

and 192.168.0.254 in order to configure the

router. If it is not, do the following:

Click on the “Release All” and then on the

“Renew All” button to obtain an IP address

from the Broadband router between

192.168.0.100 and 192.168.0.199.

Note: If you are manually assigning a static

IP, please refer to Appendix A.

Open the web browser, and type

192.168.0.1 into the URL address box.

Note: Please disable any proxy server

setting for the web browser.

Installing the DI-714

using the Setup Wizard

Make sure that TCP/IP protocol has been installed in

your computer. Next, set the TCP/IP protocol to

“Obtain an IP Address automatically” by doing the

following:

• Go to Start>Settings

• Select “Control Panel”

• Double-click the “Network” icon

• Select the TCP/IP line that includes the name of

your network adapter card, under the

“Configuration” tab in the “Network” window

• Click on “Properties” in this window

• The window at the right will appear

• Select the “IP Address” tab as shown

• Choose “Obtain an IP address automatically”

• Click “OK”

-4-

Click on

“Start the Setup

Wizard” at the bottom

of the main menu.

When the login screen

appears, type “admin”

in the User Name box,

and leave the Password

field blank.

Click “OK”

At this window, select

the local time zone.

Click “Next”

Installing the DI-714

using the Setup Wizard

Note: Some ISPs will require the user to input a specific

MAC address for the WAN port.

-5-

The default IP address of the LAN

port is set to 192.168.0.1

Click “Next” to accept the

default settings.

By default, the Broadband (WAN)

port is set to automatically obtain

an IP address from the ISP.

To assign a static IP for the

Broadband (WAN) port, remove

the checkmark and enter

the settings.

Click “Next”

DSL users:

If you are using a PPPoE client to

connect to your DSL provider, place a

checkmark on the first box, and enter the

user name and password in the

appropriate box.

Cable modem users:

If you are using a cable modem, place a

checkmark on the second box and enter

the host and domain name given by your

cable provider.

Click “Next”

Installing the DI-714

using the Setup Wizard

-6-

The DI-714 default wireless

settings will work out of the

box with any other D-Link Air

Adapter products.

Click “Next” to accept the

default settings.

If you are using a backup dial-

up modem with the wireless

router, place a checkmark in the

box and enter the settings for

the dial-up connection.

Click “Next”

At this window,

Click “Save and Restart,” to

finish the Setup Wizard.

After the DI-714 has restarted, the

installation is complete!

Installing the DI-714

using the Setup Wizard

-7-

To check the connection,

open the web browser

and go to your favorite website.

f you are unable to browse, please do

the following:

1. Refer to Appendix B to check your

connection to the wireless router.

2. Use “Help” on the

Main Menu.

3. Refer to the “Troubleshooting”

section in the user’s manual.

Assigning a Static IP Address

If the network adapter is unable to obtain

an IP address automatically from the

Broadband Router, then go to:

START>SETTINGS>

CONTROL PANEL>

NETWORK.

Highlight “TCP/IP”

and Click on “Properties.”

Select the “IP Address” tab, and

Click on “Specify an IP Address.”

Type in the “IP Address” and the

“Subnet Mask.”

Click “OK”

Checking the connection

to the Internet

Appendix A

Checking Your Network Connections

Building Networks for People

Use “Ping” to check your

network connections.

Go to START>RUN

Type “command” in the box.

Click “OK”

Type “ping 192.168.0.1,” which is the

IP address of the LAN port of the

Broadband Router.

Hit the “Enter” key.

A successful connection will show

four replies, as shown.

You can find the most recent software and user documentation on the

D-Link website.

D-Link provides free technical support for customers within the United States for the

duration of the warranty period on this product.

U.S. customers can contact D-Link technical support through our web site

or by phone.

United States technical support is available 24 hours a day, seven days a week.

Web: http://support.dlink.com

Phone: (800) 758-5489

Appendix B

Technical Support
