DI-804 VPN connection with another DI-804HV

(This example is using Static WAN IP addresses)

Date: 23 Oct 2003

Doc version: 1.1

Author: Neil Stent

Workstation

192.168.0.156 Workstation

192.168.1.20

DI-804V

192.168.0.5 DFL-600

192.168.1.5

ISP and

INTERNET

Cable / DSL modem

202.192.109.87 Cable / DSL modem

202.129.109.74

DFL-600 (firmware 4.73)

LAN: 192.168.0.10 255.255.255.0

WAN: 202.129.129.87 255.255.255.224

WAN gateway: 202.129.109.65 255.255.255.224

Workstation A:

PC: 192.168.0.156 225.255.255.0

PC gateway: 192.168.0.10 225.255.255.0

DI-804HV (firmware 1.30)

LAN: 192.168.1.5 255.255.255.0

WAN: 202.129.129.74 255.255.255.224

WAN gateway: 202.129.109.65 255.255.255.224

Workstation B:

PC: 192.168.1.20 225.255.255.0

PC gateway: 192.168.1.5 225.255.255.0

Please note:

For any VPN you need to make sure that the LAN subnet on each location is different. As above you can see

that the IP of the DFL-600 is 192.168.0.5 and the 804HV is 192.168.1.5. If you had a third location it should be

192.168.2.x etc… x being anything from 1 to 254.

If you are using DSL-300, DSL-300+, DSL-302G modem or DSL-500, DSL-504, DSL-604+ router please see

Appendix 3 at the end of this document.

DFL-600 Settings:

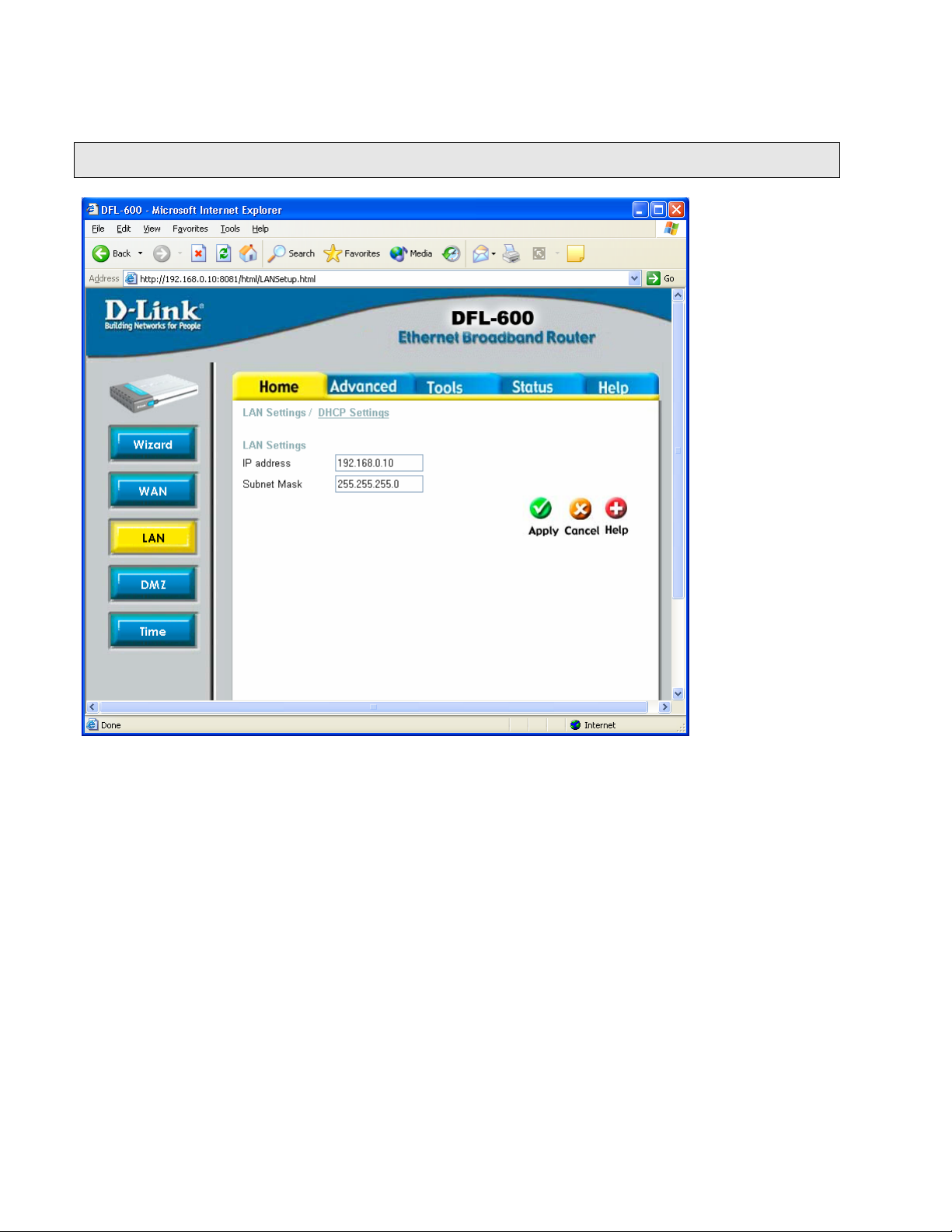

Log into the router’s WEB interface and then go into Home > LAN. Change the IP address of the LAN port

of the router to required IP.

Once you have changed the LAN IP address on the router, make sure your PC has an IP address from the same

subnet (192.168.2.x in this example), you may just need to renew IP on your PC or reboot.

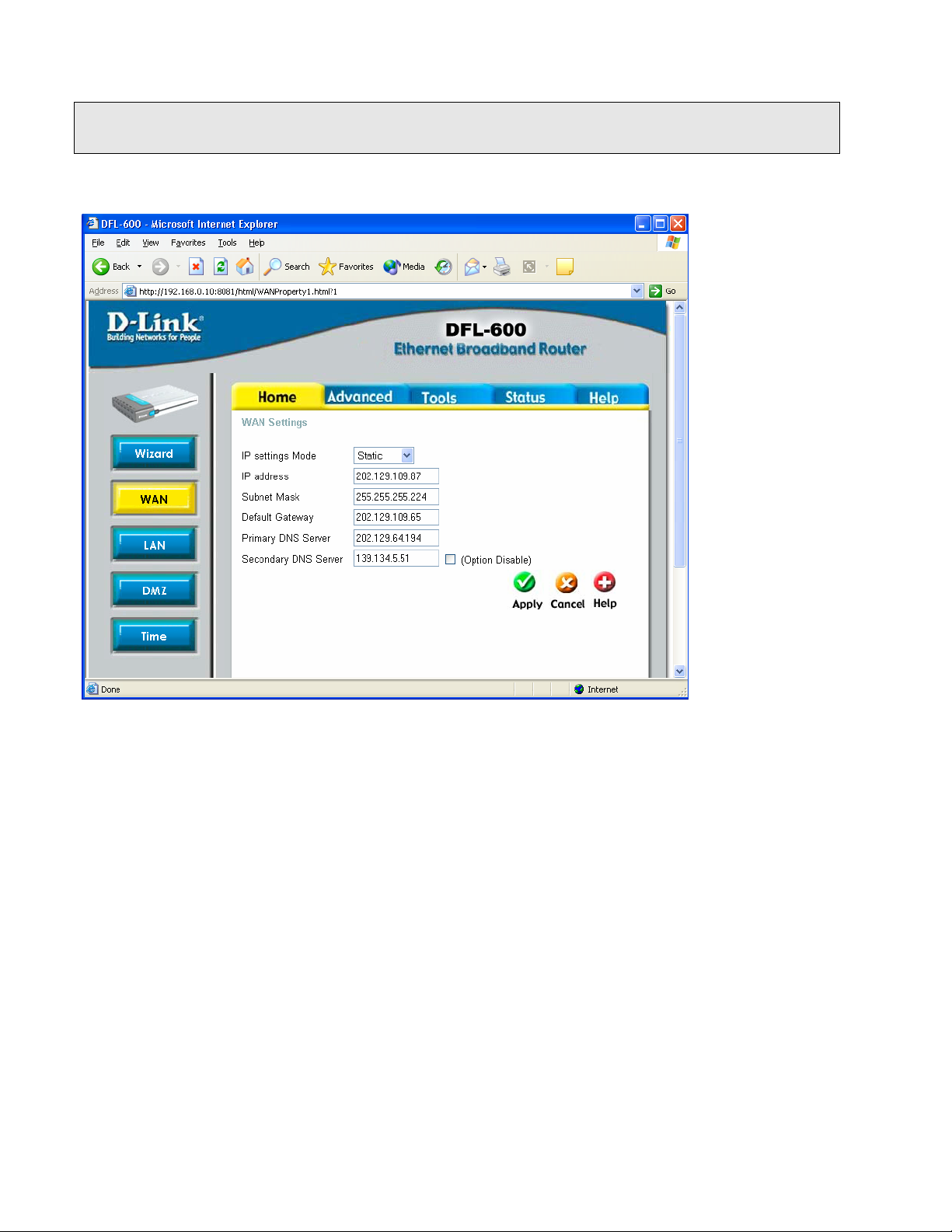

Next go to the Home > WAN page, choose the type of connection your ISP requires. In our example

it is Static IP Address.

You need to have a static IP address the on WAN port of at least one unit out of two participating in VPN

connection. Some PPPoE connections have a static IP as well (in most of such cases you do not have to specify

the IP – your ISP will be providing you with the same IP every time you connect).

After setting up the WAN port click on Apply to save settings.

Next make sure you can access the Internet (that will confirm that you have set WAN settings

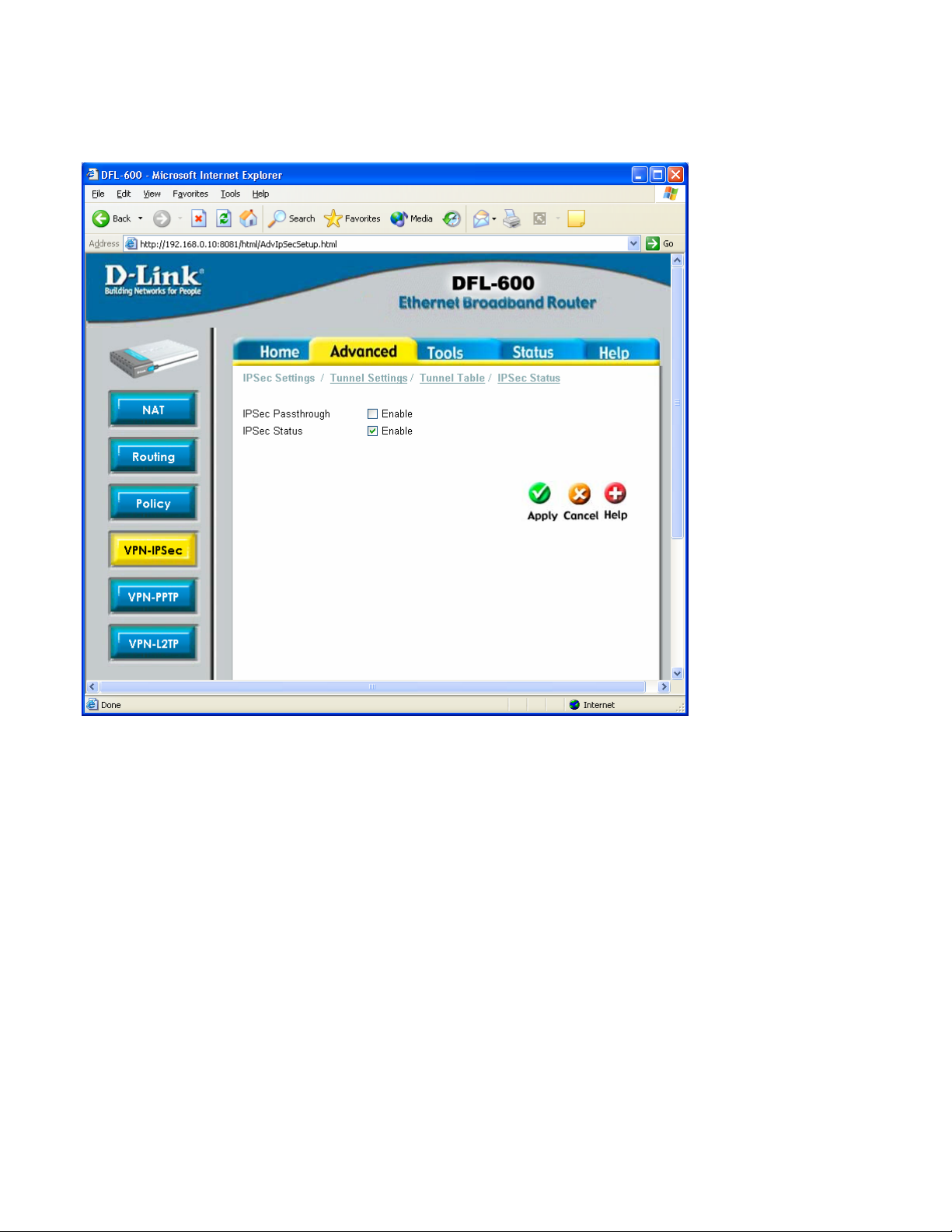

correctly), then log back into the router and go into Advanced > VPN-IPSec.

Make sure you have IPSec Status box ticked.

Next click on Tunnel Setting on the top tab.

Then fill out the page as needed.

The Ter

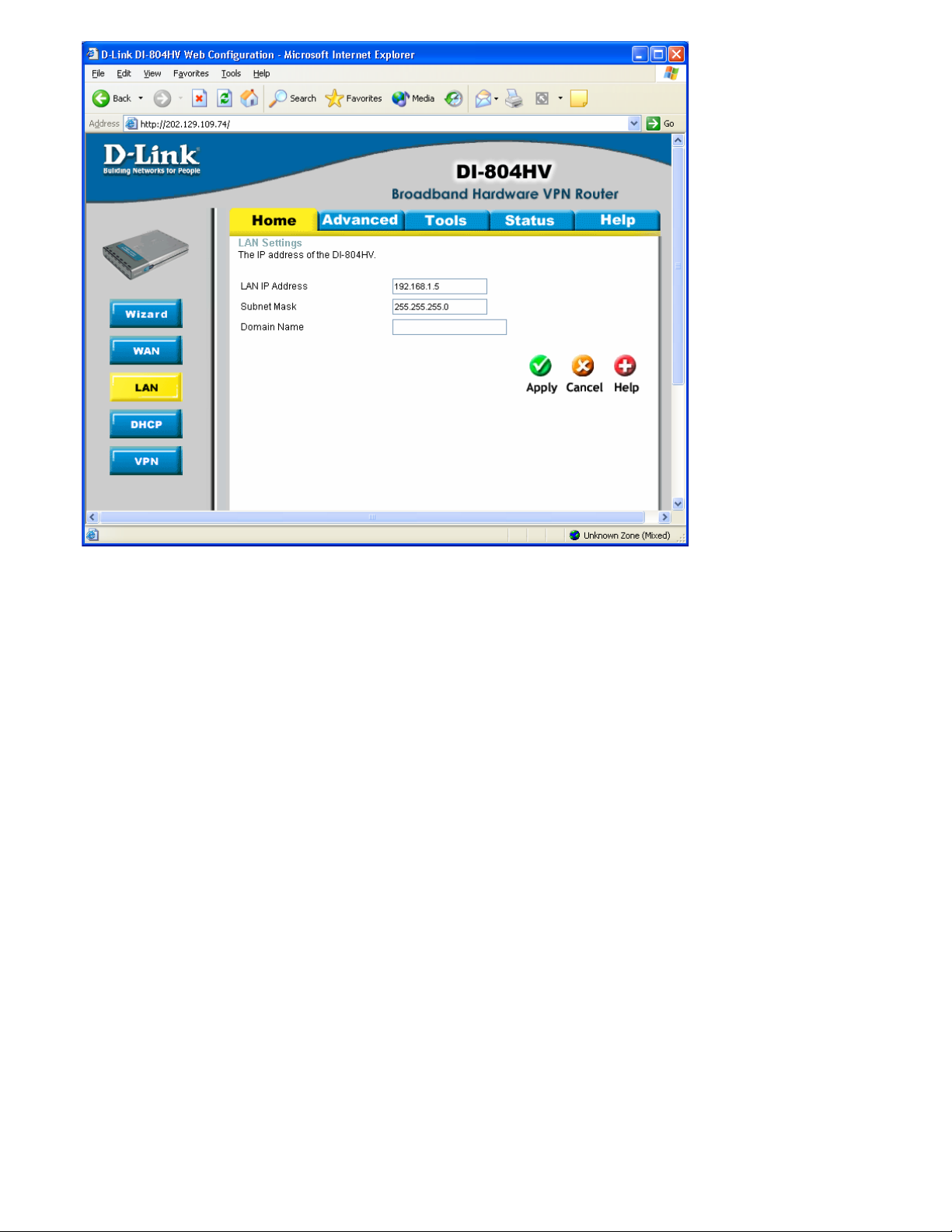

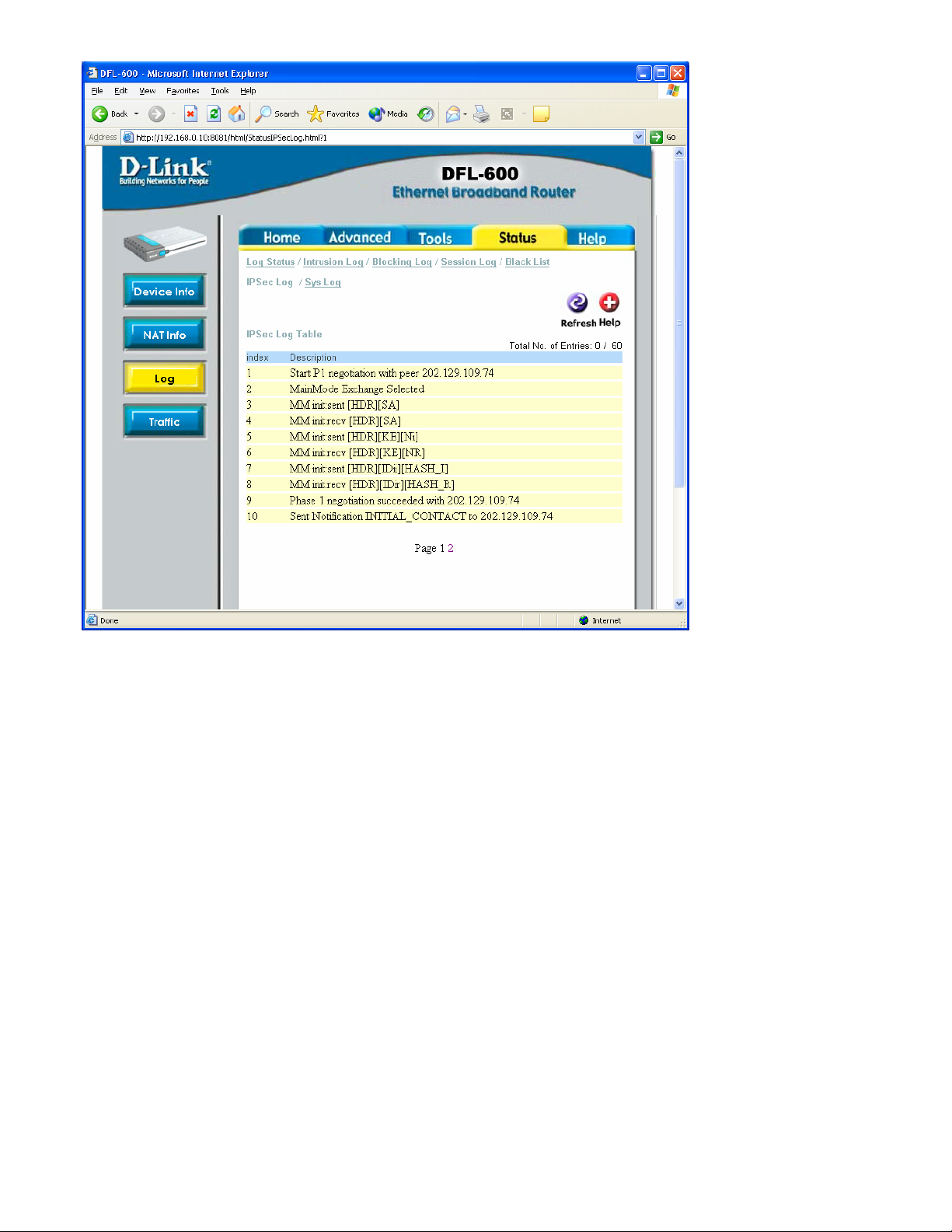

DI-804HV VPN Connection settings:

Make sure you have VPN enabled box ticked.

Type in any name for the Tunnel Name

Then click on the “more” button to the right of the ID “1”
