D-Link DIR-320NRU Manuale utente

Quick Installation Guide

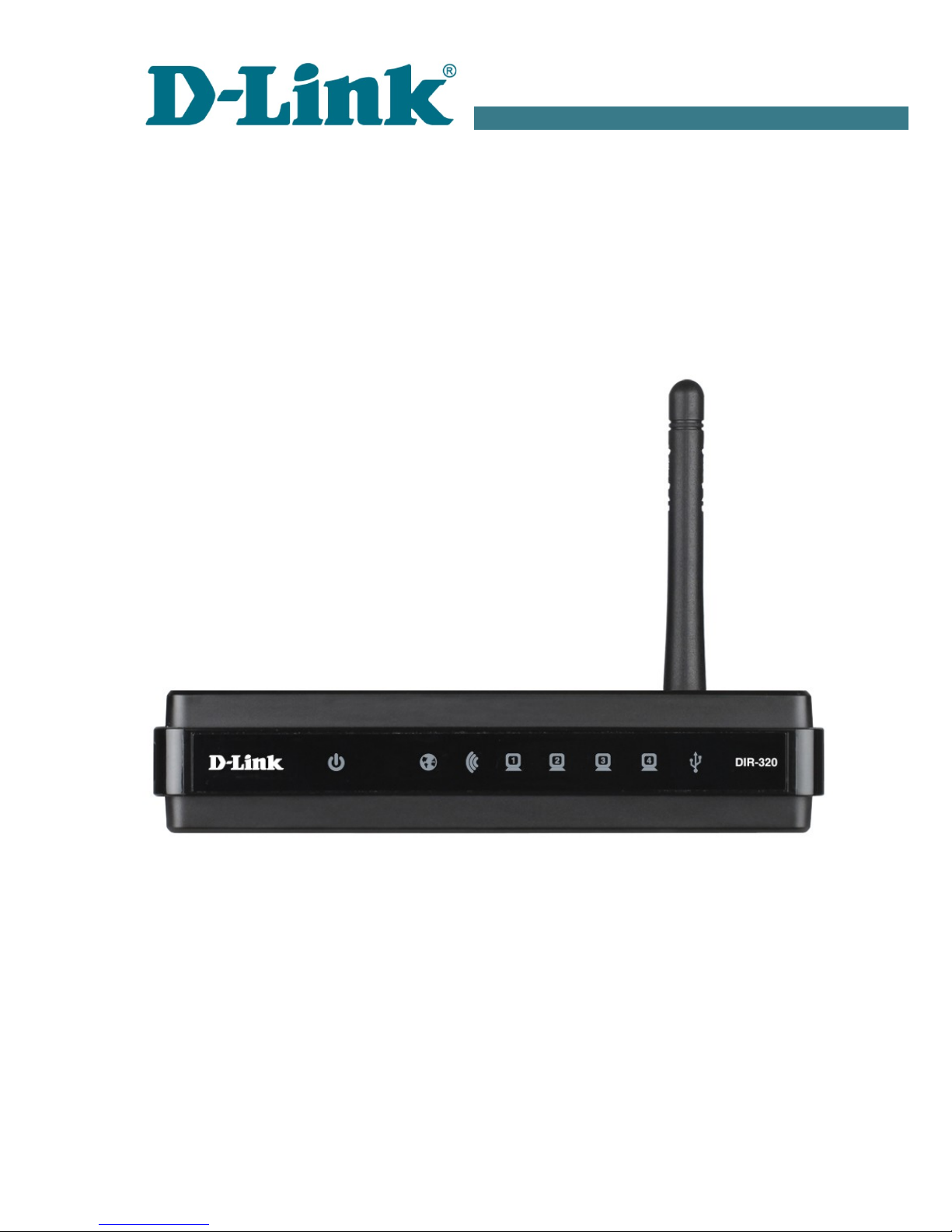

DIR-320NRU

Multifunction Wireless Router

Supporting WiMAX, 3G GSM/ DMA

with Built-in Switch

DIR-320NRU Quick Installation Guide

BEFORE YOU BEGIN

Delivery Package

•Wireless router DIR-320NRU

•Power adapter DC 5V/2A

•Ether et cable (CAT 5E)

•“Quick Installation Guide” (brochure).

If a y of the items are missi g, please co tact your reseller.

The “User Manual” a d “Quick Installation Guide” docume ts i Russia

a d E glish are available o D-Li k website (see ftp.dli k.ru/pub/Router/DIR-

320_NRU/Descriptio /Rev_B/1_4_0/).

!Using a power supply with a different voltage rating than the one

included will cause damage and void the warranty for this product.

Default Settings

IP address o wireless router 192.168.0.1

Username (login) admin

Password admin

Name o wireless network (SSID) DIR-320NRU

DIR-320NRU Quick Installation Guide

System Requirements and Equipment

•A computer with a y operati g system that supports a web browser.

•A web browser to access the web-based i terface of the router: Wi dows

I ter et Explorer, Mozilla Firefox, or Opera.

•A NIC (Ether et or Wi-Fi adapter) to co ect to the router.

•A 802.11b, g, or Wi-Fi adapter to create a wireless etwork.

•A USB modem to co ect to the I ter et1.

◦A WiMAX USB modem to co ect to the I ter et via a WiMAX

etwork.

Some WiMAX operators require subscribers to activate their WiMAX

USB modems prior to usi g them. Please, refer to co ectio

guideli es provided by your operator whe co cludi g the agreeme t

or placed o its website.

◦A 3G USB modem to co ect to the I ter et via a 3G GSM or

CDMA etwork.

Your USB modem should be equipped with a active ide tificatio

card (SIM or R-UIM) of your operator.

For CDMA USB modems, it is required to disable the PIN code check

o the ide tificatio card prior to co ecti g the USB modem to the

router.

1 Co tact your operator to get i formatio o the service coverage a d fees.

DIR-320NRU Quick Installation Guide

Supported USB Modems

GSM modems:

•Huawei E1550

•Huawei E160G

•Huawei E169G

•Huawei E171

•Huawei E220

•ZTE MF112

•ZTE MF192

•ZTE MF626

•ZTE MF627

•ZTE MF652

•ZTE MF668

•ZTE MF752.

CDMA modems2:

•Airplus MCD-650

•Airplus MCD-800

•A yDATA ADU-300A

•A yDATA ADU-310A

•Axesstel MV110

•Ubiquam UM-400

•WeTelecom WM-D200.

iMAX modem:

•Samsu g SWC-U200 (firmware versio u200_rev1-2.7.40-CI14).

!The ma ufacturer does ot guara tee proper operatio of the router

with every modificatio of the firmware of USB modems.

2 Performa ce of CDMA USB modems is ot tested for the curre t firmware versio .

DIR-320NRU Quick Installation Guide

CONNECTING TO PC

PC wit Et ernet Adapter

1. Make sure that your PC is powered off.

2. Co ect a Ether et cable betwee a y of LAN ports located o the back

pa el of the router a d the Ether et port of your PC.

3. To co ect via a WiMAX, 3G GSM or CDMA etwork: co ect your

USB modem to the USB port3 located o the back pa el of the router.

!If you eed to co ect or cha ge a USB modem to a other o e whe

the router is powered o , power off the router, co ect the modem to

the USB port, a d power o the router.

4. Co ect the power cord to the power co ector port o the back pa el of

the router, the plug the power adapter i to a electrical outlet or power

strip.

5. Tur o your PC a d wait u til your operati g system is completely

loaded.

Now you should co figure your PC to obtai a IP address automatically (as

DHCP clie t).

3 It is recomme ded to use a USB exte sio cable to co ect a USB modem to the

router.

DIR-320NRU Quick Installation Guide

Obtaining IP Address Automatically

in OS Windows XP

1. Click the Start butto a d proceed to the Control Panel > Network

and Internet Connections > Network Connections wi dow.

2. I the Network Connections wi dow, right-click the releva t Local

Area Connection ico a d select the Properties li e i the me u

displayed.

3. I the Local Area Connection Properties wi dow, o the General

tab, select the Internet Protocol (TCP/IP) li e. Click the Properties

butto .

DIR-320NRU Quick Installation Guide

4. Select the Obtain an IP address automatically a d Obtain DNS

server address automatically radio butto s. Click the OK butto .

5. Click the ОК butto i the co ectio properties wi dow.

Now your computer is co figured to obtai a IP address automatically.

DIR-320NRU Quick Installation Guide

Obtaining IP Address Automatically

in OS Windows 7

1. Click the Start butto a d proceed to the Control Panel wi dow.

2. Select the Network and Sharing Center sectio . (If the Co trol Pa el

has the category view (the Category value is selected from the View by

drop-dow list i the top right cor er of the wi dow), choose the View

network status and tasks li e u der the Network and Internet

sectio .)

3. I the me u located o the left part of the wi dow, select the Change

adapter settings li e.

4. I the ope ed wi dow, right-click the releva t Local Area Connection

ico a d select the Properties li e i the me u displayed.

5. I the Local Area Connection Properties wi dow, o the

Networking tab, select the Internet Protocol Version 4 (TCP/IPv4)

li e. Click the Properties butto .

DIR-320NRU Quick Installation Guide

6. Select the Obtain an IP address automatically a d Obtain DNS

server address automatically radio butto s. Click the OK butto .

7. Click the OK butto i the co ectio properties wi dow.

Now your computer is co figured to obtai a IP address automatically.

DIR-320NRU Quick Installation Guide

PC wit Wi-Fi Adapter

1. To co ect via a WiMAX, 3G GSM or CDMA etwork: co ect your

USB modem to the USB port4 located o the back pa el of the router.

!If you eed to co ect or cha ge a USB modem to a other o e whe

the router is powered o , power off the router, co ect the modem to

the USB port, a d power o the router.

2. Co ect the power cord to the power co ector port o the back pa el of

the router, the plug the power adapter i to a electrical outlet or power

strip.

3. Tur o your PC a d wait u til your operati g system is completely

loaded.

4. Tur o your Wi-Fi adapter. As a rule, moder otebooks with built-i

wireless NICs are equipped with a butto or switch that tur s o /off the

wireless adapter (refer to your PC docume ts). If your PC is equipped

with a pluggable wireless NIC, i stall the software provided with your

Wi-Fi adapter.

Now you should co figure your Wi-Fi adapter.

4 It is recomme ded to use a USB exte sio cable to co ect a USB modem to the

router.
