D-Link SharePort DIR-825 Manuale utente

Configuring a D-Link Router

DIR-825 Basic Configuration Steps

Configuring Your Router

•Unbox the router and power up the router.

•Connect the Act internet cable to the WAN/Internet port(different coloured port) of the router.

•An extra cable will be available with the router, take LAN cable connect one end to the LAN port(1-

4) of the router(any one port) and one end to the PC or Laptop.

•In the system press key & R key together to open Run dialog box.

•Type ipconfig on the command prompt(Black screen) . The default gateway of the LAN or Ethernet

adapter will be the Router address. (Ex:192.168.1.1)

STEP 1 (a): Connect Your PC to the Router

•Switch on the router and connect ACT internet cable to the WAN/Internet port of the router

•Go to setting in the Mobile, turn on Wi-Fi and wait until the mobile detects router name press

the router name to connect.

•If the router is already configured and the Wi-Fi password is known then go to settings in the

Mobile

•Under “Wireless and Networks”, press Wi-Fi make sure "Wi-Fi" is turned on.

•Wait until the mobile detects router name press the router name if prompted enter the Wi-Fi

password and press Connect.

STEP 1 (b): Connect Your Mobile

NOTE

•Every Router Configuration has two parts

–Configuring the Internet Part, where we tell the Router how to connect to the internet.

–Configuring the Wi-Fi Part, where we decide the name and password with which we connect to the Router

•Internet Configuration shown here will guide to Configure the Router in PPPoE.

–This will enable you to browse internet directly, every time you connect to the router. No need to login again and

again.

•Wi-Fi Configuration has also been given, in order to ease the process of you connecting to the Router

–SSID and Password Creation have been explained.

–Few high end routers have two bands to work on – 2.4 GHz and 5 GHz – This router has both the Bands.

–2.4 GHz band provides higher range, but lesser speed.

–5 GHz band provides lower range, but higher speed.

–Changing Different Wi-Fi Channels – Helps in reducing Slow Speed Issues.

STEP 2: Logging into the Router

•Open a browser Enter the below IP Address in the Address Bar. A login page appears. The

usual usernames and passwords are given in the table below.

Router Name IP Address Username Password

Cisco or Linksys 192.168.1.1 admin admin

D-Link 192.168.0.1 admin (blank)

TP-Link 192.168.0.1 admin admin

Netgear 192.168.1.1 admin password

Belkin 192.168.2.1 Click on Login in Home (blank)

Tenda 192.168.0.1 admin admin

i-Ball Baton 192.168.1.1 admin admin

Digisol 192.168.2.1 admin 1234 or admin

Asus 192.168.1.1 admin admin

•If all the above credentials do not work, please check the back of the router where the

username and password will be mentioned.

The username is “Admin” and no password(blank)

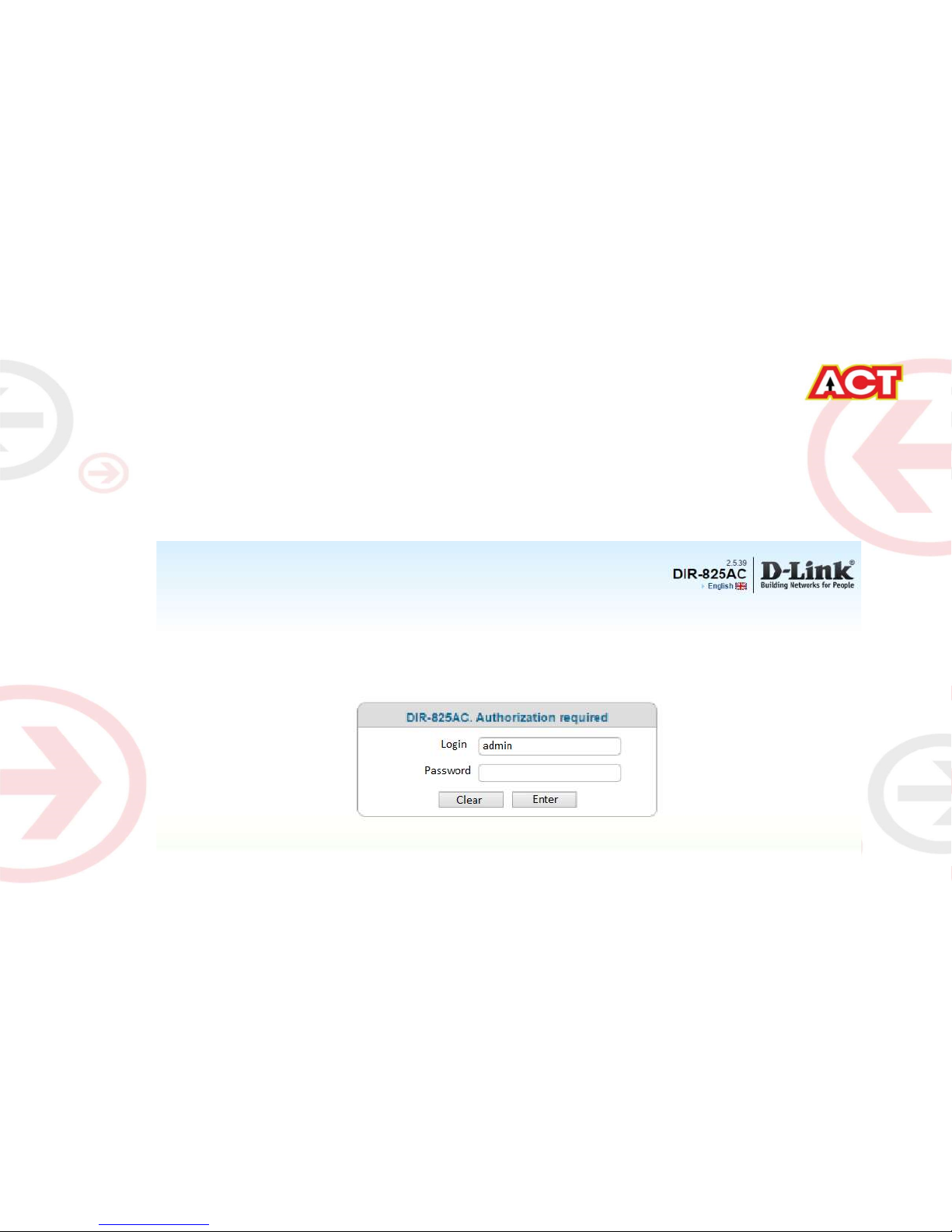

STEP 2.1: Logging into the Router

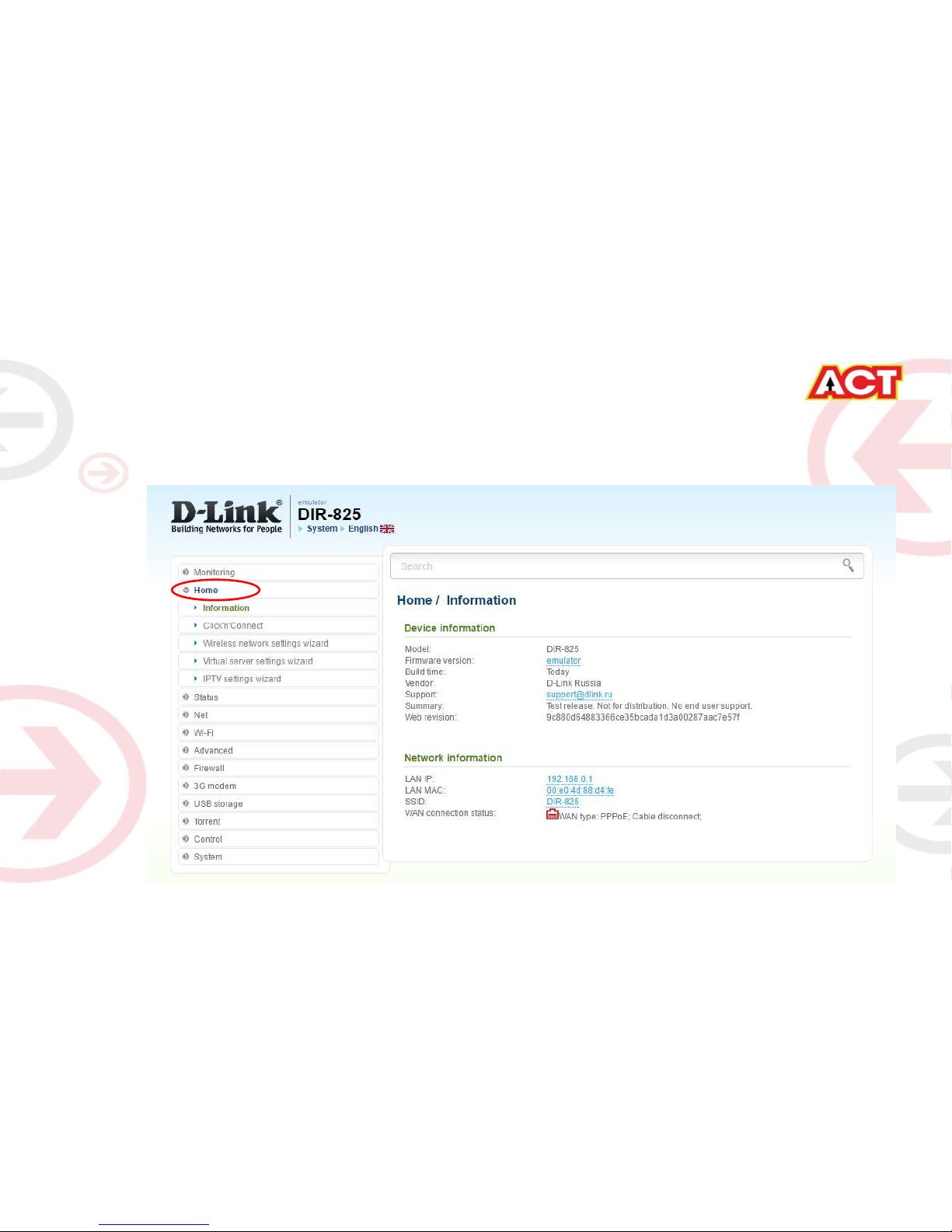

STEP 2.2: Home Page

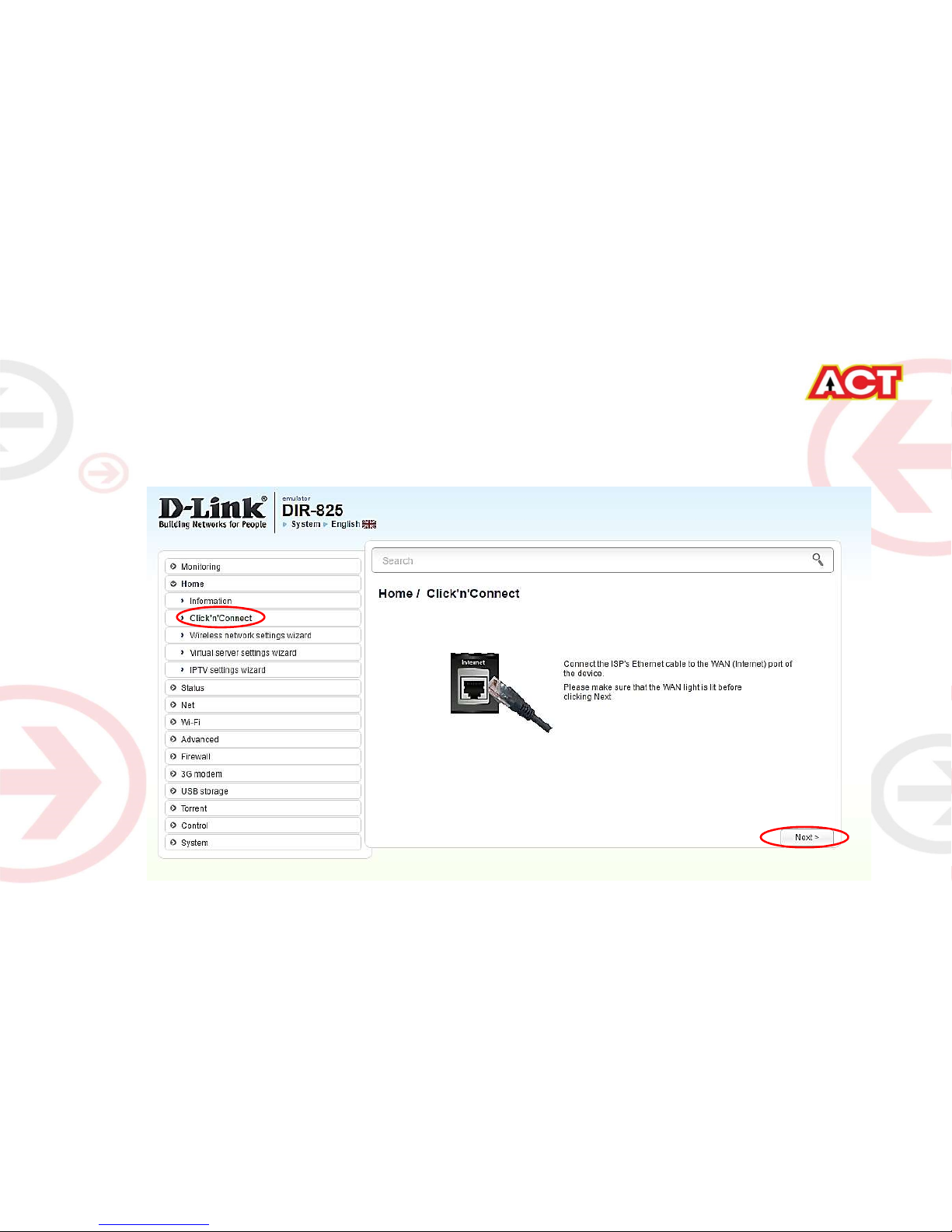

STEP 2.3: Click’n’Connect

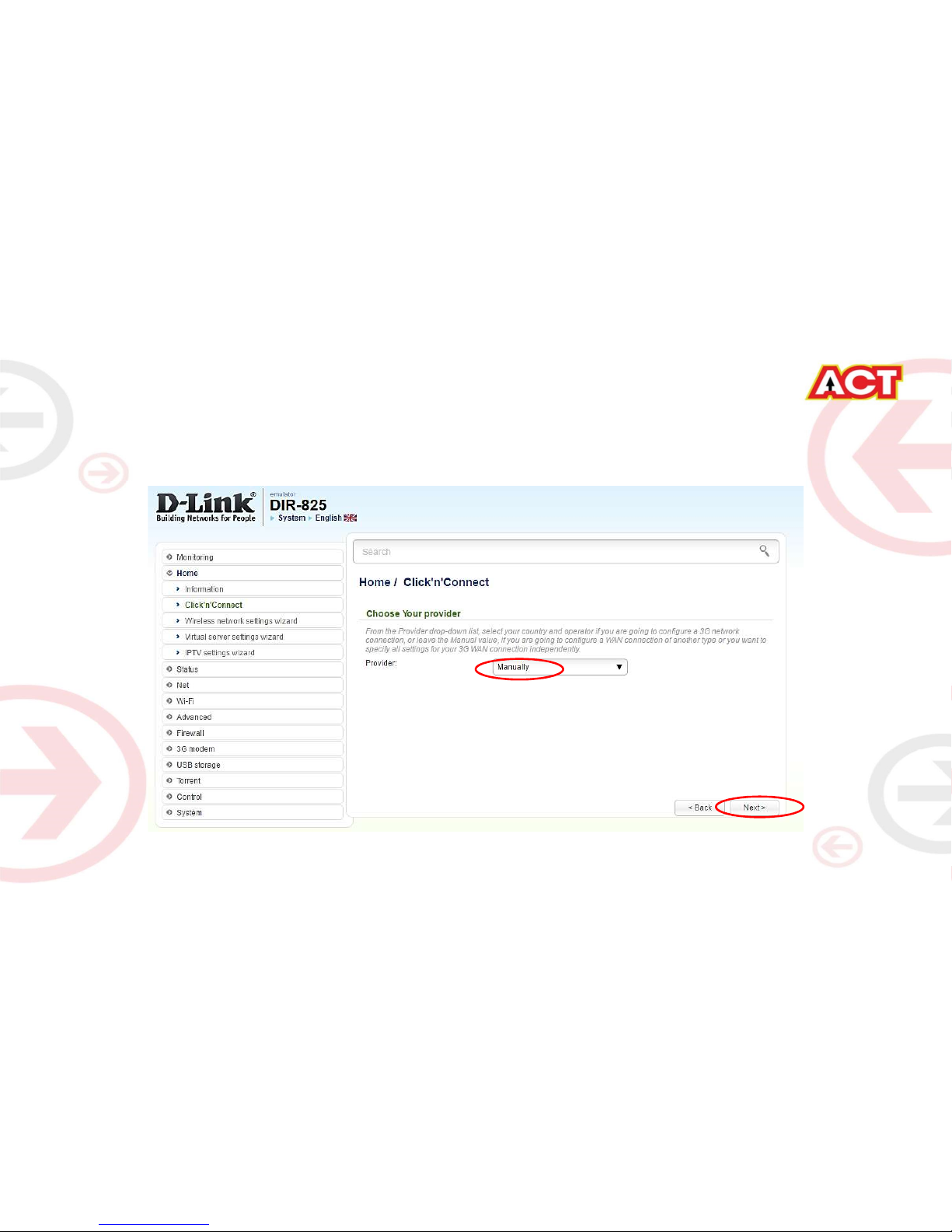

STEP 2.4:Under Click n connect > Provider Manually > Next

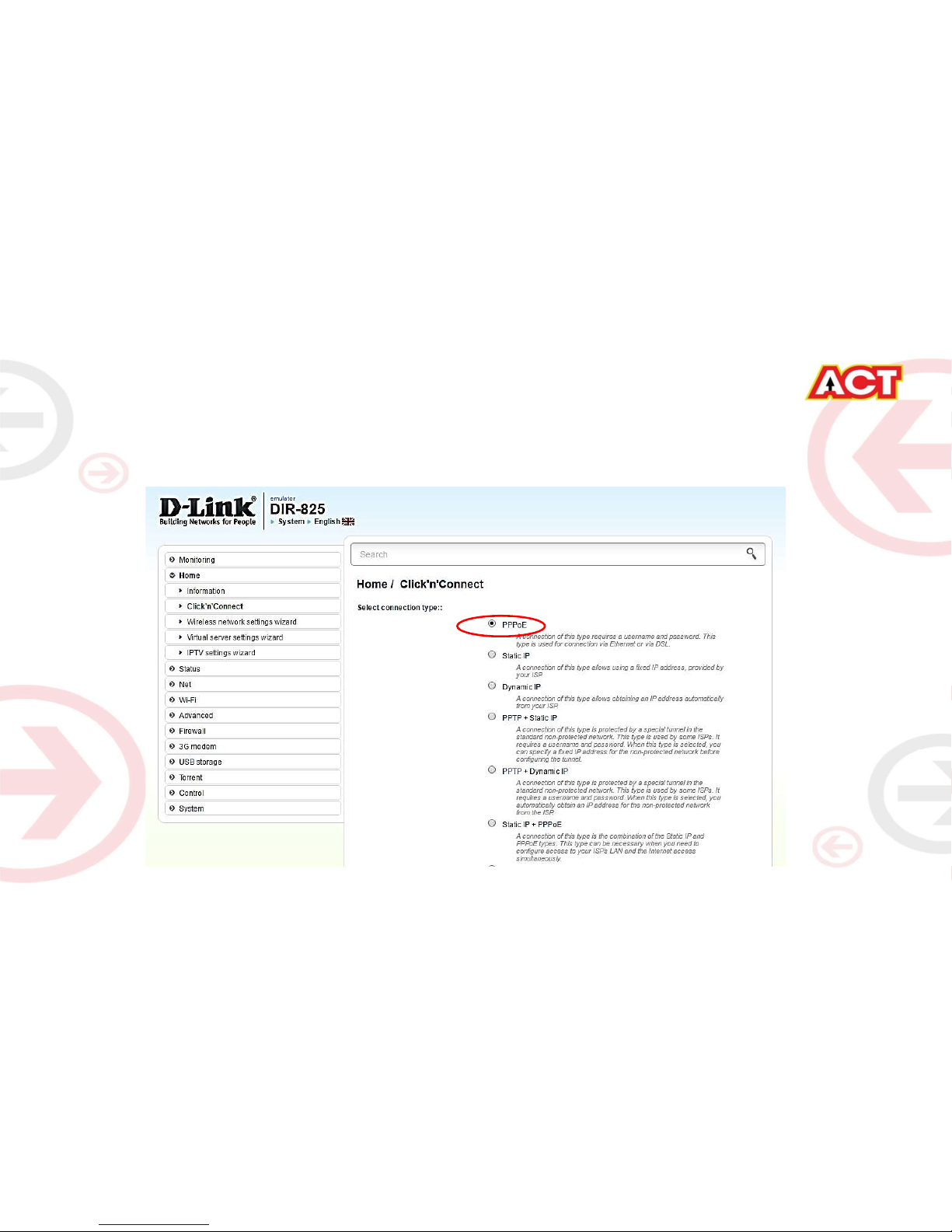

STEP 3.1: Internet Connectivity – PPPoE Configuration

Choose PPPoE in the connection type > Next
