D-MAX DCC-608DV Manuale utente
DISTRIBUTED BY
COLOR DOME CAMERA
USER MANUAL
DCC
-
608
DV

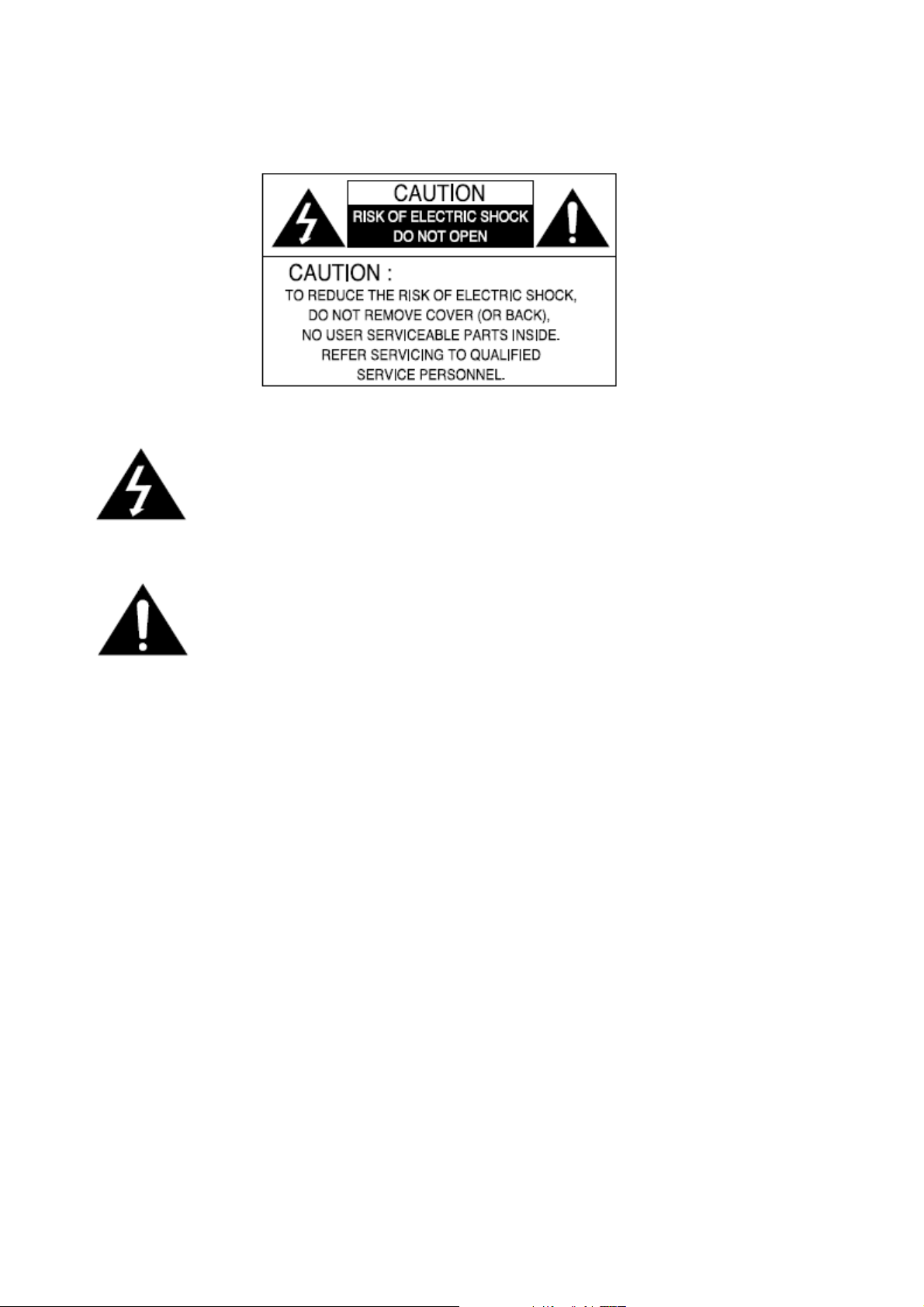

The lightning flash with an arrowhead symbol, within an equilateral
triangle is intended to alert the user to the presence of uninsulated
dangerous voltage within the product's enclosure that may be of
sufficient magnitude to constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert
the user to the presence of important operating and maintenance
(servicing) instructions in the literature accompanying the appliance.
INFORMATION - This equipment has been tested and found to comply with limits for a
Class A digital device, pursuant to part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference
when the equipment is operated in a commercial environment.
This equipment generates, uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the instruction manual, may cause
harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful interference in
which case the user will be required to correct the interference at his own expense.
WARNING - Changes or modifications not expressly approved by the
manufacturer could void the user’s authority to operate the equipment.
CAUTION : To prevent electric shock and risk of fire hazards:
Do NOT use power sources other than that specified.
Do NOT expose this appliance to rain or moisture.
Only use the camera under conditions
where temperatures are between
-10°C and +50°C. Be especially
careful to provide ventilation when
operating under high temperatures.
It can cause the image quality to be
poor.
Severe lighting change or flicker can
cause the camera to work improperly.
It is one of the most important parts of
the camera. Be careful not to be stained
by fingerprint.
■Precautions
☺Horizontal Resolution 560 TVLines
Clear image quality has been achieved by employing a SONY CCD with 410,000
(effective) pixels, which provides a horizontal resolution of 560 TV lines.
☺Wide Dynamic Range (WDR)
This camera allows the camera to find the best picture conditions in any environment and
automatically gives a necessary light level compensation, so you can always obtain
the clear picture, the finest detail and perfect light contrast.
☺Electronic IRIS
The electronic IRIS function enables continuous automatic control of the shutter between
1/60~1/120,000 seconds.
☺3Axis built-in Vandal Resistant Dome Housing
☺High Sensitivity
The built-in high sensitivity SONY COLOR CCD enables a clear image even in
0.3Lux or as low as 0.0002Lux with SENS-UP.
☺DNR (Digital Noise Reduction)
The amount of low illuminance noise has been significantly reduced, and the
signal-to-noise ratio (S/N ratio) as well as horizontal resolution have been improved,
resulting in a clear and sharp image display even in the dark.
1. Color Dome Camera 1 set
2. Screws 3 pcs
3. Wrench 1 pcs
4. Manual 1 pcs
⊙Features
⊙Components
POWE
VIDE
O
⊙ Dimension
⊙ Cable Connection
* How to install
① Fix the camera body on a ceiling or wall via 3 holes.
② You must make 2 screws loosen to adjust angle of the camera.
③ Set camera lens up toward object and Rejoin 2 screws.
⊙ Assemble
This part is camera lens
There are 2 screws to
adjust angle of camera.
This part is dome cover to protect
camera
There are 3 holes to fix camera on
a ceiling or wall
SIGNAL SYSTEM NTSC PAL
TOTAL/ EFFECTIVE PIXEL 410K / 380K Pixels 470K / 440K Pixels
IMAGE SENSOR 1/3” SONY Double density interline CCD
HORIZONTAL RESOLUTION Up to 560 TV Line
MINIMUM ILLUMINATION 0.3 Lux /F 1.2, 0.00004Lux with Sensitive Up
3.7 mm Manual Lens
4-9mmAuto Iris Lens
2.9-10mmAuto Iris Lens
LENS
9-22mmAuto Iris Lens
DNR Auto
WHITE BALANCE Auto
GAIN CONTROL Auto
LUMINANCE S/N RATIO More than 50dB (AGC Off)
SYNC. SYSTEM Internal
SHARPNESS Auto
VIDEO OUTPUT Composite output 75ohm terminated 1.0 Vpp,Y/C separate output
SHUTTER SPEED Auto/Manual(1/60~1/120,000) Auto/Manual(1/50~1/100,000)
OPERATING TEMPERATURE - 10 to℃50℃/ 30~90% RH
SUPPLIED VOLTAGE DC 12V, 50/60 Hz
POWER CONSUMPTION MAX. 300mA
DIMENSIONS φ112 x 83(H)
WEIGHT About 600g
⊙Specifications
