INSTRUCTION BOOK FOR

Advantage®Deluxe Electrol®

1. The case provides multiple attachment points for bolts,

cables, or threaded rod. Page 8 shows threaded rod installed.

The variable position-mounting bracket may be located

anywhere along the length of the case. It is recommended

to keep the brackets spaced evenly enough to distribute the

weight of the screen.

The case has a self-trimming lange around the bottom.

Ceiling tiles or drywall may be placed on top of this lange

to provide a inished appearance.

2. After securing the case in the ceiling check that the case

is level and plumb.

3. Install electrical connections that apply to your unit. Refer to

the following diagrams for proper installation. The diagrams

on page 5 are for standard controls; the diagrams on page 6

are for SCB100 controls and page 7 for SCB200 controls. The

terminal block for the wall switch connections is located

under the metal housing surrounding the junction box.

Remove two screws for access.

Case Installation

Important Safety Instructions

When using your video equipment, basic safety precautions

should always be followed, including the following:

1. Read and understand all instructions before using.

2. Position the cord so that it will not be tripped over, pulled,

or contact hot surfaces.

3. If an extension cord is necessary, a cord with a current rating

at least equal to that of the appliance should be used. Cords

rated for less amperage than the appliance may overheat.

4. To reduce the risk of electric shock, do not disassemble this

appliance. Contact an authorized service dealer when repair

work is required. Incorrect reassembly can cause electric

shock when the appliance is used subsequently.

5. The use of an accessory attachment not recommended by

the manufacturer may cause a risk of ire, electric shock,

or injury to persons.

Save These Instructions

Pre-Installation

1. Carefully unpack screen and remove outer wrapping

from case.

2. Make sure to recheck measurements of screen location

before installation.

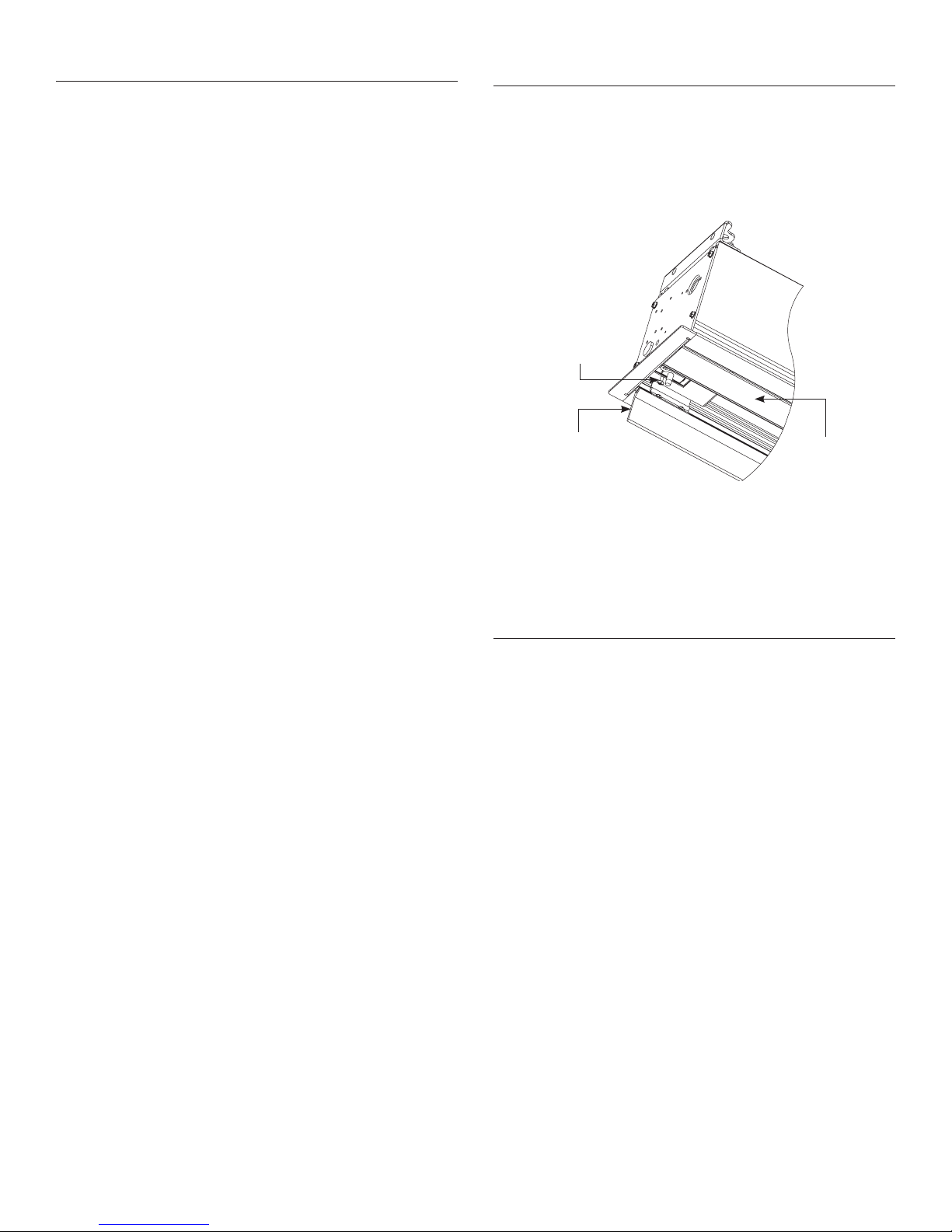

Figure 1

Fabric Door Access

Door

Screw For

Securing Roller

Access Door

Screen And Roller Assembly Installation

If your screen was shipped with the motor and roller already installed proceed to step 6.

1. Remove the screw from each end of the access door

(front door) and open the door. See igure 1.

2. Carefully unpack screen and roller assembly. Leave packing

paper on the roller.

3. Place the roller assembly into the case with the motor on

the left side. The limit switches should be facing down. Line

up the square pin on the motor with the square hole in

the bracket.

4. Lift the pin end (right end) of the roller into position and slide

the bracket onto the roller pin. Tighten two nuts to secure

the bracket.

5. Complete electrical hook-up by snapping motor wire

connector into case connector.

CAUTION! Do not cut tape on fabric with a knife or any

sharp tool. Remove by hand.

ATTENTION! Ne coupez pas le ruban adhésif sur la toile

avec un couteau ou un outil tranchant. Retirez à la main.

6. Carefully remove tape strips securing picture surface around

roller. Slat should move freely (Fig. 2). (Only if the roller

assembly is preinstalled.)

7. Test installation by operating the screen several times. Be

prepared to stop the screen. Standard Duty Cycle: 1 MIN. ON/3

MIN. OFF. The fabric door (rear door) will not close until the

wall switch is placed in the up position and when the screen

motor stops at its limit switch in the up direction.

NOTE: Excessive continuous operation may cause the motor

to overheat. If this happens the motor will shut of until it

cools to a normal operating temperature.

8. Run the screen down enough to open the fabric door. Close

the access door and reinstall the screws to secure the door.

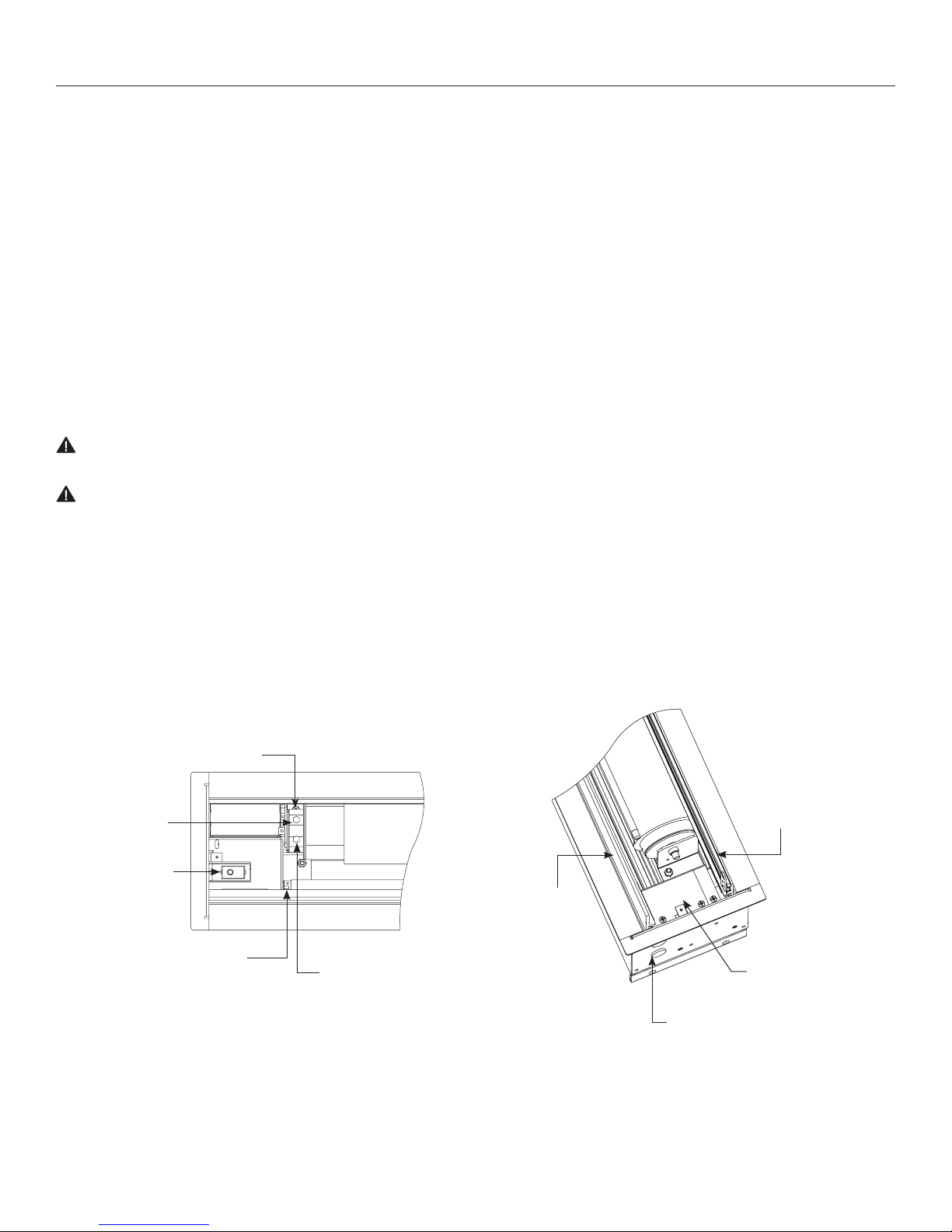

Figure 2 Figure 3

Screen Motor

White

Adjustment

Knob "Down"

Door

Microswitch

Fabric

Door

Knockouts For

Conduit Installation

SCB100/SCB200

Access Cover

Access Door

Door Motor Black

Adjustment

Knob "Up"

Screen Adjustment

NOTE: Use a screw driver or 5/32" Allen wrench to make adjustments.

More Screen Drop

1. Place operating switch in “down” position.

2. When the screen stops, turn the white “down” limit knob (Fig.

2) one-quarter turn counterclockwise. Test by raising picture

surface approximately two feet, then lower again. Repeat until

desired picture surface position is attained.

CAUTION: Do not adjust for more drop than what was

ordered. At least 11/2 wraps of fabric must remain on the

roller. This screen comes standard with 0" or 2" black at

the top. See the speciication data sheet for details.

ATTENTION! N'efectuez pas de réglage pour obtenir un

déroulement supérieur à celui commandé. Au moins 1 à 1/2

tour de toile doit être maintenu sur le cylindre. Cet écran est

doté de série d'une bande noire supérieure de 0 cm (0 po) ou

5 cm (2 po). Consultez la iche technique pour plus de

renseignements.

Less Screen Drop

1. Raise picture surface approximately two feet above

desired level.

2. Place operating switch in “of”position.

3. Turn the white “down” limit switch (Fig. 2) one-quarter turn

clockwise. Test by raising picture surface approximately two

feet, then lower again. Repeat until desired picture surface

position is attained.

Contact Da-Lite at 8006223737 if door motor needs

adjustment.

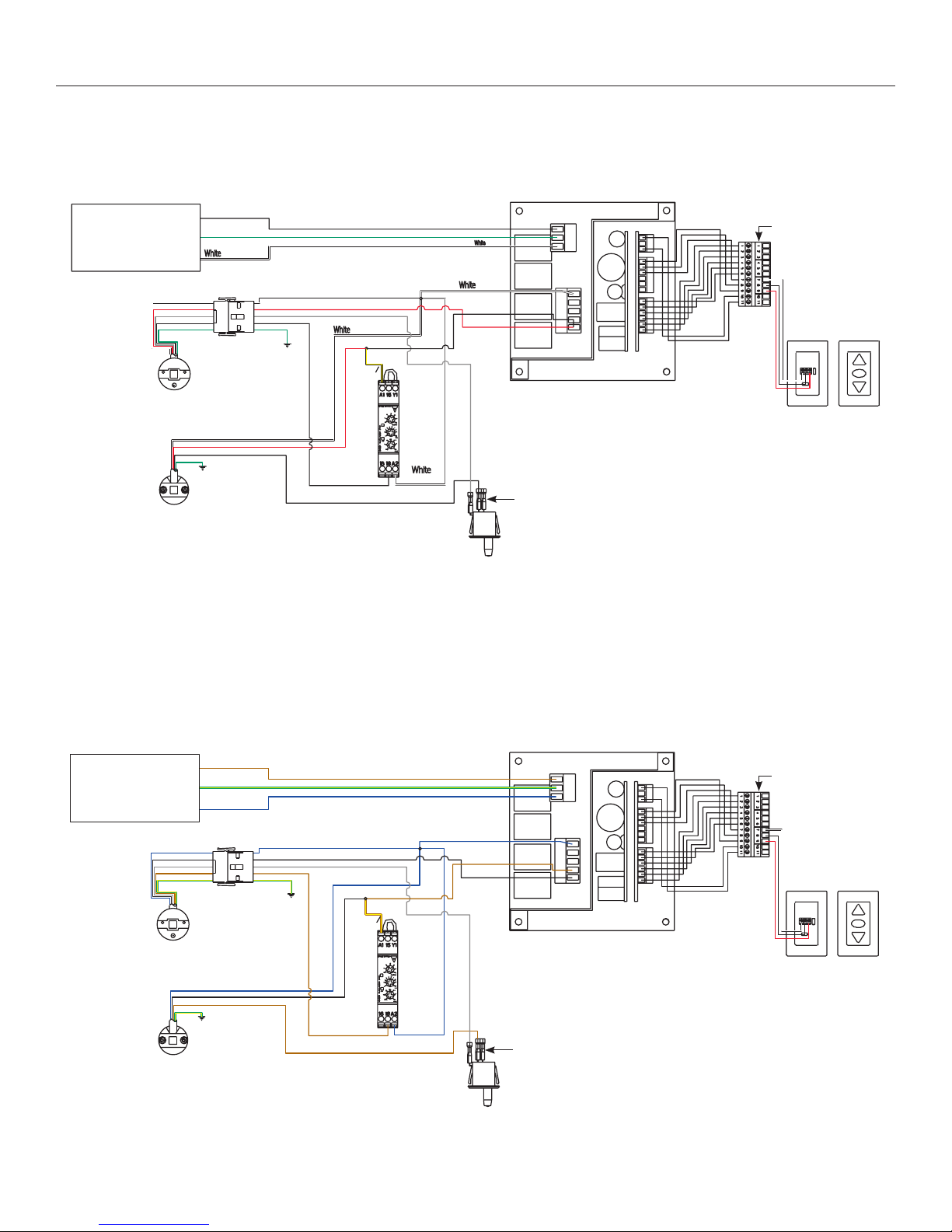

Advantage®Deluxe Electrol®Instructions For Standard Control

220/240V Wiring Diagram

120V Wiring Diagram

Screen Motor

Black (Down)

Red (Up)

Black (Down)

WHITE (Common)

Optional RF or IR

Remote Connector

Optional RF or IR

Remote Connector

White (Common)

Blue (Common)

Black (Hot)

Brown (Hot)

Green (Ground)

Green/Yellow (Ground)

Power Input

120VAC/60HZ

Power Input

240VAC/50HZ

Door Motor

DOWN

STOP

NOTE: Electrical connections

on left end of case.

Not Used

AUX EYE

Not Used

WHITE (Common)

NOTE: 2024AWG Wire Recommended

For Connecting Wall Switch to the Dual

Motor Controller

NOTE: 2024AWG Wire Recommended

For Connecting Wall Switch to the Dual

Motor Controller

Door Microswitch

Front of

Wall

Switch

Front of

Wall

Switch

Back of

Wall

Switch

Back of

Wall

Switch

Black (Down)

WHITE (Common)

Red (Up)

Red (Down)

WHITE (Common)

Red (Up)

Black (Down)

Green (Ground)

WHITE (Common)

Red (Up)

Black (Down)

Green (Ground)

WHITE (Common)

Red (Down)

Black (Up)

Green (Ground)

WHITE (Common)

Red (Down)

Black (Up)

Green (Ground)

NOTE: Electrical connections

on left end of case.

DOWN

STOP

WHITE (Common)

Red (Up)

Black (Down)

Brown (Up)

Brown (Down)

Blue (Common)

Black (Up)

Black (Down)

Blue (Common)

Black (Up)

Black (Down)

Brown (Down)

Brown (Up)

Green/Yellow (Ground)

Blue (Common)

Black (Up)

Black (Down)

Brown (Down)

Brown (Up)

Green/Yellow (Ground)

Not Used

Red (Up)

Black (Down)

WHITE (Common)

Not Used

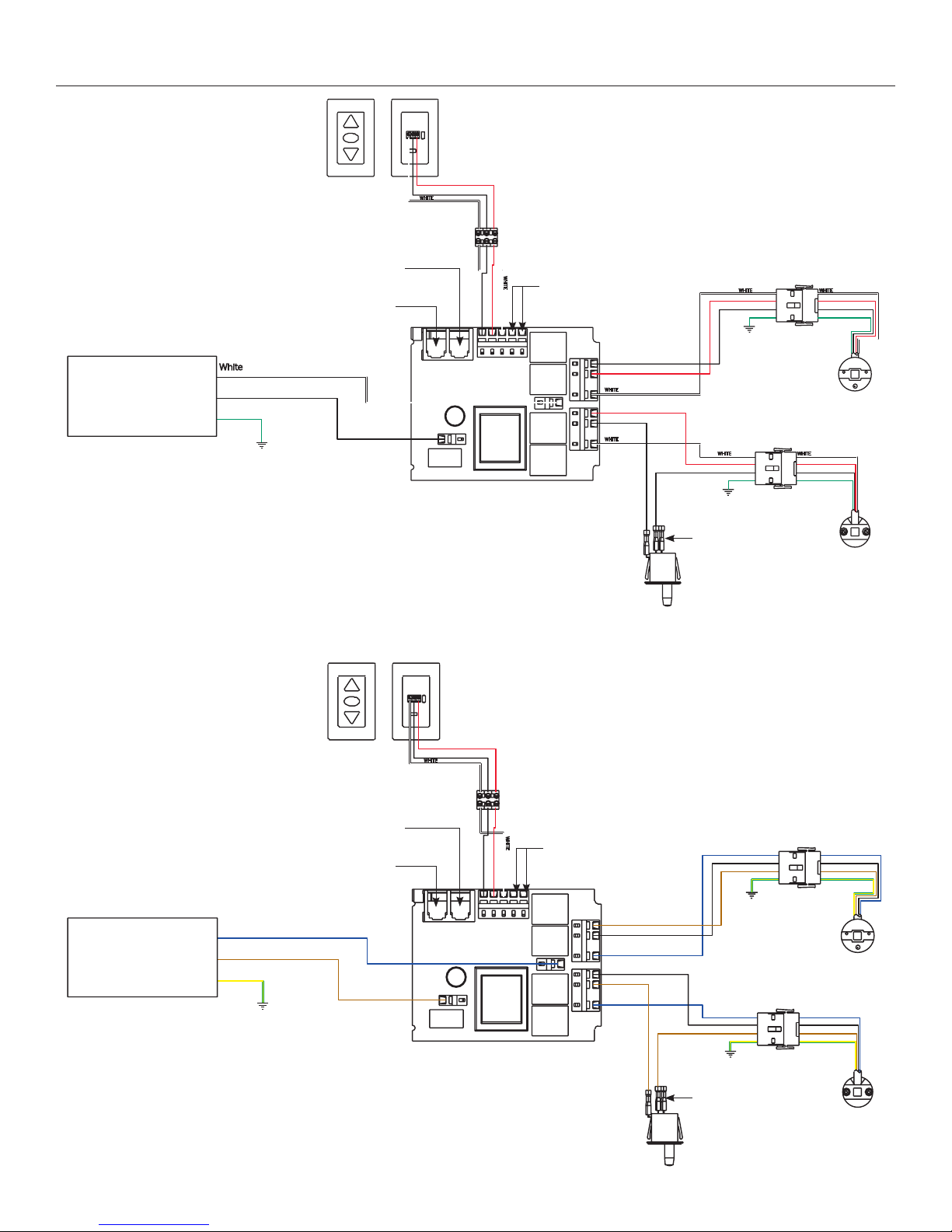

Advantage®Deluxe Electrol®Instructions SCB100 Control

Brown (Hot)

Green/Yellow (Ground)

Blue (Common)

Power Input

240VAC/50HZ

DOWN

STOP

Back Of Front Of

Wall Switch Wall Switch

Screen Motor

Door Motor

Terminal Block

TX - Data Out

G - Ground

RX - Data In

TX - Data Out

G - Ground

RX - Data In

White (Common)

Black (Down)

Red (Up)

- 12VDC Out

+ 12VDC Out

Screen and Door Motor, Microswitch

and Timer Relay Are Located on Left

Side of Screen Housing.

Door Microswitch

Blue

(Common)

Brown (Up)

Brown (Down)

Blue (Common)

Black (Up)

Gray (Door)

Brown (Down)

Green/Yellow (Ground)

Blue (Common)

Black (Down)

Brown (Down)

Green/Yellow (Ground)

Blue (Common)

Black (Up)

Gray (Door)

Brown (Down)

Green/Yellow (Ground)

Brown/

Yellow

Black (Down)

Blue (Common)

Brown (Down)

Black (Up)

Brown (Hot)

Green/Yellow (Ground)

Blue (Common)

NOTE: 2024AWG Wire

Recommended for Connecting Wall

Switch to the Dual Motor Controller

220/240V Wiring Diagram

Power Input and Control Board are Located on

Right Side of Screen Housing.

120V Wiring Diagram

Power Input and Control Board are Located on

Right Side of Screen Housing.

Black (Hot)

Green (Ground)

White (Common)

Power Input

120VAC/60HZ

DOWN

STOP

Back Of Front Of

Wall Switch Wall Switch

Screen Motor

Door Motor

TX - Data Out

G - Ground

RX - Data In

TX - Data Out

G - Ground

RX - Data In

White (Common)

Black (Down)

Red (Up)

- 12VDC Out

+ 12VDC Out

Screen and Door Motor, Microswitch

and Timer Relay Are Located on Left

Side of Screen Housing.

Door Microswitch

White

(Common)

Black (Up)

White (Common)

Red (Down)

Black (Up)

Green (Ground)

Black (Down)

White (Common)

Red (Up)

Gray (Door)

Black (Down)

Green (Ground)

White (Common)

Red (Up)

Gray (Door)

Black (Down)

Green (Ground)

Black/

Yellow

Red (Down)

White (Common)

Black (Down)

Black (Hot)

Green (Ground)

White (Common)

NOTE: 2024AWG Wire

Recommended For Connecting Wall

Switch to the Dual Motor Controller

Red (Up)

Terminal Block

Not Used

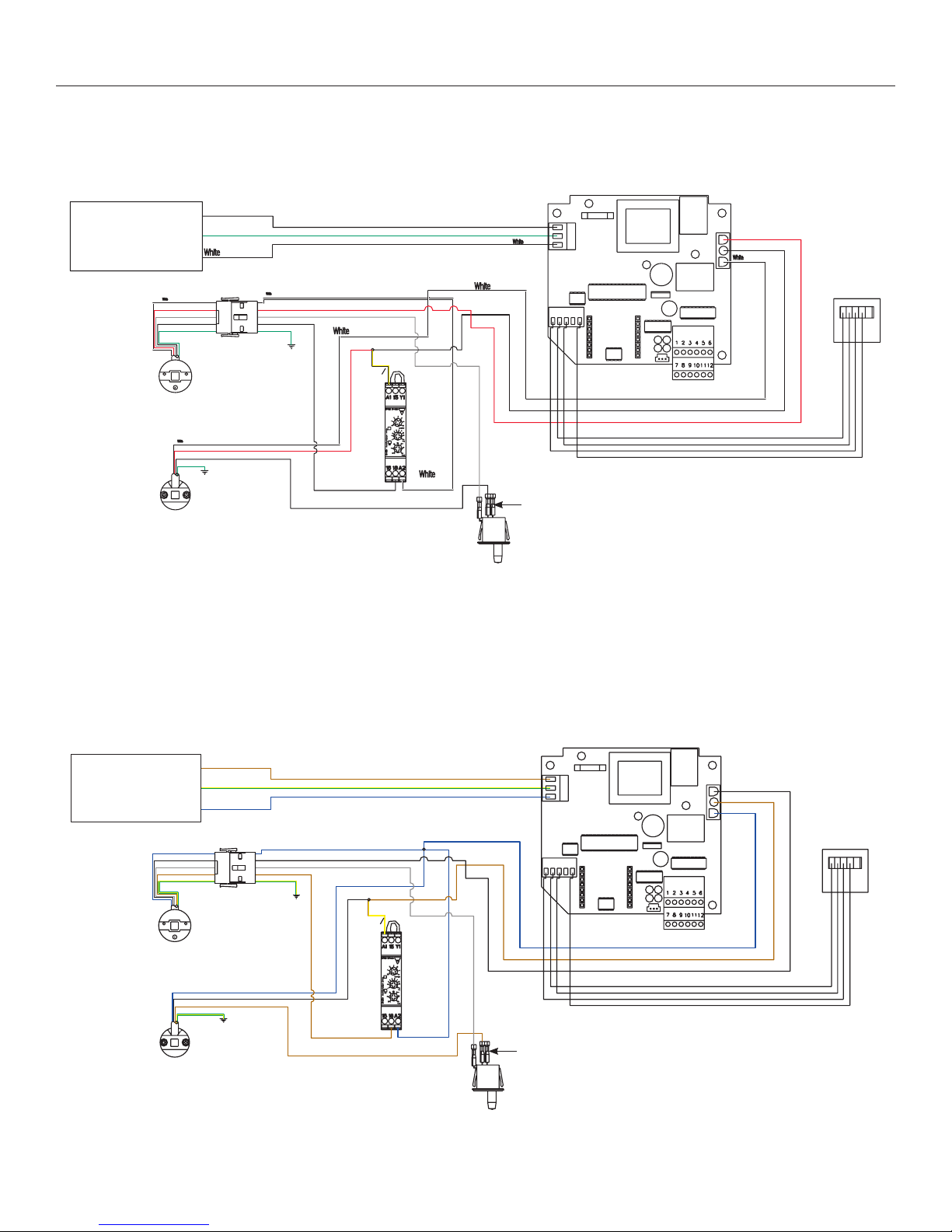

Advantage®Deluxe Electrol®Instructions SCB200 Control

Blue (Common)

Black (Down)

Brown (Down)

Green/Yellow (Ground)

120V Wiring Diagram

Power Input and Control Board are Located on

Right Side of Screen Housing.

220/240V Wiring Diagram

Power Input and Control Board are Located on

Right Side of Screen Housing.

Brown (Hot)

Green/Yellow (Ground)

Blue (Common)

Power Input

240VAC/50HZ

Encoder

5V A B GND

Screen Motor

Door Motor

Screen and Door Motor, Microswitch

and Timer Relay Are Located on Left

Side of Screen Housing.

Door Microswitch

Blue

(Common)

Brown (Up)

Brown (Down)

Blue (Common)

Black (Up)

Gray (Door)

Brown (Down)

Green/Yellow (Ground)

Blue (Common)

Black (Up)

Gray (Door)

Brown (Down)

Green/Yellow (Ground)

Black (Down)

Blue (Common)

Brown (Down)

Black (Up)

Brown (Hot)

Green/Yellow (Ground)

Blue (Common)

Black (Up)

Brown (Down)

Blue (Common)

B + A -

Black (Hot)

Green (Ground)

White (Common)

Power Input

120VAC/60HZ

Encoder

5V A B GND

Screen Motor

Door Motor

Screen and Door Motor, Microswitch

and Timer Relay Are Located on Left

Side of Screen Housing.

Door Microswitch

White

(Common)

Black (Up)

White (Common)

Red (Up)

Black (Down)

Green (Ground)

Black (Down)

White (Common)

Red (Up)

Gray (Door)

Black (Down)

Green (Ground)

White (Common)

Red (Up)

Gray (Door)

Black (Down)

Green (Ground)

BLACK/

YELLOW

Red (Down)

White (Common)

Black (Down)

Red (Up)

Black (Hot)

Green (Ground)

White (Common)

Red (Up)

Black (Hot)

White (Common)

B + A -

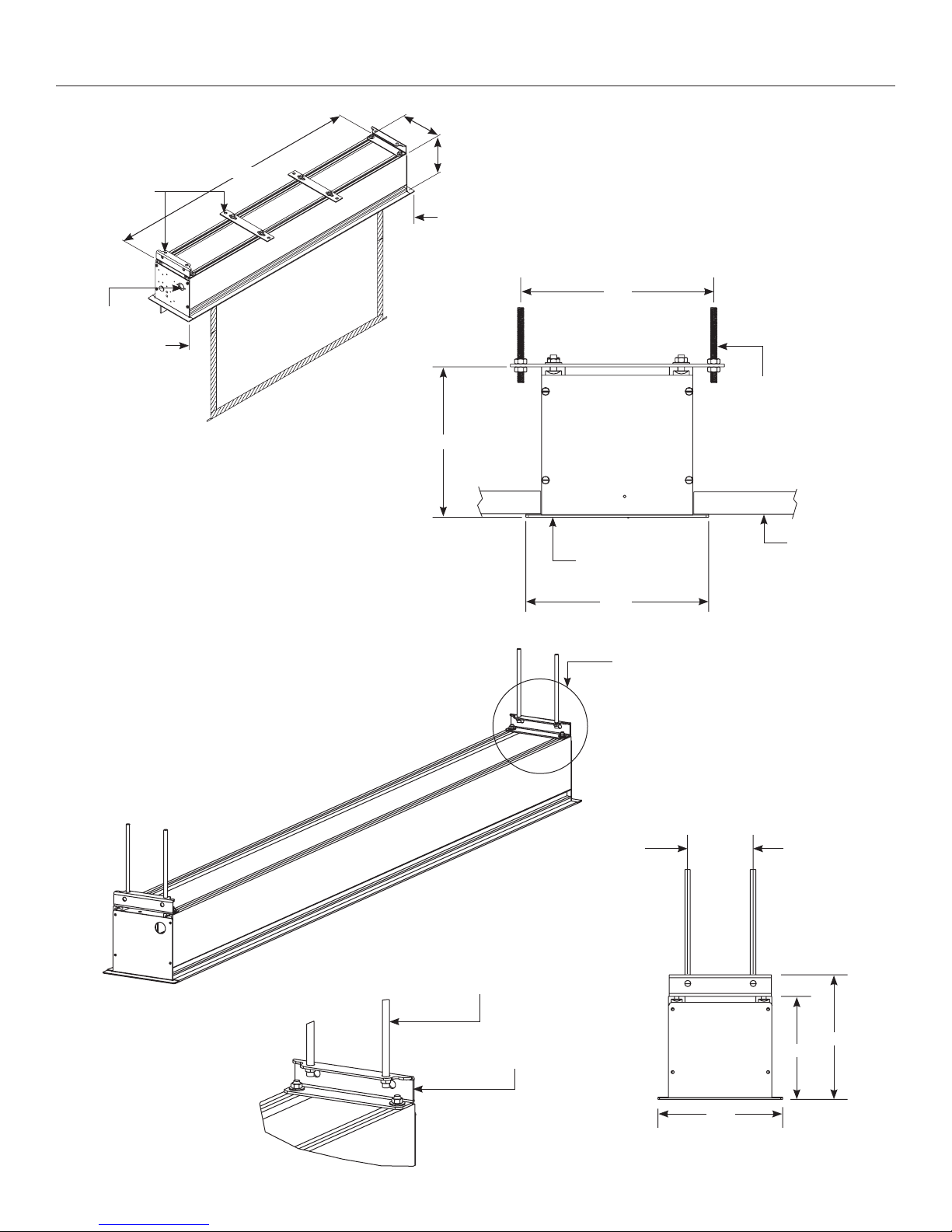

Advantage®Deluxe Electrol®Installation

See Detail A

(Suggested) ⅜"

Threaded Rod (Not

Included)

4.59"

Detail A

Hanger Bracket

Flat Bar Mounting Method

Formed Bracket

Mounting Method

Case Length

Variable Position

Mounting Brackets

7 ¼"

6 ⅛"

Motor End

Electrical

Junction Box

6 ⁄"

(Suggested) ⅜"

Threaded Rod

(Not Included)

Attached to

Mounting

Bracket

9 ¼"

Finished

Ceiling

Self-Trimming

Flange

8 ¾"

7 ¼"

8.75"

7.21" 8.74"

Troubleshooting

Visit www.da-lite.com to ind installation and troubleshooting

tutorials. You will also ind a link to Live Chat for interactive

support and you can contact us by email at info@da-lite.com or

by phone at (800) 6223737 or (574) 2678101 with any

troubleshooting questions.

Symptom Cause Solution

If screen is not responding

properly and SCB100 or

SCB200 controls are used,

contact the factory for

troubleshooting assistance.

Screen will not operate or will

not go “down”.

Motor does not hum.

Motor hums.

Incorrect line voltage. Verify 115125V (or 220240V). If insuicient voltage,

rewire incoming electric line.

Blown facility fuse. Replace facility fuse.

Tripped facility circuit breaker. Reset facility circuit breaker.

No power to operating switch

or junction box.

Check above. Tighten all loose wire connections.

Recheck wiring. See installation instructions.

"Down" Position

Check for power across black and white leads.

Power at junction box.

Thermal overload tripped. Let motor cool down for 15 minutes. Try again.

Broken wire in the “down” position. Check for continuity.

Defective motor, limit switch or capacitor. Replace motor assembly. NOTE: Motor is a sealed assembly.

Capacitor burned out. Replace motor assembly.

Screen will not move upward.

Motor does not hum.

Motor hums.

Incorrect line voltage. Verify 115125V (or 220240V). If insuicient voltage,

rewire incoming electric line.

Blown facility fuse. Replace facility fuse.

Tripped facility circuit breaker. Reset facility circuit breaker.

No power to operating switch or junction box.

Check above. Tighten all loose wire connections. See above

"Up" Position

Check for power across red and white leads.

Open door limit switch. Replace switch.

Power at junction box. Thermal overload tripped. Let motor cool down for 15 minutes. Try again.

Broken wire in the “up” position. Check for continuity.

Defective motor, limit switch or capacitor. Replace motor assembly. NOTE: Motor is a sealed assembly.

Capacitor burned out. Replace motor assembly.

Troubleshooting

Symptom Cause Solution

Door will not open.

Hinge is bound or has a foreign substance on it

which does not allow it to open by gravity.

Check installation to free door. Clear any foreign

substance; i.e., paint or plaster from hinge.

No power. See above.

Door does not close.

Open door limit switch. Replace switch.

No power from screen motor. Replace screen motor

“Down” limit switch incorrect.. “Down” limit switch out of adjustment. See installation instructions.

Noise.

NOTE: Screen will operate with

a low-pitched hum.

Buzzing noise. Adjust door limit switch (too far down).

Gear noise Replace motor assembly.

Coasting. Defective brake. Replace motor assembly.

Roller displaced from mounting

bracket. Pin end slipped out of nylon bearing Realign pin end bracket.

Fabric hangs crooked.

Screen not installed properly. Check for level and plumb.

Fabric is damaged. Replace fabric.

Door closes before screen is all

the way up. Screen “up” limit out of adjustment. Adjust “up” limit (call factory for instructions).

Door opens but screen does not

operate. Loose wire. Check all wiring and connections..

Altri manuali per ADVANTAGE DELUXE ELECTROL

Indice

Altri manuali Da-Lite Schermo di proiezione

Da-Lite

Da-Lite Contour Electrol Manuale utente

Da-Lite

Da-Lite Da-Snap 74610 Manuale utente

Da-Lite

Da-Lite LARGE ADVANTAGE DELUXE ELECTROL Manuale utente

Da-Lite

Da-Lite DESIGNER DA-TAB ELECTROL Manuale utente

Da-Lite

Da-Lite Da-Glas Manuale utente

Da-Lite

Da-Lite Senior Electrol Manuale utente

Da-Lite

Da-Lite IDEA Screen Manuale utente

Da-Lite

Da-Lite UTB Contour Manuale utente

Da-Lite

Da-Lite electrol Manuale utente

Da-Lite

Da-Lite ADVANTAGE ELECTROL Manuale utente

Da-Lite

Da-Lite Viewshare Advantage Electrol Manuale utente

Da-Lite

Da-Lite DESIGNER ELECTROL Manuale utente

Da-Lite

Da-Lite Fast-Fold NXT Manuale utente

Da-Lite

Da-Lite Viewshare tensioned Advantage Electrol Manuale utente

Da-Lite

Da-Lite C Manuale utente

Da-Lite

Da-Lite DESIGNER CONTOUR ELECTROL Series Manuale utente

Da-Lite

Da-Lite ASCENDER ELECTROL Manuale utente

Da-Lite

Da-Lite TILT-LOCK Manuale

Da-Lite

Da-Lite Da-Snap Screen Manuale utente

Da-Lite

Da-Lite Cosmopolitan Electrol Manuale utente

Da-Lite

Da-Lite Whiteboard Mount Manuale utente

Da-Lite

Da-Lite Large advantage electrol Manuale utente

Da-Lite

Da-Lite Contour Electrol Manuale utente

Da-Lite

Da-Lite Picture King Manuale utente

Manuali Schermo di proiezione popolari di altre marche

FART PRODUKT

FART PRODUKT Standard SCREEN Manuale utente

Draper

Draper E Series Manuale

Elite Screens

Elite Screens Elite Tripod Series Manuale utente

Laarhoven

Laarhoven Companion II Manuale utente

Renogy

Renogy RMS-LFPS-US Manuale utente

Samsung

Samsung S*H65* Manuale utente

FONESTAR

FONESTAR PPTR-43100-FA Manuale utente

Slide Clear

Slide Clear Varro XL Manuale utente

Elite Screens

Elite Screens M85XWS1-SRM Manuale utente

OS РХ-090Н Manuale utente

Niko

Niko 10-845 Manuale utente

Speaka Professional

Speaka Professional 2357532 Manuale operativo

Sima

Sima XL-72 Manuale utente

Jasic

Jasic EVO 2.0 ET-200P Manuale utente

Elite Screens

Elite Screens Starling 2 Series Manuale utente

InFocus

InFocus SC-WALL GRY-92H Manuale

Barco

Barco OverView MVL-615 Manuale utente

Draper

Draper Envoy Manuale
