Da-Lite Model C With CSR Manuale utente

INSTRUCTION BOOK FOR

Model C With CSR

(Controlled Screen Return)

Pre-Installation To Open Screen

To Re-Roll Your Picture Surface

Wall Mounting

Ceiling Mounting Protect Your Screen

Model C with CSR (Controlled Screen Return) is a feature ofered

exclusively by Da-Lite to assist the quiet controlled return of the

screen into the case.

You Have Made A Wise Selection…

in choosing a Da-Lite projection screen, designed and

engineered to produce the sharpest, most pleasing pictures with

maximum convenience.

Pull down on pull bail until desired picture area is obtained. Lock

into position as on a window shade. Be sure surface is locked

before releasing.

NOTE: This screen will not lock into position in the upper portion

of its travel.

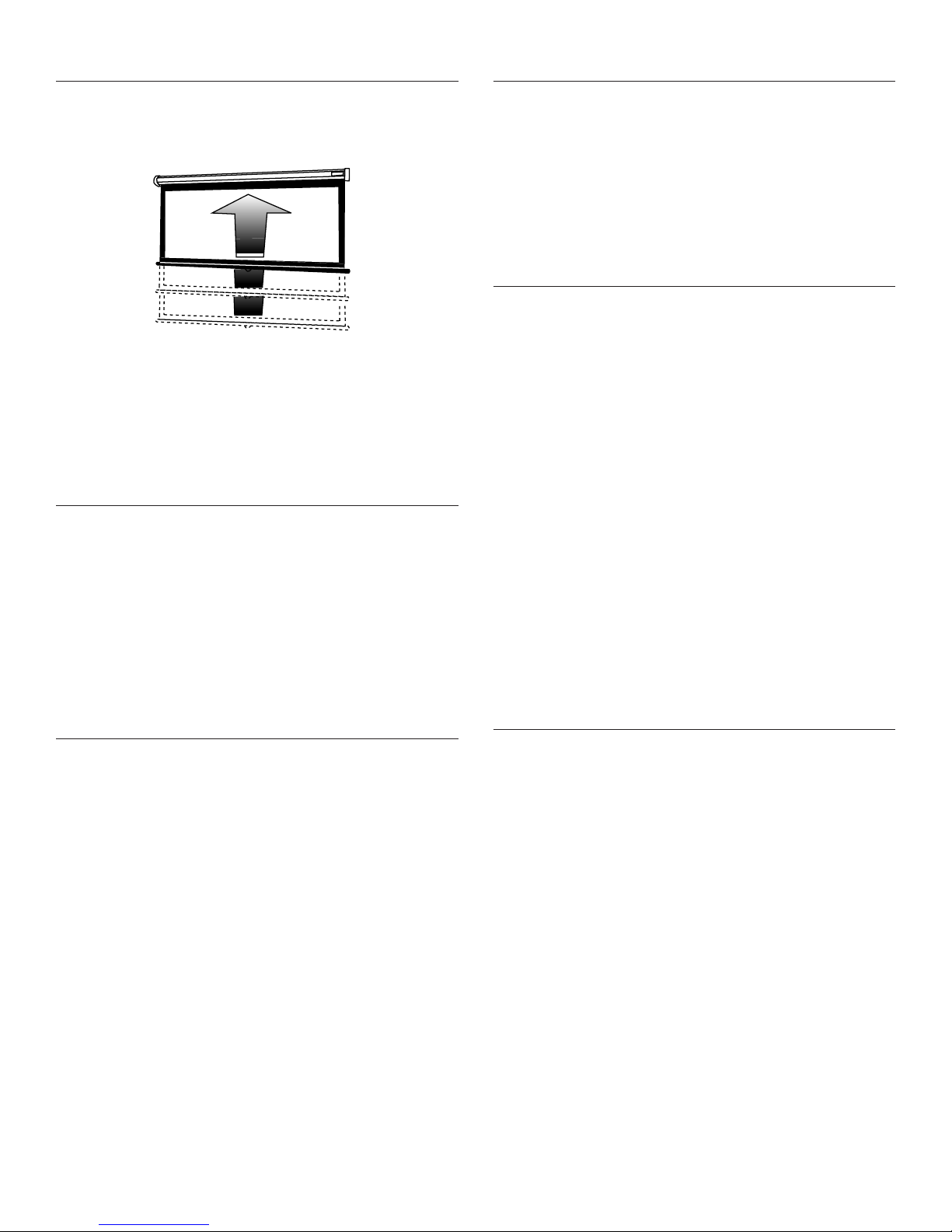

The Model C operates on the same principle as a window shade.

Pull down about 4 inches to disengage the locking dog and start

the fabric up irmly and quickly.

Large picture surfaces are heavy and will start up too slowly to

prevent the locking dog from catching unless help is provided,

so keep picture surface moving briskly.

Should the locking dog catch, pull the picture surface down

about 4 inches and start the surface up rapidly.

The CSR feature of this screen will allow the screen to stop, as

normal, in the bottom portion of its travel. The screen will not

stop in the top portion of its travel, but will continue slowly and

gently into the case.

To view an online Model C with CSR retraction tutorial,

please visit http://www.da-lite.com/products/product_lash/

modelc_csr/.

1. Select fasteners of proper type for wall or ceiling involved.

2. Insert fasteners through proper openings provided in back side

of end caps.

3. Attach screen securely to studding or other solid surface - never

to plaster only.

4. MAKE SURE SCREEN IS MOUNTED LEVEL.

1. Heavy screw hooks may be installed into wood joists. Other

types of hooks or chain may be used for other ceilings or for

stage installations.

2. Insert hooks or chain through proper openings provided in

sides of end caps. Screen must hang so that lat back of case

is perpendicular to loor.

3. MAKE SURE SCREEN IS MOUNTED LEVEL.

Before re-rolling surface into case, examine both front and back

of surface to be sure they are free of foreign matter.

Suggested Methods Of Installation

For Wall

For Ceiling

Wall Mounted

Picture Surface

Ceiling Hanging

Picture Surface

Use No. 6 Brackets

To Hang Behind

Beam Or Valance


Surface

Concealed

(Allow Room For Access)

Troubleshooting

Symptom Cause Solution

Screen is retracting too slowly.

Over 8 seconds retracting from

the bottom into the case.

The CSR adjustment is not correct. Retract screen completely, and then rotate

CSR shaft 1/2 turn at a time counterclockwise.

Screen is retracting too fast.

Under 3 seconds retracting

from the bottom into the case.

The CSR adjustment is not correct. Retract screen completely, and then rotate

CSR shaft 1/2 turn at a time clockwise.

Screen is retracting too slowly, and

then slams the case when adjusted

counterclockwise.

The CSR unit (shock absorber) is too strong. Reset the CSR unit. Call Da-Lite (8006223737)

for detailed instructions.

Screen does not retract.

Retraction procedure*. Pull the screen down, and then retract irmly and quickly.

The CSR has been over adjusted

counterclockwise.

The CSR unit is jammed. Reset or replace the CSR unit.

Call Da-Lite (8006223737) for detailed instructions.

The roller tube is bent and binding. Replace the screen.

Screen does not stay down.

Locking procedure. Pull the screen down, and then slowly

retract until it locks.

Dog is not locking. Retract screen completely, and then rotate

CSR shaft 1/2 turn counterclockwise.

*To view an online Model C with CSR retraction tutorial, please visit http://www.da-lite.com/products/product_lash/modelc_csr/

LIMITED ONE YEAR WARRANTY ON DALITE PRESENTATION PRODUCTS

Milestone AV Technologies LLC warrants certain Da-Lite branded products to the original purchaser only, to be free from defects in

materials and workmanship for a period of one (1) year from the date of purchase by the original purchaser; provided they are properly

operated according to Da-Lite's instructions and are not damaged due to improper handling or treatment after shipment from the

factory.

This warranty does not apply to equipment showing evidence of misuse, abuse or accidental damage, or which has been tampered

with or repaired by a person other than authorized Da-Lite personnel.

Da-Lite’s sole obligation under this warranty shall be to repair or to replace (at Da-Lite’s option) the defective part of the merchandise.

Returns for service should be made to your Da-Lite dealer. If it is necessary for the dealer to return the screen or part to Da-Lite,

transportation expenses to and from Da-Lite are payable by the purchaser and Da-Lite is not responsible for damage in shipment.

To protect yourself against damage or loss in transit, insure the product and prepay all transportation expenses.

TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, THIS WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESS

OR IMPLIED, INCLUDING WARRANTIES AS TO FITNESS FOR USE AND MERCHANTABILITY. Any implied warranties of itness for use,

or merchantability, that may be mandated by statute or rule of law are limited to the one (1) year warranty period. This warranty gives

you speciic legal rights, and you may also have other rights, which vary from state-to-state. TO THE MAXIMUM EXTENT PERMITTED

BY APPLICABLE LAW, NO LIABILITY IS ASSUMED FOR EXPENSES OR DAMAGES RESULTING FROM INTERRUPTION IN OPERATION

OF EQUIPMENT, OR FOR INCIDENTAL, DIRECT, OR CONSEQUENTIAL DAMAGES OF ANY NATURE.

In the event that there is a defect in materials or workmanship of a Da-Lite product, you may contact our Sales Partners at PO Box 137,

Warsaw, IN 465810137, (574) 2678101, (800) 6223737.

IMPORTANT: THIS WARRANTY SHALL NOT BE VALID AND DALITE BRANDED PRODUCTS SHALL NOT BE BOUND BY THIS

WARRANTY IF THE PRODUCT IS NOT OPERATED IN ACCORDANCE WITH THE DALITE WRITTEN INSTRUCTIONS.

Keep your sales receipt to prove the date of purchase and your original ownership.

80162

A Milestone AV Technologies Brand

3100 North Detroit Street

Warsaw, Indiana 46582

P: 574.267.8101 or 800.622.3737

F: 574.267.7804 or 877.325.4832

E: info@da-lite.com

www.da-lite.com

DL–0273 (Rev. 1) 07.14
