Dacor Millennia MET304 Manuale tecnico

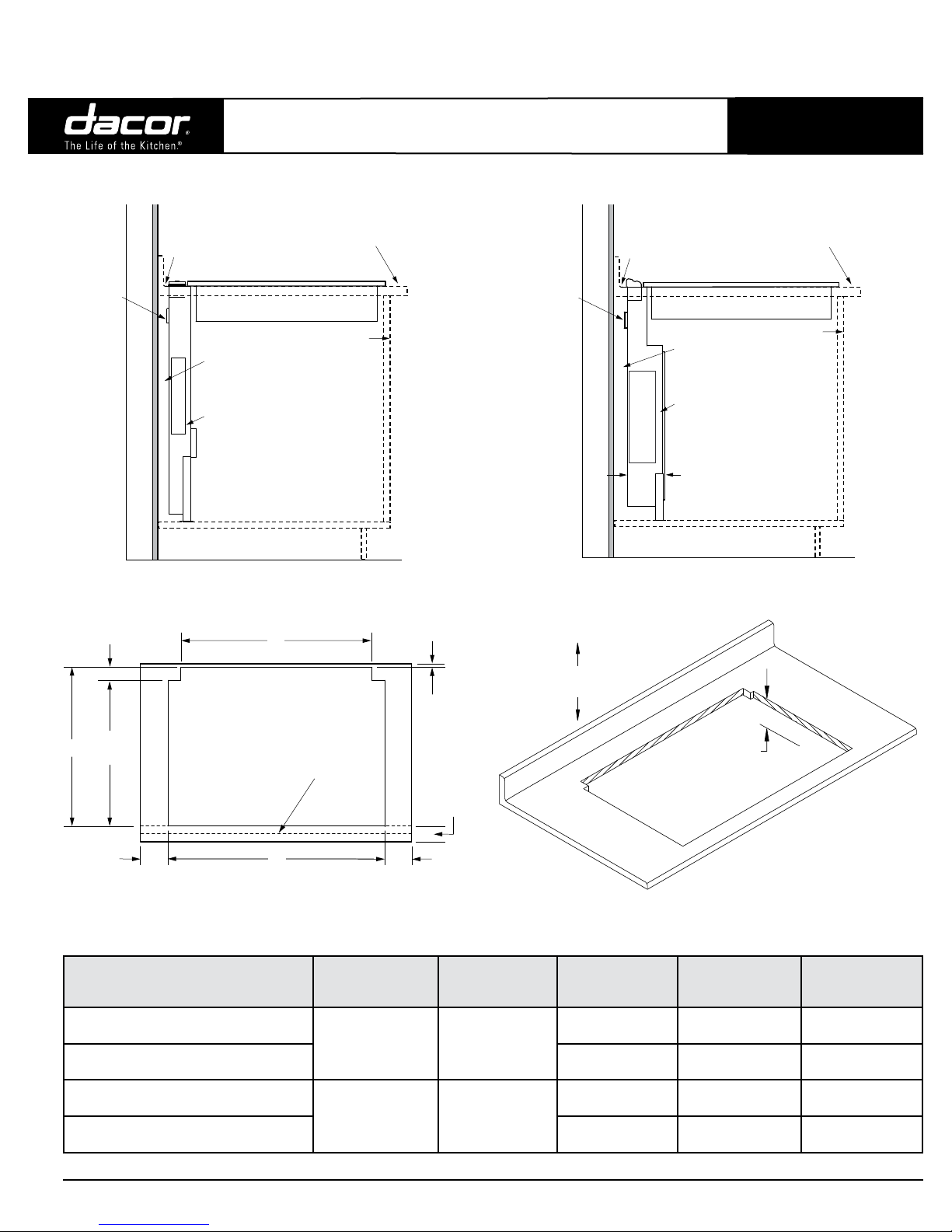

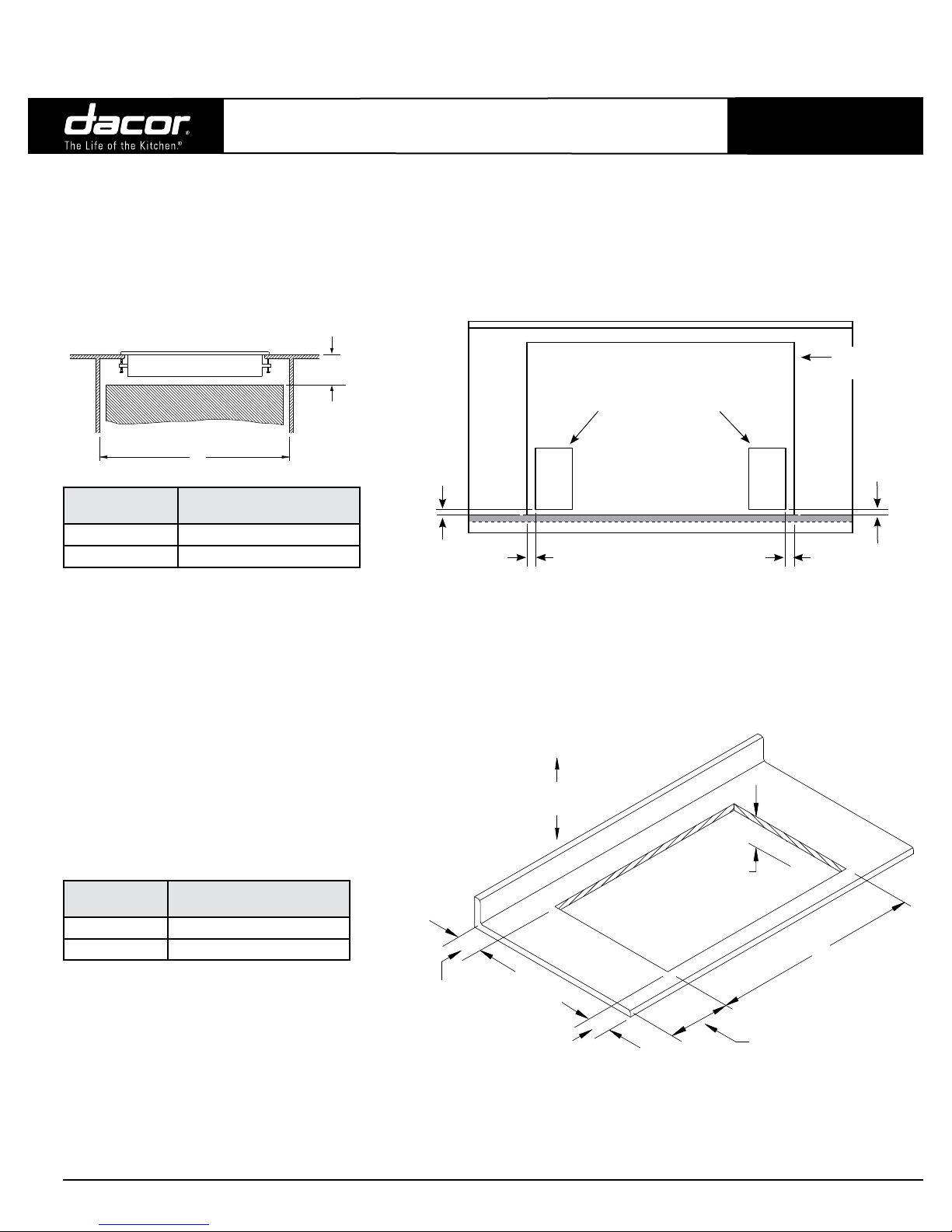

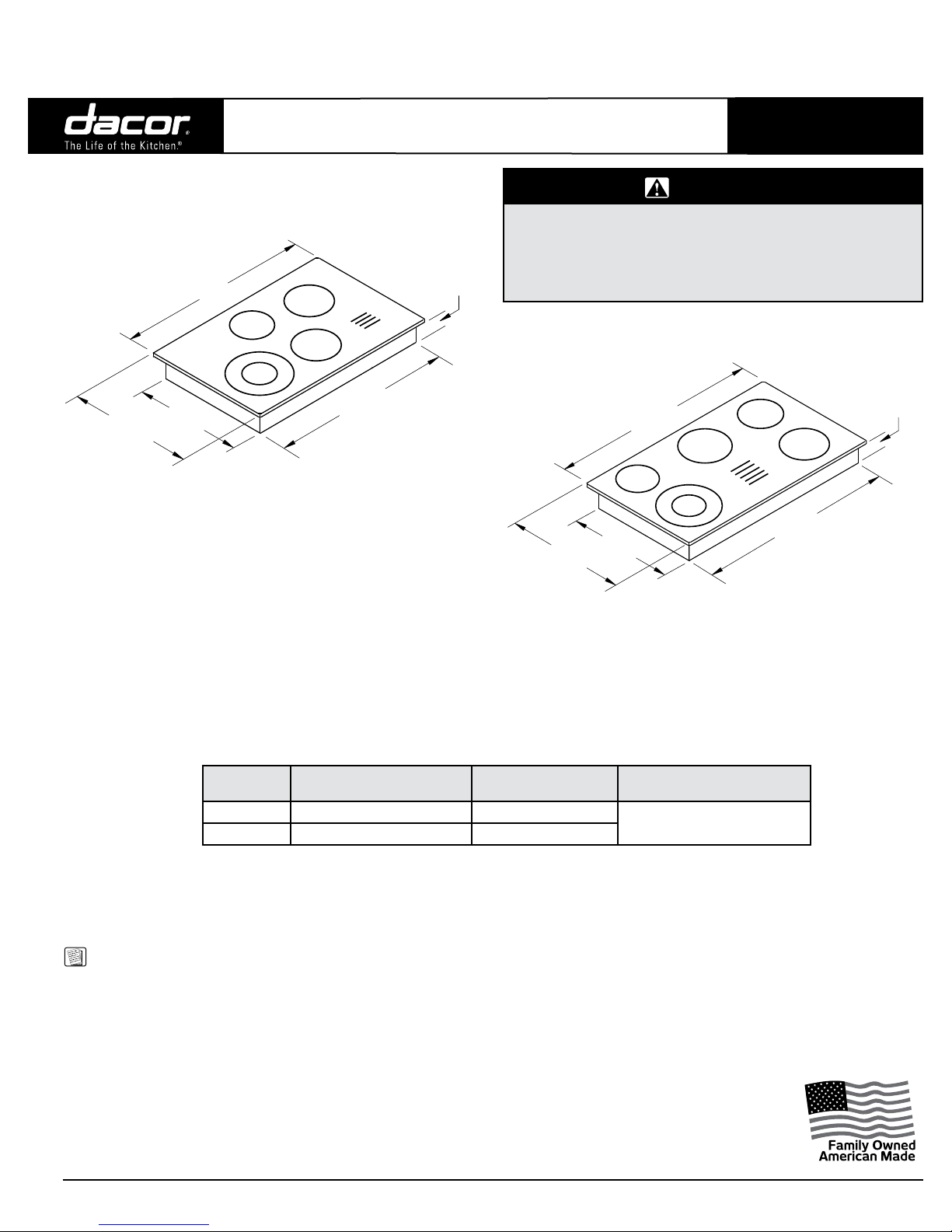

PLANNING
GUIDE
3.1
Specications subject to change without notice. Phone: (800) 793-0093www.dacor.com
30 Inch and 36 Inch Wide,
Discovery™Electric Cooktops
PRODUCT DIMENSIONS - METB365-1
36 1/4" *
(92.1 cm)
34 3/8"
(87.3 cm)
19 3/8"
(49.5 cm)
21 1/4" *
(54.0 cm)
4" (10.2 cm)
Chassis height
30 1/4" *
(76.8 cm)
28 3/8"
(72.1 cm)
19 3/8"
(49.5 cm)
21 1/4" *
(54.0 cm)
4" (10.2 cm)
Chassis height
PRODUCT DIMENSIONS - MET304
MET304 and METB365-1
Product tolerances: ±1/16” (±1.6 mm) unless otherwise noted
Document # PG03-001 Revised 10/01/11 Page 1/3
NOTES:
1. The cooktop is supplied with a flexible, 48 inch long
power conduit consisting of two (2) insulated hot lead
conductors (L1 and L2) and one (1) insulated ground
conductor. There is no neutral connection. All leads are
copper. The conduit is connected to the right corner of
the cooktop. Do not connect the ground wire to neutral.
2. Tested in accordance with the latest edition of ANSI
Z21.1 and U.L. 858 Standard for household cooking
appliances.
3. These cooktops are not approved for recessed
installation.
Model No. Electrical Circuit Required Total Connected
Load*
Minimum Supply Wire Size
Line and Ground Connections
MET304 240 Vac, 60 Hz, 40 Amps. 6.9 kW (29 Amps.)
METB365-1 240 Vac, 60 Hz, 50 Amps.* 9.6 kW (40 Amps.)
* For reference only, See the product data label on bottom of unit for exact specifications.
ELECTRICAL SUPPLY REQUIREMENTS
WARNING
• Observe all governing codes and ordinances during planning
and installation. Contact your local building department for
further information.
• This appliance must be installed in accordance with the
accompanying installation instructions.
* For units with stainless steel trim, other units may be up to 1/8" less.
PLANNING
GUIDE
3.2
Specications subject to change without notice. Phone: (800) 793-0093www.dacor.com
30 Inch and 36 Inch Wide,
Discovery Electric Cooktops
MET304 and METB365-1
All tolerances: +1/16”, -0, (+1.6 mm, -0) unless otherwise stated
Document # PG03-001 Revised 10/01/11 Page 2/3
When installing model METB365-1 and the bottom of the chassis is to be
enclosed wall to wall, you must install Dacor ventilation duct kit ATD323.
Allow a minimum of 6 inches (15.2 cm) clearance between
the top of the countertop and any combustible surface
below, including the upper edge of a drawer below the
cooktop. Proper under-cabinet clearance is also required
for the cooktop hold down brackets.
6” (15.2 cm)
min. clearance
to combustible
surfaces
A
6" (15.2 cm) min.
from mounting surface to
combustibles below
cooktop chassis
B
min. to combustible,
side wall, both sides
Rear
wall
1" min.
19 3/4" min.
(50.2 cm)
6" (15.2 cm)
(2.5 cm)
2 1/4" min.
(5.7 cm)
UNDER COUNTER CLEARANCE
Model (A) Minimum Under Counter
Clearance (Width)
MET304 30 1/2” (77.5 cm)
METB365-1 36 1/2” (92.7 cm)
Model (B) Minimum Under Counter
Clearance (Width)
MET304 28 3/4” (73.0 cm)
METB365-1 34 3/4” (88.3 cm)
COUNTERTOP CUTOUT (WITHOUT RAISED VENT)
3/4”
7 3/4” X 4 3/8”ventilationcut-outsinenclosureoor
1 1/2”1 1/2”
3/4”
TOP VIEW VENTILATION CUTOUT
Cooktop cutout in
top of cabinet
PLANNING
GUIDE
3.3
Specications subject to change without notice. Phone: (800) 793-0093www.dacor.com
30 Inch and 36 Inch Wide,
Discovery Electric Cooktops
Stiffener
Cabinet face
Countertop
Floor
3/8” min. (1.0 cm) space
behind raised vent
chassis to clear stiffener
3/8” min. (1.0 cm)
flat countertop overhang
required behind cutout
ERV or PRV series raised
vent: Check raised vent
dimensions/specifications
to determine proper fit
ETT or MET series cooktop
19 3/4"
(50.2 cm)
6" min.
(15.2 cm)
6" min.
(15.2 cm)
1" min.
(2.5 cm)
Cabinet
face
A
B
C
DE
6" (15.2 cm) min.
from mounting surface to
combustibles below
cooktop chassis
Rear
wall
Stiffener
Cabinet face
Countertop
Floor
5/8” min. (1.6 cm) space
behind raised vent
chassis to clear stiffener
4 5/8” (11.7 cm)
9 7/8” (25.1 cm) with
CABP3 blower installed
5/8” min. (1.6 cm)
flat countertop overhang
required behind cutout
RV series raised vent:
Check raised vent
dimensions/specifications
to determine proper fit
ETT or MET series cooktop
ERV AND PRV SERIES RAISED VENT INSTALLATION
SIDE VIEW
RV SERIES RAISED VENT INSTALLATION
SIDE VIEW
COUNTERTOP CUTOUT (WITH RAISED VENT)
TOP VIEW
COUNTERTOP CUTOUT (WITH RAISED VENT)
ISO VIEW
MET304 and METB365-1
All tolerances: +1/16”, -0, (+1.6 mm, -0) unless otherwise stated
Document # PG03-001 Revised 10/01/11 Page 3/3
Model/Configuration (A) Cooktop
Cutout Width
(B) Raised Vent
Cutout Width
(C) Total Cutout
Depth
(D) Raised Vent
Cutout Depth
(E) Minimum
Rear Countertop
Overhang
MET304 cooktop with ERV30 or PRV30
raised vent 28 3/4”
(73.0 cm)
27 3/4”
(70.5 cm)
22 1/2”
(57.2 cm)
2 3/4”
(7.0 cm)
3/8”
(1.0 cm)
MET304 cooktop with
RV30 raised vent
22 1/4”
(56.5 cm)
2 1/2”
(6.4 cm)
5/8”
(1.6 cm)
METB365-1 cooktop with ERV36 or
PRV36 raised vent 34 3/4”
(88.3 cm)
33 3/4”
(85.7 cm)
22 1/2”
(57.2 cm)
2 3/4”
(7.0 cm)
3/8”
(1.0 cm)
METB365-1 cooktop with RV36 raised
vent
22 1/4”
(56.5 cm)
2 1/2”
(6.4 cm)
5/8”
(1.6 cm)
