Dacor Epicure OB36 Manuale tecnico
PLANNING
GUIDE
13.1
36”, 52” Wide Outdoor Grills
OB36, OB52, OBS36, OBS52
9 1/8"
(23.2 cm)
23 3/4"
(60.3 cm)
26 1/2"
(67.3 cm)
27” *
(68.6 cm)
36"
(91.4 cm)
25 1/8"
(63.8 cm)
9 1/8"
(23.2 cm)
23 3/4"
(60.3 cm)
26 1/2"
(67.3 cm)
27" *
(68.6 cm)
52"
(132.1 cm)
25 1/8"
(63.8 cm)
OB[S]36 OVERALL DIMENSIONS
OB[S]52 OVERALL DIMENSIONS
NOTE:
Supply access for the rotisserie power or an alternate 120 Vac duplex outlet location.
Model Type Electrical Circuit Required Total Connected Load Gas Type Manifold Pressure Minimum Gas Supply
Pressure
Natural Gas 120 Vac, 60 Hz, 15 Amp. 2.9 Amps (0.35 kW) Natural 4” Water column 5” Water column
LP Gas 120 Vac, 60 Hz, 15 Amp. 2.9 Amps (0.35 kW) Propane 11” Water column 12” Water column
*Total depth with handle: 30” (76.2 cm)
All tolerances: +1/16” (+1.6 mm), -0, unless otherwise stated
Document # PG13-001 Revised 01/11/11 Page 1/3
WARNING
• Observe all governing codes and ordinances during planning
and installation. Contact your local building department for
further information.
• This appliance must be installed in accordance with the
accompanying installation instructions.
PLANNING
GUIDE
13.2
36”, 52” Wide Outdoor Grills
OB36, OB52, OBS36, OBS52

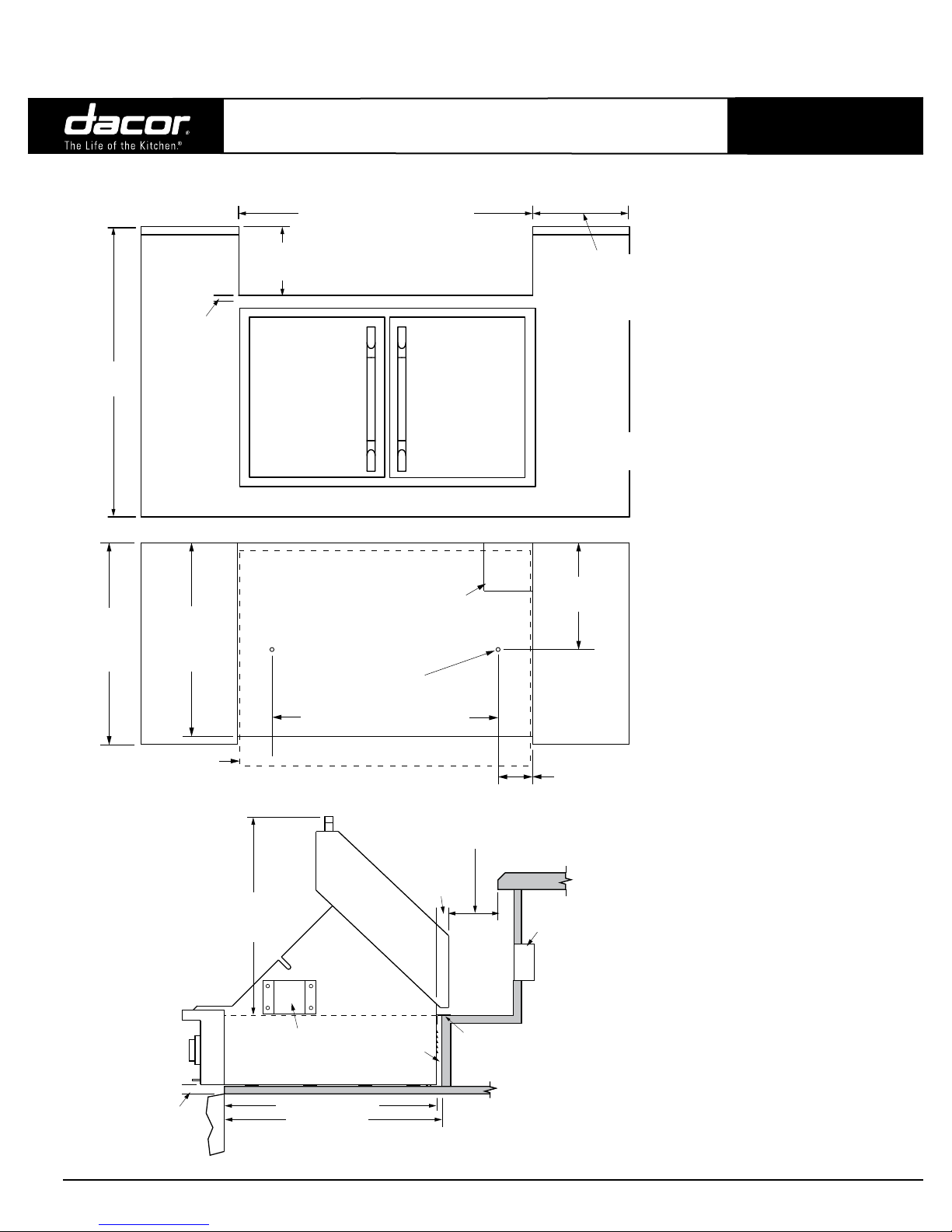

OB[S]36/52 CUTOUT DIMENSIONS,
FRONT VIEW
3/4" (1.9 cm)
min. to any
material for
ventilation
9" (22.8 cm)
max.
OB[S]36 - 36 1/2" (92.7 cm)
OB[S]52 - 52 1/2" (133.4 cm)
36"
(91.4 cm)
8" (20.3 cm) min.
to combustibles
above the countertop
surface, both sides
3/8" (1.0 cm) ø
both sides
6" x 7"
(15.2 cm x 17.8 cm)
utility cutout
Coutertop
depth
25"
(63.5 cm)
Cabinet
depth
24"
(61.0 cm)
1 1/2" (3.8 cm)
Outdoor grill placement
12 1/4"
(31.1 cm)
OB[S]36 - 33 1/2" (85.1 cm)
OB[S]52 - 49 1/2" (125.7 cm)
OB[S]36/52 CUTOUT DIMENSIONS,
TOP VIEW
All tolerances: +1/16” (+1.6 mm), -0,
unless otherwise stated
Document # PG13-001 Revised 01/11/11 Page 2/3
OB[S]36/52 CUTOUT DIMENSIONS,
SIDE VIEW
Rotisserie mounting
bracket (factory installed)
Junction
box
Trim frame
(accessory)
3/4" (1.9 cm)
min. to any
material*
1/4"
(6 mm)
1 1/4"
(3.2 cm)
10" (25.4 cm) min. to combustibles
1 1/4" (3.2 cm) min. to non-combustible
28 1/2" (72.4 cm)
to finished
countertop
23 3/4" (60.3 cm)
24" (61.0 cm)
PLANNING
GUIDE
13.3
36”, 52” Wide Outdoor Grills
OB36, OB52, OBS36, OBS52
All tolerances: +1/16” (+1.6 mm), -0, unless otherwise stated
Document # PG13-001 Revised 01/11/11 Page 3/3
Cut-out for outdoor grill
Overall
height
Overall width

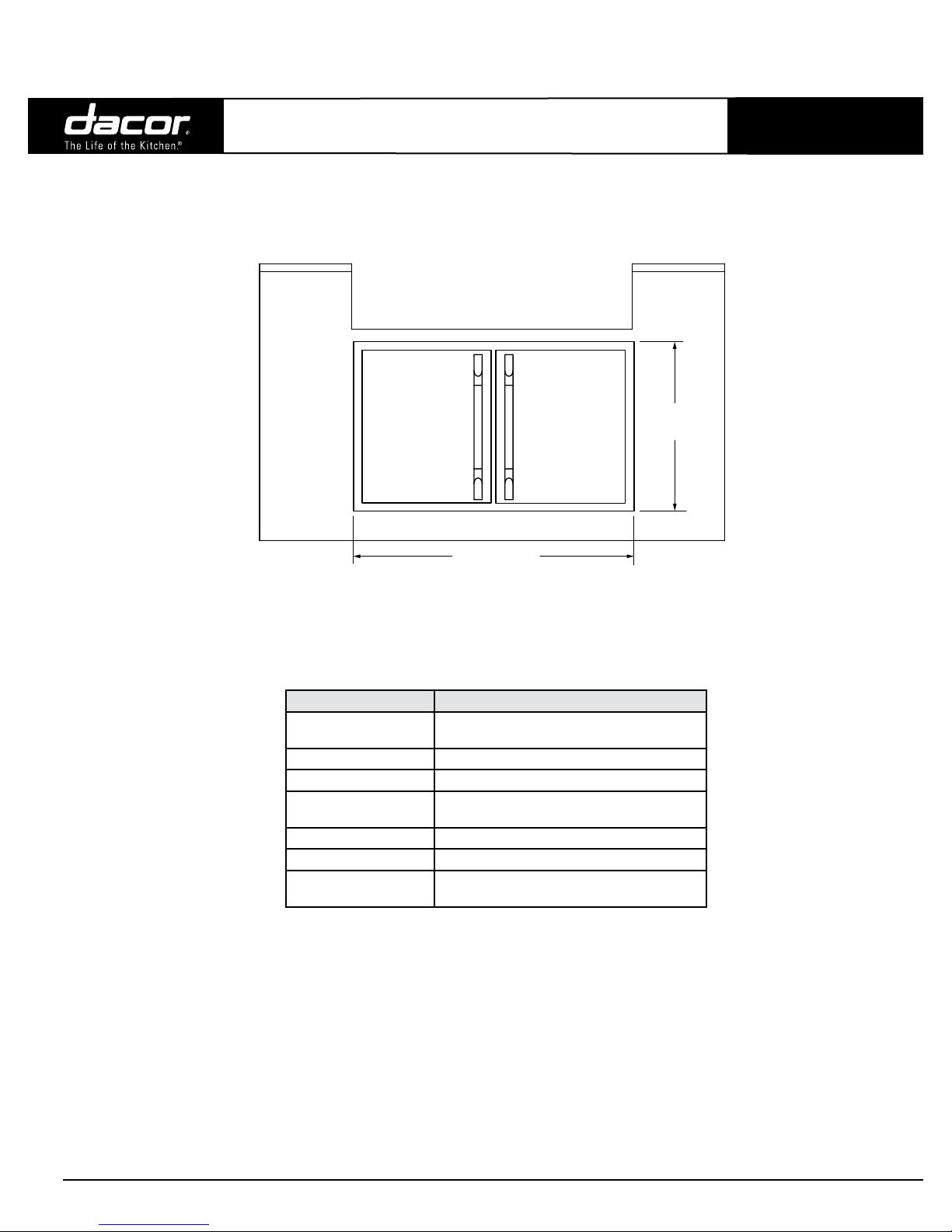

OBADXX ACCESSORY DOOR DIMENSIONS, FRONT VIEW
Specifications Measurements
Overall Width OBAD20 - 19 1/2” (49.5 cm)
OBAD36 - 35 7/8” (91.1 cm)
Overall Height 21” (53.3 cm)
Overall Depth 1/4” (6 mm) deep return on frame edge
Cutout Width OBAD20 - 16 3/4” (42.5 cm)
OBAD36 - 33 1/8” (84.1 cm)
Cutout Height 18 3/4” (47.6 cm)
Cutout Depth 3” (7.6 cm) minimum
Number of doors OBAD20 - 1
OBAD36 - 2
ACCESSORY DOOR CUTOUT DIMENSIONS
