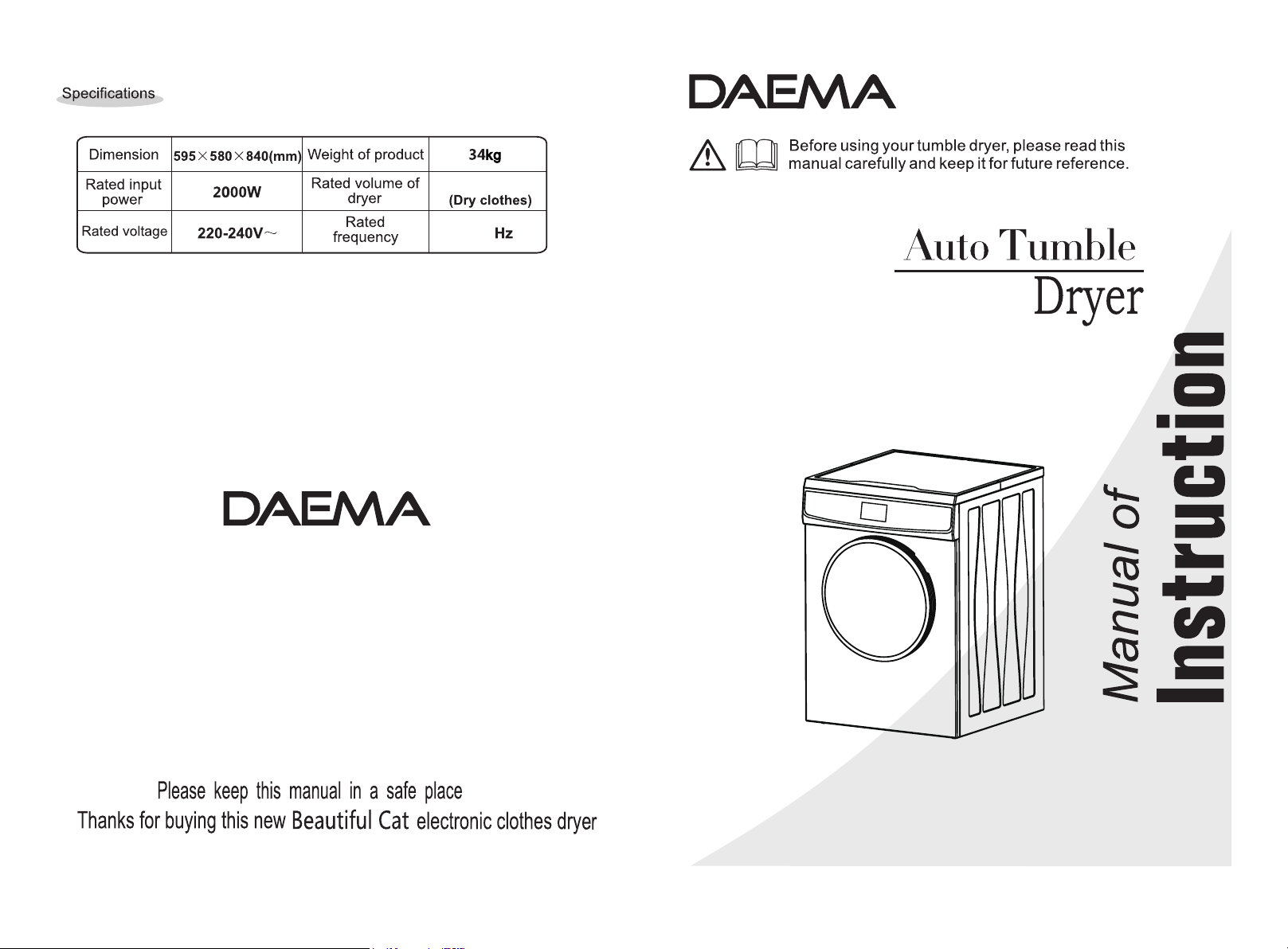

Daema DWD-1001BC Manuale
DWD-1001BC 10kg
The appliance must not be supplied through an external
switching device, such as a timer, or connected to a circuit
that is regularly switched on and off by a utility
10kg
50-60
1)Unique and luxury design: Design is according to front loading
washing machine with unique appearance.
2)Micro Control: Simple and convenient operation with the help of
PCB board, and it will feel the temperature when drying automatic.
3)Big size door window: See the procedure of drying clearly
through this window.
4)Open the door with 180 ° : It is very convenient to put in and
out clothes with 180°angle opening range.
5)Compact instruction: Big capacity and unique outlook with an-
ti-dust, anti-humidity, anti shake, long life and low noise
design.
6)The tumble dryer is not to be used if industrial chemicals have
been used for cleaning.
7)The lint trap has to be cleaned frequently.
8)Lint must not to be allowed to accumulate around the tumble
dryer.
9) Adequate ventilation has to be provided to avoid the back flow
of gases into the room from appliance burning other fuels, includ-
ing open fires.
10) Do not dry unwashed items in the tumble dryer.
11) ltems that have been soiled with substance such as cooking
oil, acetone, alcohol, petrol, kerosene, spot removers, turpen-
tine, waxes and wax removers should be washed in hot water with a
extra amount of detergent before being dried in the tumble dryer.
12) ltems such as foam rubber(latex form), shower caps, waterproof
textiles, rubber backed articles and clothes or pillows fitted
with foam rubber pads should not be dried in the tumble dryer.
13) Fabric softeners, or similar products, should be used as
specified by the fabric softener instructions.
14) The final part of a tumble dryer cycle occurs without heat
(cool down cycle) to ensure that the items are left at a tempera-
ture the ensure that the items will not be damaged.
15) WARNING: never stop a tumble dryer before the end of the
drying cycle unless all items are quickly removed and spread out
so that the heat is dissipated.
16) The exhaust air must not be discharged into a flue which is
used for exhausting fumes from appliance burning gas or other
fuels.
17) The appliance must not be install behind a lockable door,a
sliding door or a door with a hinge on the opposite side to that
of the tumble dryer. In such a way that a full opening of the
tumble dryer door is restricted.

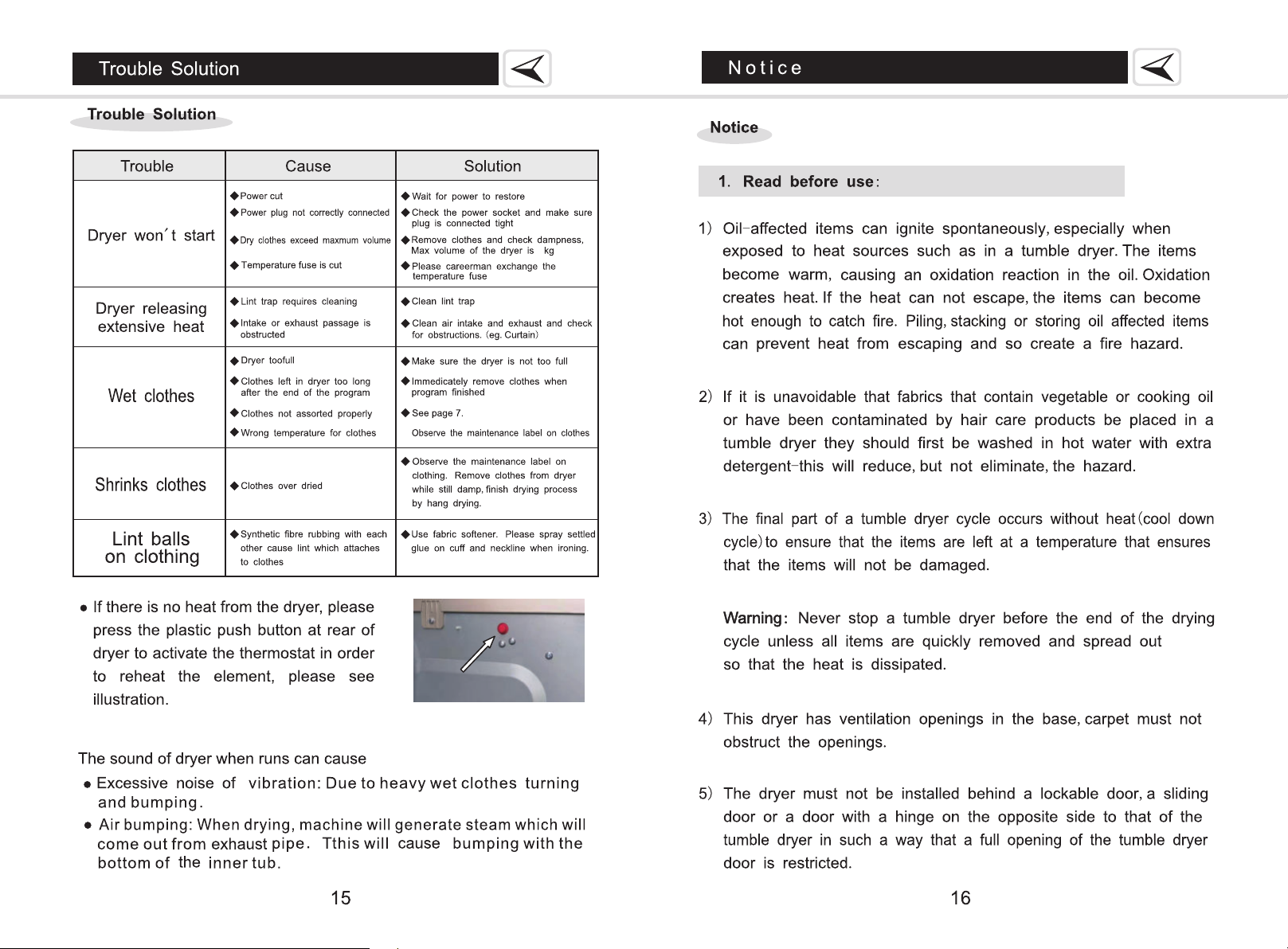

18) Oil-affected items can ignite spontaneously, especially when
exposed to heat sources such as in a tumble dryer.
The items become warm, causing an oxidation reaction in the oil.
Oxidation creates heat. If the heat cannot escape, the items can
become hot enough to catch fire.Piling, stacking or storing
oil-affected items can prevent heat from escaping and so create a
fire hazard.
19) If it is unavoidable that fabrics that contain vegetable or
cooking oil or have been contaminated by hair care products be
placed in a tumble dryer they should first be washed in hot water
with extra detergent-this will reduce, but not eliminate, the
hazard.
20) The appliance should not be overturned during normal use or
maintenance.
21) Remove all objects from pockets such as lighters and matches.
DWD-1001BC
10
22) This appliance can be used by children aged from 8 years and
above and persons with reduced physical, sensory or mental capa-
bilities or lack of experience and knowledge if they have been
given supervision or instruction concerning use of the appliance
in a safe way and understand the hazards involved. Children shall
not play with the appliance. Cleaning and user maintenance shall
not be made by children without supervision.
23) For appliances with ventilation openings in the base,that a
carpet must not obstruct the opening.
24) If the power cable is damaged, it must be replaced by the
manufacturer, its service agent or similarly qualified persons in
order to avoid a hazard.
25) This appliance is for indoor use only.
26) The openings must not be obstructed by a carpet.
27) Children of less than 3 years should be kept away unless con-
tinuously supervised.
28) Electrical equipment didn't intend to operate in non-air-con-
ditioned or external atmospheres

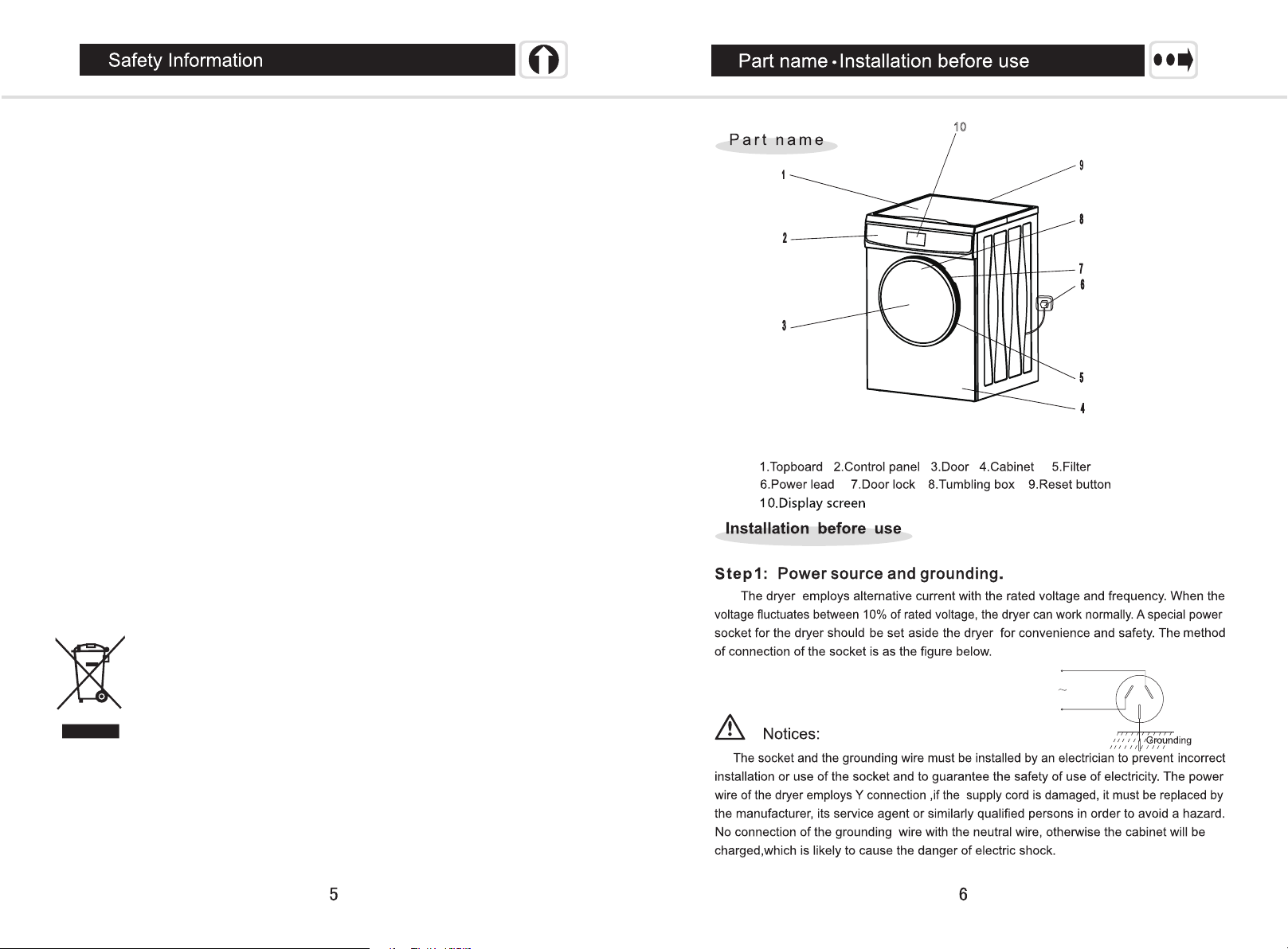

Correct Disposal of this product:
This marking indicates that this product should not be
disposed with other household wastes throughout the
EU. To prevent possible harm to the environment or
human health from uncontrolled waste disposal, recycle
it responsibly to promote the sustainable reuse of ma-
terial resources. To return your used device, please
use the return and collection systems or contact the
retailer where the product was purchased. They can
take this product for environmental safe recycling.

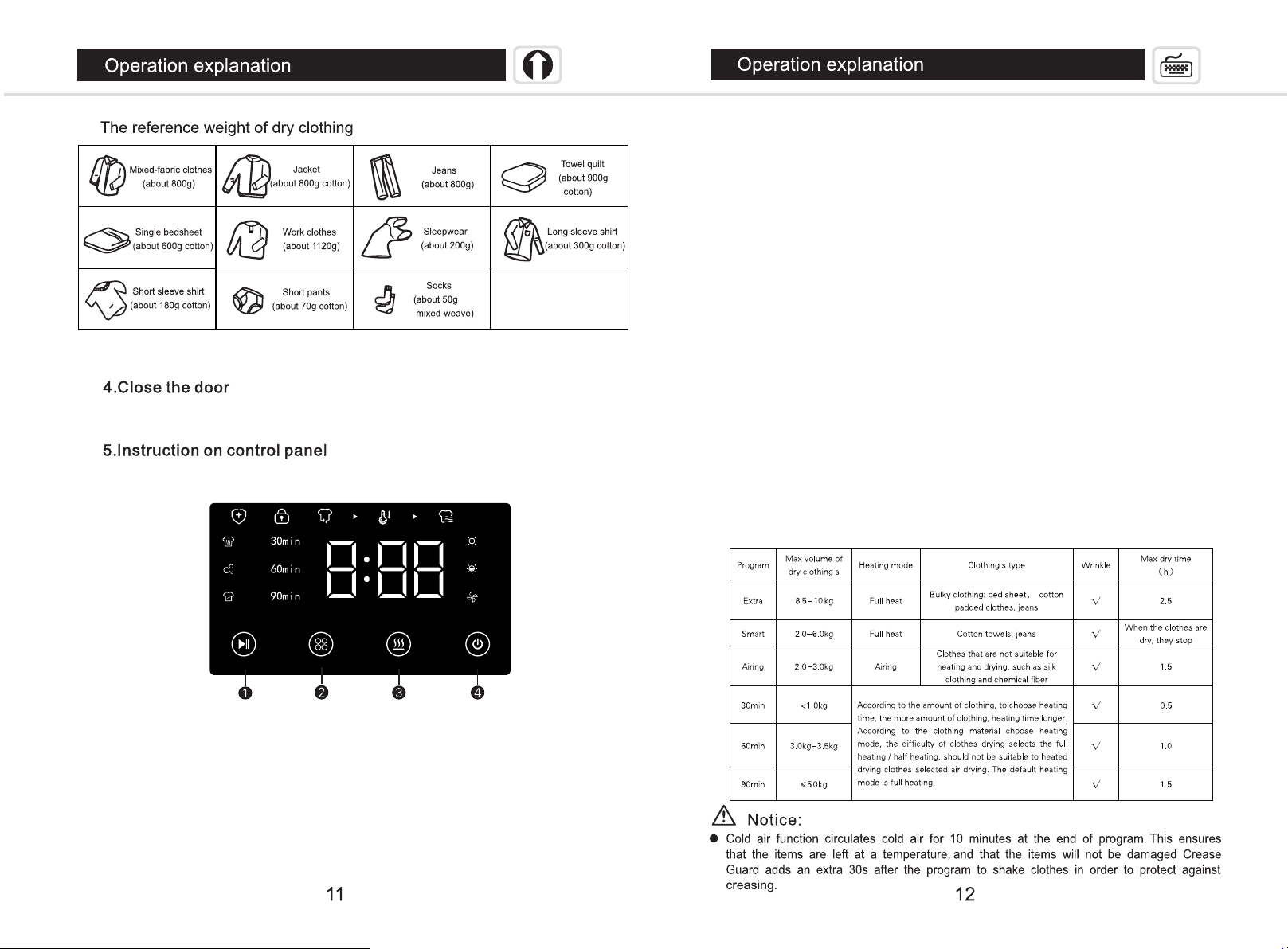

Energy test with Full heat Extra dry Program
1)Press the power touch key to turn on (off) the power;
2) Program setting, the user may according to the clothing quality and the clothing quantity
choose the program. Click the "program" touch key (Extra dry, Smart dry, Airing, 30mins, 60mins,
90mins), the program indicator lights up in turn, and accompanied by the touch key tone, after
the selection, the indicator light is no longer flashing.
3) Three heating modes (optional) only can be choosed in 30mins, 60mins and 90mins three
programs), the user can choose Full heating , Half heating , Airing the three modes by cycle
selection according to the quality of the clothes lights go on intrude and the touch program
with the touch key tone, selected. Light is not blinking.
4) Press the ”Start” touch key, the dryer will start after 2 seconds; then press this touch key
again, the dryer will pause ruler can reset program, also can be in this status to open the door
to regulate clothes, open the door to be careful of hot steam, to avoid scalding. Press again,
the dryer restart and continues to complete the selected program. The start touch key is the
start and pause switch for the dryer. If you turn on the power and press the "start" touch key
directly, the dryer will run the Smart dry program.
5) the Children lock function, after the dryer starts and running, press the “Program ” +
“Start ”key for about 2 seconds at the same time, the buzzer sends out the confirmation tone,
and the child lock on the display screen blinks and lights up or goes out. To prevent children
misuse. Again, press the two touch key at the same time, the Children Lock is canceled.
The default state of each program：
’
’
Extra
Airing
30min
60min
90min
Smart
Airing
① Power On / Off
② Start / Pause
③ Program (including Extra dry, Smart Dty, Airing,30mins, 60mins,
90mins)
④ Heating ( Full ,Half ,Airing three heating modes)
Extra Full
Half
Smart
Airing Airing
Start Program Heat Power
7
