Service Manual

Microwave Oven

Model: KOR-61852S

KOR-61850N

KOR-61952S

DAEWOO ELECTRONICS CO., LTD.

PRECAUTIONS TO BE OBSERVED BEFORE AND

DURING SERVICING TO AVOID POSSIBLE

EXPOSURE TO EXCESSIVE MICROWAVE ENERGY

(a) Do not operate or allow the oven to be operated with the door open.

(b) Make the following safety checks on all ovens to be serviced before activating the magnetron

or other microwave source, and make repairs as necessary: (1) Interlock operation, (2) proper

door closing, (3) seal and sealing surfaces (arcing, wear, and other damage), (4) damage to or

loosening of hinges and latches, (5) evidence of dropping or abuse.

generating compartments, check the magnetron, wave guide or transmission line, and cavity

for proper alignment, integrity, and connection.

(d) Any defective or misadjusted components in the interlock, monitor, door seal, and microwave

generation and transmission systems shall be repaired, replaced, or adjusted by procedures

described in this manual before the oven is released to the owner.

(e) A microwave leakage check to verify compliance with the Federal Performance Standard

should be performed on each oven prior to release to the owner.

TABLE OF CONTENTS

PROPER USE AND SERVICE PRECAUTIONS 3

SPECIFICATIONS 4

FEATURE DIAGRAM 5

INSTALLATION 6

OPERATION 7

MEASUREMENT OF THE MICROWAVE OUTPUT POWER 8

MICROWAVE RADIATION TEST 9

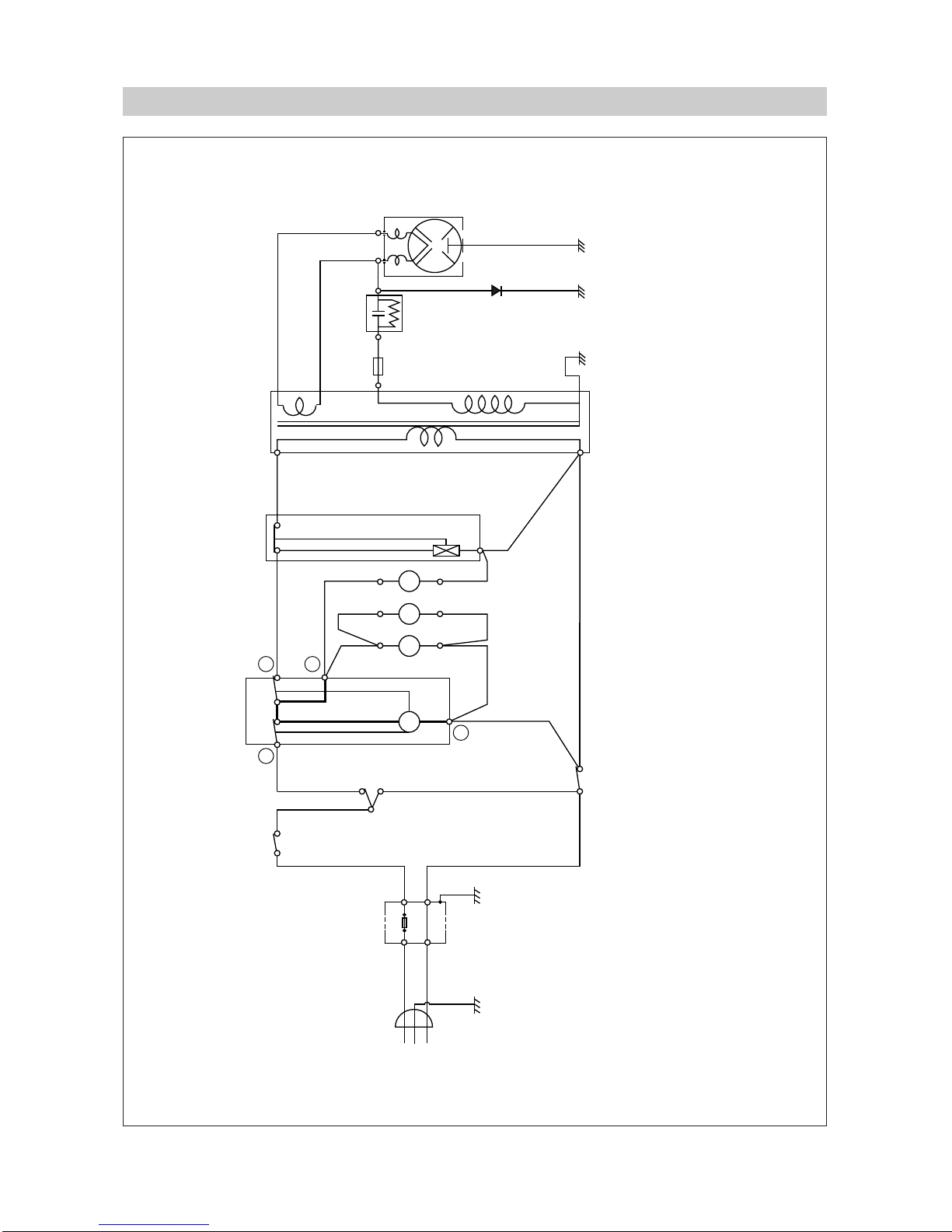

WIRING DIAGRAM 10

CIRCUIT DESCRIPTION 12

PRECAUTIONS FOR DISASSEMBLY AND REPAIR 14

DISASSEMBLY AND ASSEMBLY 15

INTERLOCK MECHANISM 20

TROUBLE SHOOTING GUIDE 22

COMPONENT TEST PORCEDURE 24

SAFETY INTERLOCK CONTINUITY TEST 25

EXPLODED AND PARTS LIST 26

CAUTION : This Device is to be Serviced Only by Porperly Qualified Service Personnel. Consult the

Service Manual for Proper Service Procedures to Assure Continued Compliance with the

Federal Performance Standard for Microwave Ovens and for Precautions to be Taken to

Avoid Possible Exposure to Excessive Microwave Energy.

CAUTION

MICROWAVE RADIATION

PERSONNEL SHOULD NOT BE EXPOSED TO THE MICROWAVE ENERGY WHICH MAY RADIATE

FROM THE MAGNETRON OR OTHER MICROWAVE GENERATING DEVICE IF IT IS IMPROPERLY

USED OR CONNECTED. ALL INPUT AND OUTPUT MICROWAVE CONNECTIONS, WAVEGUIDES,

FLANGES, AND GASKETS MUST BE SECURE. NEVER OPERATE THE DEVICE WITHOUT A

MICROWAVE ENERGY ABSORBING LOAD ATTACHED. NEVER LOOK INTO AN OPEN

WAVEGUIDE OR ANTENNA WHILE THE DEVICE IS ENERGIZED.

1. For Safe Operation

Damage that allows the microwave energy (that cooks or heats the food) to escape will result in poor cooking

and may cause serious bodily injury to the operator.

IF ANY OF THE FOLLOWING CONDITIONS EXIST, OPERATOR MUST NOT USE THE APPLIANCE.

(Only a trained service personnel should make repairs.)

1) A broken door hinge.

2) A broken door viewing screen.

3) A broken front panel, oven cavity.

4) A loosened door lock.

5) A broken door lock.

The door seal area and oven cavity surface be kept clean.

No grease, soil or spatter should be allowed to build up on these surfaces or inside the oven.

DO NOT ATTEMPT TO OPERATE THIS APPLIANCE WITH THE DOOR OPEN. The microwave oven has

concealed switches to make sure the power is turned off when the door is opened. Do not attempt to defeat

them.

DO NOT ATTEMPT TO SERVICE THIS APPLIANCE UNTIL YOU HAVE READ THIS SERVICE MANUAL.

2. For Safe Service Procedures.

1) If the oven is operative prior to servicing, a microwave emission check should be performed prior to servicing

the oven.

2) If any ascertained oven unit is found to have excessive emission level 5mW/cm

, the service person should:

(a) inform the manufacturer, importer or assembler,

(b) repair the unit at no cost to the owner,

(d) tell the owner of the unit not to use the unit until the oven has been brought into compliance.

3) If the oven operates with the door open, the service person should tell the user not to operate the oven and

contact the manufacturer immediately.

PROPER USE AND SERVICE PRECAUTIONS

ITEM SPECIFICATION

KOR-6185/61952S KOR-61850N

POWER SUPPLY 230V 50Hz 220V 50Hz

POWER CONSUMPTION 1200W 1250W

MICRO WAVE OUTPUT POWER 800W (FULL MICROWAVE POWER)

FREQUENCY 2450 MHz

OUTSIDE DIMENSIONS (WXHXD) 465 X 274 X 364 mm

CAVITY DIMENSIONS(WXHXD) 290 X 200 X 290 mm

NET WEIGHT APPROX 13.5Kg

TIMER 35 min. DUAL SPEED

POWER SELECTIONS 5 LEVELS

CAVITY VOLUME 0.6 Cu. Ft.

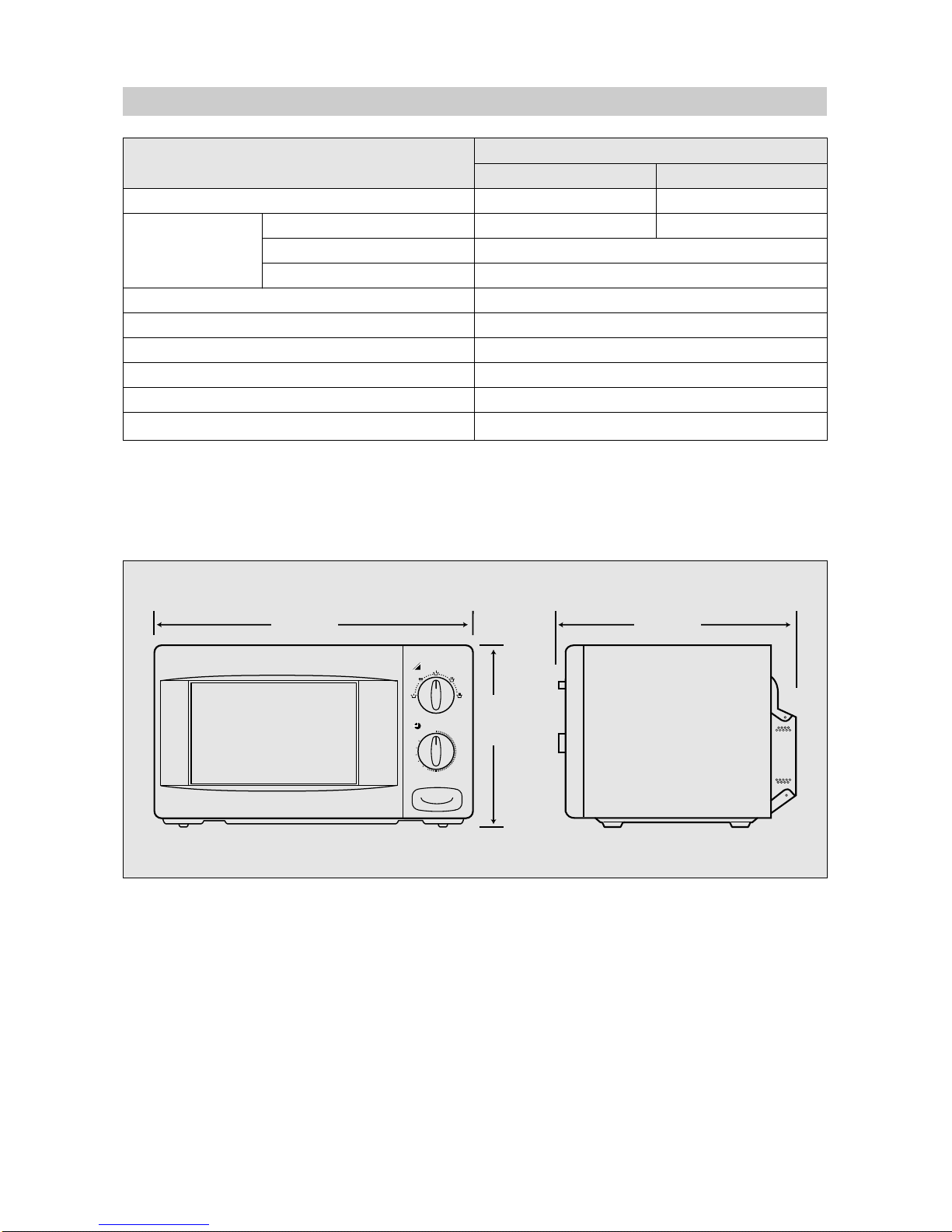

SPECIFICATIONS

274

465 364

*Specifications are subject to change without notice.

1Saftey Interlock System.

2Door Viewing Screen - Allows viewing of food, the screen is designed so that light can pass

through, but not the microwave.

3Door Hook - When the door is closed, it will automatically shut. If the door is opened while the

oven is operating, the magnetron will immediately stop operating.

4Oven Cavity

5Door Seal - Door seal maintains the microwave energy within the oven cavity and prevents micro

leakage.

6Glass Cooking Tray - Made of special heat resistant glass. Food in a proper receptacle is placed

on this tray for cooking.

7Roller guide - This must always be used for cooking together with the glass cooking tray.

8Coupler - this fits over the shaft in the center of the oven’s cavity floor. This is to remain in the

oven for all cooking.

9Knob V.P.C - Used to select a microwave power level.

0Knob timer - Used in setting cooking time for all functions.

qDoor Release button - By pushing this button the latch system cut of all circuits and stops the

oven before the door is opened.

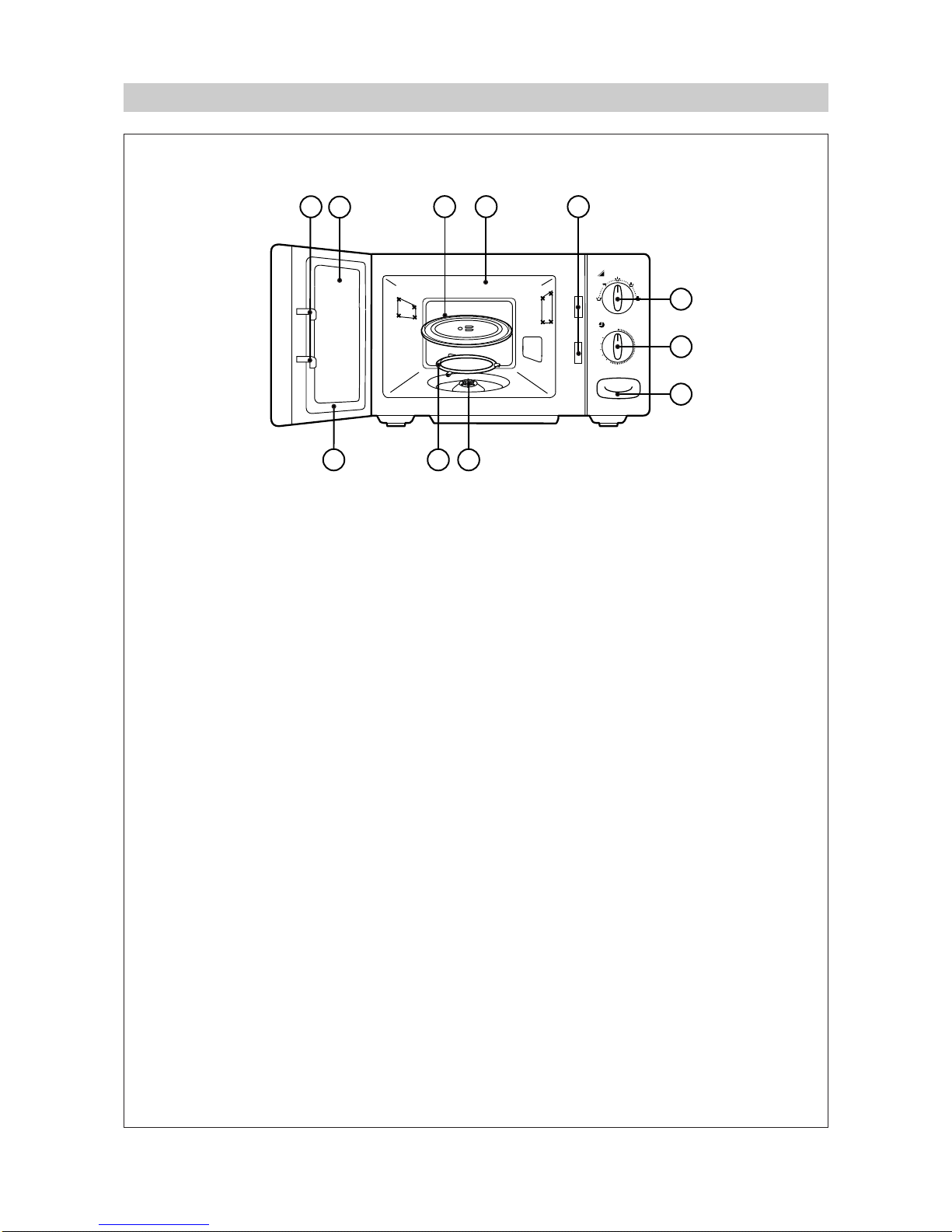

FEATURES DIAGRAM

264

1. Steady, flat location

This microwave oven should be set on a steady, flat surface.

2. Leave space behind and side

All air vents should be kept a clearance. If all vents are covered during operation, the oven may overheat and,

eventually, cause oven failure.

3. Away from radio, and TV sets

Poor television reception and radio interference may result if the oven is located close to a TV, Radio, or

antenna, feeder and so on.

4. Away from heating appliances and water taps

Keep the oven away from hot air, steam or splash when choosing a place to position it, or the insulation might

be adversely affected and breakdowns occur.

5. Power supply

• Check your local power source.

This microwave oven requires a current of approximately 6 amperes, 230V 50Hz. (220V 50Hz, KOR-6185ON)

Use a receptacle that will accept the earth prong.

• Voltage Warning

The voltage used must be the same as specified on this Microwave Oven.

Using a higher voltage may result in a fire or other accident causing oven damage. Using low voltage will

cause slow cooking.

We are not responsible for damage resulting from use of this Microwave Oven will a voltage or amperage

fuse other than those specified.

• Power supply cord is about 1.0 meters long. Do not use an extension cord.

If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly

qualified person in order to avoid a hazard;

INSTALLATION

6. Examine the oven after unpacking for any damage such as:

Dents, A misaligned door, Broken door, A dents in cavity.

If any of the above are visable, do not install this oven.

CAUTION : Do not under any circumstances cut or remove the round earthing prog from this pulg.

CAUTION : Maintenances works like the replacing of the power cable must be made by a technician

qualified of the after-sales-services.

WARNING : This appliance must be earthed.

This wires in this mains lead are coloured inaccordance with the following code.

Green-and-yellow : Earth

Blue : Neutral

Brown : Live

As the colours of the wires in the mains lead of this appliance may not correspond with the coloured

markings identifying the terminals in your plug, proceed as follows:

The wire which is coloured green-and-yellow must be connected to the terminal in the plug which is marked

with the letter ‘E’ or by the earth symbol or green-and-yellow.

The wire which is coloured blue must be connected to the terminal which is marked with the letter ‘N’ or

coloured black.

The wire which is coloured brown must be connected to the terminal which is marked with the letter ‘L’ or

coloured red.

IMPORTANT

OPERATION

Connect the main lead to an electrical outlet.

After placing the food in a suitable container, open the oven door and put it on the glass tray.

The glass tray must always be in place during cooking.

CLOSE THE DOOR securely.

Choose cooking power level by setting V.P.C.

knob to the desired position.

Refer to cookbook for recommended power

levles.

Determine cooking time. Consult cookbook for

recipe timing.

¢”Oven light turns on and cooling fan starts to

operate. Microwave cooking starts.

You may open the door while the oven is

operating. As soon as the door is opened, the

safety mechanisms stop the generation of

microwave power and the operation of cooking

timer.

If you wish to change the time during cooking,

simply adjust the Timer to the desired time.

When the timer reaches zero, a bell will ring and

the unit will turn off.

¢”Oven light turns off.

If additional cooking time is needed and the

door is closed, the oven will automatically start

when the Timer is reset.

NOTE :

1. When setting Timer for less than 2 minutes, turn

the Timer past 2 minutes and then return to the

correct timer setting.

2. Various clicking noises may be heard when

turning the V.P.C. Knob. This is normal and does

not affect the operation of your microwave oven.

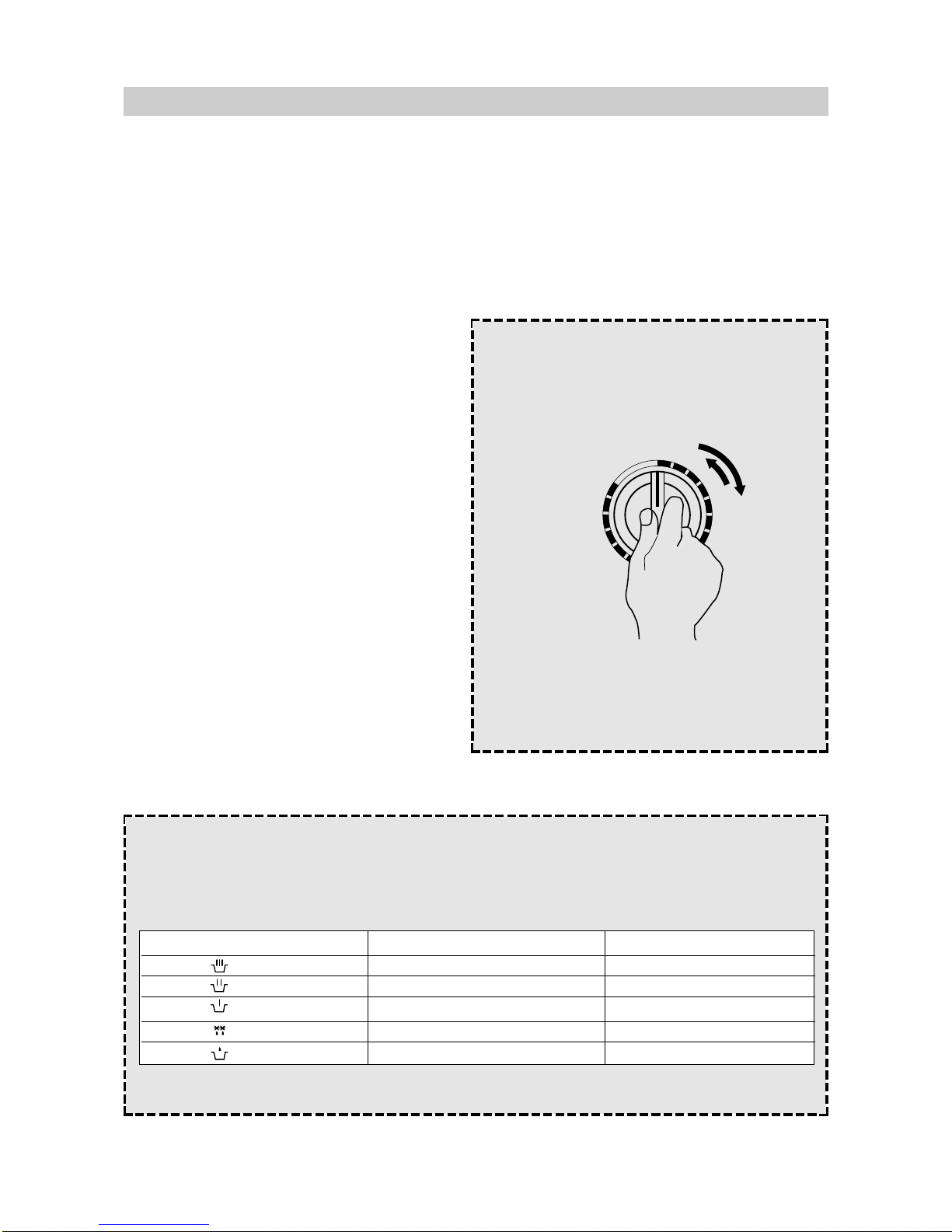

Variable power cooking

ON and OFF cycle time of mechanicial V.P.C. switch is 30 seconds.

When the V.P.C. knob is set to the desired position and timer knob turns to the desired position, the V.P.C

switch has a cycle (ON/OFF time (sec)) listed below.

012

Variable power setting ON/OFF time (SEC) POWER

(HIGH) 30/0 100%

(MED HIGH) 23.2/6.8 77%

(MEDIUM) 16.5/13.5 55%

(DEFROST) 9.8/20.2 33%

(WARM) 5/25 17%

MEASUREMENT OF THE MICROWAVE OUTPUT POWER

Microwave output power can be checked by indirectly measuring the temperature rise of a certain amount of water

exposed to the microwave as directed below.

Procedure

1. Microwave power output measurement is made with the microwave oven supplied at rated voltage and operated

at its maximum microwave power setting with a load of 1,000±5cc of potable water.

2. The water is contained in a cylindrical borosilicate glass vessel having a maximum material thickness of 3 mm

and an outside diameter of approximately 190 mm.

3. The oven and the empty vessel are at ambient temperature prior to the start of the test.

The initial temperature of the water is 10±2˚C(50±3.6˚F).

It is measured immediately before the water is added to the vessel. After addition of the water to the vessel, the

load is immediately placed on the center of the shelf which is in the lowest normal position.

4. Microwave power is switched on.

5. Heating time should be exactly 52 seconds.

Heating time is measured while the microwave generator is

operating at full power.

The filament heat-up time for magnetrons is not included.

6. The initial and final water temperatures are selected so that

the maximum defference between the ambient and final

water temperature is 5K.

7. The microwave power output P in watts is calculated from the following formula:

•

∆

T is actual temperature rise.

• t is the heating time.

The power measured should be 800W±10%.

CAUTION :

1. Water load should be measured exactly to 1 liters.

2. Input power voltage should be exactly 230 volts as specified.

3. Ambient temperature should be 20±2˚C (68±3.6˚F)

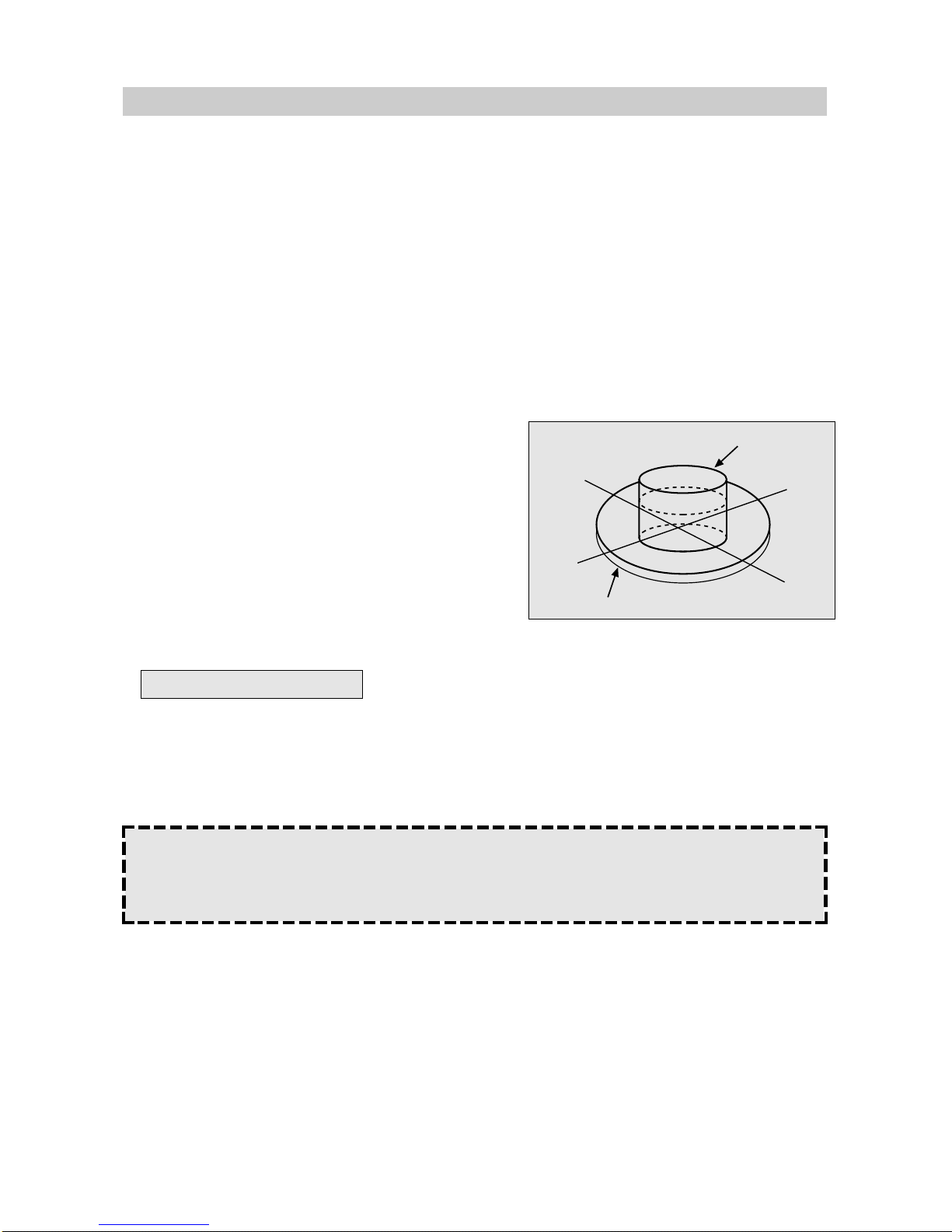

Water Load

Tray

P = 4187 X ∆T/t

MICROWAVE RADIATION TEST

WARNING

• Make sure to check the microwave leakage before and after repair or adjustment.

• Always, start measuring of an unknown field to assure safety for operating personnel from microwave energy.

• Do not place your hands into any suspected microwave radiation field unless the safe density level is known.

• Care should be takent not to place the eyes in direct line with the source of microwave energy.

• Slowlyapproach the unit under test until the radiometer reads an appreaciable microwave leakage from the unit

under the test.

Procedure

A) Prepare Microwave Energy Survey Meter, 600cc glass beaker, glass thermometer 100˚C or 212˚F.

B) Pour 275cc±15cc of tap water initially at 20±5˚C(68±9˚F) in the 600cc beaker with an inside diameter of approx.

9.5cm (3.5 in).

C) Place it at the center of the tray and set it in a cavity.

D) Close the door and operate the oven.

E) Measure the leakage by using microwave energy survery meter with dual ranges, set to 2450 MHz.

- Measured radiation leakage must not exceed the values prescribed below.

• Leakage for a fully assembled oven with door normally closed must be less than 4mW/cm

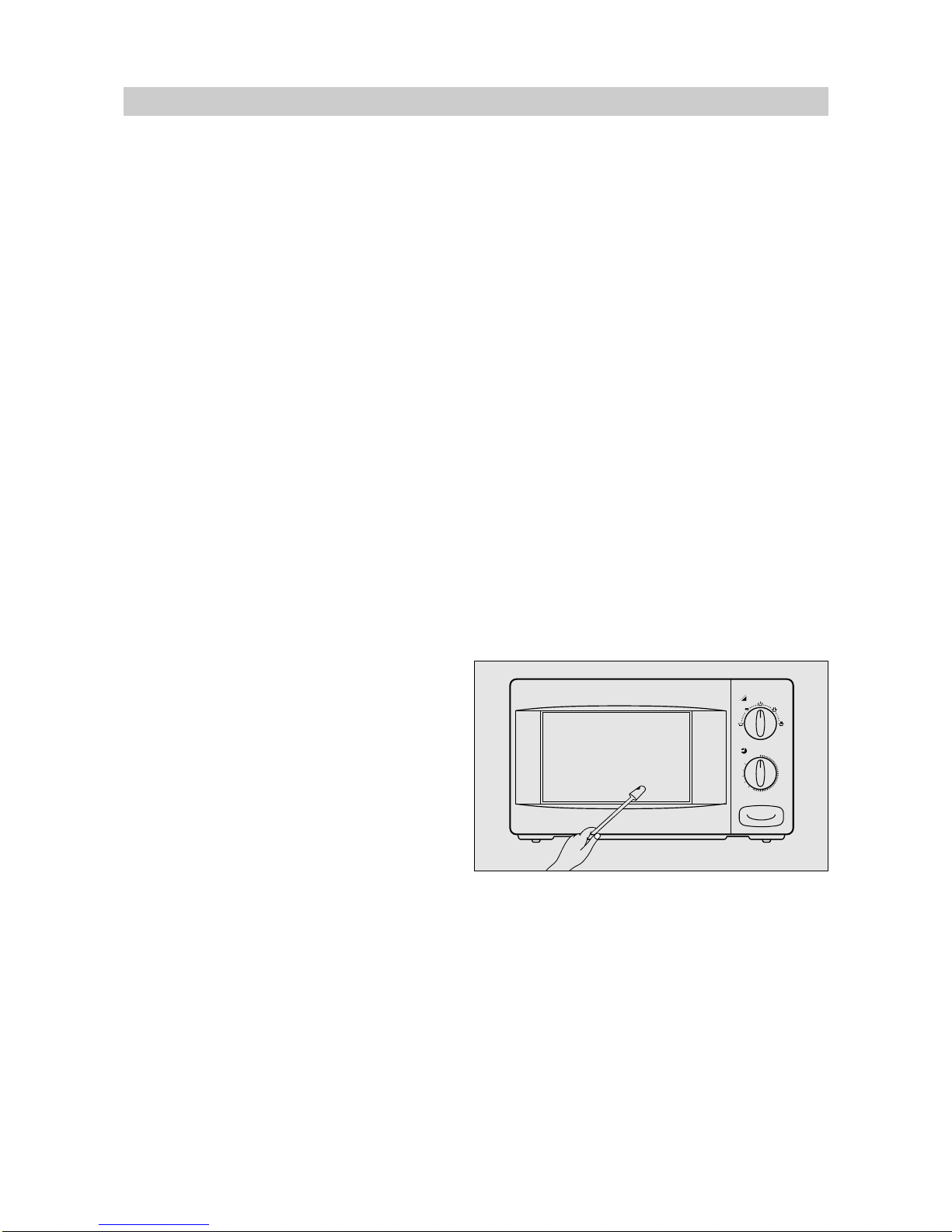

- When measuring the leakage, always use the 2 in (5cm) space cone with probe. Hold the probe perpendicular

to the cabinet, door. Place the space cone of the probe on the door, cabinet, door seam, door viewing screen,

the exhaust air vents and the suction air vents.

- Measuring should be in a counter-clockwise direction at a rate of 1 inch/sec. If the leakage of the cabinet door

seam is unkow, move the prove more slowly.

- When measuring near a corner of the door, keep the probe perpendicular to the areas making sure the probe

end at the base of the cone does not get closer than 2 inches from any metal.

If it does, erroneous reading may result.

WARNING

• Make sure to check the microwave leakage before and after repair or adjustment.

• Always, start measuring of an unknown field to assure safety for operating personnel from microwave energy.

• Do not place your hands into any suspected microwave radiation field unless the safe density level is known.

• Care should be takent not to place the eyes in direct line with the source of microwave energy.

• Slowlyapproach the unit under test until the radiometer reads an appreaciable microwave leakage from the unit

under the test.

WIRING DIAGRAM (SLOW ACTING RELAY TYPE)

HIGH VOLTAGE

TRANSFORMER

SLOW ACTING

RELAY ASS'Y

H.V.

CAPACITOR

H.V.

FUSE

H.V. DIODE

CL GM FMTM

POWER SUPPLY :

SINGLE PHASE ~ ONLY

RD WH

FILTER ASS'Y

FUSE

N N

BR(BK)

BL(WH)

GE(GN)

PRIMARY

INTERLOCK

SWITCH(UPPER)

TIMER ASSY

TIMER

SWITCHV.P.C

COM

INTERLOCK

MONITOR

SWITCH

BL BL

SECONDARY

INTERLOCK SWITCH

GY GYGY

RD RD

MAGNETRON

1 3

NOTE RD : RED

NOTE WH : WHITE

NOTE BK : BLACK

NOTE GN : GREEN

NOTE BR : BROWNNOTE

OR : ORANGE

BL : BLUE

GY : GRAY

GE : GREEN/YELLOW

CL : CAVITY LAMP

FM : FAN(BLOWER) MOTOR

GM : GEARED MOTOR

TM : TIMER MOTOR

V.P.C : VARIABLE POWER CONTROLLER

[CONDITION]

DOOR : CLOSED

TIMER : ON

V.P.C. : HIGH

RD BK

NOTE :

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali DAEWOO ELECTRONICS Forno a microonde

DAEWOO ELECTRONICS

DAEWOO ELECTRONICS KOR-616T0A Manuale utente

DAEWOO ELECTRONICS

DAEWOO ELECTRONICS KOR-6616 Manuale utente

DAEWOO ELECTRONICS

DAEWOO ELECTRONICS KOR-6A0R Manuale utente

DAEWOO ELECTRONICS

DAEWOO ELECTRONICS KOR-9G2B7A Istruzioni di montaggio

DAEWOO ELECTRONICS

DAEWOO ELECTRONICS KOG-5747 Manuale utente

DAEWOO ELECTRONICS

DAEWOO ELECTRONICS KOR-6L65SL Manuale utente

DAEWOO ELECTRONICS

DAEWOO ELECTRONICS KOG-3C6R Manuale utente

DAEWOO ELECTRONICS

DAEWOO ELECTRONICS KOC-9U0TSL Manuale utente

DAEWOO ELECTRONICS

DAEWOO ELECTRONICS KOR-9GGEB Istruzioni di montaggio

DAEWOO ELECTRONICS

DAEWOO ELECTRONICS KOG-8A2B5S Manuale utente

DAEWOO ELECTRONICS

DAEWOO ELECTRONICS KOR-634R Manuale utente

DAEWOO ELECTRONICS

DAEWOO ELECTRONICS KOR-4A6B Istruzioni di montaggio

DAEWOO ELECTRONICS

DAEWOO ELECTRONICS KOR-61AP2S Manuale utente

DAEWOO ELECTRONICS

DAEWOO ELECTRONICS KOC-9C5T Manuale utente

DAEWOO ELECTRONICS

DAEWOO ELECTRONICS KOC-922T9S Manuale utente

DAEWOO ELECTRONICS

DAEWOO ELECTRONICS KOR-63QA0S Manuale utente

DAEWOO ELECTRONICS

DAEWOO ELECTRONICS KOC-8HAFR Manuale utente

DAEWOO ELECTRONICS

DAEWOO ELECTRONICS KOR-63B50P Manuale utente

DAEWOO ELECTRONICS

DAEWOO ELECTRONICS KOR-180A2A Manuale utente

DAEWOO ELECTRONICS

DAEWOO ELECTRONICS KOR-1N5A9S Istruzioni di montaggio

DAEWOO ELECTRONICS

DAEWOO ELECTRONICS KOR-167H Manuale utente

DAEWOO ELECTRONICS

DAEWOO ELECTRONICS KOM-9P1CES Manuale utente

DAEWOO ELECTRONICS

DAEWOO ELECTRONICS KOR-4A370S Istruzioni di montaggio

DAEWOO ELECTRONICS

DAEWOO ELECTRONICS KOR6M17 Istruzioni di montaggio

Manuali Forno a microonde popolari di altre marche

Daewoo

Daewoo KOG-574R0S Manuale utente

LG MH7040SS Manuale utente

Sharp

Sharp R-895(AL)M Manuale utente

Dometic

Dometic DOTRM13W Manuale utente

Sanyo

Sanyo EM-X680 Manuale utente

Sharp

Sharp R-393M Manuale utente

KitchenAid

KitchenAid KMCX4510 Istruzioni per l'installazione

Smeg

Smeg S45MCX1 Manuale utente

Russell Hobbs

Russell Hobbs RHM2044 Manuale utente

Sunbeam

Sunbeam SMW759 Manuale utente

Gallet

Gallet FMOE230S Manuale utente

Bosch

Bosch CEG732X.1B Manuale utente

Dometic

Dometic Roadmate 230 Manuale utente

Samsung

Samsung SJ0396W Manuale utente

Sanyo

Sanyo EM-P494WS Manuale utente

Sharp

Sharp R-240 Manuale utente

Electrolux

Electrolux EMS2840 Manuale utente

Daewoo

Daewoo KOC-984T2S13 Manuale utente
