A NOTE TO YOU

Thank you for buying a DAEWOO appliance.

DAEWOO washers are easy to use, save time, and help you manage your home better.

This manual contains valuable information about how to operate and maintain your washer properly and safely.

Please read it carefully.

INSTRUCTION MANUAL

DWDHQ1421D

Washing Machine Instruction Manual

␊Economic wash system

Using artificial intelligence, the washer uses minimum energy and water by

selecting optimal water level and washing time.

␊Low noise system

The washer minimizes the washing and spinning noises by sensing the

amount of laundry and balancing the load before the spin.

␊Child-Lock

The Child-Lock system is used to prevent children from pressing any buttons

to change the program during operation.

CONTENTS Page

WASHER SAFETY...........................................................................................................................2

PARTS AND FEATURES.................................................................................................................4

INSTALLATION INSTRUCTIONS ....................................................................................................5

INLET HOSE CONNECTION ...........................................................................................................6

ELECTRICAL REQUIREMENTS .....................................................................................................7

OPERATING YOUR WASHER ........................................................................................................8

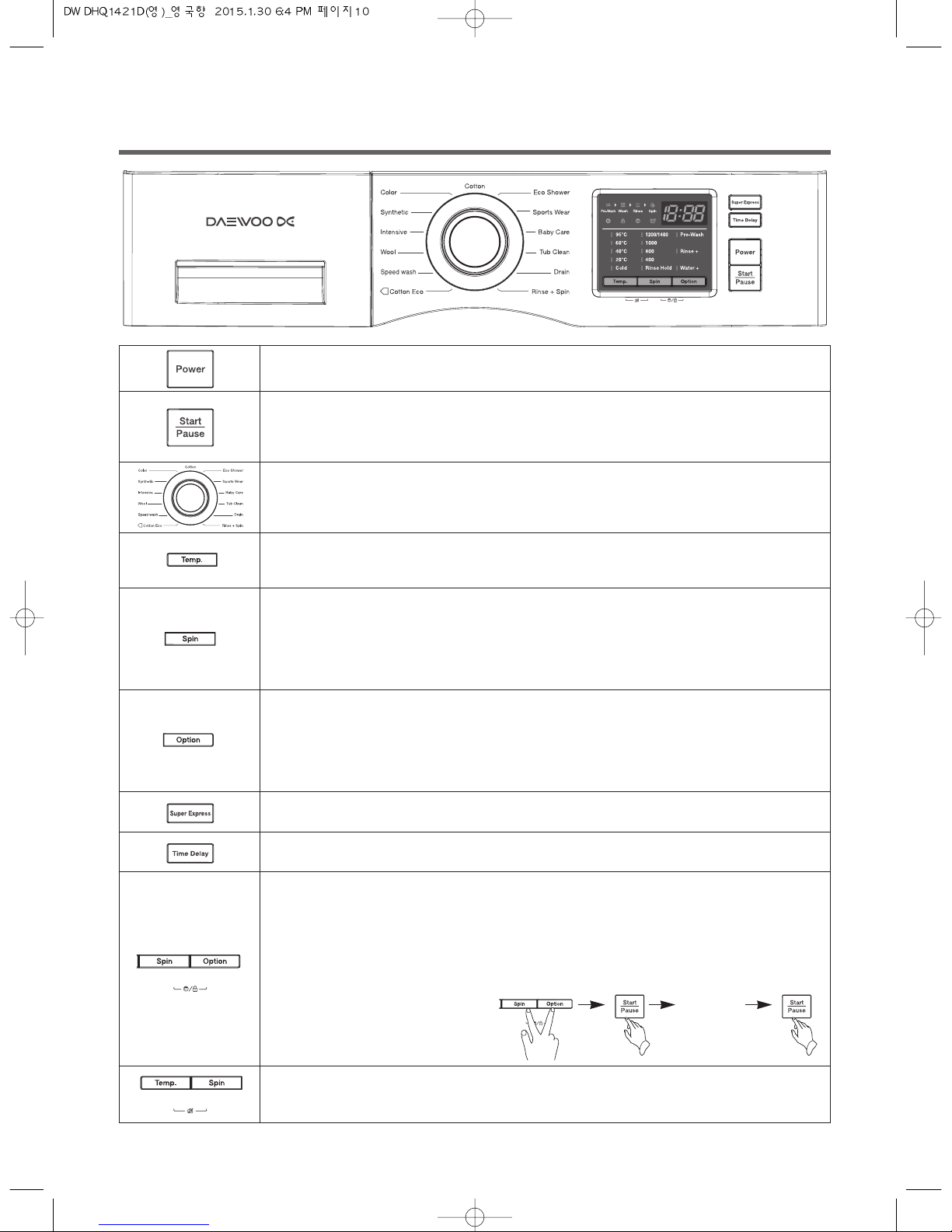

THE FUNCTIONS OF THE CONTROL PANEL.............................................................................10

WASHING PROCEDURE AND PROGRAM SELECTION.............................................................11

PRODUCT INFORMATION ...........................................................................................................25

MAINTENANCE ............................................................................................................................26

HOW TO CLEAN THE FILTER ......................................................................................................27

REMOVING STAINS ......................................................................................................................28

TROUBLE SHOOTING ..................................................................................................................29

SPECIFICATION & WIRING DIAGRAM ........................................................................................30

Customer Helpline Number : 01189252577

Spare Parts : 0844 557 0270 or www.4daewoo.co.uk / DAEWOO ELECTRONICS Web Site www.daewooelectronics.co.uk

WASHER SAFETY

Save these instructions

Your safety is important to us.

To reduce the risk of fire, electrical shock, or injury when using your

washer, adhere to the following basic precautions.

• Flammable fluids (dry-cleaning solvents, kerosene, gasoline, etc.)

should not be used or stored in or near your washer.

Do not add flammable fluids to your wash water.These substances

give off vapors that can create a fire hazard or explosion.

• After starting a cycle, do not reach into the washer until all motions

stop.

• Do not tamper with the controls.

• The appliance is not intended for use by young children or infirm

persons without supervision.

• If the supply cord is damaged, it must be replaced by the

manufacturer, or its service agent or a similarly qualified person in

order to avoid a hazard.

• If the appliance is supplied from an extension cord or portable

electrical outlet device, it should be positioned so that it is not

subjected to splashing or ingress of moisture.

Please ...

• Have only a qualified person install, repair, or replace parts on

washer.

• Maintain washer properly, as per instructions

• Protect washer from the weather and keep it where the temperature

will not fall below freezing.

• Do not install the washer in a place of extremely high humidity.

It could cause an electric shock or a short circuit.

• Connect washer to the correct outlet, electrical supply, water supply,

and drain supply.

Read all instructions before using your washer

WASHER SAFETY

Understanding your responsibilities

• Do not use chlorine bleach and ammonia or acid(such as vinegar

or rust remover) in the same wash. Hazardous fumes can form.

• Unplug power supply cord before attempting to service your

washer.

• Do not wash fiberglass material.

Small particles can stick to fabrics washed in following loads and

cause skin irritation.

• Do not spray water on the control panel of the washer.

It could cause fire or an electric shock.

• In case of the dual valve model, if you connect only cold water

inlet valve, while water temperature is selected as hot or warm,

there can be water leakage from unconnected water inlet valve.

• This appliance must be grounded.

To avoid electrical shock, use a metal pipe for the ground

connection.

• This appliance can be used by children aged from 8 years and

above and persons with reduced physical, sensory or metal

capabilities or lack of experience and knowledge if they have

been given supervision or instruction concerning use of the

appliance in a safe way and understand the hazard involved.

• Children should not play with the appliance.

• Cleaning and user maintenance should not be carried out by

children without supervision.

• Children of less than 3 years should be kept away unless

continuously supervised.

• If you want to obtain user manual, please visit our website at

www.daewooelectronics.co.uk or call our customer services on

0118 925 2577.

PARTS AND FEATURES

The parts and features of your washer are illustrated on this page.

Become familiar with all parts and features before using your washer.

Accessories

NOTE

The drawings in the book may vary from your washer model.

They are designed to show the different features of all models covered by this book,

Your model may not include all features.

Inlet hose Manual Cap holder(3EA)

DETERGENT CASE

INLET HOSE

HOT

(OPTION) COLD

DOOR

LOWER COVER ADJUSTABLE LEG

HOSE DRAIN

CONTROL PANEL

POWER CORD

Removing transit bolts

1. Before operating the washer, remove the

transit bolts(x3) along with the rubber around

them.

• If the bolts are not removed, it may cause

excess noise, vibration or malfunction.

2. Unscrew the 3 bolts with a 10mm hex

wrench or spanner or cross-tip screwdriver.

Do not discard the bolts.

• When the appliance is transported, the

transit bolts will need to be re-used.

3. Close the holes with the cap holders supplied.

Location of washer

• Check the location where the washer will be installed. Make sure you have everything

necessary for correct installation.

• Do not place or store your washer below 0°C (32°F) to avoid any damage from freezing.

• Do not place or store laundry products on top of washer at any times.

• Install the washer on the horizontal, solid, level floor.

If the washer is installed on an unsuitable floor, it could make

considerable noise, vibrate severely and cause a malfunction. If the

washer is not level, adjust leg up or down for horizontal installation.

• Ventilation openings must not be obstructed by carpeting when the

washer is installed on a carpeted floor.

•

Leave some space around the machine (right & left : 2cm, rear : 10cm).

• In case of built-in installation, the distance between top of the washer

and bottom of upper plate should be at least 3mm.

INSTALLATION INSTRUCTIONS

Drain Hose

Washer

Laundry

Tub

approx.

2cm

INLET HOSE CONNECTION

The washer should be connected to the water mains using new hose sets, old hose sets should

not be reused.

If in using only one water tap or in case of only one water inlet valve, connect the inlet hose to the

cold water inlet valve.

Note: Be careful not to confuse hot water inlet and cold water inlet if your model has a feed

For Ordinary Tap

1Pull down the collar of

the inlet hose to separate

it from the water tap

adapter.

2Loosen the four screws

properly in fitting into

water tap.

3Fit the water tap adapter

into the water tap and

tighten the four screws

evenly while pushing up

the adapter so that the

rubber packing can

attach to the water tap

tightly.

1Connect the inlet hose to

the water tap by screwing

the connector tightly.

2Connect the connector-

inlet supplied if

necessary.

3Insert the inlet hose

adapter into the water

inlet of a washing

machine and turn it to be

fixed. .

4Remove the tape, and

screw connector B into

connector A tightly.

5Connect the inlet hose to

the water tap adapter by

pulling down the collar of

the hose end.

6Connect the inlet hose

adapter of the hose to the

water inlet of the washing

machine by turning it

clockwise to be fixed

tightly.

For Screw-Shaped Tap

• Please check the rubber

packing inside the inlet hose

adapter of the hose.

* Check the packing in the inlet

Connector B

Connector A

Connector

Hose Connector

Rubber

Packing

Connector

inlet

Connector

Hose Connector

Rubber

Packing

TAPE

ELECTRICAL REQUIREMENTS

Drain system

• Never forget to install the drain hose before operating your washer.

• Open the packing box, and the drain hose is inside the drum.

• Connect the drain hose to the drain outlet at the back side of the washer.

•

Top of laundry tub must be at least 60cm high and no higher than 100cm from bottom of washer.

• If the machine is not installed correctly, it could 'back fill' with dirty water from the waste pipe so

please follow the instructions carefully.

• When installing the drain hose to tub(sink), secure it tightly with a cable tie or other suitable

device.

• Proper securing of the drain hose will protect the floor from damage due to any water leakage.

• When the drain hose is too long, do not force it back into the washer.

This will cause abnormal noise.

Level adjustment

1If the washer is installed on an

unsuitable floor, it could make

considerable noise, vibrate and

cause a malfunction.

Laundry tub

max. 100 cm

min. 60 cm

ca. 105 cm

Tie

strap

max. 100 cm

min. 60cm

max. 100 cm

min. 60cm

WARNING

• Electrical earth is required on this washer.

• If it does not fit the outlet, have a proper outlet

installed by a qualified electrician.

• Don't earth to a gas pipe.

• Don't change the power supply cord or plug.

• Check with a qualified electrician if you are not

sure the washer is properly earthed.

Recommended earthing method

For your personal safety, this washer must be earthed.

This washer is equipped with a power supply cord ‘A’having a earthing plug ‘B’.

To minimize possible shock hazard, the cord must be plugged into a mating

earthing-type wall receptacle ‘C’. If a mating plug socket is not available, it is the

personal responsibility and obligation of the customer to have the proper earthed

plug socket installed by a qualified electrician.

Electrical shock hazard : Failure to follow these instructions could result in

death or serious injury.

OPERATING YOUR WASHER

2Adjust the level of washer.

• Adjust the level of washer by turning the

adjustable legs.

• Please check if there is any gap between

the four adjustable legs and the floor.

• After the adjustment is finished, turn the

fixing nuts up tightly so that the washer

maintains the adjustment.

3Make it sure that the washer does not sway when you press

down the four corners of the washer's top plate.

adjustable leg

Fixing Nut

To obtain the best washing results, you must operate your washer properly, as per instructions.

This section gives you this important information.

• Close zippers, snaps, and hooks to avoid

snagging other items.

Remove pins, buckles, and other hard

objects to avoid damaging the washer

interior.

• Empty pockets and pull them inside out.

• Turn down cuffs and turn synthetic knits

inside out to avoid pilling.

• Tie strings and sashes to avoid tangling.

• Treat spots and stains.

(See “Removing stains” on page 27)

Preparing clothes for washing

• Separate heavily soiled items from lightly soiled ones, even if they would normally be washed together.

• Separate dark colours from light colours, colourfast items from non-colourfast item.

Soil (Heavy, Normal, Light) Separate clothes according to amount of soiling.

Colour (White, Lights, Darks) Separate white clothes from coloured clothes.

Lint (Lint producers, Collectors) Wash lint producers and lint collectors separately

Sorting

• Drop items into washer loosely. Items should move

easily through wash water for best cleaning and

wrinkle-free results.

• Load washer properly and select correct load size

setting.

Overloading and selecting a setting too small for the

wash load can :

- Cause poor cleaning

- Increase wrinkling

- Create excessive lint

- Wear out items faster (because of pilling)

• Mix large and small items in each load. Load evenly

to maintain washer balance.

An unbalanced load can make the washer vibrate

during spin or cause spin cycle not to be completed.

• Reduce wash time when using a small load size

setting. Loads with only a few small items need less

wash time.

• Use a large load size setting to reduce wrinkling

with permanent press clothes and some synthetic

knits. These items should have more room to move

in the water than heavy items. (towels, jeans)

1Detergent case 2Adding fabric softener

• If desired, add measured liquid fabric

softener to the softener inlet.

• Pour liquid fabric softener into the

dispenser using the amount recommended

on the package.

• Do not exceed the maximum fill line.

Overfilling can cause early dispensing of the

fabric softener which could stain clothes.

• Do not open the detergent case when

water is supplied.

• Avoid pouring fabric softener directly on

the clothes.

• Please use the proper amount of detergent in conformity with the instructions of the detergent manufacturer.

• A use of a large amount of detergent more than the recommended amount can cause many soapsuds and

the overload to the motor. In addition to, this will deteriorate the washing and rinse performance.

Main wash Pre wash

Fabric softener

Adding detergent

Press this switch to turn the power on or off.

Operation and temporary stop is repeated as it is pressed.

When you want to change program in operation;

Press the ‘Start/Pause’ button ᵎSelect the program that you want to change

Press the ‘Start/Pause’ button again.

You can select the course you want, and each light will come on when that cycle is selected.

For the more detailed information, please refer to the page 12~24.

It can be used to adjust temperature of water according to types of the load to be

washed. As the button is pressed, temperature of water is selected by

Cold ᵎ20°C ᵎ40°C ᵎ60°C ᵎ95°C

By pressing the spin button, the spin speed can be chosen.

Rinse Hold • Is selected by pressing the spin button repeatedly. This function leaves clothes in

the machine; suspended in the water after a rinse without entering into spin.

• To proceed through to a drain or spin, after the Rinse Hold function is completed,

use spin button.

Spin Only • If you want only spin, you can operate spin only.(See page 24.)

Pre-Wash • The washer operates one additional wash and spin before the main wash.

• If the laundry is heavily soiled, Pre-Wash course is effective.

• Pre-Wash is available in Cotton, Baby Care and Synthetic programs.

Rinse+ • Is used to add a rinse, which may assist in removing traces of detergent residue.

• By selecting Rinse+ function, the rinse time and the rinse water are increased.

Water+ • If you want to use more water in the rinsing, press this button.

Use this function when you want to reduce the laundry time or wash mildly soiled clothes.

It reduces the laundry time and saves (lower) energy consumption.

It can be used to pre-engage time for wash.

The wash can be delayed from 1 hours to 12 hours.

Use this function when you want to protect any accident occurring from handling of washer by a

child. During an operation of washer, press ‘Spin’ and ‘Option’ buttons simultaneously.

In Child Lock mode, no buttons except for Power button can be pressed.

In Child Lock mode, press ‘Spin’ and ‘Option’ buttons simultaneously like setting Child Lock and

Child Lock is cancelled.

To change to the desired program, while in Child Lock mode;

1. Press both the ‘Spin’ and ‘Option’ buttons together once again.

2. Press the Start/Pause button.

3. Select the desired program and

press the Start/Pause button again.

• The Child Lock will be cancelled when

power is off.

Use this function when you want the machine not to alarm when finished.

During an operation of washer, press 'Temp.' and 'Spin' buttons simultaneously.

You should set this function whenever you want to silence the buzzer.

THE FUNCTIONS OF THE CONTROL PANEL

Change the

desired

program

Indice

Altri manuali DAEWOO ELECTRONICS Rondella

DAEWOO ELECTRONICS

DAEWOO ELECTRONICS DWD-FD1441 Manuale utente

DAEWOO ELECTRONICS

DAEWOO ELECTRONICS Daema DWF-1101Q Manuale utente

DAEWOO ELECTRONICS

DAEWOO ELECTRONICS DWD-E1211W Manuale utente

DAEWOO ELECTRONICS

DAEWOO ELECTRONICS DWD-F1031 Manuale utente

DAEWOO ELECTRONICS

DAEWOO ELECTRONICS DWD-HB1411 Manuale utente

DAEWOO ELECTRONICS

DAEWOO ELECTRONICS DW-3600 (P) Manuale utente

DAEWOO ELECTRONICS

DAEWOO ELECTRONICS DWD-EUR95DPWCA Manuale utente

DAEWOO ELECTRONICS

DAEWOO ELECTRONICS DWF-7570DP Manuale utente

DAEWOO ELECTRONICS

DAEWOO ELECTRONICS DWF-5590DP Series Manuale utente

DAEWOO ELECTRONICS

DAEWOO ELECTRONICS DWF-260NS Manuale utente

DAEWOO ELECTRONICS

DAEWOO ELECTRONICS DWD-FD1411 Manuale utente

DAEWOO ELECTRONICS

DAEWOO ELECTRONICS DWC-UD1433 Manuale utente

DAEWOO ELECTRONICS

DAEWOO ELECTRONICS DWC-L1011 Manuale utente

DAEWOO ELECTRONICS

DAEWOO ELECTRONICS DWF-5550 Manuale utente

DAEWOO ELECTRONICS

DAEWOO ELECTRONICS DWD-L1212 Manuale utente

DAEWOO ELECTRONICS

DAEWOO ELECTRONICS WF 3V Series Manuale utente

DAEWOO ELECTRONICS

DAEWOO ELECTRONICS DWD-G1281B Manuale utente

DAEWOO ELECTRONICS

DAEWOO ELECTRONICS MINI Manuale utente

DAEWOO ELECTRONICS

DAEWOO ELECTRONICS mini DWD-CV703 Series Manuale utente

DAEWOO ELECTRONICS

DAEWOO ELECTRONICS DWD-HC1011 Manuale utente

DAEWOO ELECTRONICS

DAEWOO ELECTRONICS DWD-1410DS Manuale utente

DAEWOO ELECTRONICS

DAEWOO ELECTRONICS DWC-LD141X Manuale utente

DAEWOO ELECTRONICS

DAEWOO ELECTRONICS DWD-NT122'S Manuale utente

DAEWOO ELECTRONICS

DAEWOO ELECTRONICS DWD-NP122 S Manuale utente

Manuali Rondella popolari di altre marche

Tricity Bendix

Tricity Bendix AW 1000 W Guida del prodotto

Panasonic

Panasonic NA-F60L5WRB Manuale utente

GE WSLP1500 Manuale

Electrolux

Electrolux EWF1284EDW Manuale utente

Bosch

Bosch WAN2829BSN Manuale utente

LG TV2516DV3B Manuale utente

LG TH2517DSAV Manuale utente

VESTEL

VESTEL CMH-XL 7510 TE Manuale utente

AEG

AEG 74335 Manuale operativo

Johnson

Johnson JWF721A Manuale utente

Beko

Beko WTE7604XLW0 Manuale utente

Danby

Danby DTT100A1WDB Istruzioni per il montaggio

Amica

Amica WA 14 Ex Manuale utente

Daewoo

Daewoo DWD-F1222 Manuale utente

Bosch

Bosch WAS28461AU Manuale utente

Miele

Miele PW 6080 Vario Manuale utente

Finlux

Finlux FLX108CF220 Manuale utente

Whirlpool

Whirlpool 3LBR5132AN0 Manuale utente
