Daewoo DSA-095L Manuale utente
Manual de servicio
Split Acondicionador de Aire
Modelo:
CONTENTS
1. Specifications..........................................................................................................2
2. Outline and Dimensions.........................................................................................6
3. Operation ..............................................................................................................14
4. Wiring Diagram.....................................................................................................25
5. Control Block Diagram.........................................................................................28
6. Electric Circuit Diagram........................................................................................31
7. Trouble Shooting ..................................................................................................33
8. PCB Driving Description.......................................................................................39
9. Key Components of Electronic Circuit.................................................................63
10. Disassembly Instructions .....................................................................................66
1) Indoor Unit........................................................................................................66
2) Outdoor Unit.....................................................................................................70
3) Exploded Diagram (Indoor Unit)......................................................................73
4) Exploded Diagram (Outdoor Unit)...................................................................81
5) Control Box Assembly......................................................................................89
Contents
2
MODEL DSA-095L
ITEM
Function Cooling
Class T1
Power AC 230V/ 60Hz
Capacity KJ/h 9,000
Btu/h 8,531
Dehumidification l/h 1.1
Running Current A 3.6
Power Input W 800
Type Rotary
Model QK125KB✳(LGE)
Capacitor 25µF / 400VAC
Indoor Unit Outdoor Unit
Type Cross flow fan Propeller fan
Capacitor 1.0µF 400VAC 2.0µF 400VAC
Motor Model Number YDK-8-4A(Xiang Ming) YDK-35-6A(Xiang Ming)
Sound Level (Hi) dB(A) 39 48
Fan Speed (Hi) RPM 1,350 880
Control Capillary
Charge Q'ty g 680
Type Flare
OD
(Liquid/Suction)
in(mm) 1/4 (6.35) 3/8 (9.52)
Dimensions (W x H x D) mm 750 x 245 x 179 654 x 549 x 256
Net Weight kg 7.0 34
Electrical
Data
Compressor
Fan
Motor
Refrigerant
(R22)
Connection
◆DSA-095L
1. SPECIFICATIONS
3
MODEL DSA-125L, 125P
ITEM
Function Cooling
Class T1
Power AC 230V/ 60Hz
Capacity KJ/h 12,500
Btu/h 11,848
Dehumidification l/h 1.35
Running Current A 4.7
Power Input W 1,010
Type Rotary
Model QK156KA✳ (LGE)
Capacitor 35µF/ 370VAC
Division Indoor Unit Outdoor Unit
Type Cross flow fan Propeller fan
Capacitor 1.2µF 400VAC 3µF 400VAC
Motor Model Number RP-13B(Welling) YDK-50-6A(Xiang Ming)
Sound Level (Hi) dB(A) 42 52
Fan Speed (Hi) RPM 1,300 870
Control Capillary
Charge Q'ty g 1,000
Type Flare
OD
(Liquid/Suction)
in(mm) 1/4 (6.35) 3/8 (9.52)
Dimensions (W x H x D) mm 815 x 285 x 195 800 x 615 x 320
Net Weight kg 9.2 50
Electrical
Data
Compressor
Fan
Motor
Refrigerant
(R22)
Connection
◆DSA-125L, 125P
4
MODEL DSA-185L, 185P
ITEM
Function Cooling
Class T1
Power AC 230V/ 60Hz
Capacity KJ/h 17,500
Btu/h 16,588
Dehumidification l/h 2.0
Running Current A 7.2
Power Input W 1,620
Type Rotary
Model QJ250KA✳(LGE)
Capacitor 35µF/ 370VAC
Division Indoor Unit Outdoor Unit
Type Cross flow fan Propeller fan
Capacitor 1.2µF 400VAC 3µF 400VAC
Motor Model Number YDK-20-4A(Xiang Ming) YDK-50-6A(Xiang Ming)
Sound Level (Hi) dB(A) 48.1 56
Fan Speed (Hi) RPM 1,370 870
Control Capillary
Charge Q'ty g 1,070
Type Flare
OD
(Liquid/Suction)
in(mm) 1/4 (6.35) 1/2 (12.7)
Dimensions (W x H x D) mm 1035 x 322 x 205 800 x 615 x 320
Net Weight kg 11.7 50
Electrical
Data
Compressor
Fan
Motor
Refrigerant
(R-22)
Connection
◆DSA-185L, 185P
5
MODEL DSA-245L, 245P
ITEM
Function Cooling
Class T1
Power AC 230V/ 60Hz
Capacity KJ/h 23,500
Btu/h 22,275
Dehumidification l/h 2.7
Running Current A 10.0
Power Input W 2,220
Type Rotary
Model QP325KBB (LGE)
Capacitor 40µF/ 400VAC
Division Indoor Unit Outdoor Unit
Type Cross flow fan Propeller fan
Capacitor 1.2µF 400VAC 3µF 400VAC
Motor Model Number IC-9430DWKF7A(Sung shin) A2929GS010(DMI)
Sound Level (Hi) dB(A) 48.5 57
Fan Speed (Hi) RPM 1,300 950
Control Capillary
Charge Q'ty g 1,850
Type Flare
OD
(Liquid/Suction)
in(mm) 3/8 (9.52) 5/8 (15.9)
Dimensions (W x H x D) mm 1080 x 298 x 200 872 x 675 x 325
Net Weight kg 14.7 64
Electrical
Data
Compressor
Fan
Motor
Refrigerant
(R-22)
Connection
◆DSA-245L, 245P
6

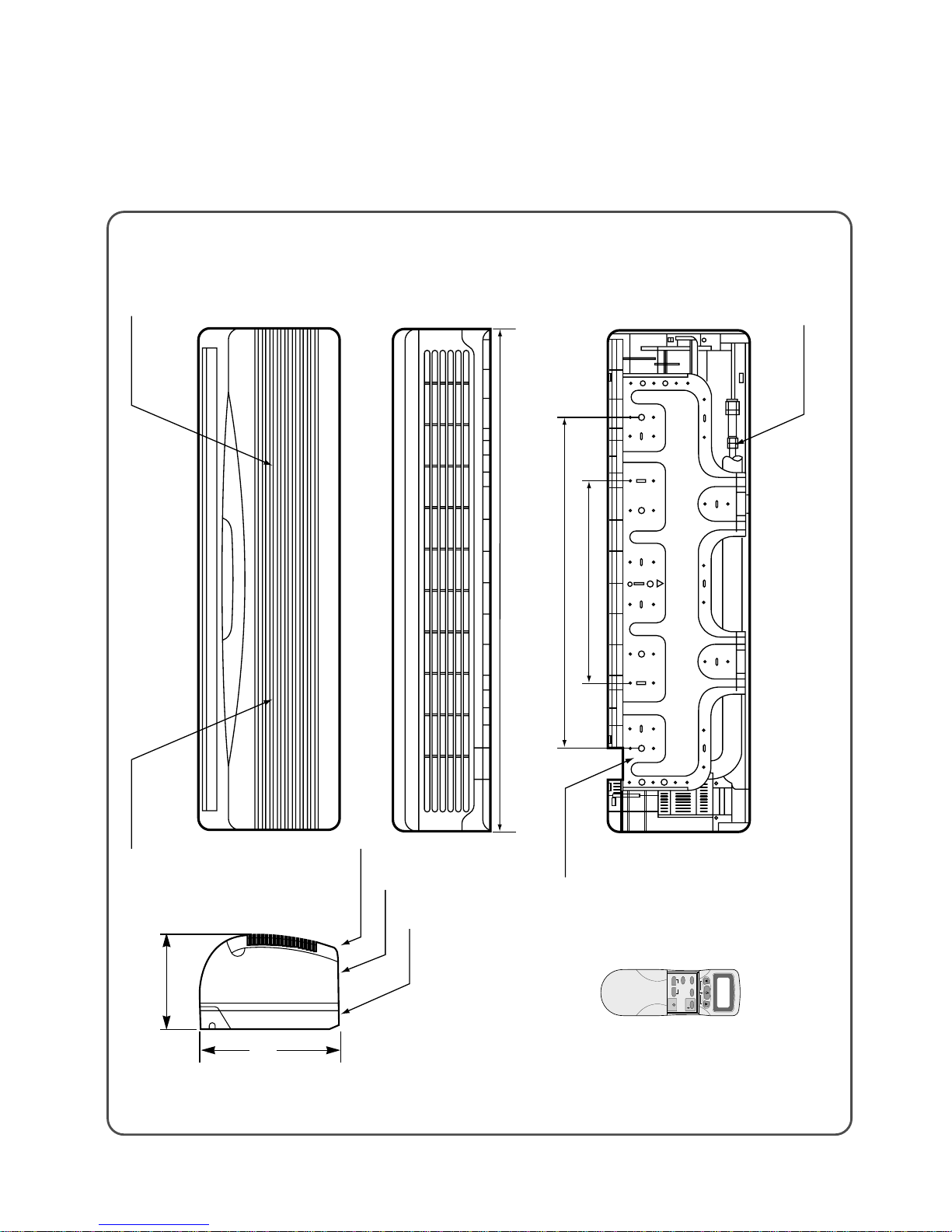

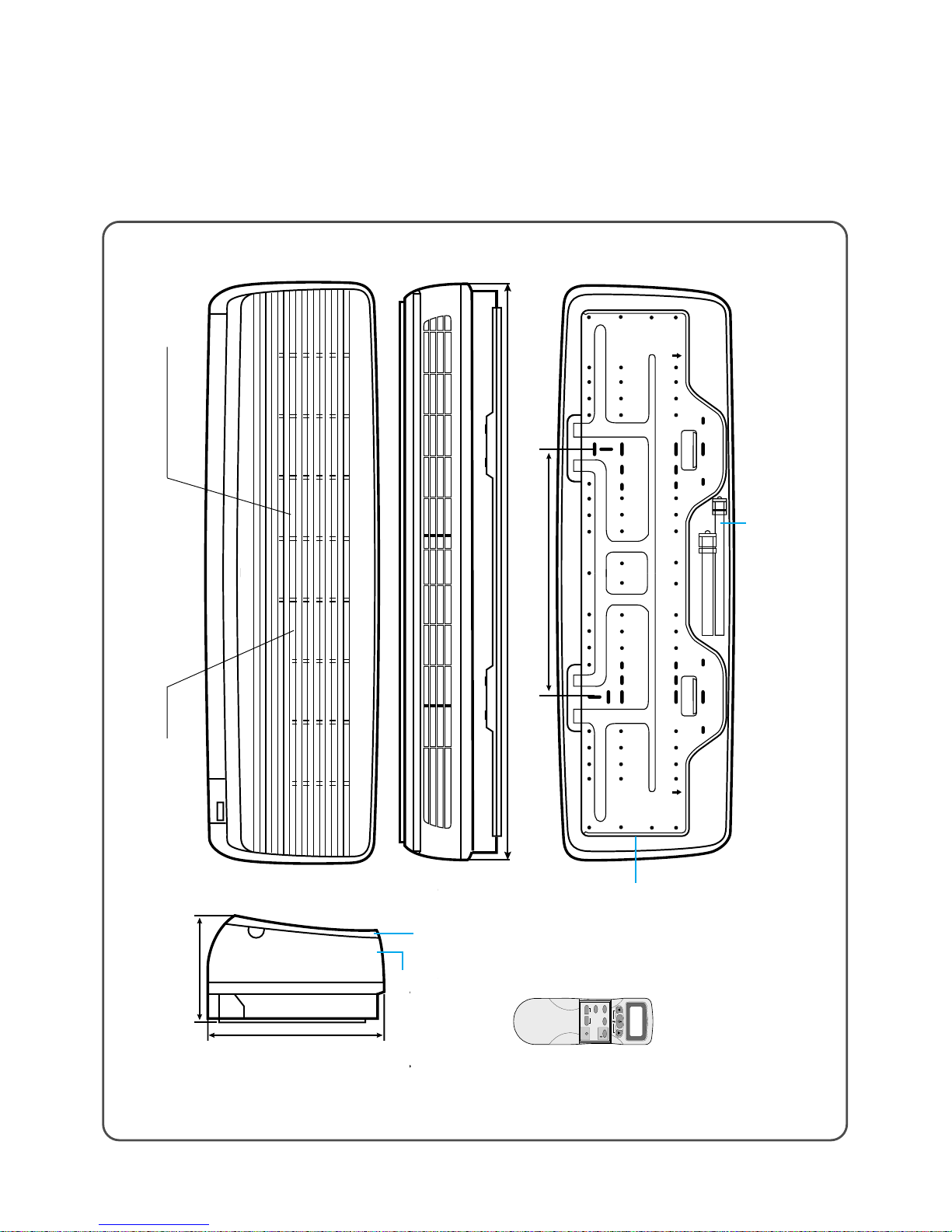

750
Plate Mounting
REMOCON
Connecting Pipe
Grille Insert
179
245
REMOTECONTROLLER
Frame Grille
Body
Plate Mounting
2. OUTLINE AND DIMENSIONS
1
INDOOR UNIT
◆DSA-095L
MODE
SLEEP
ON/OFF
TIMER
ENTER/
CANCEL
FAN SPEED
TURBO/MILD
FAN DIR.
REMOCON
7

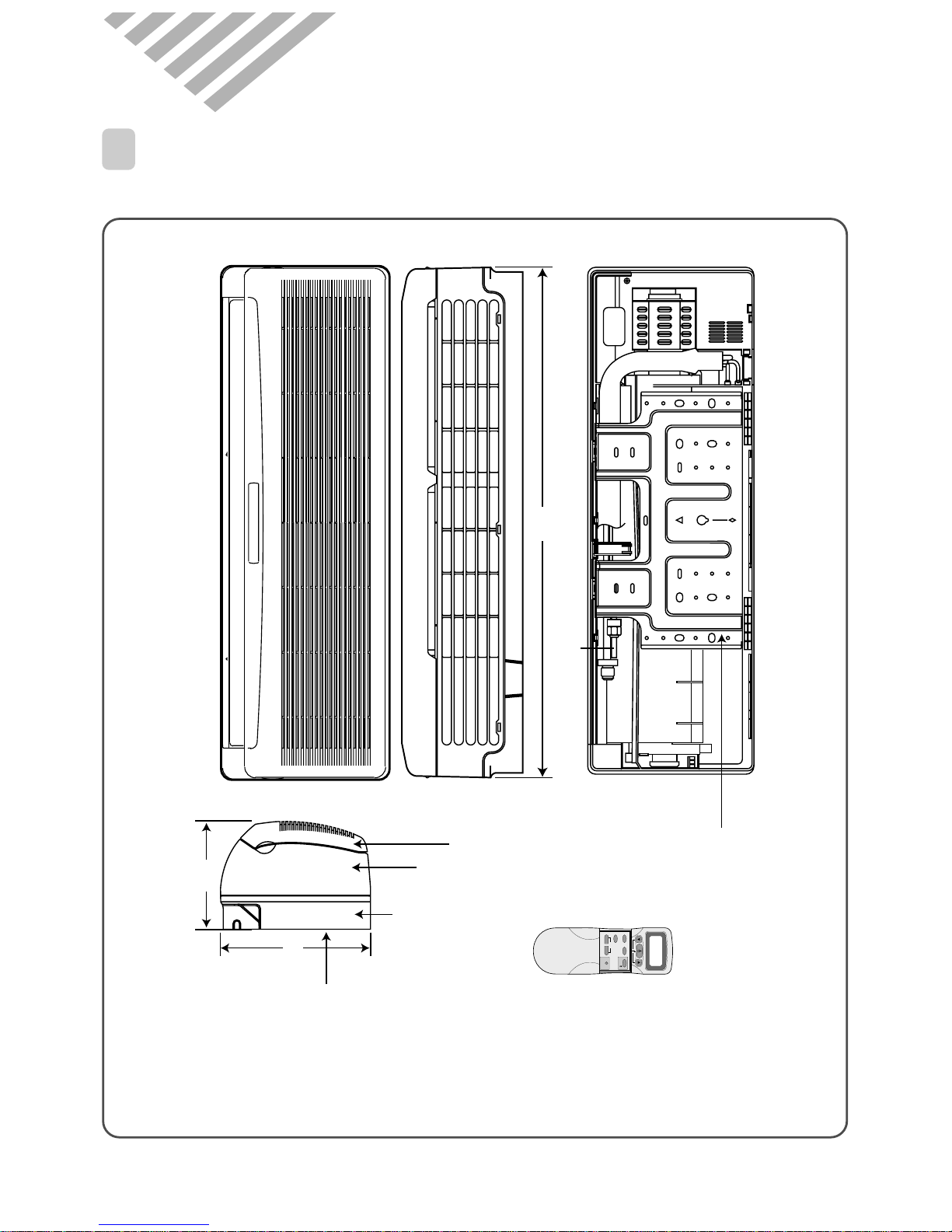

Insert Grille
Frame Grille
Body
Connecting Pipe
Plate Mounting
815
195
285
◆DSA-125L, 125P
MODE
SLEEP
ON/OFF
TIMER
ENTER/
CANCEL
FAN SPEED
TURBO/MILD
FAN DIR.
REMOCON
8

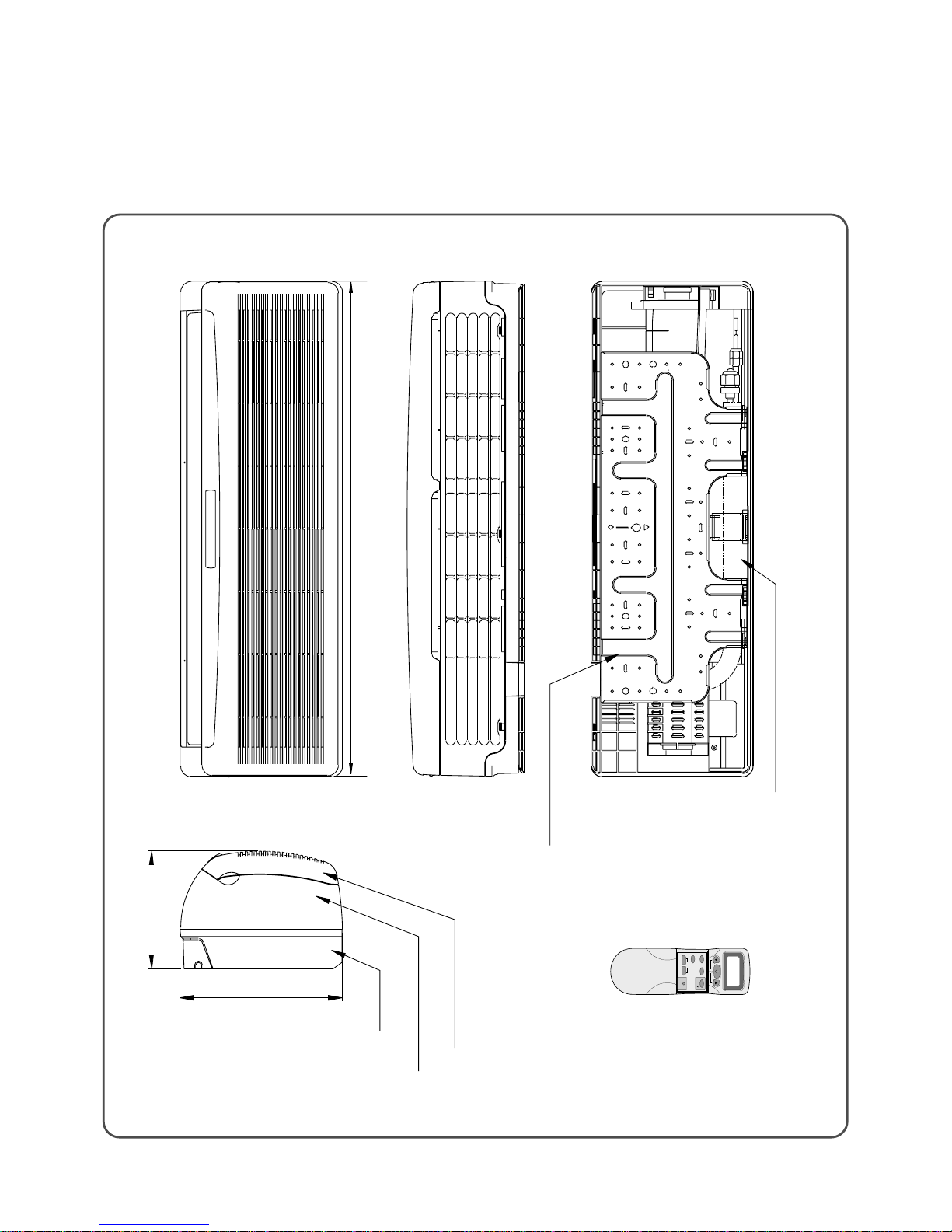

◆ DSA-185L, 185P
1035
205
322
453
¿‹ Æ˘˜ ˙`
”fi `⁄˘˙
`⁄„«…–‚fi‚ ˜
‰˙‡»– ‚Ø– ‚–
‰˙‡»– ‚ ˆ…
Connecting Pipe
Filter-L Filter-R
Grille Insert
Body
Plate
Mounting
453
1035
MODE
SLEEP
ON/OFF
TIMER
ENTER/
CANCEL
FAN SPEED
TURBO/MILD
FAN DIR.
REMOCON
9
Connecting Pipe
Body
Frame Grille
Grille Insert
Plate Mounting
430
710
1080
Filter-L Filter-R
REMOCON
◆DSA-245L, 245P
200
298
MODE
SLEEP
ON/OFF
TIMER
ENTER/
CANCEL
FAN SPEED
TURBO/MILD
FAN DIR.
REMOCON
