Daewoo DSA-151L Manuale utente

Manual de servicio

Acondicionador de Aire Tipo Split

Modelo: DSA-181L

Contents

CONTENTS

1. Specifications................................................................................................2

2. Outline and Dimensions .................................................................................3

3. Operation.....................................................................................................5

4. Wiring Diagram..........................................................................................17

5. Refrigerant Cycle.........................................................................................22

6. Control Block Diagram.................................................................................23

7. Electric Circuit Diagram................................................................................24

8. Trouble Shooting..........................................................................................27

9. Disassembly Instructions ...............................................................................43

1) Indoor Unit..............................................................................................43

2) Outdoor Unit...........................................................................................45

3) Exploded Diagram (Indoor Unit) ...............................................................47

4) Exploded Diagram (Outdoor Unit) ............................................................50

5) Control Box Assembly..............................................................................56

1. SPECIFICATIONS

MODEL DSA-151L DSA-181L DSB-181L

ITEM

Function Cooling

Class T

Power Supply

AC 208~230V, 60Hz AC 208~230V, 60Hz AC 220~240V, 50Hz

Capacity W 4,300 5,100 5,100

Btu/h 15,500 17,500 17,500

Dehumidification 1.98l/h 2.3l/h 2.3l/h

Running Current 6.6A 8.3A 9.8A

Power Input 1,450W 1,785W 1,950W

Starting Current 42A 44A 46A

Type Rotary Rotary RECIPRO

Model RCA150A001 ECB185211A CRDQ-0200-PFJ

Capacitor 30µF/400 VAC

Type Indoor Cross Flow Fan

Outdoor Propeller Fan

Capacitor Indoor 1.2µF/400 VAC

Outdoor 3µF/400 VAC

Motor Model Indoor IC-9425DWKH6A IC-9425DWKH6A IC-9425DWKC5A

Outdoor AM12DPD05 AM12DPD05 AM12DPD04

Control Capillary

Charge Q'ty 1,250g 1,450g 1,150g

Type Flare

OD Indoor 1/4”(6.35mm)

(Liquid/Suction) Outdoor 1/2”(12.7mm)

Dimensions Indoor 1,035 x 322 x 205

Outdoor 800 x 615 x 277

Net Weight Indoor 11.7Kg 11.7Kg 11.7Kg

Outdoor 43Kg 44Kg 55.8Kg

Electrical

Data

Compressor

Fan

Refrigerant

(R-22)

Connection

◆DSA-151L/DSA-181L/DSB-181L

2. OUTLINE AND DIMENSIONS

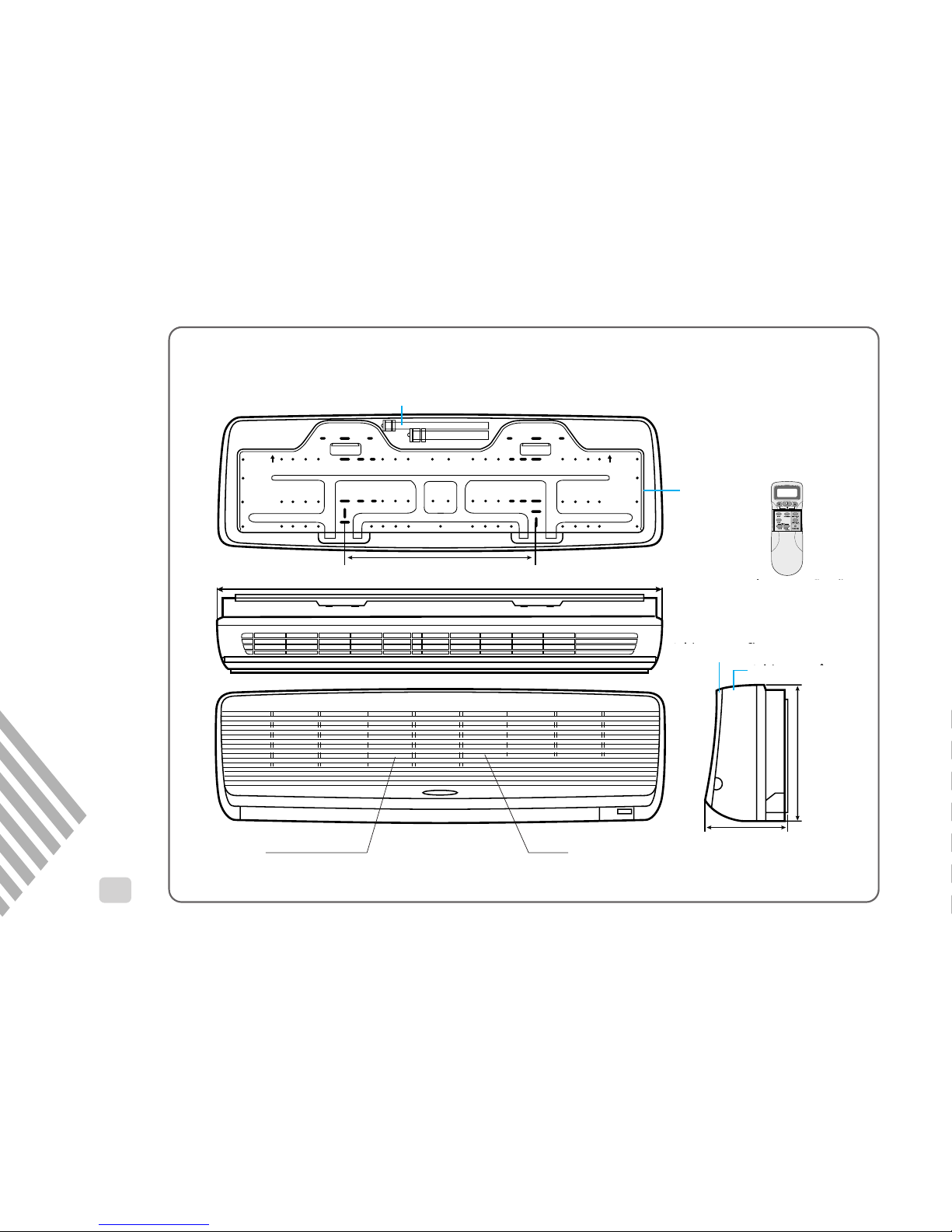

INDOOR UNIT

◆ DSA-151L/DSA-181L/DSB-181L

1035

205

322

453

¿‹ Æ˘˜ ˙`

”ﬁ `⁄˘˙

`⁄„«…–‚ﬁ‚ ˜

‰˙‡»– ‚Ø– ‚–

‰˙‡»– ‚ ˆ…

Connecting Pipe

Filter-L Filter-R

Grille Insert

Body

Plate Mounting

REMOCON

453

1035

OUTDOOR UNIT

◆ DSA-151L/DSA-181L/DSB-181L

277

367

615

800

Inlet

Outlet

Foot

Handle

Panel Top

Cabinet

Service Valve

Discharge

Grille

PARTS OF NAME AND FUNCTION

Indoor Unit

3. OPERATION

◆ DSA-151L/DSA-181L/DSB-181L

Indoor Cover

Electrostatic Filter

Removes dust

particles from the air.

Deodorizing Filter

Removes bad

smells from the air.

Test/Emergency/

Remote Switch

Slide to select

the desired position.

Indicators

Indicate the

AC setting.

Remote Sensor

Power PlugLCD Remote Controller

Air Cleaning

Filters

Removes dust

and prohibits

germs. Cold Air

Air In

Fan Direction

(Up/Down)

Fan Direction

(Left/Right)

ON OFF ENTER CANCEL

TIMER RESET

FAN DIR.

FAN SPEED

MODE

SLEEP

ON/OFF

TEMP.

◆

DSA-151L/DSA-181L/DSB-181L

■Remote Control Signal Receiver

This place is the part to receive the signal if it receive

the signal, you can hear the signal “beep. beep”.

■There is a switch panel at inside of Front Panel.

At the time of operating, open the Front Panel.

Emergency switch can be used when the remote

controller is lost or Testing.

Remote switch is usually used by remote controller.

Indoor Unit Display Switch Panel

ON (Red)

Lights when the

operation is going on.

Air clean (Green)

Timer (Yellow)

Lights during the time

reservation mode.

Quick (Red)

Lights during the

time Quick

Mode.

Timer

Quick

Airclean

EMERGENCY REMOTE

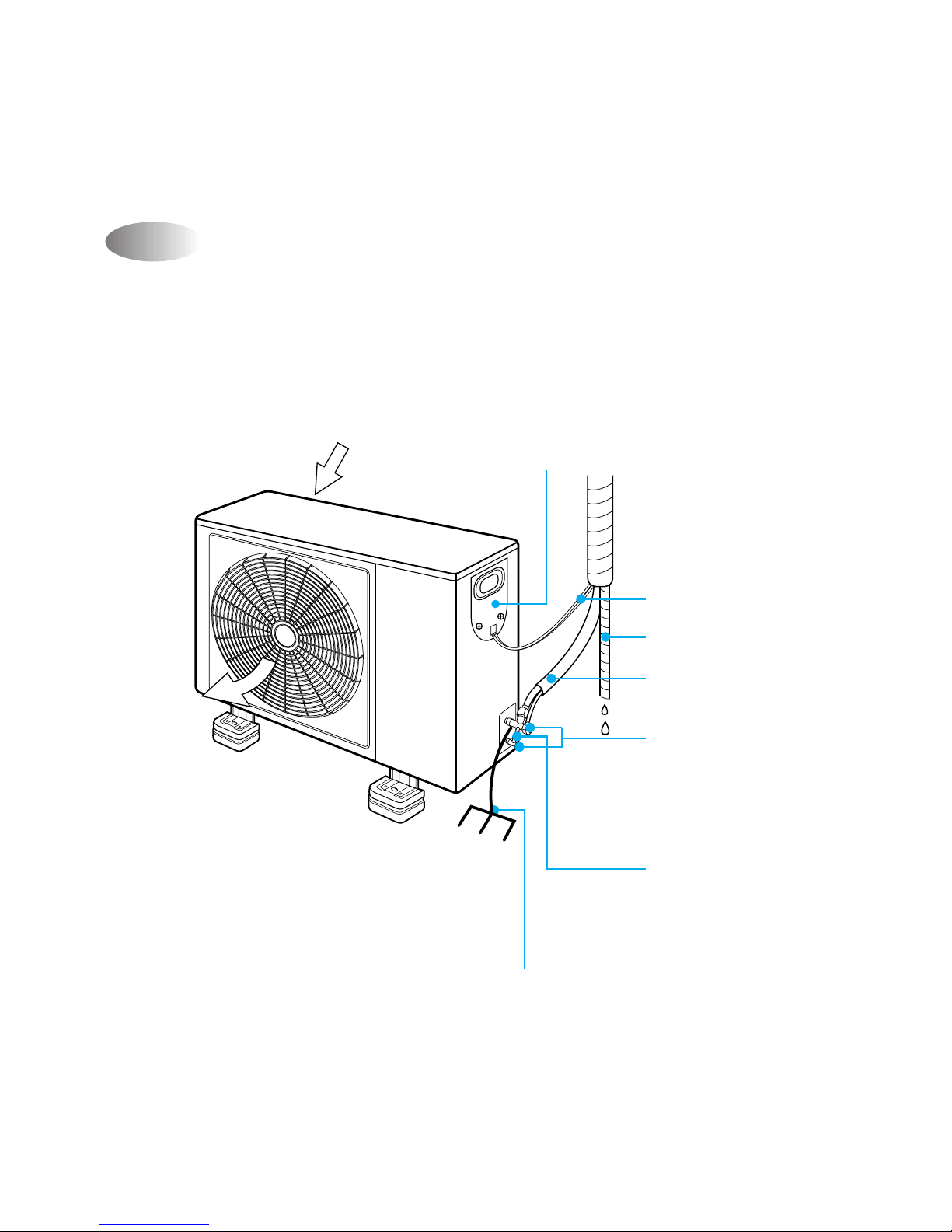

Outdoor Unit

◆

DSA-151L/DSA-181L/DSB-181L

AIR IN

AIR OUT

AC Cover

Remove cover to

access the AC

connection from

this unit to the

indoor unit.

Connection Wire

Drain Hose

COPPER TUBING

Service Valves

The indoor and outdoor

units are connected by

copper tubes which are

connected here.

Grounding Screw

Ground the unit here.

Ground Wire

(Not supplied)

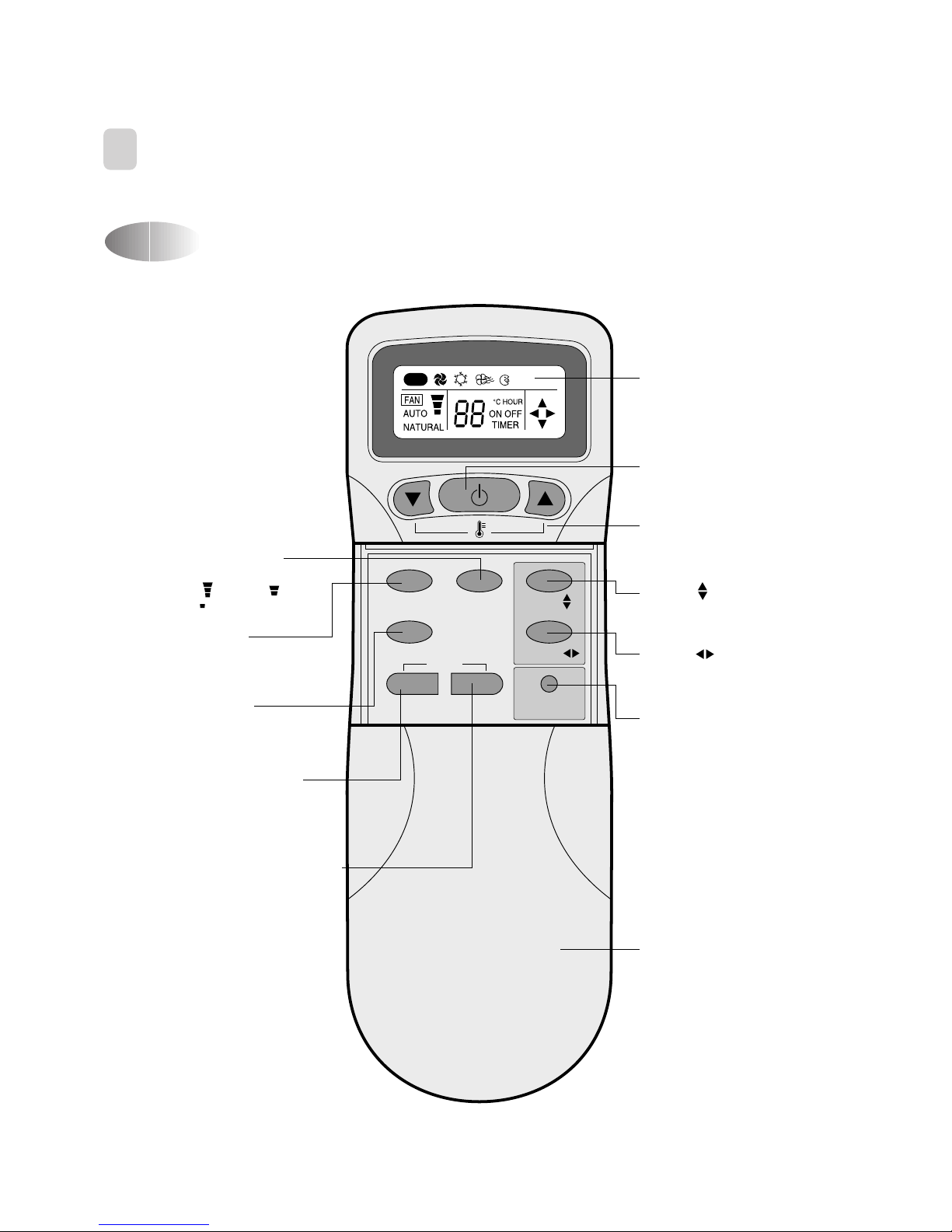

Name of Each Button

REMOTE CONTROLLER

◆

DSA-151L/DSA-181L/DSB-181L

MODE

SLEEP

ON/OFF

TIMER

ENTER/

CANCEL

FAN SPEED

TURBO/MILD

Display

Displays information

pertaining to unit.

TURBO/MILD

Press to be colder the unit.

TIMER ENTER/CANCEL Button

Press to enter a timer setting or

to cancel timer setting

TIMER ON/OFF Button

Press to set the unit of or on time.

(0.5, 1, 1.5, 2, 2.5, 3, 4, 5, 6, 8,

10, 12, 16, 20, 24hr)

MODE Button

Press to cycle through the modes

(Auto/Quick/Cooling/Fan/Dry)

SLEEP Button

Press to set the unit for

the sleep mode.

FAN DIR. Button

Press to select up/down

direction for fan.

FAN DIR. Button

Press to select left/right

direction for fan.

ON/OFF Button

Press to turn the unit

on or off.

TEMPERATURE Buttons

Press to raise or lower

the desired temperature.

FAN SPEED Button

Press to select the fan speed

(High " ", Middle " ",

Low " ").

COVER

Slide down to access most

of the remote buttons.

Slide down further to

access the battery

compartment.

AUTO

FAN DIR.

Replacing Batteries

REMOTE CONTROLLER DISPLAY

Open the cover after

pressing the arrow

direction and pulling out.

Put the drycell by

direction. Close the cover after

pushing into arrow

direction.

123

◆

DSA-151L/DSA-181L/DSB-181L

MODE Indicators (Auto/Quick/Cool/Fan/Dehumidifier)

Lights to indicate the mode selected.

TIMER Indicators (Include sleep)

Lights to indicate the timer function mode.

TEMPERATURE & RESERVATION TIME lndicators

Lights to indicate the temperature or time.

FAN DIRECTION Indicators

Lights to indicate the

fan direction.

NATURAL Indicator

Lights to indicate the

speeds simulating a breeze.

FAN Indicators

Lights to indicate

the fan speed.

AUTO

+–
